Windows Update Metro Shortcut - Create in Windows 8
This tutorial will show how to create or download a modern Windows Update shortcut that opens directly to Windows Update in the PC settings screen in Windows 8.1.
Published by Brink
#1
ByLine
How to Create a Modern Windows Update Shortcut in Windows 8.1
Synopsis
This tutorial will show how to create or download a modern Windows Update shortcut that opens directly to Windows Update in the PC settings screen in Windows 8.1.
How to Create a Modern "Windows Update" Shortcut in Windows 8.1

information   Information
This tutorial will show how to create or download a modern "Windows Update" shortcut that opens directly to Windows Update in the PC settings screen in Windows 8.1 and Windows RT 8.1.


EXAMPLE: "Windows Update" in PC settings





OPTION ONE
To Download a Modern "Windows Update" Shortcut

1. Click/tap on the Download button below to download the ZIP file below.​
Modern_Windows_Update_Shortcut.zip
download
2. Save the .zip file to your desktop.​
3. Open the .zip file and extract (drag and drop) the shortcut to your desktop.​
4. Unblock the extracted shortcut.​
5. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​
6. When finished, you can delete the downloaded .zip file if you like.​





OPTION TWO
To Manually Create a Modern "Windows Update" Shortcut

1. Right click or press and hold on an empty area of your desktop, and click/tap on New and Shortcut.​

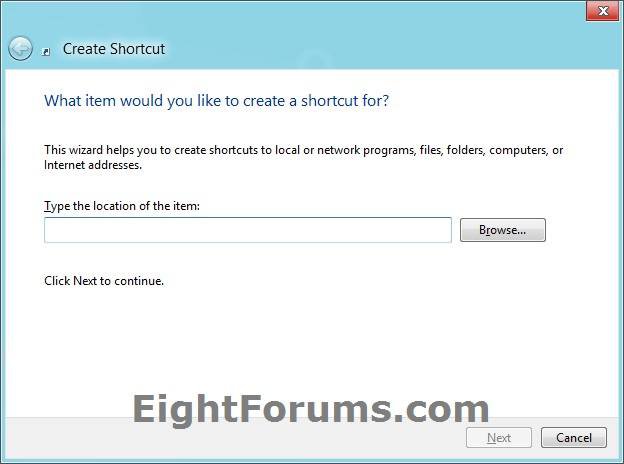

2. Copy and paste the command below into the location area, and click/tap on the Next button. (see screenshot below)​
Note   Note
If you are not have a US English Windows 8.1 installed, then you will need to change the en-US folder name in the command below for the folder name with your language instead for this to work.
Note   Note


Code:
%windir%\explorer.exe %localappdata%\Packages\windows.immersivecontrolpanel_cw5n1h2txyewy\LocalState\Indexed\Settings\[B][COLOR=#FF0000]en-US[/COLOR][/B]\AAA_SystemSettings_Update_Actions.settingcontent-ms

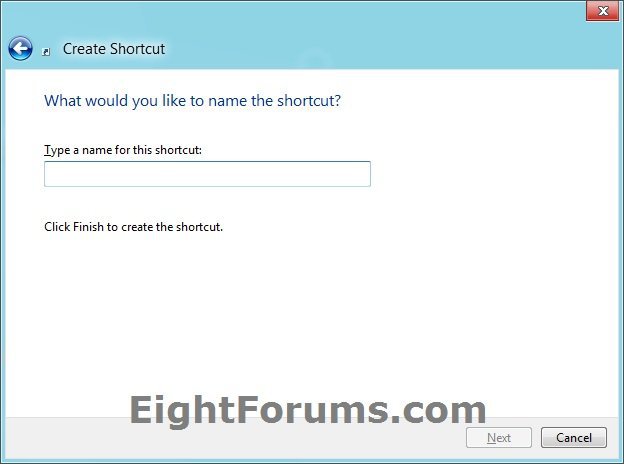

3. Type Windows Update for the name, and click/tap on the Finish button. (see screenshot below)​
NOTE: You can name this shortcut anything you would like though.
4. Right click or swipe down on the new Windows Update shortcut, and click/tap on Properties.​

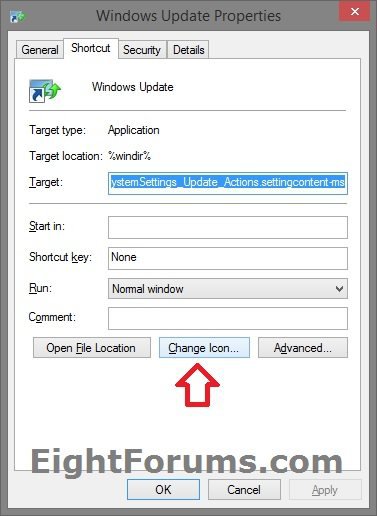

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)​

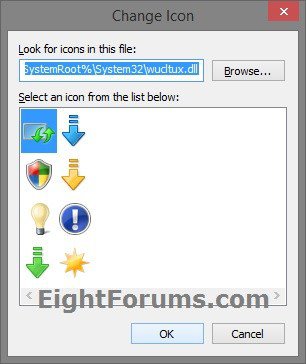

6. In the line under "Look for icons in this file", copy and paste the location below, and press Enter. (see screenshot below)​
%SystemRoot%\System32\wucltux.dll
7. Select the icon highlighted in blue above, and click/tap on OK. (see screenshot above)​
NOTE: You can use any icon that you would like instead though.​
8. Click/tap on OK. (see screenshot below step 5)​
9. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​

That's it,
Shawn



Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

gayxq

New Member
Posts
36
#2
Why my Windows 8.1 will not run the shortcut?

I downloaded or created the shortcut, but double-click it on Desktop, it only open the Document window, and I have tested all the threads that create the modern shortcuts in this forum, all the shortcuts will not work, they only open a Document window, why?

Regards
Steven


My Computer

System One

  • OS
    Windows 7

Brink

Administrator
Administrator
mvp
Posts
22,920
#3
Hello Steven,

Do you have Windows 8.1 installed, and not Windows 8?


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
22,920
#5
They work just fine for me.

Do you have an English version of Windows 8.1 installed? If not, then that may be why it's not working for you.

Do you have a en-US folder in the hidden folder below?

Code:
%UserProfile%\AppData\Local\Packages\windows.immersivecontrolpanel_cw5n1h2txyewy\LocalState\Indexed\Settings


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

gayxq

New Member
Posts
36
#6
Yes, i am the non-English verson, i will test it, thank you.

Have you the shortcut for all languages version?

Last edited by a moderator:

My Computer

System One

  • OS
    Windows 7

Brink

Administrator
Administrator
mvp
Posts
22,920
#7
Sorry, but no. I only have English.

What folder do you have in the hidden folder above instead of en-US?

Inside that folder, look for a "AAA_SystemSettings_Update_Actions.settingcontent-ms" shortcut.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
22,920
#9
You're most welcome. Glad it could help. :)
