Picture Password - Enable or Disable in Windows 8
This tutorial will show you how to allow or prevent all users from being able to set up or sign-in with a picture password in Windows 8.
Published by Brink
#1
Category:
ByLine
How to Enable or Disable Picture Password Sign-in in Windows 8 and 8.1
Synopsis
This tutorial will show you how to allow or prevent all users from being able to set up or sign-in with a picture password in Windows 8.
How to Enable or Disable Picture Password Sign-in in Windows 8 and 8.1


information   Information
This tutorial will show you how to allow or prevent all users from being able to set up or sign-in with a picture password in Windows 8.

If you disable picture password sign-in, then users that had already created a picture password will now have to sign in to Windows 8 with their normal user account password instead.

You must be signed in as an administrator to be able to do the steps in this tutorial.

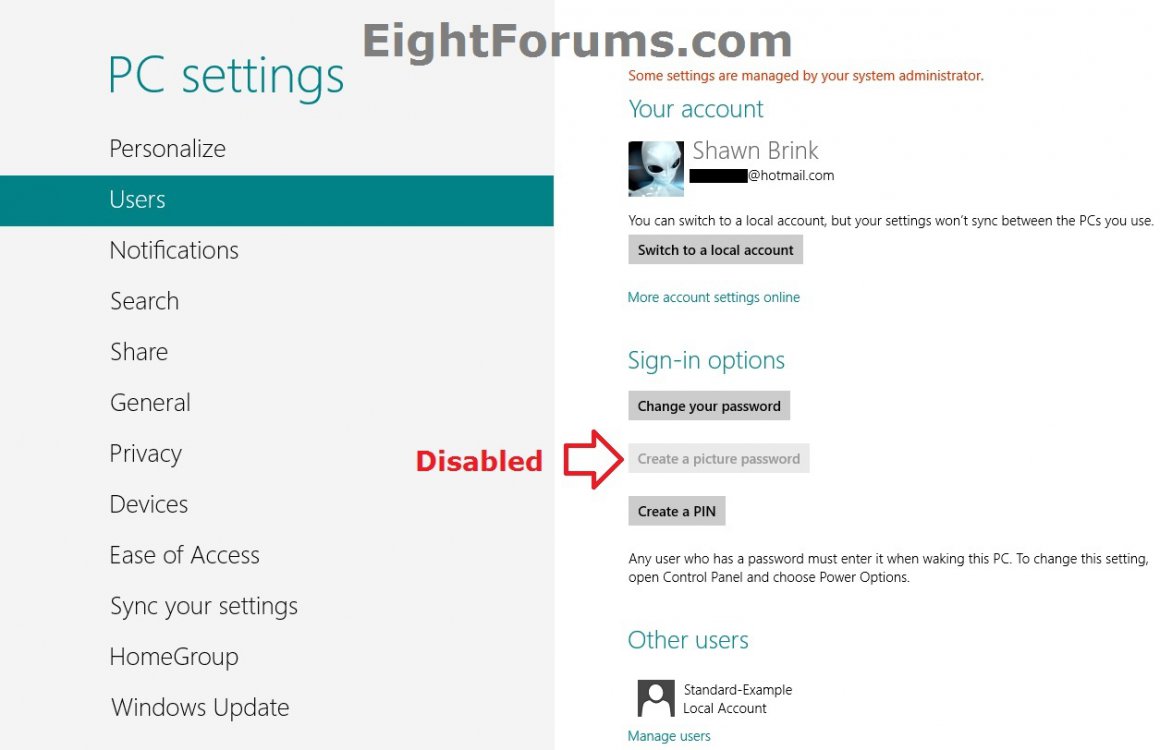

EXAMPLE: Picture Password Disabled in PC settings







OPTION ONE
Enable or Disable Picture Password Sign-in using a REG File Download


Note   Note
The .reg files below are for the registry key and value below.

HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\System

BlockDomainPicturePassword DWORD

0 = Enable Picture Password
1 = Disable Picture Password


1. Do step 2 or 3 below for what you would like to do.​
2. To Enable Picture Password Sign-in
NOTE: This is the default setting.​
A) Click/tap on the Download button below to download the file below.​
Enable_Picture-Password_Sign-in.reg
download
B) Go to step 4 below.​
3. To Disable Picture Password Sign-in
A) Click/tap on the Download button below to download the file below.​
Disable_Picture-Password_Sign-in.reg
download
B) Go to step 4 below.​
4. Save the .reg file to the desktop.​
5. Double click/tap on the downloaded .reg file to Merge it.​
6. If prompted, click/tap on Run, Yes (UAC), Yes, and OK.​
7. When finished, you can delete the downloaded .reg file if you like.​







OPTION TWO
Enable or Disable Picture Password Sign-in in Local Group Policy Editor

NOTE: This option for using group policy is only available in the Windows 8 Pro and Windows 8 Enterprise editions.
1. From the Start screen, start typing gpedit.msc and press Enter when finished.​
NOTE: You could also press Windows+R to open the Run dialog, type gpedit.msc, and click/tap on OK.​
2. If prompted by UAC, then click on Yes.​

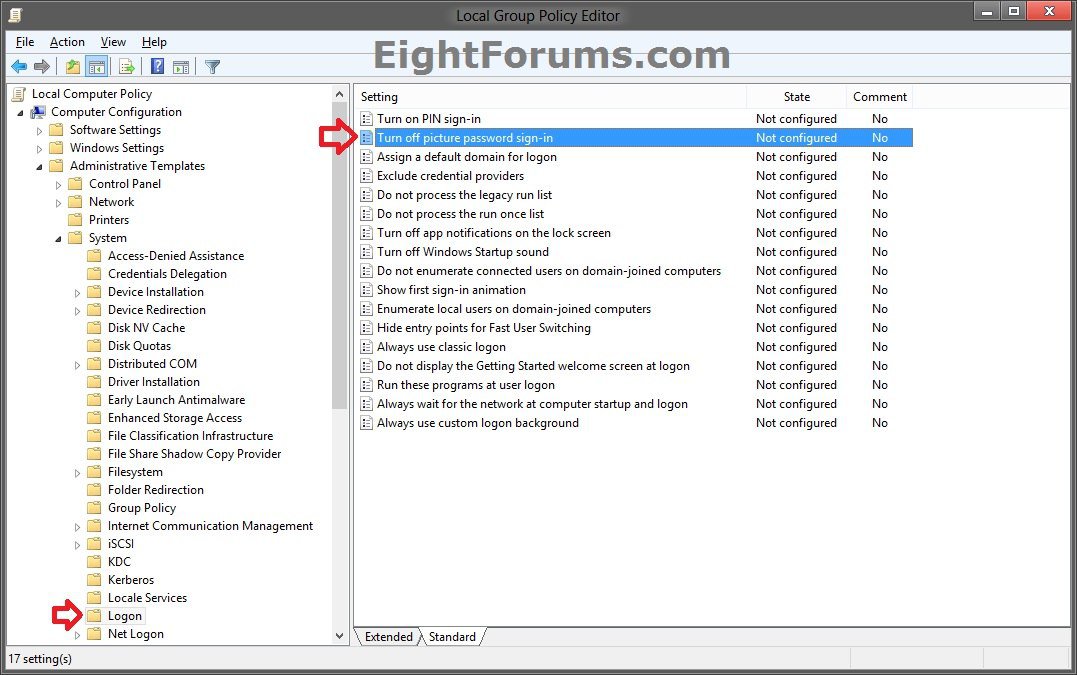

3. In the left pane, click/tap on to expand Computer Configuration, Administrative Templates, System, and open Logon. (see screenshot below)​
4. In the right pane of Logon, double click/tap on Turn off picture password sign-in. (see screenshot above)​
5. Do step 6 or 7 below for what you would like to do.​
6. To Enable Picture Password Sign-in

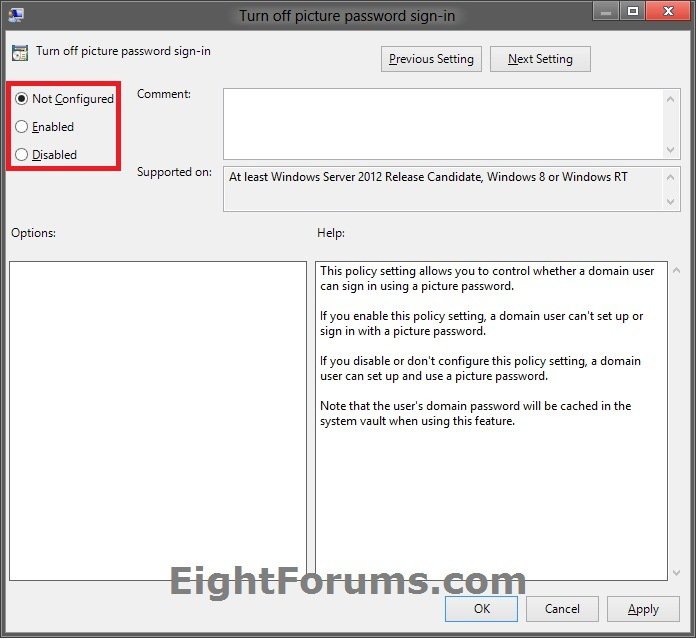

A) Select (dot) Disabled or Not Configured, click/tap on OK, and go to step 8 below. (see screenshot below step 7A)​
NOTE: Not Configured is the default setting.​
7. To Disable Picture Password Sign-in
A) Select (dot) Enabled, click/tap on OK, and go to step 8 below. (see screenshot below)​
8. You can now close the Local Group Policy Editor window if you like.​

That's it,
Shawn
