How to Create a "Device Installation Settings" Shortcut in Windows 7 and Windows 8


information   Information
Device Installation Settings allow you to change if Windows is to automatically or not download recommended drivers and detailed information and icons for your devices through Windows Update.

This tutorial will show you how to create or download a Device Installation Settings shortcut that you can use anywhere in Windows 7 and Windows 8.

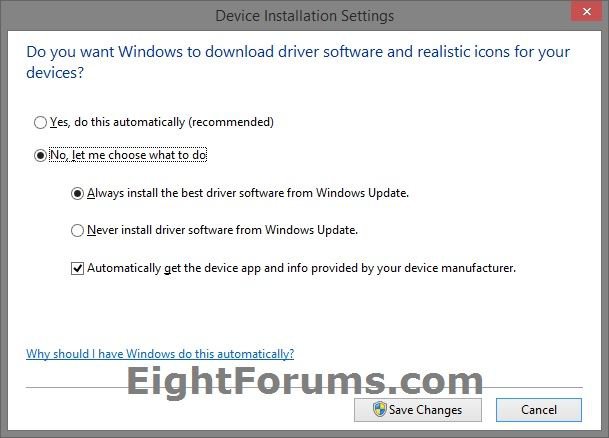

EXAMPLE: "Device Installation Settings" Shortcut

Name:  Device_Installation_Settings.jpg
Views: 3509
Size:  62.8 KB





Device Installation Settings Shortcut - Create in Windows OPTION ONE Device Installation Settings Shortcut - Create in Windows
To Download a "Device Installation Settings" Shortcut

1. Click/tap on the Download button below to download the .zip file below.

download

2. Save the .zip file to your desktop.

3. Open the .zip file, and extract (drag and drop) the shortcut to your desktop.

4. Unblock the shortcut.

5. In Windows 7, you can now Pin to Taskbar or Pin to Start Menu, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

6. In Windows 8, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch,assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

7. When finished, you can delete the downloaded .zip file if you like.








Device Installation Settings Shortcut - Create in Windows OPTION TWO Device Installation Settings Shortcut - Create in Windows
To Manually Create a "Device Installation Settings" Shortcut

1. Right click or press and hold on an empty area on your desktop, and click/tap on New and Shortcut.

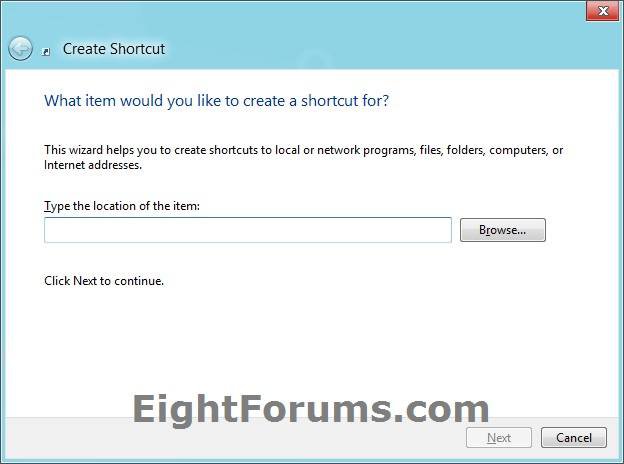

2. Copy and paste the location below into the location area, and click/tap on Next. (see screenshot below)

Code:
%SystemRoot%\System32\rundll32.exe %SystemRoot%\System32\newdev.dll,DeviceInternetSettingUi 2
Name:  shortcut-1.jpg
Views: 3532
Size:  50.9 KB

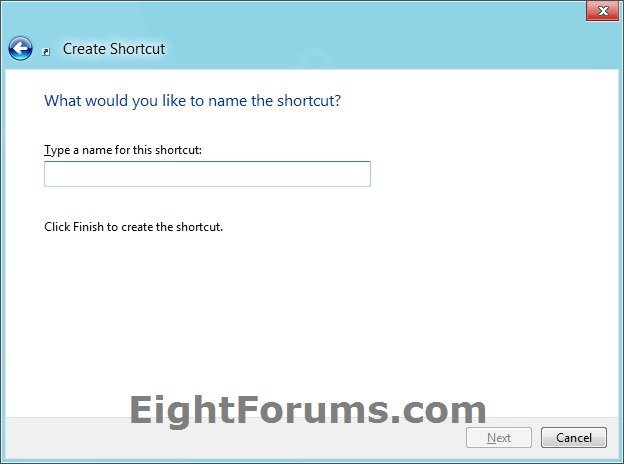

3. Type Device Installation Settings for the name, and click/tap on the Finish button. (see screenshot below)
NOTE: You could name this shortcut anything you would like though.

Name:  shortcut-2.jpg
Views: 3419
Size:  38.8 KB

4. Right click or press and hold on the new Device Installation Settings shortcut, and click/tap on Properties.

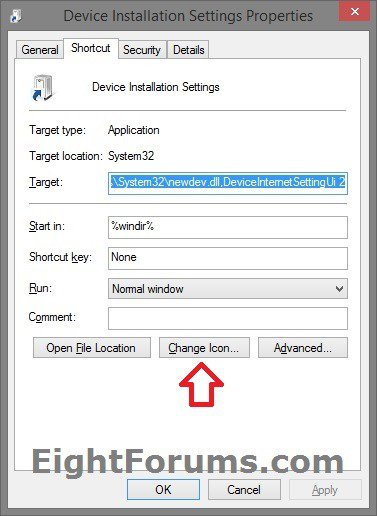

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)

Name:  shortcut-3.jpg
Views: 3447
Size:  53.5 KB

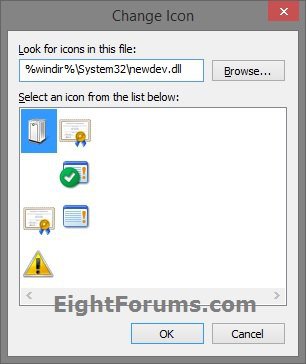

6. In the line under "Look for icons in this file", copy and paste the location below, and press Enter. (see screenshot below)

%windir%\System32\newdev.dll


Name:  shortcut-4.jpg
Views: 3423
Size:  29.1 KB

7. Select the icon highlighted in blue above, and click/tap on OK. (see screenshot above)
NOTE: You could use any icon that you would like instead though.

8. Click/tap on OK. (see screenshot below step 5)

9. In Windows 7, you can now Pin to Taskbar or Pin to Start Menu, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

10. In Windows 8, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.


That's it,
Shawn
