Where to find out what advanced Wifi options mean???


Posts
884
#1

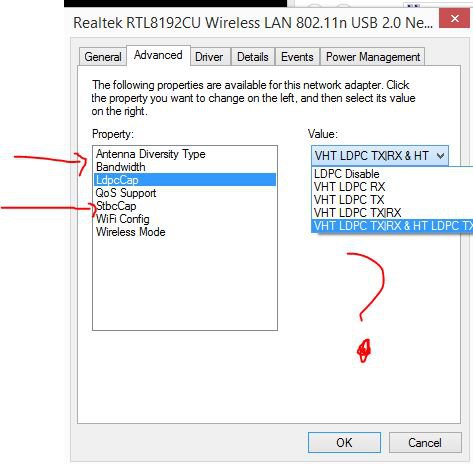

Who knows or where can I find out what these mean? For example, QoS I turned off as I want my youtube videos loading as fast as possible and not slowed down etc..

but the others I've never heard of..

is there a website that explains all advanced settings on wifi cards?



My Computer

System One

  • OS
    windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model Number
    Lenovo g750
    CPU
    i5
    Motherboard
    Some Chinese Crap..
    Memory
    8
    Graphics Card(s)
    Nvidia 755
    Antivirus
    Windows Defender

theveterans

New Member
Member
Posts
179
#2
LDPC is called low density parity check code and is a correction error which I would turn off for a faster connection. VHT & HT are called Very High Througput and High Throughput which refers to PHY rates of 6.5 Mbps to 433 Mbps per stream. TX is called Transmit stream and RX is called Receiving stream.

Stbc is called Space Time Block Coding which is part of 802.11n and 802.11ac MIMO. I would leave the settings disabled for the "StbcCap"

To be honest, I would never touch the settings with WiFi except for "Wireless Mode".


My Computer

System One

  • OS
    Windows 8.1 Pro x64 with Media Center
    Computer type
    Tablet
    System Manufacturer/Model Number
    Surface Pro 3
    CPU
    Core i5 4300U @ 1.9 GHz
    Motherboard
    Surface Pro 3
    Memory
    8092 MB DDR3-L 1.35 V SDRAM @ 1600 MHz
    Graphics Card(s)
    Intel HD 4400 @ 200 MHz
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Built-in 3:2 display
    Screen Resolution
    2160 x 1440
    Hard Drives
    256 GB SSD + 128 GB micro SD
    PSU
    36 Watt power brick
    Cooling
    Active
    Keyboard
    On Screen Keyboard
    Mouse
    Surface pen
    Internet Speed
    300 / 20 TWC
    Browser
    IE 11 Metro, IE 11 Desktop
    Antivirus
    Windows Defender
Posts
884
#3
Thank you theVeterens,

I do understand to not touch the advanced settings.. but in this case, this is literally a $10 wifi card from amazon. It's not even my internal wifi card.. This is just a secondary USB wifi card I was trying out for hotspots etc..

I'm totally ok if I screw up this wifi card settings.. and yes, thank you for telling me which ones I should set for faster performance.. It's only a usb 2.0 wifi card as well..

but anyway I'd love to know what the advanced settings are and you helped with this specific wifi card.

I have a whole more bunch of settings for my actual internal wifi card.. but yeah, that's probably not worth messing with.

anyway, thanks.
