Right, I did that. But initially the VMDK is only 2.56MB. And how is the Macrium recovery program going to work with that. Plus I have not figured out how to mount that VMDK so that Macrium recovery can see it. Disk Management cannot deal with it. Is there a way to define a true VHD in VMware.
The disk is dynamic so the 2.56MB is only important (statistically) for the host. The VM will see the total (virtual) capacity, way larger of course.

It will work on it.

Why do you need static disks because dynamic ones grow in size rather than use the whole size from begin.
I understand all that. My problem is different. I need a VHD big enough to be able to dump a Macrium image of the Win8 system into it. Hopefully I will be able to mount it. Then I can resize it.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Hopachi

Polyhedric Stellation
VIP Member
Pro User
Orbiting the Moon

Posts
2,975
#42
Hello Wolfgang,

You should be able to select "Store virtual disk as a single file" and set the maximum size you want at step 7 for that. If you did, then the size will grow up to your max.
That's right Shawn.

What he needs here, if I see that correctly, is a static fully allocated disk.

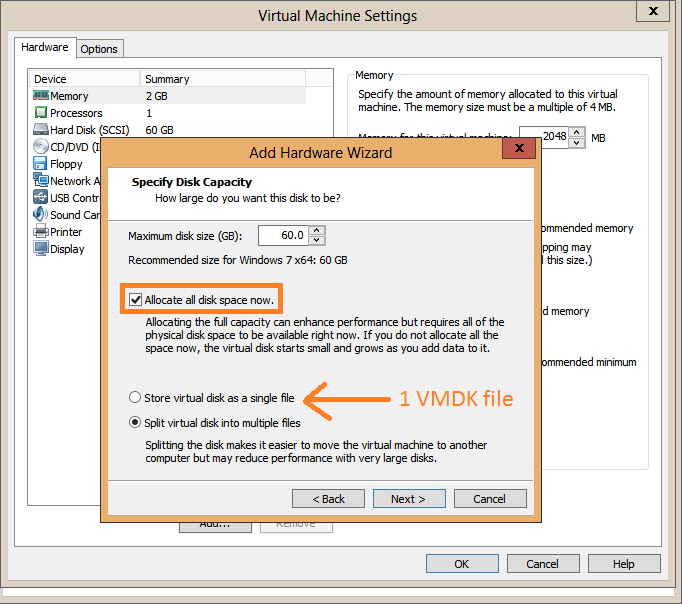

In Player version 5 we are able to do that: (adding a new disk)


This can be done in a new VM or existing VM and the disk can be used anywhere.

I prefer the default (dynamic) method because it doesn't use all space when not needed.
But the static one has better performance so it seems. :)

Regards
Hopachi


My Computer

System One

  • OS
    Windows 10 x64
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy DV6 7250
    CPU
    Intel i7-3630QM
    Motherboard
    HP, Intel HM77 Express Chipset
    Memory
    16GB
    Graphics Card(s)
    Intel HD4000 + Nvidia Geforce 630M
    Sound Card
    IDT HD Audio
    Monitor(s) Displays
    15.6' built-in + Samsung S22D300 + 17.3' LG Phillips
    Screen Resolution
    multiple resolutions
    Hard Drives
    Samsung SSD 250GB + Hitachi HDD 750GB
    PSU
    120W adapter
    Case
    small
    Cooling
    laptop cooling pad
    Keyboard
    Backlit built-in + big one in USB
    Mouse
    SteelSeries Sensei
    Internet Speed
    slow and steady
    Browser
    Chromium, Pale Moon, Firefox Developer Edition
    Antivirus
    Windows Defender
    Other Info
    That's basically it.

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#43
I wonder whether the performance on a SSD really makes a difference.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Brink

Administrator
Administrator
mvp
Posts
23,916
#44
Oh yes. A VM runs much smoother and quicker when running from a SSD vs HDD.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#45
I got stuck with the mounting. Nothing works. The VMware Mount program does not install. The other program only mounts itty bitty files unless you pay them $49. I tried a few other avenues and got stuck every time. I guess I am at the end of the line.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Brink

Administrator
Administrator
mvp
Posts
23,916
#46
That stinks. :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#47
I am trying now to convert the .vmdk to a .vhd. But it is not easy to find a suitable program either. All I have checked out for now had strings attached.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Hopachi

Polyhedric Stellation
VIP Member
Pro User
Orbiting the Moon

Posts
2,975
#48
I am trying now to convert the .vmdk to a .vhd. But it is not easy to find a suitable program either. All I have checked out for now had strings attached.
That's indeed annoying. That's one of the reasons why Player is free.

Sorry to bring this back but VirtualBox is able to convert that.

You can use CloneVDIGUI as a GUI program instead of the command line VBoxManage.
-add the VMDK and "change image format to" VHD then you can leave it to fixed.

------------------
The performance between the fixed and dynamic is insignificant on SSD's and I recommend dynamic since the SSD's have smaller sizes that HDD's.


My Computer

System One

  • OS
    Windows 10 x64
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy DV6 7250
    CPU
    Intel i7-3630QM
    Motherboard
    HP, Intel HM77 Express Chipset
    Memory
    16GB
    Graphics Card(s)
    Intel HD4000 + Nvidia Geforce 630M
    Sound Card
    IDT HD Audio
    Monitor(s) Displays
    15.6' built-in + Samsung S22D300 + 17.3' LG Phillips
    Screen Resolution
    multiple resolutions
    Hard Drives
    Samsung SSD 250GB + Hitachi HDD 750GB
    PSU
    120W adapter
    Case
    small
    Cooling
    laptop cooling pad
    Keyboard
    Backlit built-in + big one in USB
    Mouse
    SteelSeries Sensei
    Internet Speed
    slow and steady
    Browser
    Chromium, Pale Moon, Firefox Developer Edition
    Antivirus
    Windows Defender
    Other Info
    That's basically it.

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#49
I managed to convert the .vmdk to .vhd with a program that I found on a French site (helps when you can read French, LOL). I then mounted the .vhd and restored the image of my Windows 8 installation into it. Now I have to reconvert the .vhd to .vmdk with the same program. That did not work at first on my Windows 7. I think it is because that part of the program needs Java which I have uninstalled on my Windows 7 (for the well known reasons) . I will now try it on my Windows 8 where I still have Java. Then I can fumble the .vmdk back into my test virtual machine. Hopefully that will work.

If you want to download the program, here is the site. Use the second link (the torrent) for downloading. The program itself is in English.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Hopachi

Polyhedric Stellation
VIP Member
Pro User
Orbiting the Moon

Posts
2,975
#50
I managed to convert the .vmdk to .vhd with a program that I found on a French site (helps when you can read French, LOL). I then mounted the .vhd and restored the image of my Windows 8 installation into it. Now I have to reconvert the .vhd to .vmdk with the same program. That did not work at first on my Windows 7. I think it is because that part of the program needs Java which I have uninstalled on my Windows 7 (for the well known reasons) . I will now try it on my Windows 8 where I still have Java. Then I can fumble the .vmdk back into my test virtual machine. Hopefully that will work.

If you want to download the program, here is the site. Use the second link (the torrent) for downloading. The program itself is in English.
Good to know other options exist. Thanks for the link. :)


My Computer

System One

  • OS
    Windows 10 x64
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy DV6 7250
    CPU
    Intel i7-3630QM
    Motherboard
    HP, Intel HM77 Express Chipset
    Memory
    16GB
    Graphics Card(s)
    Intel HD4000 + Nvidia Geforce 630M
    Sound Card
    IDT HD Audio
    Monitor(s) Displays
    15.6' built-in + Samsung S22D300 + 17.3' LG Phillips
    Screen Resolution
    multiple resolutions
    Hard Drives
    Samsung SSD 250GB + Hitachi HDD 750GB
    PSU
    120W adapter
    Case
    small
    Cooling
    laptop cooling pad
    Keyboard
    Backlit built-in + big one in USB
    Mouse
    SteelSeries Sensei
    Internet Speed
    slow and steady
    Browser
    Chromium, Pale Moon, Firefox Developer Edition
    Antivirus
    Windows Defender
    Other Info
    That's basically it.

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#51
You are welcome. Right now I reconvert the .vhd to .vmdk on my Windows 8. This time it works. It was apparently the Java problem on my Windows 7.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#52
@ Shawn, I noticed that VMware does not seem to recognize eSata. When I turn my eSata disk on, it goes into Windows 7 and not into the active Winndows 8 guest. Maybe that's worth mentioning somewhere. I still have to test whether USB3 works as specified.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#53
Holy macro, I should have thought about this earlier. After mucking around with images, VNDKs, VHDs and alike for 2 days in order to find a path to carry my VMware Windows 8 to Germany, I was very disappointed that nothing worked (but I learned some in the process).

Now it was time to regroup. I copied the VMware folder to an external USB3 attached SSD and opened that with the VMware control panel. It noticed immediately that this was a moved folder and did some configuration adjustments automatically. Then it opened my Windows 8 as usual and went merrily along. I was even impressed with the performance from the external Mushkin.

Now the big question is whether that will also work on another system. Over the weekend I will set it up on my laptop and see whether it will also do the adjustments. Then there is still the question whether I do not run into activation problems - especially when I set it up in Germany with a different IP address. So there is still 'du pain sur la planche' - as the French would say - that reads:'work to be done', in Argot which is a French slang.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

kado897

Active Member
VIP Member
Power User
Watford

Posts
466
#54
I should have thought of that Wolfgang. I moved my VMs to another disk recently.


My Computer

System One

  • OS
    Windows 7 x64 SP1 Home Premium/Win 8.1 in VBox
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Hewlett-Packard/G62 Notebook
    CPU
    Intel(R) Core(TM) i3 CPU M 330 @ 2.13GHz
    Motherboard
    Hewlett-Packard 1425
    Memory
    8 GB DDR3
    Graphics Card(s)
    Intel(R) HD Graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Builtin
    Screen Resolution
    1366 x 768 x 32 bits (4294967296 colors) @ 60 Hz
    Hard Drives
    250 GB SATA Hard Disk Drive 7200 rpm
    2TB Seagate GoFlex USB 2 Drive
    1TB Iomega Prestige USB 2 Drive
    1.5TB Iomega Prestige USB 2 Drive (Samsung)
    1TB Iomega NAS.
    Mouse
    Microsoft Bluetooth Notebook Mouse 5000
    Internet Speed
    20Mb/sec

Hopachi

Polyhedric Stellation
VIP Member
Pro User
Orbiting the Moon

Posts
2,975
#55
I noticed that VMware does not seem to recognize eSata. When I turn my eSata disk on, it goes into Windows 7 and not into the active Windows 8 guest. Maybe that's worth mentioning somewhere. I still have to test whether USB3 works as specified.
Virtually only SCSI and IDE are supported no SATA but only SAS (Serial SCSI) and have better reliability performance than SATA and IDE.

It should be the same with eSATA: not supported as virtual connector.

However all our external SATAs (real disks, not in a VM) are supported if you "add external drive" (advanced) in the VM settings by disk. I didn't tested this with an eSATA here (don't have any).

USB3.0 works very well in VMware. :)

-----Just a tip-----
Increasing performance in older VM's: switch from IDE to SCSI:
If you have some older VMs with OSes like 2000, XP and XP x64, Server 2003 and you need SCSI or SAS drivers (sometimes they are not included) then you'll have to search for them on the LSI's site, the main SCSI manufacturer.

LSI drivers XP + Server 2003

For a new OS you normally hit F6 during install with a vmware driver floppy:
VMware: Installing Windows XP on ESX using LSI Logic driver « Beheer

Otherwise you install with the default IDE and then, on the VM desktop you add a SCSI controller (hot-swapable) which will install a driver and here (if unavailable) you can specify the driver from the first link.

I've moved for the default IDE and it works a bit faster. I was inspired by Win7's performance which already uses SCSI and SAS in a VM by default.
-----end of tip-----

Good luck with the VM moves.


My Computer

System One

  • OS
    Windows 10 x64
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy DV6 7250
    CPU
    Intel i7-3630QM
    Motherboard
    HP, Intel HM77 Express Chipset
    Memory
    16GB
    Graphics Card(s)
    Intel HD4000 + Nvidia Geforce 630M
    Sound Card
    IDT HD Audio
    Monitor(s) Displays
    15.6' built-in + Samsung S22D300 + 17.3' LG Phillips
    Screen Resolution
    multiple resolutions
    Hard Drives
    Samsung SSD 250GB + Hitachi HDD 750GB
    PSU
    120W adapter
    Case
    small
    Cooling
    laptop cooling pad
    Keyboard
    Backlit built-in + big one in USB
    Mouse
    SteelSeries Sensei
    Internet Speed
    slow and steady
    Browser
    Chromium, Pale Moon, Firefox Developer Edition
    Antivirus
    Windows Defender
    Other Info
    That's basically it.

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#57
Now I have a strange problem.

Originally I assigned only 25GB for the VMware partition (single file, dynamic). Then I extended it to 40GB. That shows 40GB now in the VMware settings. But in Windows 8 on VMware it shows only the 25GB - both in Computer and in Disk Management of Windows 8. What am I missing.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

kado897

Active Member
VIP Member
Power User
Watford

Posts
466
#58
I think Windows must be remembering the size of the disk. I had the same problem with a Linux disk that I extended. I never did get to the bottom of it.


My Computer

System One

  • OS
    Windows 7 x64 SP1 Home Premium/Win 8.1 in VBox
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Hewlett-Packard/G62 Notebook
    CPU
    Intel(R) Core(TM) i3 CPU M 330 @ 2.13GHz
    Motherboard
    Hewlett-Packard 1425
    Memory
    8 GB DDR3
    Graphics Card(s)
    Intel(R) HD Graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Builtin
    Screen Resolution
    1366 x 768 x 32 bits (4294967296 colors) @ 60 Hz
    Hard Drives
    250 GB SATA Hard Disk Drive 7200 rpm
    2TB Seagate GoFlex USB 2 Drive
    1TB Iomega Prestige USB 2 Drive
    1.5TB Iomega Prestige USB 2 Drive (Samsung)
    1TB Iomega NAS.
    Mouse
    Microsoft Bluetooth Notebook Mouse 5000
    Internet Speed
    20Mb/sec

Brink

Administrator
Administrator
mvp
Posts
23,916
#59
Now I have a strange problem.

Originally I assigned only 25GB for the VMware partition (single file, dynamic). Then I extended it to 40GB. That shows 40GB now in the VMware settings. But in Windows 8 on VMware it shows only the 25GB - both in Computer and in Disk Management of Windows 8. What am I missing.
Odd that is doesn't show as unallocated space in the VM's Disk Management.

VMware Player - Expand Virtual Machine Hard Disk - Windows 7 Forums


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#60
Thanks Shawn. I did exactly like the tutorial says. But at first, the unallocated space did not show up. Now it does and I extended the partition.

Maybe it had to do with the fact that I run from the USB port. Maybe that's what the 2 minute adjustment was that VMware was doing when I shut down first time. See here (post 964): Show us your SSD performance 2 - Page 97 - Windows 7 Forums


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Users Who Are Viewing This Thread (Users: 0, Guests: 1)
