User Profiles - Relocate to another Partition or Disk


Volturnus

New Member
Posts
5
Hello Kari!

I followed this tutorial a while ago, when I installed windows 8 and again when I upgraded to 8.1

Meanwhile I upgraded my SSD, and its more than big enough to not be requiring this method anymore.

I was wondering wether we can expect problems upgrading (or after upgrading) to windows 10, or will windows simply reverse the changes automatically, and move it all back from (currently D:) the second drive, to its main drive?

Many thanks!

Volturnus


My Computer

System One

  • OS
    Windows 8 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Self assembly
    CPU
    Intel i5 3570K @4.20Ghz
    Motherboard
    Gigabyte GA-Z77X-UD3H
    Memory
    2X8GB Corsair Vengeance 1600mhz
    Graphics Card(s)
    ASUS GTX780-DC2OC-3GD5
    Hard Drives
    Samsung 830 SSD + 2x2TB Western Digital RED (NAS) with 64gb crucial mSATA cache
    PSU
    Corsair HX850
    Case
    Corsair Carbide 500R (Black)
    Cooling
    Noctua NH-D14

Cheech

New Member
Posts
18
Hello Kari:

Thank you for posting this process however, I do have a question or two.

I recently purchase a custom built computer and the vendor will provide 5 years of technical support. This PC has an SSD drive and a 1Tbyte regular drive. Windows 8.1 was installed solely on the SSD drive and I asked the vendor's tech support people to either to do a fresh install of 8.1 following the defined process or alternately to follow the process for moving the User et al folders that you also described. They refused, stating this would create an non-standard installation and thereby they would not support it (or would even do it).

My question is, "is their position justifiable?". Is there any reason that making such a change would cause problems if either process was followed and create a situation that could not be supported. I guess what I am asking here is that if I went to Microsoft to get support and they were able to recognize this particular configuration of Windows, would they support it or give me the same answer?

Thank you for all you do.

Frank

Update 1.

After reading through about 20 some odd pages of this thread I am realizing how far over my head I am. Fortunately my system is comparatively simple as it is new (no data files exist at this time) and whatever programs I have installed can easily be removed and re-installed. However, for the question I posted I need to qualify it, following @Kari's explicit warnings and recommendation, the only folder to be relocated off the SSD are the Profile folders (\Users and its subfolders, et al).

[DEL]Now that I understand a bit more of this process the next question I have is; is it possible to change the default drive letter ("C:" in my case) that is used when installing software (C:\Program Files ...(x86)) to my non-SSD drive letter assuming that I have created the same folders on it? I realize that I can Browse to them manually but it would make it more "idiot proof".[/DEL]

Update 2

I struck out the above question because after reading the entire thread it appears to me that my question was really just another way of attempting to relocate the program files folders which is a no-no, even though I would not have really moved the program files folders.

After reading the entire thread I get the impression that MS would not categorize this configuration as being non-supported and in fact it was developed by MS for some earlier release and has since been "cloned/enhanced" to support other Windows versions by @Kari. I now suspect that my vendor's tech support people are not comfortable making these changes and have taken the simple way out.

I would like to get a more positive confirmation that MS does not have a problem with this process and change thereby allowing me to go back and challenge their tech support people. Wile I now believe I can follow Kari's well described instructions I really want their people to do it so that I do not void my 5 year tech support.

Last edited:

My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User

My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Cheech

New Member
Posts
18
Thank you Kari, I did read it and I am convinced that MS would not have a problem supporting a system (if asked, which I shutter at ever thinking I need to do) that was customized using this method. Clearly this is a customization using tools and the process provided by MS that will not effect the operations of Windows.

Now to convince my vendor so that he will do it or if not, allow me to do it while still honoring his support agreement.

Please allow me some other questions.

1. In one of the posts (may need to find it again) someone had applied a registry fix which it appeared that you "blessed". I don't recall the exact circumstances of the registry change but would like to know is it something that I should do as part of the process?

2. After reading through this entire thread I acknowledge that you have spent an inordinate amount of time (and commend you for doing so) debugging what turns out to have been user problems caused by either/and, 1. not following the process/instructions, 2. doing something that you have specifically advised against or clearly stated that it would not work, must not do, ..., or 3. there were errors in the answer file (syntax, location, ...).

In the event that I am informed by my vendor that he will continue to provide support for my system as long as I do the work and demonstrate that my system still functions after the fact, I would like to avoid making a mistake(s) that necessitate my requesting your assistance. Given that I am only slightly younger than Methuselah and somewhat prone to making errors I would like to ask your permission to submit to you for review/verification, 1. my current configuration, 2, what I want to do, 3. how I will go about doing it, and last but not least, 4. the necessary answer file, and do so before I undertake this process.

My hope is should you agree to do such review it will allow for an early detection of potential problems thereby avoiding harder to fix problems that require my time to fix or do rework and more importantly, yours to do whatever trouble shooting necessary to find the problem. There is nothing more than I would like but to be able to report back to you that "Everything worked perfectly, thank you".


My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
In the event that I am informed by my vendor that he will continue to provide support for my system as long as I do the work and demonstrate that my system still functions after the fact, I would like to avoid making a mistake(s) that necessitate my requesting your assistance. Given that I am only slightly younger than Methuselah and somewhat prone to making errors I would like to ask your permission to submit to you for review/verification, 1. my current configuration, 2, what I want to do, 3. how I will go about doing it, and last but not least, 4. the necessary answer file, and do so before I undertake this process.

My hope is should you agree to do such review it will allow for an early detection of potential problems thereby avoiding harder to fix problems that require my time to fix or do rework and more importantly, yours to do whatever trouble shooting necessary to find the problem. There is nothing more than I would like but to be able to report back to you that "Everything worked perfectly, thank you".
I am not too young myself and feeling even older due too many ex-wives although they all claim it to be due passionate love for single malt and cigars in addition to general laziness :)

I like the systematic approach of yours. I am happy if I can assist in any way. Just post your requests and answer files etc. here, I will do my best to tell you what I think of them.

Although written to Windows 7, you might be interested in these threads on our sister site the Seven Forums as they apply to Windows 8, too:


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Cheech

New Member
Posts
18
I am not too young myself and feeling even older due too many ex-wives although they all claim it to be due passionate love for single malt and cigars in addition to general laziness
Been there, done that.


I like the systematic approach of yours.
After over 40 years in IT (on hardware that has now been designated as "dinosaurs" and software that is obsolete, archaic, crude, ...) I have learned something, albeit now mostly out of self-preservation as the years went by. It seems that most of what I could keep in my head and be confident on what I was doing , has now disappeared and uncertainty has crept in (that's an understatement, it is now upright and running).

So much for my blather.



Concerning the status with my vendor, thanks to the information you and others have provided in this thread I have disarmed their approach to solving this by the more simple but not permanent process of renaming and relocating provided under the folder's properties function. I have also sent the link to this site and the process is now being reviewed by their tech manager and should have their answer by Monday. Here's hoping.

Now for a technical question that might be a bit off-topic but still related. Please keep in mind that I have zero experience with Win 8 as my other systems are Win 7 and XP ( even as a kid I liked dinosaurs) and things are different although not necessarily better.

When I received my latest PC there was one local id (no pwd) on it. Rather than create a new one, and not thinking about the future need to move the User profiles off of my SSD, I chose to rename the one that was there. That seems to be mostly ok however, doing it in that manner did not rename the subfolder under the Users Folder (still on my C: drive) and no subfolder with the new name was created under the Users folder.

Right clicking on that folder to bring up the context menu shows that there is no rename option, so at this point it appears there is a disconnect between the renamed Userid and the Users folder associated with it. This may or may not cause a problem with moving the profiles off the SSD, but regardless I would like to have it resolved.

Might you have a suggestion(s) on how the best way to go about this would be appreciated?

Last edited:

My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
Might you have a suggestion(s) on how the best way to go about this would be appreciated?
When a new user account is created in Windows, it's user profile folder is created in the main profile folder Users, by default located on root of the C: drive. For system integrity and functionality this folder name will remain named as it was at the moment of its creation and the name of it will not be changed even when the username assigned to that account is changed. This applies both to the initial user account created when Windows is installed and all subsequently created future user accounts.

An example: If I install Windows on a new PC and initially create my user account naming it Kari, that's my Windows username and the name of my user profile folder. If I later on change my Windows username to AnAngryOldMan, my username will from that moment on be AnAngryOldMan but my data will still be stored in my user profile folder Kari. Again, some time later I decide to change my username to LazyGeek, my user profile remains located in Users\Kari.

Basically this means that if you are not satisfied with the name of your user profile folder, the best thing to do is to create a new user account with admin rights, sign in to your old user account and copy your personal data from its user profile folder to an external location, sign out from the old account, sign in to new account, restore the personal data from the external backup to corresponding folders under the new user profile folder, and finally remove the old user account.

The extra step in above method, to copy the data from old user to an external location and from there to the new user solves permission issues occurring occasionally when the data is copied directly from the old user profile to new user profile.

Another method is told in this tutorial at the Seven Forums: User Profile Folder - Change User Account Folder Name - Windows 7 Help Forums

Kari


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Cheech

New Member
Posts
18
Thanks Kari.

From the sounds of it I do not need to be concerned about fixing this before running the process to the move the profile folders off the SSD, and should I be anal enough to want to make things "pretty" I can do it afterwards.


My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
Yes, exactly. If it's not disturbing you too much to have username A and your data in user profile folder B, there's no rush.


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Cheech

New Member
Posts
18
Nothing I'll lose sleep over.


My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Cheech

New Member
Posts
18
Hi Kari:

Well, after all this time the vendor's tech support finally got back to me and they will not do the process. However, if I do it they will still honor my 5 year support agreement, which is what I was most concerned about. So I will undertake it myself following your instructions. With that I've documented my configuration, the process I intend to do, and the modified XML file for your review.

Configuration

1. 6-way Intel processors
2. SSD 232GB - C; drive
3. HD 1 TB (formatted) -D: drive
4. DVD RD E: drive
5. Windows 8.1 Pro with update. Installed clean. I have the media and license key.

Process
0. Backup existing system
1. Start from step 1.2. getting to the Command prompt is different but accessible
a. enter command to start Sysprep tool as shown, system is rebooted to Audit mode
2. after system reboots (in Metro mode, whatever that is) click the "Desktop" icon which b rings
up a window that allows me to closet (cancel) the Sysprep tool
3. do Step 2.1 , update .xml file (completed)
4. Save updated .xml file on root of D: drive (with an .xml extension)
5. Do step 2.2.1 (or 2.2.2)
a. insert windows 8.1 distribution DVD or media (might want to include this step in your write up for existing installation)
b. go to command prompt
c. stop media player
d. CD to Sysprep folder
e. start the sysprep program pointing to the .xml file stored on the D: drive
6. Step 2.2.3, Sysprep working message will appear, and when complete will reboot in Audit mode
7. Step 2.3, exit audit mode and reboot. Check setting for (OOBE) and Reboot in Sysprep tool window. Click OK.
8. Step 3; insert Product Key, create new user id (temporary) After Windows starts up check new location for profile
folders and delete temporary user id

Modified .XML file

<?xml version="1.0" encoding="utf-8"?>
<unattend xmlns="urn:schemas-microsoft-com:unattend">
<settings pass="oobeSystem">
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<FolderLocations>
<ProfilesDirectory>d:\Users</ProfilesDirectory>
</FolderLocations>
</component>
</settings>
<cpi:eek:fflineImage cpi:source="wim:E:/sources/install.wim#windows 8.1 Pro" xmlns:cpi="urn:schemas-microsoft-com:cpi" />
</unattend>


Also, if I recall correctly someplace in this thread someone had made an additional modification to the registry which you thought was a good idea. Should I do that too, and if so might you know the post number where it can be found?

Please let me know if any changes are required. Thanks again for your assistance.

Cheech


My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
...
5. Do step 2.2.1 (or 2.2.2)
...
Steps 2.2.2 and 2.2.3 were accidentally left in the tutorial and now removed. They were for those members installing Windows 8 Preview which is no longer available

...
a. insert windows 8.1 distribution DVD or media (might want to include this step in your write up for existing installation)
...
About the need to tell that the Windows installation media must be present, it might be the fact that English is not my native language but I have difficulties to find any better way to tell it than the way I have already done it. Be it that you do this on a new clean install (1.1) or an existing Windows installation (1.2), the note I have already in the tutorial in step 2.1 (which you have to follow whichever method (1.1 or 1.2) you are using) is the best I can do:
Note   Note
(Change the drive letter in wim:F: to that of your CD/DVD drive, USB stick or virtual drive containing your Windows 8 installation media (DVD/ISO). Notice that installation media has to be available to system when running sysprep. Change Windows version accordingly, Windows 8, Windows 8 Pro, Windows 8.1 or Windows 8.1 Pro.


Also, if I recall correctly someplace in this thread someone had made an additional modification to the registry which you thought was a good idea. Should I do that too, and if so might you know the post number where it can be found?
I do not recall nor do I know any such registry modifications needed, used or being recommended together with this process.

And now it's time to reveal a secret and tell a short story ;):

You can change the switch /audit in the Sysprep command to switch /oobe which makes Windows to go straight to OOBE boot after the sysprep instead of returning to Audit Mode. There's no need to return to Audit Mode after the Sysprep.

There's a reason for why that extra unnecessary but harmless step was included in these instructions. When this tutorial was made, I already had a similar for Windows 7 written a few years earlier. As it happens that tutorial was copied almost immediately to another tech site which claimed it being written by someone there although they were stupid enough to use my screenshots, too, so it was easy to prove.

Just to be mean and able to point out if someone had copied my tutorial text and pasted it as their own in the future, I started to add one unnecessary step and a few typos in my tutorials. That worked: I was later on able to prove in one case that a tutorial on another site was a copy & paste from my tutorial because it had the exactly same unnecessary step and the same typos.

I do not apologize this because the additional step is totally harmless and the typos I've made on purpose in my tutorials are never in command or script examples.

Kari

Last edited:

My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Cheech

New Member
Posts
18
it might be the fact that English is not my native language
Nothing wrong with your English Kari, my attempts at a second language should be half as good, in fact maybe my English should be as good. I put that in there because I recalled reading somewhere that the distribution media was needed even when the process was performed on an installed version of Windows. I hadn't yet studied the XML file and your comments which clearly defined where it was needed. I forgot to remove the comment before pasting the text which I was building (in Word) as I was going along.

do not recall nor do I know any such registry modifications needed, used or being recommended together with this process.
I did find where there were some registry changes discussed but it appears that it was for a unique problem a member was having and a registry modification was necessary.

that tutorial was copied almost immediately to another tech site which claimed it being written by someone there
I'm sorry to hear that others have posted your work on other sites and taking the credit for the work that you have done. I guess some people have a problem giving credit where credit is due. Glad you caught them.

One other question if you will. I have a couple of programs installed already and am wondering if it best that they be uninstalled first? The reason I ask is while browsing through the thread I noticed that a member had a problem uninstalling a particular software product (AutoCad??) and had to put the user profile folders back on the C: drive to get the uninstall to work. I don't know if it was just this software or is a more general problem? One program I am using uninstalls previous versions and installs as if it were a first time install every time there is a maintenance release. Some components are installed under the users folders.

I presume the above problem occurs because there are registry entries that point to the original drive. Assuming I am correct, does the sysprep process resolve whatever registry entries that are effected by moving the user folders off of the C: drive?

Thank you,

Cheech


My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
I presume the above problem occurs because there are registry entries that point to the original drive. Assuming I am correct, does the sysprep process resolve whatever registry entries that are effected by moving the user folders off of the C: drive?
I can only answer that based on my own experience and tell I have never had any install or uninstall issues on a sysprepped system.

This sysprep process changes the the values of all user profile related Windows environment variables. When done you can test these variables, type the following example variables in File Explorer address bar or the Run dialog (Win + R), hit Enter and see where they bring you (let's assume you relocated Users to D: drive):
  • Type %userprofile% + Enter
    • You will be taken to D:\Users\Your_UserProfile_Folder
  • Type %appdata% + Enter
    • You will be taken to D:\Users\Your_UserProfile_Folder\AppData\Roaming
  • Type %localappdata% + Enter
    • You will be taken to D:\Users\Your_UserProfile_Folder\AppData\Local
  • Type %temp% + Enter
    • You will be taken to D:\Users\Your_UserProfile_Folder\AppData\Local\Temp
A correctly coded application installer does not use absolute paths, it uses environment variables instead. It installs the program itself in %programfiles%, not in C:\Program Files, its DLL and other system files in %windir% instead of C:\Windows, application data for all users in %programdata% and your personal application data in %appdata% and / or %localappdata%.

Again when this application is uninstalled it checks the locations of its various elements using these variables, not absolute paths.


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Cheech

New Member
Posts
18
Hi Kari:

Thought I would take the opportunity to give you an update. The entire process worked flawlessly, with the exception of one very minor exception which was easily resolved. I thought I should give you the feedback in the event that what I experienced was common enough for you to update the process documentation.

What I am referring to is the command for starting the sysprep program. The documentation has the command with an uppercase "S". That did not work on my system (8.1 Professional) but when replaced with a lower case, as the program is shown in the directory, it worked fine. I'm reasonably sure that was the only correction as I did a command line edit and that was all that I changed. I didn't think these commands were case sensitive as I don't use them too often, but apparently they are (at least now).

Thank you for providing a very well documented procedure, you save me a lot of grief.

On another but similar topic. As this is a new system for me, and I have had one in a number of years (with an SSD which I haven;t had before). I would like to start off reevaluating one of the things that I done in the past. Generally when I've installed software I let it default to the standard Program Files folder but occasionally place it on the root drive. If I continue the practice of letting it default this software will be placed on the SSD drive using what might become precious space. I could install software under the root of the D: drive or under an "Installed Programs" folder under the root of the D: drive.

My thoughts right now are to install frequently used software on the SSSD and less used software on the D: drive. Are you aware of any other considerations that I should factor into my decision as to where software should best be installed?

Thank you,

Cheech


My Computer

System One

  • OS
    8.1, 7, XP
    System Manufacturer/Model
    Custom
    CPU
    i7-5820K
    Memory
    32GB
    Graphics Card(s)
    (2) GT 610
    Sound Card
    NVIDIA
    Monitor(s) Displays
    Acer G246HL
    Screen Resolution
    1920x1080
    Internet Speed
    100Mb
    Browser
    FF, Chrome

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User

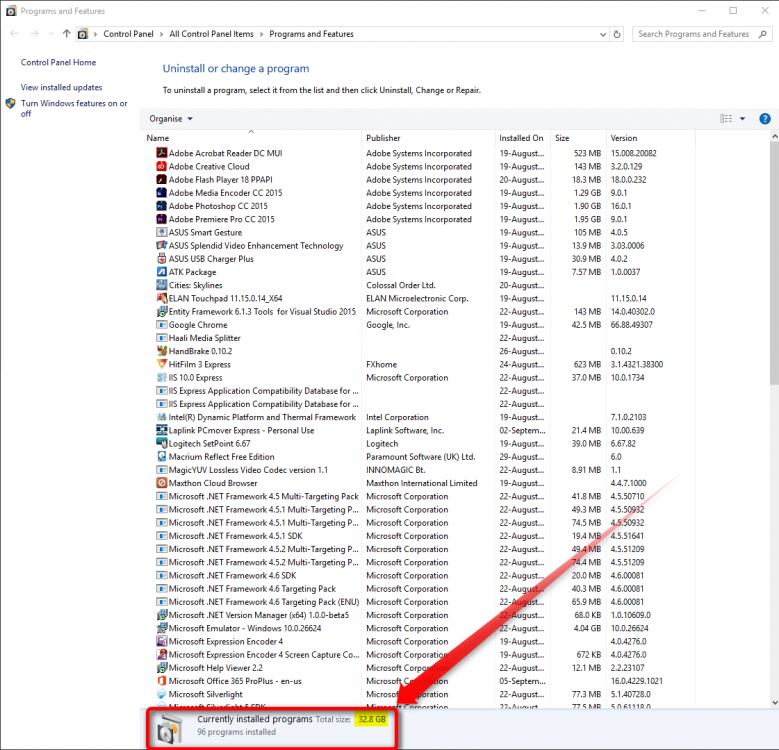

Commands are not case sensitive, in your case there has to be another reason why the command did first not work. You can type the sysprep command as SYSPREP, SysPrep, sysprep, SySpReP or using any other case combination and it's still understood by the system.

Do not install software on root of any drive. If you want to you can create a Programs folder on D: and when installing software, select Custom or Advanced install options depending on software and install everything under the D:\Programs (or whatever you have named the install folder).

Personally, however, I see no reason to do that. You would need an enormous amount of software installed before the space on C: is used, especially when you have relocated the Users folder. My PC as an example: I have installed all the software I need, a lot of video making tools and editors, programming tools, full Office 2016 Pro Plus suite and so on, all on C: drive. Yet the software takes only 32.8 GB:


Last edited:

My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

MatiasPi

New Member
Posts
1
Hi, new here. Is there any way to reverse this? Ever since I did this, the OS is malfunctioning left and right. I can't open any apps, can't change the default browser. I can't open a lot of programs (The error "Class not registered" is shown), and I have to open other programs as Admin to use them. I can't even access some of Windows 8 settings. It's all working like rubbish. Please, I don't want to format.

Thanks.


My Computer

System One

  • OS
    Windows 8.1

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
Hello Matias, welcome to the Eight Forums.

I am sorry about your issues, although I have to say that this process when done correctly does not cause any functionality issues. That being said, the process is easy to revert. Follow the instructions in tutorial starting from the step 1.2, this time when making the answer file change the <ProfilesDirectory> in the answer file to C:\Users (step 2.1).

However, as I suspect that your issues are caused by something else, it might be that you have exactly the same issues even after reverting the process.

Kari


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Medamo

New Member
Posts
1
Kari,
I've used your instructions for years. I referred to them again today to prepare a new system for a Windows 10 Pro install via my original 8.1 home disk and Pro Upgrade key. Thank you for making this task so much easier. And yes, I did confirm that the Windows 10 upgrade honored the User files configurations set up with your instructions on 8.1. Thanks again...


My Computer

System One

  • OS
    Windows 10

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
Kari,
I've used your instructions for years. I referred to them again today to prepare a new system for a Windows 10 Pro install via my original 8.1 home disk and Pro Upgrade key. Thank you for making this task so much easier. And yes, I did confirm that the Windows 10 upgrade honored the User files configurations set up with your instructions on 8.1. Thanks again...
Hi Medamo, welcome to the Eight Forums.

Always nice to get positive feedback. Thank you :)


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Users Who Are Viewing This Thread (Users: 0, Guests: 4)
