System Repair Disc - Create in Windows 8

How to Create a "System Repair Disc" (CD/DVD) in Windows 8


information   Information
This will show you how to create a system repair disc (CD/DVD) in Windows 8 to use to boot to the system recovery options that can be used to help recover Windows 8.

Note   Note
A system repair disc is not the same as OEM factory recovery/restore/repair disc.

A system repair disc cannot be used to install Windows 8.

A created 32-bit system repair disc can only be created in a 32-bit Windows 8, and used to repair a 32-bit Windows 8.

A created 64-bit system repair disc can only be created in a 64-bit Windows 8, and used to repair a 64-bit Windows 8.

warning   Warning
Windows 8.1 no longer supports being able to create a system repair disc CD/DVD using the method in this tutorial.

If you like, you can also boot from your Windows 8.1 installation media or from a created recovery drive (USB) for the system recovery options.

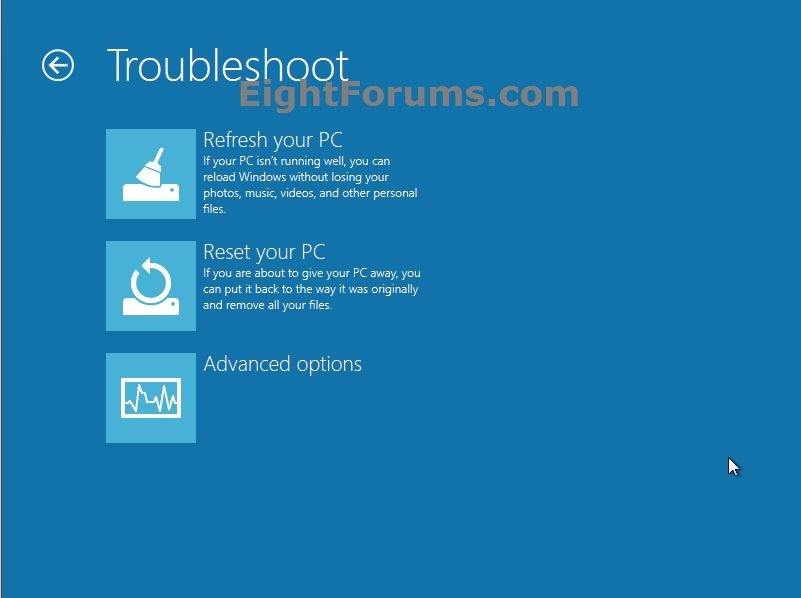

EXAMPLE: System Recovery Options
NOTE:

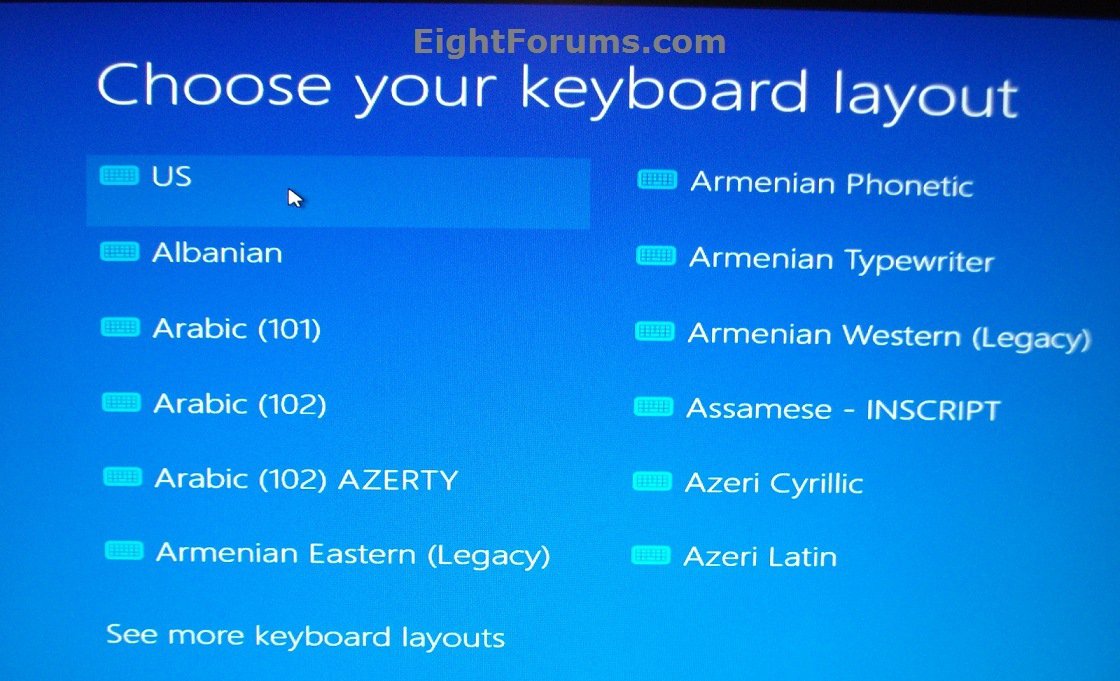

After you boot from the system repair disc, you will need to select your language and keyboard layout (if displayed) for Windows 8, then select Troubleshoot to see the system recovery options.



Here's How:

1. Insert a blank unformatted CD or DVD into your CD/DVD drive, then do either step 2 or 3 below.


2. Press the :winkey: + R keys, type recdisc, press Enter, and go to step 4 below.


3. Open the Control Panel (icons view), and click/tap on the Recovery icon.
NOTE: You must be logged in as an administrator to be able to do this step.
A) Unplug all USB flash drives.​

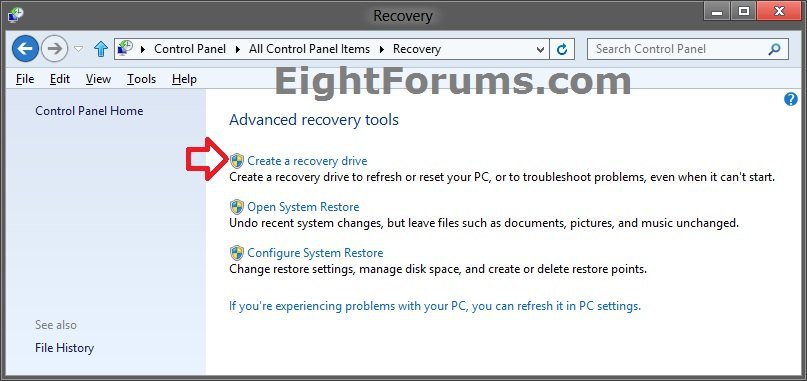

B) Click/tap on the Create a recovery drive link. (see screenshot below)​
C) If prompted by UAC, then click/tap on Yes.​

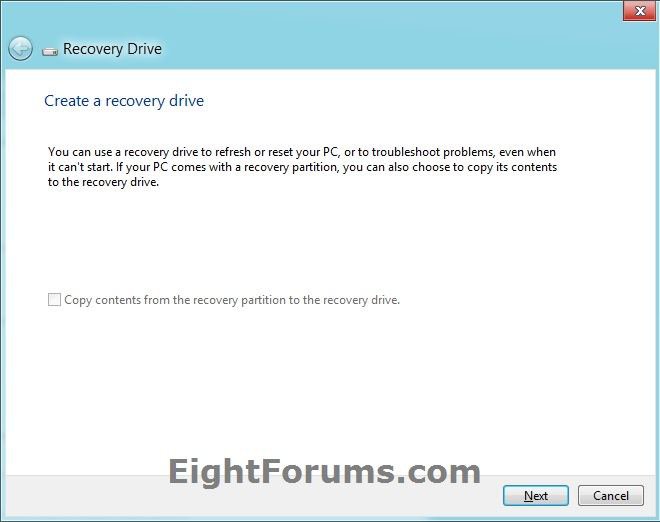

D) Click/tap on Next. (see screenshot below)​

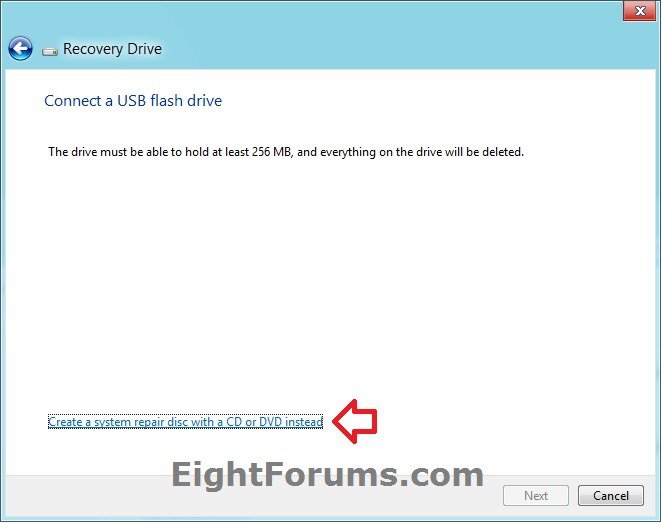

E) Click/tap on the Create a system repair disc with a CD or DVD instead link, and go to step 4 below. (see screenshot below)​
NOTE: You will not see this link if you have a USB flash drive connected. You'll need to either use step 2 or disconnect all USB drives and start over with step 3.​

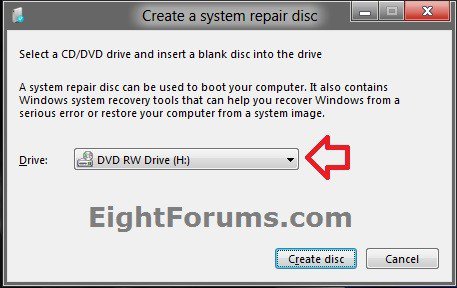

4. Click/tap on Create disc. (see screenshot below)

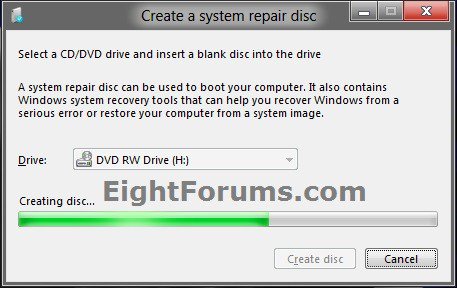

5. The system repair disc will now start to be created. (see screenshot below)

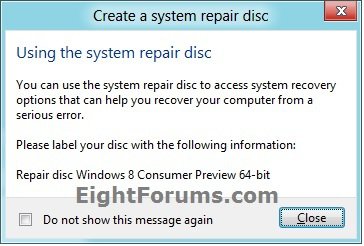

6. When finished, remove your CD/DVD, label it properly for your 32-bit or 64-bit Windows 8 Repair Disc, and click/tap on Close. (see screenshot below)

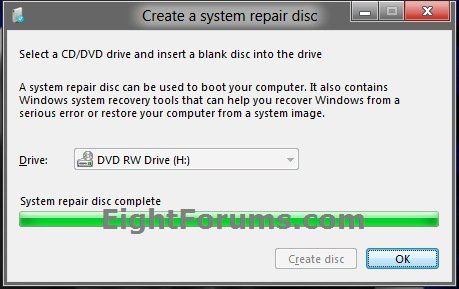

7. Click/tap on OK. (see screenshot below)


8. If you used step 3, then you can now close any remaining opened windows from it.


That's it,
Shawn





Attachments

  • TroubleShoot_Windows_Installation.png
    12.7 KB · Views: 475
Last edited by a moderator:
12.7" SATA Tray Load DVD+/-RW is my optical drive and the dvd is a DVD-R, the error occurs in the very end

Could just be bad DVDs. :(

Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
Problem: "System repair disc could not be created" "the parameter is incorrect. (0x80070057)".


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
Hello rdwray,

Do you have a TrueCrypt volume mounted? If so dismount the volume, and try creating the repair disk again?


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
Don't know what Truecrypt is....


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
Just got a message stating "Some required files are missing...."


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
TrueCrypt is a free program to encrypt with.

Try a sfc /scannow command for the last message. Afterwards, try creating the repair disk again.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
I tried the sfc /scannow just a little bit and it did not find any issues.


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
I did a refresh yesterday...

Will a Windows 7 repair disc work on Win8????


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
I think I am just going to delete this partition, recreate it, format it and reinstall the whole thing from scratch. bummer!!!!!!


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
One more question: If I do a scratch install and "it works", can I create an image and use it for an update on another HD?


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
Yes, you could.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
Good, I have 2 spares, been burned before.


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
Ouch.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
OK, it is working now. All I can say is DON'T UPGRADE USING WIN8.


My Computer

System One

  • OS
    Windows 8 Pro
    System Manufacturer/Model
    Dell Inspiron 1750
    CPU
    Duo Core 2.5 G HZ
Great news. Yeah, I always prefer a clean install.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
Thanks for telling me to create a system repair disk. It just saved my butt.


Thanks Clint


My Computer

System One

  • OS
    Windows 10 Pro 64 bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Dell Studio XPS 9100
    CPU
    intel i7 920 @ 2.67 GHz
    Motherboard
    Dell
    Memory
    24 Gig
    Graphics Card(s)
    ATI Radeon HD 5670
    Sound Card
    Internal
    Monitor(s) Displays
    23" Flat Screen HDMI
    Screen Resolution
    1366 x 768
    Hard Drives
    Samsung EVO 850 250 GB SSD
    2 Seagate internal 1TB
    WD external 3TB USB 3
    WD external 2TB USB 3
    PSU
    550-W
    Case
    Mid
    Cooling
    Fans
    Keyboard
    US USB
    Mouse
    USB
    Internet Speed
    3.84 Mbps Download .44 Mbps Upload
    Browser
    IE11
    Antivirus
    MS Defender
    Other Info
    Liteon DVD wrighter
    Liteon BD drive
    Monoprice Tablet
You're welcome Clint.

Don't forget about creating restore points, backups, and system images as needed. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
Is there a place to download a system repair disk to burn to dvd? I cannot create the system disk because I do not have a recovery partition. This was removed manually after I made my HP recovery disks. I can restore the entire system to factory defaults but all I want to do is re-fix the MBR because I need to get rid of Grub. ( of course Windows loads fine under Secure Boot and UEFI) I had forgotten the the HP recovery disks do not function as repair disks so I forgot to make those also.

I also read that if you have an HP system with preinstalled Windows 8, you will not have the ability to create a system repair disk from Windows as the above shows, only the HP recovery disks. I don't know how true that is because i didn't try it before removing the recovery partition.

Perhaps another option is to get a Windows 8 install disk and use the recovery options in there? ( I do have access to my product key)

Will DaRT 8 (Microsoft Diagnostics and Recovery Toolset) running from a dvd do this? Microsoft DaRT - Diagnostics and Recovery Tools, Repair | TechNet

Last edited:

My Computer

System One

  • OS
    Windows 8 64 bit
    System Manufacturer/Model
    HP Pavillion G7-2251dx
    CPU
    AMD A-8 4500M
    Memory
    8 Gigabytes DDR3 sdram
    Graphics Card(s)
    Discrete ATI Radeon HD 7640G with 2 Gigs
    Sound Card
    IDT Audio
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600x900
    Hard Drives
    500 gig
    Internet Speed
    3.5 mb/sec
Back
Top
