System Image - Create in Windows 8
This tutorial will show you how to create a system image backup in Windows 8 and 8.1 to be able to use to restore the contents of your computer back to the state it was in when the system image was created.
Published by Brink
#1
Category:
ByLine
How to Create a System Image in Windows 8 and 8.1
Synopsis
This tutorial will show you how to create a system image backup in Windows 8 and 8.1 to be able to use to restore the contents of your computer back to the state it was in when the system image was created.
How to Create a System Image in Windows 8 and 8.1

information   Information
A system image is an exact copy of a drive. By default, a system image only includes the drives required for Windows 8 to run, and also Windows 8 and your system settings, programs, and files. You could also select to include any other drive in the system image as well. When you restore your computer from a system image, it's a complete restoration; you can't choose individual items to restore, and all of your current programs, system settings, and files are replaced with the contents of the system image.

This tutorial will show you how to create a system image backup in Windows 8 and 8.1 to be able to use to restore the contents of your computer back to the state it was in when the system image was created if your HDD or computer ever stops working.

You must be signed in as an administrator to be able to create a system image.

Note   Note
System Images are saved in this format:

drive letter:\WindowsImageBackup\computer name\Backup YYYY-MM-DD HHMMSS
For example: If your computer name is Brink-PC, your backup location is on hard drive (network or local) D: , and you backed up on August 29th 2012 at 1:53:41 PM (it will use 24 hour time), then your system image would be located in the folder below.​
D:\WindowsImageBackup\BRINK-PC\Backup 2012-08-29 135341

Tip   Tip
Available Hotfixes for issues:

You cannot create a system backup image in an x86 version of Windows 8 that is running on a UEFI x86-based computer


If you want to keep multiple system image versions on the same drive or partition, then you can use either method below to do so.

METHOD ONE:
This method is usually better if you use a scheduled Windows Backup with an included system image to help keep multiple system images. Personally, I like using METHOD TWO below instead to keep multiple images and avoid having a large amount of restore points.

Change the maximum space used for system images on the drive letter you are saving the Windows Backup to by changing the maximum space used by System Protection for the same drive letter. This is the same setting.

You do not have to have System Protection turned on for the drive letter, but do need to adjust the maximum space to what you like.

The "max usage" size in System Protection does not limit how big a single system image can be. Only the size of the hard drive will limit the size of a single system image. It's only if you want to be able to keep multiple system images using this method that you would need to be sure to increase the "max usage" size in System Protection accordingly. The size of a system image can be quite large since it will include all system drives in the image by default plus any drives you have included.


METHOD TWO:

1. Navigate to the backup location above for where you saved a system image that you want to keep before creating a new system image.

2. Right click, or press and hold, on the WindowsImageBackup folder, and click/tap on Rename.

3. Rename it to something like WindowsImageBackup-Copy-1, press Enter, and click//tap on Yes if prompted by UAC.
NOTE: This way you can just easily change the 1 an the end of the name to 2, 3, 4, etc... for each new system image that you make a copy of.

4. You now have a different system image version that you can leave at this location to be able to keep multiple versions.
NOTE: When you want to restore a system image in a renamed WindowsImageBackup-Copy-1 folder in the future, then you must rename the current WindowsImageBackup folder first, then rename the WindowsImageBackup-Copy-1 folder back to WindowsImageBackup in order to be able to restore it. The WindowsImageBackup folder must be in the root directory of the drive, and not within another folder.

warning   Warning


  • Only the Windows 8 Pro and Windows 8 Enterprise editions can backup to network locations.
  • If you're saving your system images in a network location, you can only keep the most current system image for each computer. If you have an existing system image for a computer and are creating a new one for the same computer, the new system image will overwrite the existing one.
  • You can only include drives formatted with the NTFS file system in a system image.
  • You will not be able to include a partition or drive that you are saving the system image to in a system image.
  • You will not be able to save a system image to any partition or drive that is included in the system image.
  • You cannot restore a 64-bit system image on a 32-bit system.
  • You cannot restore a 64-bit system image with a 32-bit Windows 8 installation DVD/USB or System Repair Disc.
  • You cannot restore a 32-bit system image with a 64-bit Windows 8 installation DVD/USB or System Repair Disc.
  • A system image that was created on a computer using UEFI cannot be restored on a computer using legacy BIOS. It can only be restored on a computer using UEFI.
  • When restoring a system image from a dynamic volume, the drives (disk) on your computer cannot be formatted to match the layout of the drives included in the system image. To have full functionality, select a volume (drive letter) on a basic disk as your save system image to location instead.
  • It is recommend to create a system image on a separate HDD instead of just another partition not included on the same HDD that is included in the system image for the best reliability. CDs or DVDs are just not as reliable.





OPTION ONE
To Create a Windows Backup of Files and Include a System Image


Note   Note
When you use Windows Backup to back up your files, you can also have a system image created each time your files are backed up on demand or on an automatic schedule.

If a system image was created through Windows Backup on an automatic schedule with the Include a System Image of Drives box checked, then you can set Windows to retain as many system images as it has space for on the backup disk or to only keep the most recent system image. If you're saving your system images in a network location, you can only keep the most current system image for each computer.

By default, Windows automatically saves as many system images as it has space for without taking up more than 30 percent of available space on the backup disk. Once the disk starts running out of room, Windows will automatically delete older system images to make room for the new system image.

Note   Note
In Windows 8.1 and Windows RT 8.1, the Windows 7 File Recovery (aka: Windows Backup) feature in this tutorial is no longer available.

If you like, you could use File History instead of Windows Backup, and a custom refresh image instead of System Image. You could also use a 3rd party program like Macrium Reflect or AOMEI Backupper instead.

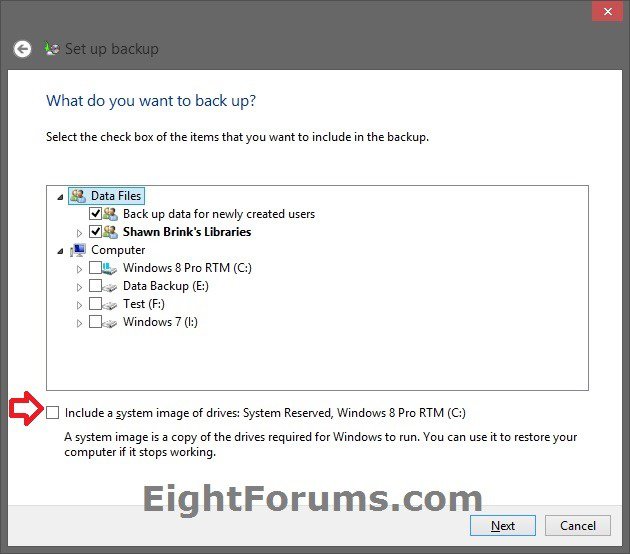

1. While setting up, changing the settings of, or creating a Windows Backup, check the Include a System Image of Drives...... box. (see screenshot below)​
2. Afterwards, you can use Back up now or the schedule to create a Windows Backup including a system image.​






OPTION TWO
To Create a System Image without Windows Backup

NOTE: This option allows you to be able to create a system image on demand without going through Windows Backup in OPTION ONE.
1. Do step 2 or 3 below for what Windows 8 you have.​
2. In Windows 8 and Windows RT, open the Control Panel (icons view), and click/tap on the Windows 7 File Recovery icon.​

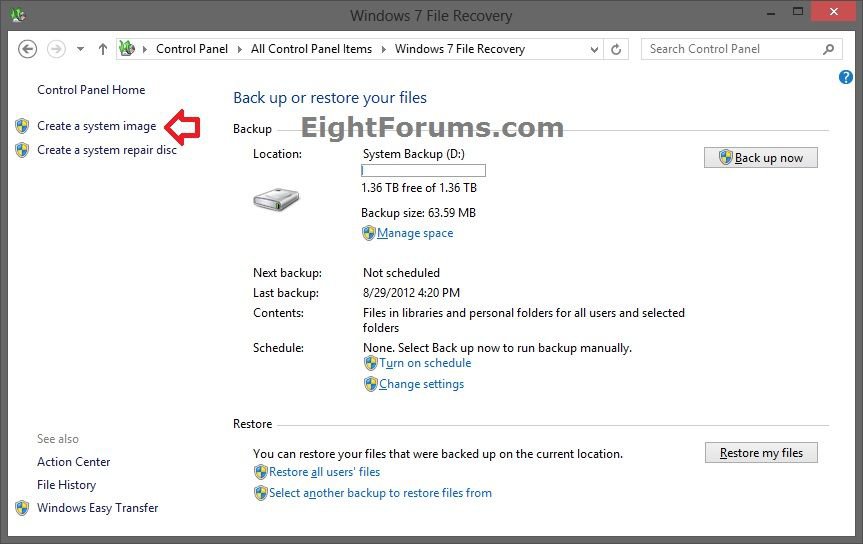

A) In the left pane, click/tap on the Create a system image link, and go to step 4 below. (see screenshot below)​
3. In Windows 8.1 and Windows RT 8.1, open the Control Panel (icons view), and click/tap on the File History icon.​

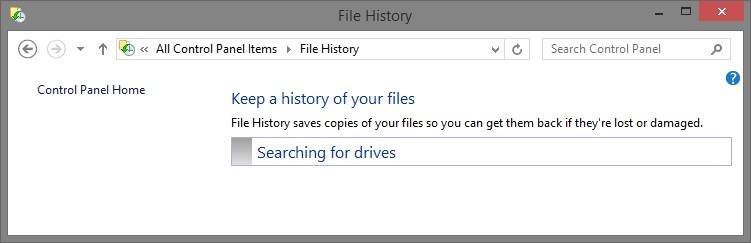

A) File History will do a quick "searching for drives" first. (see screenshot below)​

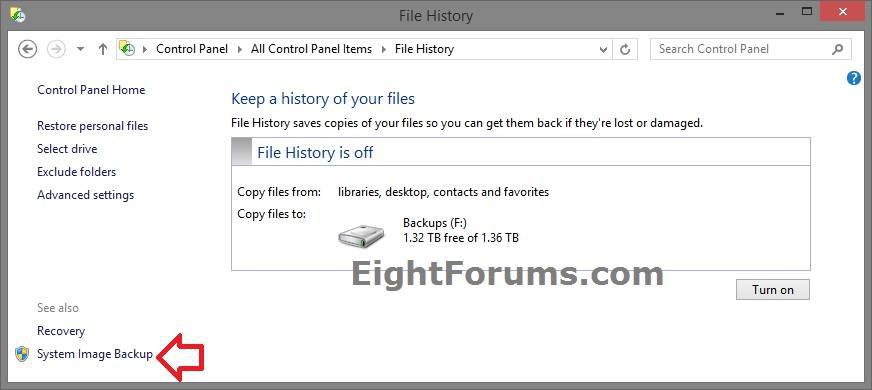

B) In the left pane, click/tap on the System Image Backup link at the bottom, and go to step 4 below. (see screenshot below)​
4. If prompted by UAC, then click/tap on Yes.​

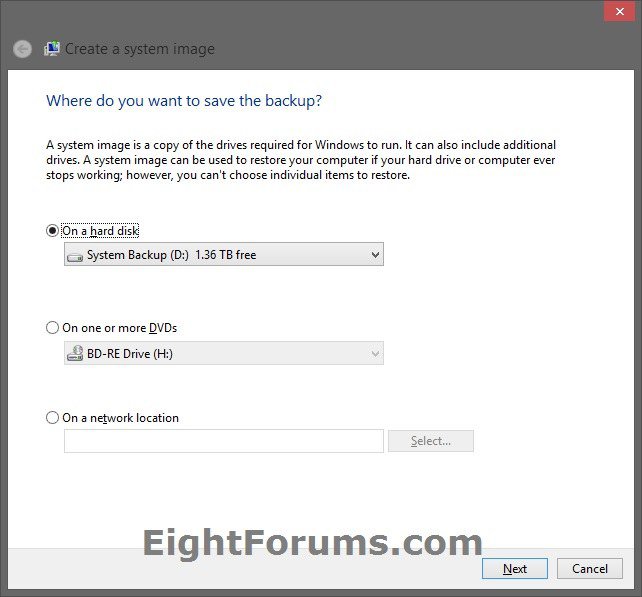

5. Select where you would like to save the system image to, and click/tap on Next. (see screenshot below)​
Note   Note
Only the Windows 8/RT/8.1 Pro and Windows 8/8.1 Enterprise editions are able to back up to a network location.
Note   Note

You are able to save a system image to either one or more CDs/DVDs (not recommended), an external hard drive (best backup protection), any separate internal hard drive, or to a network location.​
If you wanted to save the system image to one or more CDs/DVDs, then see the link below first:​

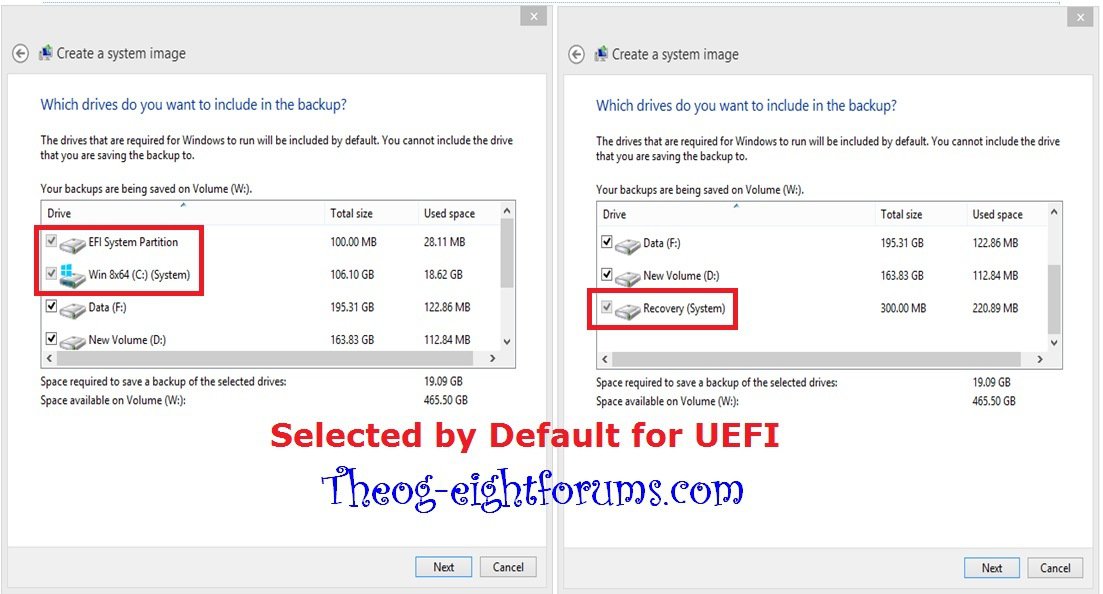

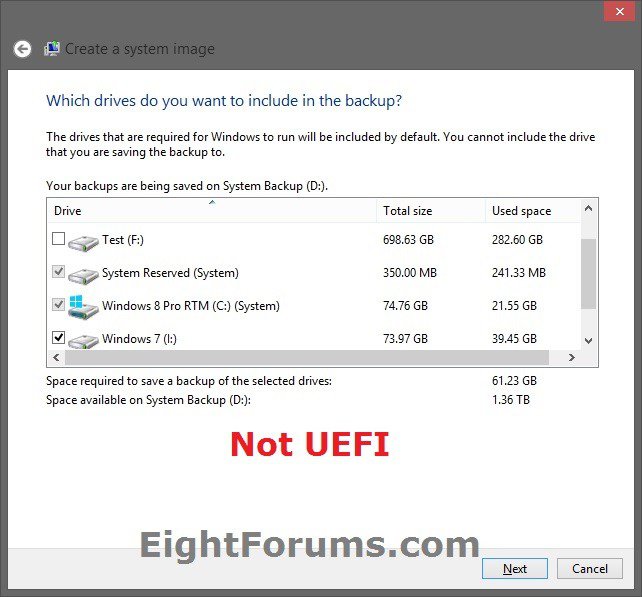

6. Select (check) any drive that you would like to also be included in the system image, and click/tap on Next. (see screenshot below)​
NOTE: The grayed out checked drives are "system" drives that are required for the operation of Windows 8, and cannot be unchecked.​

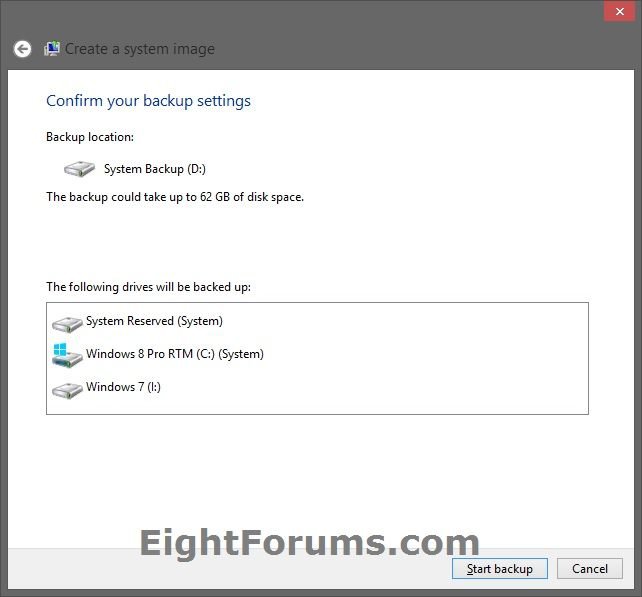

7. Confirm your system image backup settings, and click/tap on Start backup. (see screenshot below)​
NOTE: If your settings are not correct, then click/tap on the back arrow at the top left corner to go back and make changes.​

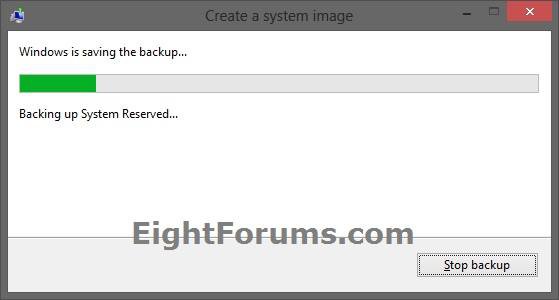

8. Windows will now start creating the system image backup. (see screenshot below)​

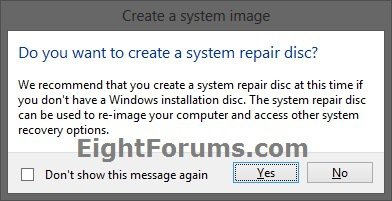

9. When it's finished in Windows 8 or Windows RT, click/tap on Yes or No for if you would like to create a system repair disc or not. You will not see this in Windows 8.1 and Windows RT 8.1. (see screenshot below)​
NOTE: For how to always hide or show this message, see this tutorial.​

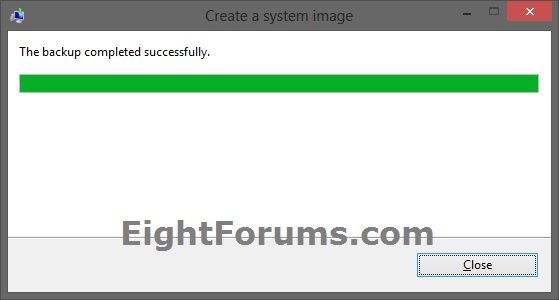

10. Click/tap on Close. (see screenshot below)​
11. If you like, you can now close the Windows 7 File Recovery or File History window.​


That's it,
Shawn



Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

swindmiller

Member
Member
Posts
29
#2
Sorry for the stupid question but is this the same as using a program like Macrium or something like that? I want to make a complete image just the way my computer is now and on restore, completely wipe out the HD and restore this image.
Also is the only difference between option 1 and 2 the ability to save multiple images to the same drive? Will option 2 back up the entire HD just the way it is?

Thanks,
Scott


My Computer

System One

  • OS
    Windows 8 Enterprise

Brink

Administrator
Administrator
mvp
Posts
23,522
#3
Hello Scott,

Yes, it's similar to Macrium Reflect. Creating a system image in Windows 8 is the same as it was in Windows 7. It will create a complete image of your system drives and any drive you add, and on restore wipe out the drives and restore them back to how they were when the image was created.

The difference between OPTION ONE and OPTION TWO is that OPTION ONE is done through Windows Backup to include creating a system imake along with creating a separate backup of selected folders, and having the option to do all of this on a set automatic schedule.

OPTION TWO let's you create a system image as needed or wanted with nothing else included.

Hope this helps, :)
Shawn


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
23,522
#5
You're welcome.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

gzt7d8

Member
VIP Member
Member
Posts
67
#6
Brink, I just want to create a system image without the Windows 7 backup. How do I do that? I can't seem to find System Image without it selecting Win 7 too.


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Alienware Area 51
    CPU
    Intel(R) Core(TM) i7-5820K (6-cores, 15MB Cache, Overclocked to 3.8 GHz w/ Turbo Boost)
    Motherboard
    Alienware Area 51
    Memory
    16GB Quad Channel DDR4 at 2133MHz
    Graphics Card(s)
    4GB GDDR5 NVIDIA(R) GeForce(R) GTX 980
    Sound Card
    Sound Blaster Recon3Di
    Monitor(s) Displays
    Asus PB287Q 28"
    Screen Resolution
    3840 x 2160
    Hard Drives
    Samsung PM851 128GB SSD 6Gb/s Main + 2TB 7200RPM SATA 6Gb/s
    PSU
    875 Watt
    Case
    Triad Black case
    Cooling
    Alienware High-Performance Liquid Cooling
    Keyboard
    Alienware
    Mouse
    Alienware
    Internet Speed
    100/5MB Service
    Browser
    Chrome
    Antivirus
    Norton Internet Security
    Other Info
    Logitech Z-5500 THX-Certified 505-Watt 5.1 Digital Surround Sound Speaker System

Brink

Administrator
Administrator
mvp
Posts
23,522
#7
Hello Greg,

That's not going to be possible using the System Image feature in Windows 8 or Windows 7 since all system drive will be included by default and cannot be unselected.

You could use a free program like Macrium Reflect to do so though.

Imaging with free Macrium - Windows 7 Forums

Hope this helps, :)
Shawn


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

gzt7d8

Member
VIP Member
Member
Posts
67
#8
Hello Greg,

That's not going to be possible using the System Image feature in Windows 8 or Windows 7 since all system drive will be included by default and cannot be unselected.

You could use a free program like Macrium Reflect to do so though.

Imaging with free Macrium - Windows 7 Forums

Hope this helps, :)
Shawn
That's where I ended next but after the image was created, I was creating the media recovery disc and it tells me I need Net Framework 2.0. Seems older version, do I dare go and download it on Win 8?


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Alienware Area 51
    CPU
    Intel(R) Core(TM) i7-5820K (6-cores, 15MB Cache, Overclocked to 3.8 GHz w/ Turbo Boost)
    Motherboard
    Alienware Area 51
    Memory
    16GB Quad Channel DDR4 at 2133MHz
    Graphics Card(s)
    4GB GDDR5 NVIDIA(R) GeForce(R) GTX 980
    Sound Card
    Sound Blaster Recon3Di
    Monitor(s) Displays
    Asus PB287Q 28"
    Screen Resolution
    3840 x 2160
    Hard Drives
    Samsung PM851 128GB SSD 6Gb/s Main + 2TB 7200RPM SATA 6Gb/s
    PSU
    875 Watt
    Case
    Triad Black case
    Cooling
    Alienware High-Performance Liquid Cooling
    Keyboard
    Alienware
    Mouse
    Alienware
    Internet Speed
    100/5MB Service
    Browser
    Chrome
    Antivirus
    Norton Internet Security
    Other Info
    Logitech Z-5500 THX-Certified 505-Watt 5.1 Digital Surround Sound Speaker System

Brink

Administrator
Administrator
mvp
Posts
23,522
#9
Since your dual booting with Windows 7, I'd say run Macrium Reflect in Windows 7 to create an image of your Windows 8 with if you like. This way you wouldn't have to worry about installing Net Framework 2.0 or anything else until Macrium Reflect officially fully suports Windows 8.

Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

gzt7d8

Member
VIP Member
Member
Posts
67
#10
Since your dual booting with Windows 7, I'd say run Macrium Reflect in Windows 7 to create an image of your Windows 8 with if you like. This way you wouldn't have to worry about installing Net Framework 2.0 or anything else until Macrium Reflext officially fully suports Windows 8.
What's weird is I'm not running a dual boot. I performed a clean install of Win 8, but I had some partitioned drives that had Window 7 image so I guess it thought that was a backup version at the time of the install.

I created the image with Macrium Reflext so the boot disk is all I need. I'll wait until the software is supported, and try it then.

thanks,

Update
I found a manual way to create the rescue disc without downloading Net Framework. Go here.

Create a Windows PE Rescue Disk using Macrium Reflect v5 - YouTube

Last edited:

My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Alienware Area 51
    CPU
    Intel(R) Core(TM) i7-5820K (6-cores, 15MB Cache, Overclocked to 3.8 GHz w/ Turbo Boost)
    Motherboard
    Alienware Area 51
    Memory
    16GB Quad Channel DDR4 at 2133MHz
    Graphics Card(s)
    4GB GDDR5 NVIDIA(R) GeForce(R) GTX 980
    Sound Card
    Sound Blaster Recon3Di
    Monitor(s) Displays
    Asus PB287Q 28"
    Screen Resolution
    3840 x 2160
    Hard Drives
    Samsung PM851 128GB SSD 6Gb/s Main + 2TB 7200RPM SATA 6Gb/s
    PSU
    875 Watt
    Case
    Triad Black case
    Cooling
    Alienware High-Performance Liquid Cooling
    Keyboard
    Alienware
    Mouse
    Alienware
    Internet Speed
    100/5MB Service
    Browser
    Chrome
    Antivirus
    Norton Internet Security
    Other Info
    Logitech Z-5500 THX-Certified 505-Watt 5.1 Digital Surround Sound Speaker System

Brink

Administrator
Administrator
mvp
Posts
23,522
#11
That is odd then.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
23,522
#13
Hello Lucas,

There's not an exact percentage since it varies on what is being included in the system image and if the files in it can be compressed anymore or not, but it's very roughly around the 50% range. Your millage will vary.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

LittleJay

New Member
Power User
Posts
1,338
#14
Thanks for another great tutorial Shawn! I am glad to see that Windows 8 has kept the system imaging program, because I use it frequently in Windows 7.


My Computer

System One

  • OS
    Windows 8.1 Pro x64 bit
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    CyberPower
    CPU
    i5 2500K
    Motherboard
    Asus P8P67 Deluxe
    Memory
    8 gigabytes Corsair PC3-12800 DDR3
    Graphics Card(s)
    EVGA GeForce GTX 460 superclocked
    Sound Card
    Integrated
    Monitor(s) Displays
    Viewsonic 23" LCD
    Screen Resolution
    1920 x 1080
    Hard Drives
    128 Gb Samsung 840 Pro SSD
    128 Gb Kingston Hyper X SSD
    1 Tb Western Digital Caviar Black HDD
    PSU
    1000 watt Coolermaster modular
    Case
    Coolermaster Haf X full tower
    Cooling
    Coolermaster Hyper 212 plus
    Keyboard
    Logitech
    Mouse
    Logitec M310 USB cordless
    Internet Speed
    1.5 mb/s download 300 kb/s upload

Brink

Administrator
Administrator
mvp
Posts
23,522
#15
Thank you Jay. Same here. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
3
#16
Hello Brink, I've recently got Windows 8 (on Saturday) and want to set up a system image before doing anything else, like installing software.
I follow the tutorial to create the image onto DVDs, but I receive this error:

The backup failed.
The drive cannot find the sector requested. (0x8007001B)

This is quite worrying as the laptop is brand new. Any solutions to this?


My Computer

System One

  • OS
    Windows 8 64 bit

Brink

Administrator
Administrator
mvp
Posts
23,522
#17
Hello Carpet Man, and welcome to Eight Forums.

Could be some issue with the DVD. Personally, I would recommend backing up to either another internal or external HDD instead. It would be much more reliable than DVDs.

If that is not an option, then you might consider using Macrium Reflect Free to see how it works for you.

Hope this helps, :)
Shawn


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Joan Archer

Gadget Mad Granny.
VIP Member
Power User
#18
You mention in your last post an external HDD, I take it then I could plug an external hard drive into one of my USB ports to do the backup, I have 2 USB3 and 1 USB2 ports on my Notebook.:)


My Computer

System One

  • OS
    Windows 7 Ultimate SP1 32 bit/ Windows 8.1 64 bit
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Zoostorm/ Asus K55A Notebook
    CPU
    Intel Core 2 Duo E4600 @ 2400 MHz
    Motherboard
    Foxconn 45CMX/45GMX/45CMX-K
    Memory
    2048 MB (2 x 1024 DDR2-SDRAM)/8GB DDR3
    Graphics Card(s)
    Intel Corp 82945G Integrated Graphics Controller
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Hanns.G HH221 22" Widescreen
    Screen Resolution
    1920 x 1080
    Hard Drives
    ExcelStor (250GB)
    Keyboard
    Microsoft Natural Ergonomic Keyboard 4000 (UK)
    Mouse
    Microsoft Optical Wheel Mouse
    Internet Speed
    Just under 4MB download it's ADSL.
    Other Info
    Epson Stylus SX415 All-in-one Printer,
    Seagate Expansion 500GB External Desktop Drive

Brink

Administrator
Administrator
mvp
Posts
23,522
#19
Hello Joan,

Good to see you. Yes, you sure could. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Joan Archer

Gadget Mad Granny.
VIP Member
Power User
#20
Thank you Shawn, glad to be here typing from my Windows 8 Notebook. ;)


My Computer

System One

  • OS
    Windows 7 Ultimate SP1 32 bit/ Windows 8.1 64 bit
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Zoostorm/ Asus K55A Notebook
    CPU
    Intel Core 2 Duo E4600 @ 2400 MHz
    Motherboard
    Foxconn 45CMX/45GMX/45CMX-K
    Memory
    2048 MB (2 x 1024 DDR2-SDRAM)/8GB DDR3
    Graphics Card(s)
    Intel Corp 82945G Integrated Graphics Controller
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Hanns.G HH221 22" Widescreen
    Screen Resolution
    1920 x 1080
    Hard Drives
    ExcelStor (250GB)
    Keyboard
    Microsoft Natural Ergonomic Keyboard 4000 (UK)
    Mouse
    Microsoft Optical Wheel Mouse
    Internet Speed
    Just under 4MB download it's ADSL.
    Other Info
    Epson Stylus SX415 All-in-one Printer,
    Seagate Expansion 500GB External Desktop Drive
