Storage Spaces - Create a New Pool and Storage Space in Windows 8


Brink

Administrator
Administrator
mvp
Posts
23,841
Storage Spaces - Create a New Pool and Storage Space in Windows 8
This will show you how to create a new pool and storage space in Windows 8 to be able to save files to two or more connected internal and/or external drives so that your files remain safe, even when a drive fails.
Published by Brink
#1
Category:
ByLine
How Create a New Pool and Storage Space in Windows 8
Synopsis
This will show you how to create a new pool and storage space in Windows 8 to be able to save files to two or more connected internal and/or external drives so that your files remain safe, even when a drive fails.
How Create a New Pool and Storage Space in Windows 8

information   Information
Storage Spaces lets you group drives together in a storage pool. Then you can use pool capacity to create storage spaces.
  • Storage spaces are virtual drives that appear in Windows Explorer. You can use them like any other drive, so it’s easy to work with files on them.
  • You can create large storage spaces and add more drives to them when you run low on pool capacity.
  • If you have two or more drives in the storage pool, you can create storage spaces that won't be affected by a drive failure—or even the failure of two drives, if you create a three-way mirror storage space.
  • You will be able to connect the added drives of a storage space to another Windows 8 computer or new installation of Windows 8 to have that Windows 8 see and use the storage space in it's storage pool as well.
This tutorial will show you how to create a new pool and storage space in Windows 8 to be able to save files to two or more connected drives so that your files remain safe, even when a drive fails. All you need is one or more extra drives in addition to the drive on which Windows 8 is installed on. These extra drives can be internal or external hard drives, or solid state drives. You can use a variety of types of drives with Storage Spaces, including USB, SATA, and SAS drives.

You must be logged in as an administrator to be able to do the steps in this tutorial.

For more detailed information and FAQs about Storage Pools and Storage Spaces, see:

Virtualizing storage for scale, resiliency, and efficiency - Building Windows 8 - Site Home - MSDN Blogs

Note   Note
Storage Space Resiliency Types:

None - This simple layout stores one copy of your data, and doesn't protect you from drive failures. This resiliency type requires at least one drive.

Two-way mirror - This layout stores two copies of your data, protecting you from a single drive failure. This resiliency type requires at least two added drives.

Three-way mirror - This layout stores three copies of your data, protecting you from two simultaneous drive failures. This resiliency type requires at least three added drives.

Parity - This layout stores your data with parity information, protecting you from a single drive failures. This resiliency type requires at least three added drives.






OPTION ONE
To Create a New Pool and Storage Space

1. Open the Control Panel (icons view), and click on the Storage Spaces icon.​

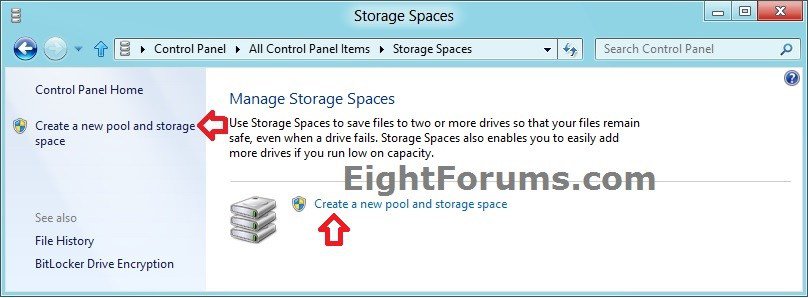

2. Click on the Create a new pool and storage space link. (see screenshot below)​
3. If prompted by UAC, then click on Yes.​

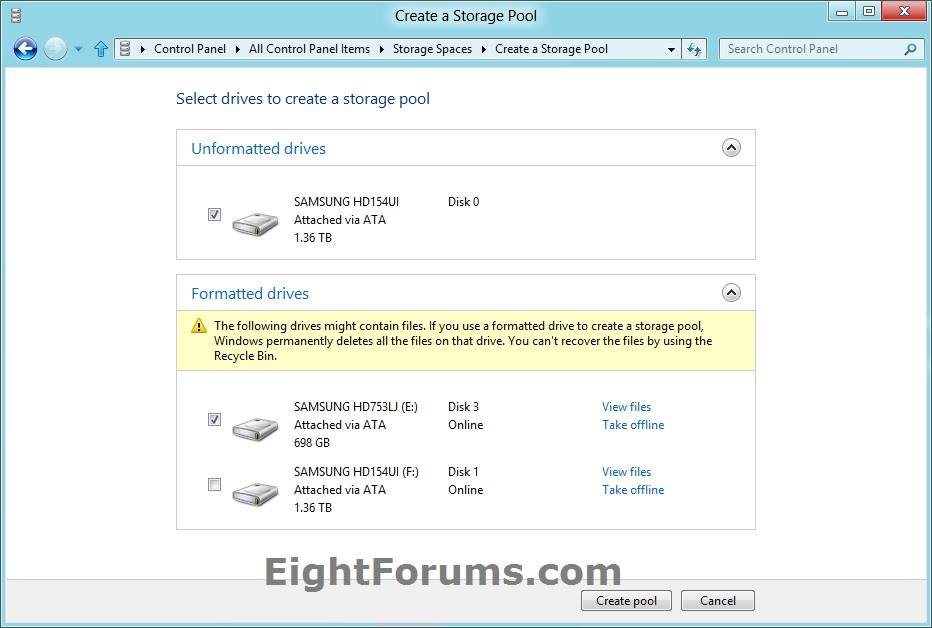

4. Check the drives that you want to add and create a storage pool with, and click on the Create pool button. (see screenshot below)​
NOTE: You can click on the View files link of a listed drive to help see what is on the drive to make sure that you have the correct one.​

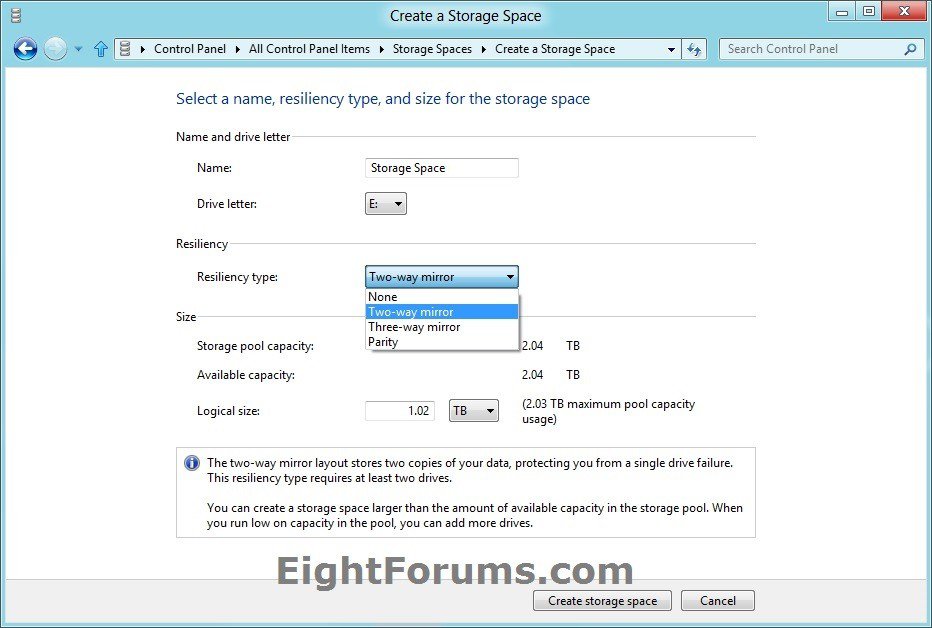

5. Type in a name, select a drive letter, resiliency type, and size you want for the storage space, and click on the Create storage space button. (see screenshot below)​

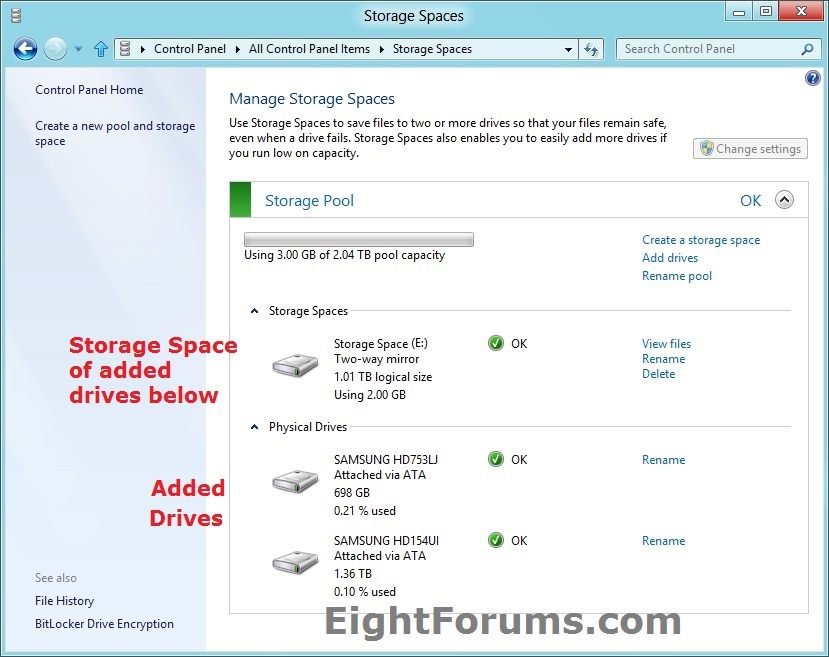

6. You now have a new "Storage Pool" of "Storage Spaces". (see screenshot below)​
7. You can now close the Storage Spaces window if you like.​





OPTION TWO
To Create a Storage Space in a Previously Created Storage Pool

1. Open the Control Panel (icons view), and click on the Storage Spaces icon.​

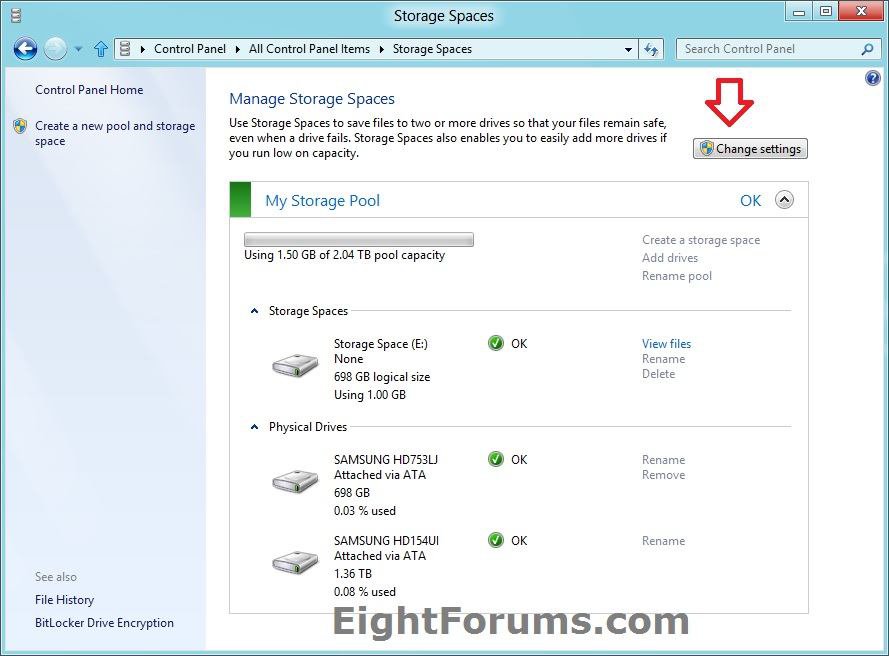

2. Click on the Change settings button if not grayed (faded) out. (see screenshot below)​
3. If prompted by UAC, then click on Yes.​
4. In a listed previously created storage pool (ex: My Storage Pool) that you wanted to create a new storage space in, click on the Create a storage space link. (see screenshot below step 2)​

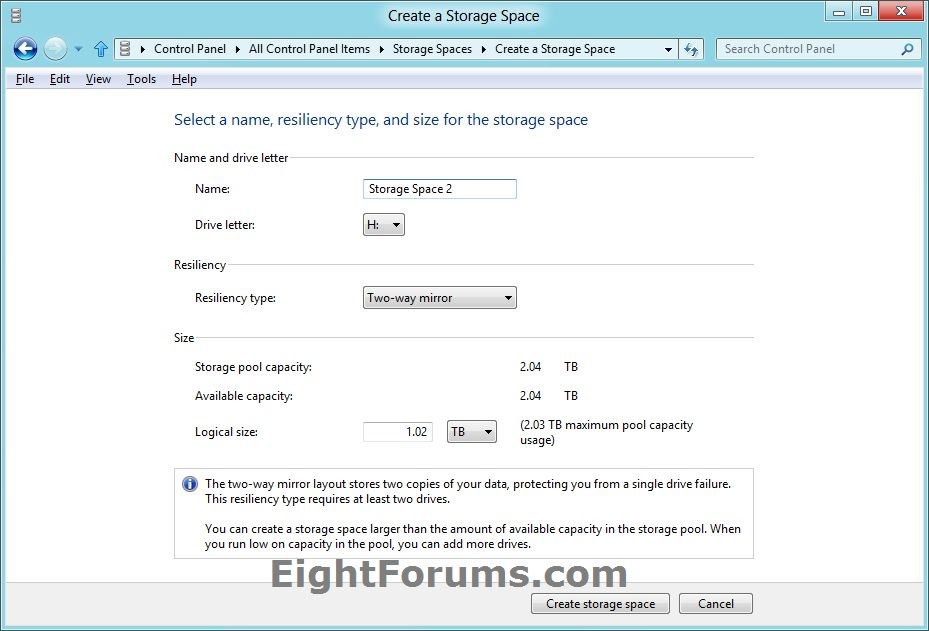

5. Type in a name, select a drive letter, resiliency type, and size you want for the storage space, and click on the Create storage space button. (see screenshot below)​

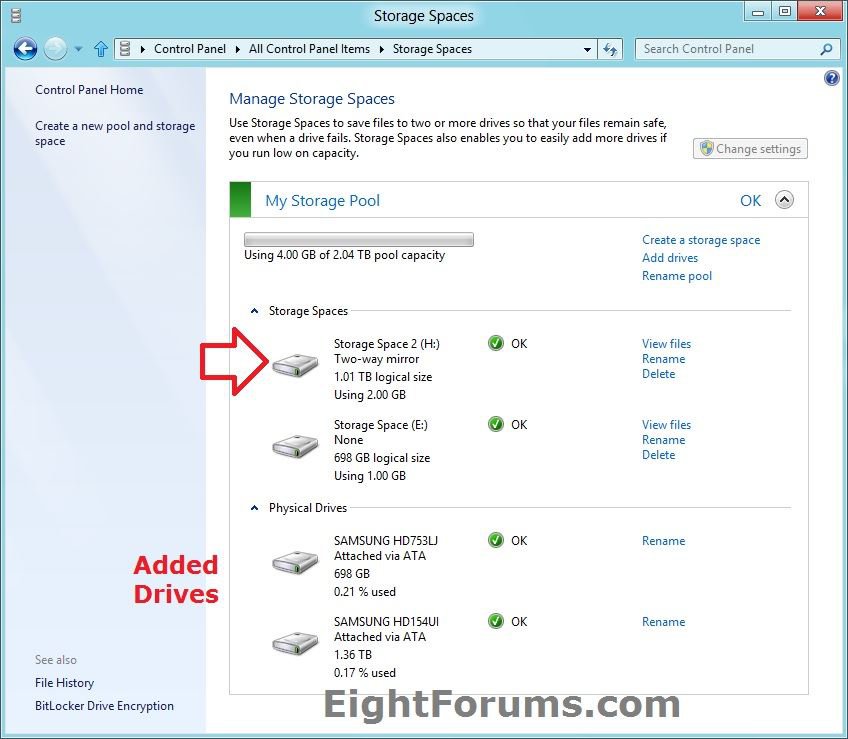

6. You now have a new "Storage Space" added to the selected "Storage Pool". (see screenshot below)​
7. You can now close the Storage Spaces window if you like.​


That's it,
Shawn



Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
3
#2
this may be a very stupid question but I was having a look at creating a pool and I have actually created the pool with a HDD that wasn't empty. Is there any way to recover the data from it?


My Computer

System One

  • OS
    8

Brink

Administrator
Administrator
mvp
Posts
23,841
#3
Hello Bobby, and welcome to Eight Forums. :)

If the HDD was empty, then there wouldn't be any data on it though.

What type of Storage Space did you create, and with how many HDDs.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
3
#4
sorry it wasnt empty. i was working out how to do it with the windows 8 storage space utility and went too far. the HDD is now no longer shown on explorer. Is it possible to recover the drive? I know I can reformat and use the drive again but i'd really like to recover all the data


My Computer

System One

  • OS
    8

Brink

Administrator
Administrator
mvp
Posts
23,841
#5

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
3
#6
Ah, I see. When it creates a storage pool from the hard drive, it also formats it during the process. You might see if you may be able to use this to recover any data on the drive, but since it's been formatted, it will reduce the chance.

http://www.eightforums.com/tutorials/31950-partition-recover-deleted-partitions-windows.html
Thanks for the help I wasnt able to recover the data but I would like to be able to recover the disc. At the moment it wont show up on explorer or command prompt or disk manager but I have found it in partition recovery. Unfortunately I dont know how to make it usable again. Can you please point me in the right direction?
