Start Screen - Metro Apps - Change Number of Rows in Windows 8
This will show you how to increase or reduce the number of default apps rows of tiles that are displayed on your Start screen in Windows 8 and 8.1.
Published by Brink
#1
Category:
ByLine
How to Change Number of Apps Tile Rows on Start Screen in Windows 8 and 8.1
Synopsis
This will show you how to increase or reduce the number of default apps rows of tiles that are displayed on your Start screen in Windows 8 and 8.1.
How to Change Number of Apps Tile Rows on Start Screen in Windows 8 and 8.1


information   Information
This tutorial will show you how to increase or reduce the number of default apps rows of tiles that are displayed on your Start screen in Windows 8 and Windows 8.1.

Note   Note
By default, Windows 8 and 8.1 automatically detects what your current screen resolution is, and then automatically sets how many rows will be for the apps and other pinned items on the Metro Start screen based on the screen resolution size. This is usually only 3 to 5 rows by default.

For example: If you have a 1920 x 1080 (horizontal x vertical) screen resolution, then you would have 6 rows by default. You could either reduce the number of rows to a minimum of 1 row, or increase it up to a maximum of 6 rows for this screen resolution size.

See table under step 6 in OPTION THREE below for more on this.

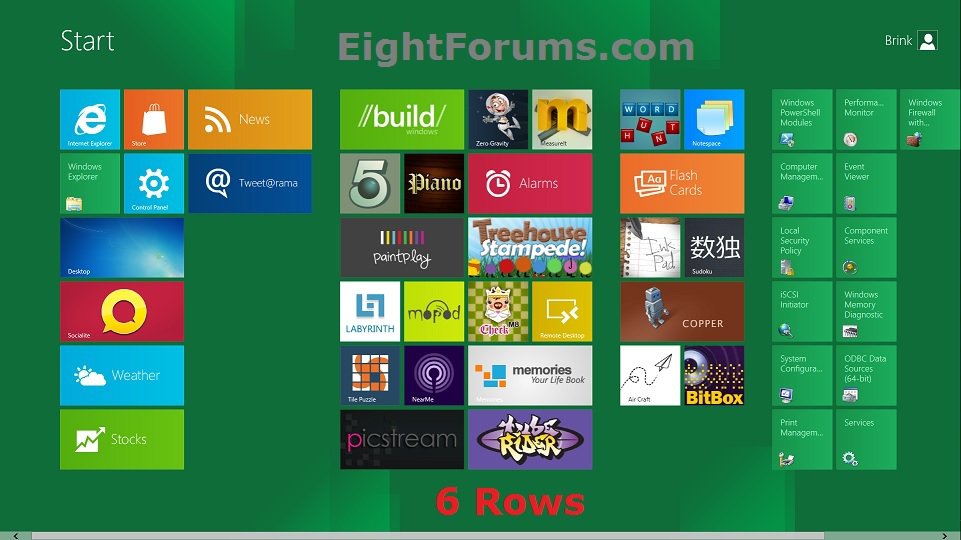

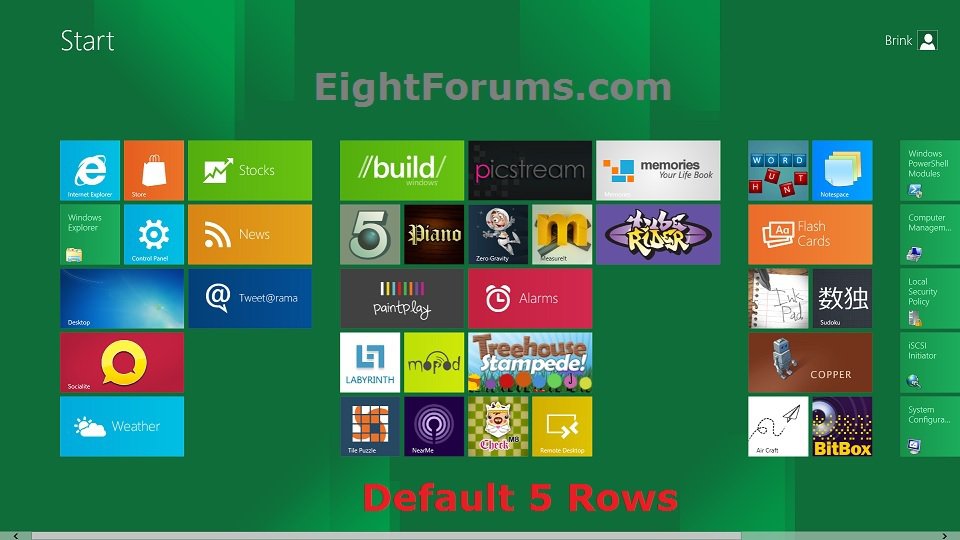

EXAMPLE: Apps Rows Set from 5 to 6 on Start Screen
NOTE:
This is with a 1900 x 1080 screen resolution.







OPTION ONE
Change Number of Apps Tile Rows on "Start" Screen using "Show More Tiles"


Note   Note
This option is only available in Windows 8 and 8.1 if your screen resolution is set to 1920 X 1200 or above, and available on Surface tablets. If not, then you will need to use OPTION TWO or OPTION THREE below instead.

1. If you have not already, turn off "Make everything on your screen bigger".​
2. Go to your Start screen.​

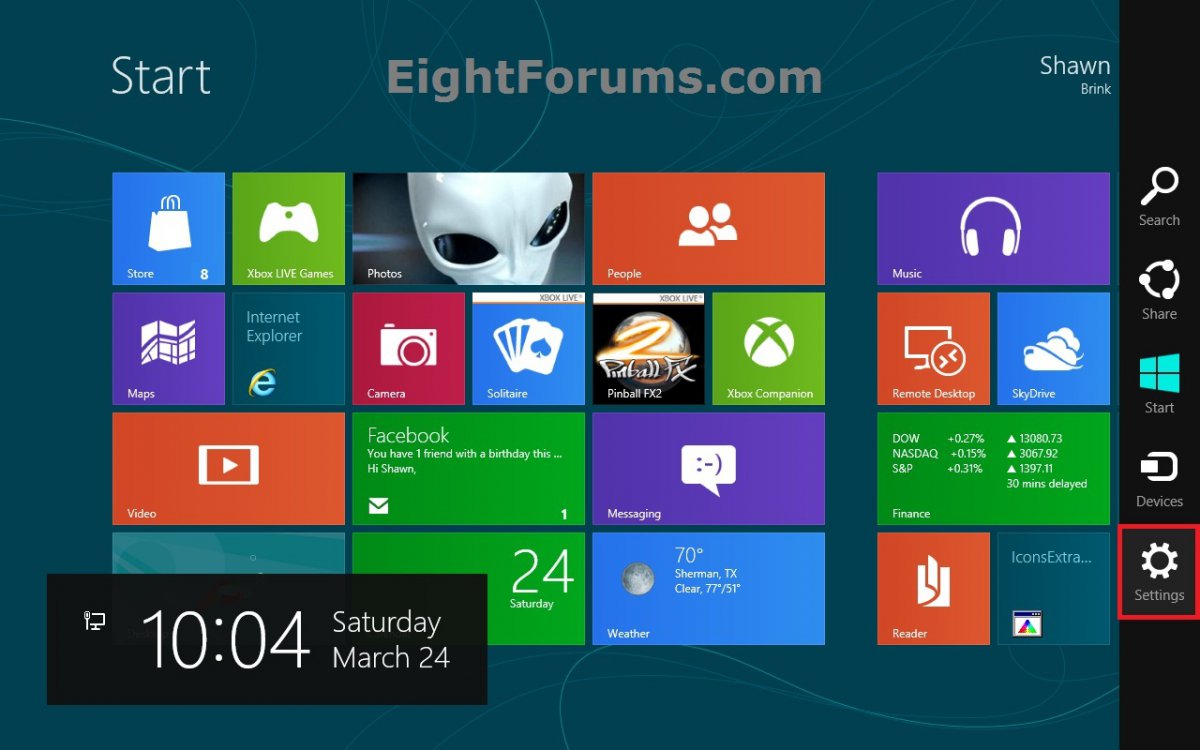

3. While on your Start screen, open the Charms bar, and click/tap on the Settings charm. (see screenshot below)​
NOTE: You could also press the Windows + I keys while on the Start screen to open the Settings charm directly.​

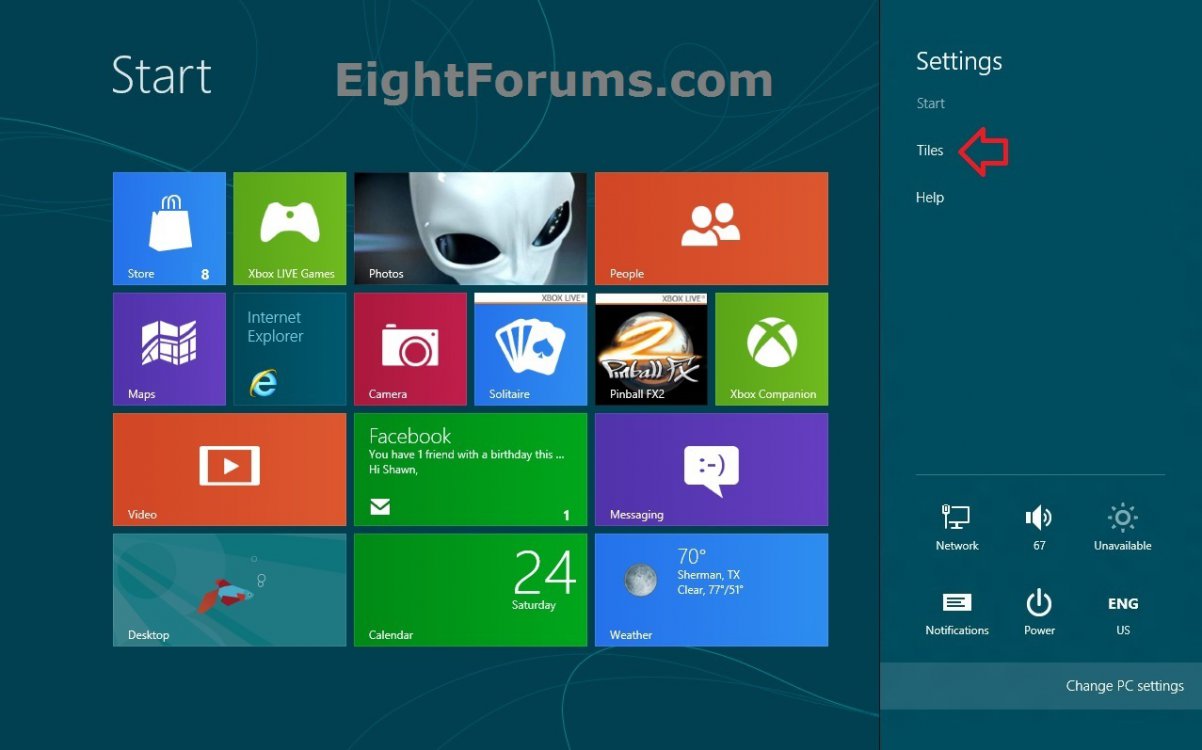

4. Click/tap on Tiles at the top of the right "Settings" flyout. (see screenshot below)​
5. Do step 6 or 7 below for what you would like to do.​
6. To "Show more tiles" on Start Screen

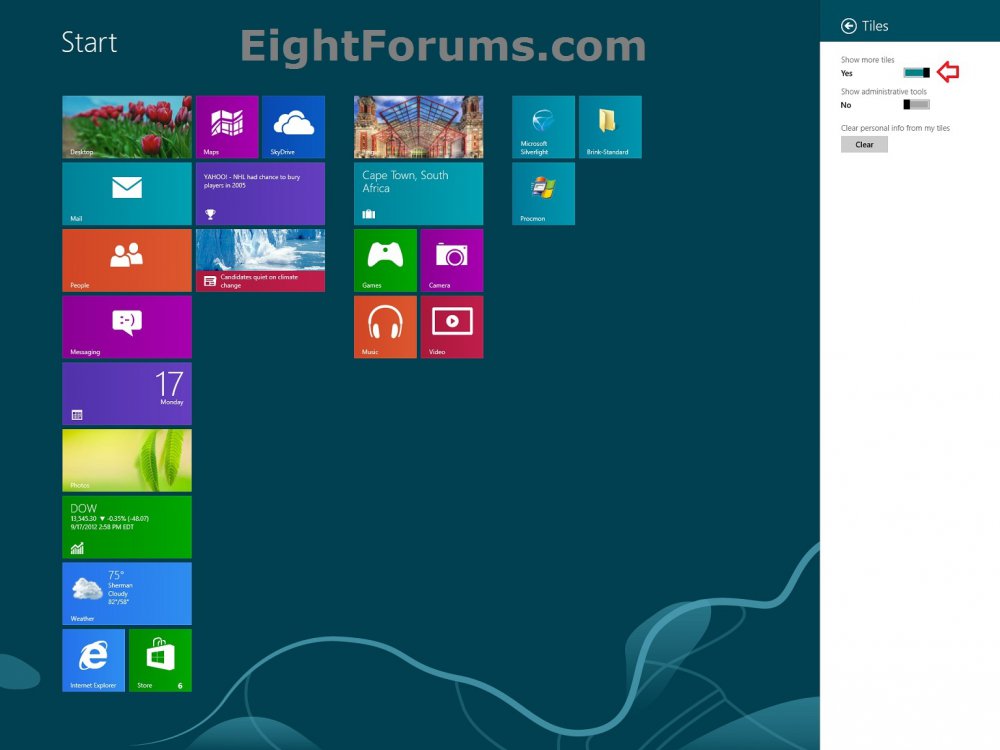

A) Move the Show more tiles slider to the right to say Yes, and go to step 8 below. (see screenshot below)​
7. To Not "Show more tiles" on Start Screen
NOTE: This is the default setting.​

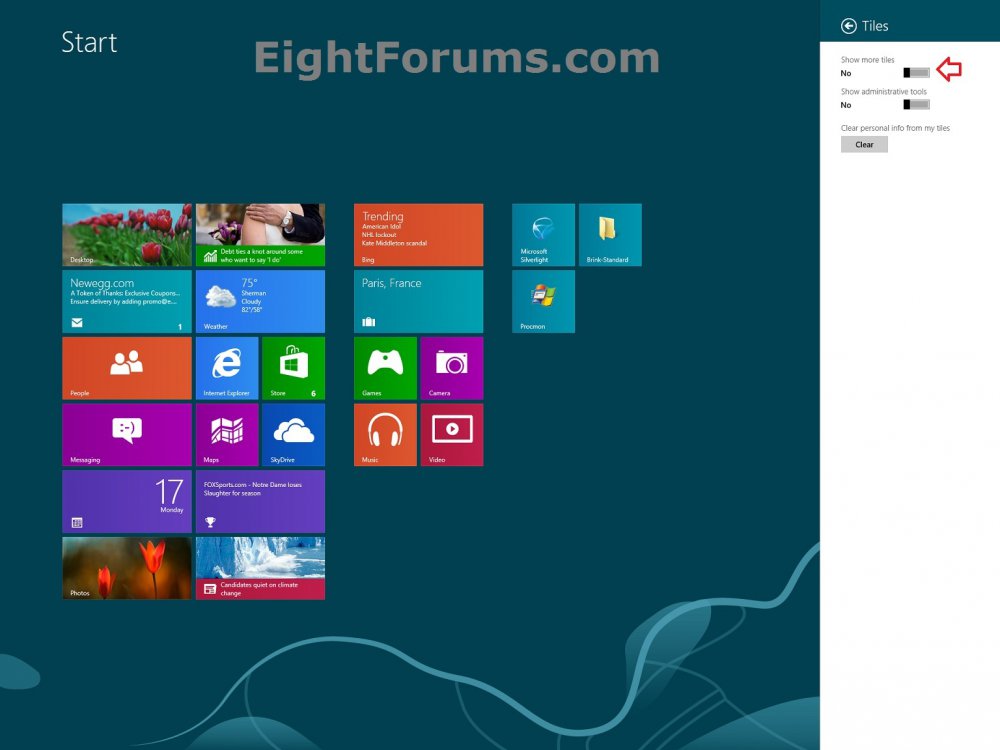

A) Move the Show more tiles slider to the left to say No, and go to step 8 below. (see screenshot below)​
8. You can click/tap on a empty area of the Start screen to close the Tiles flyout.​





OPTION TWO
To Change Number of Apps Tile Rows on "Start" Screen using VBScript File


Note   Note
This option only works in Windows 8, and no longer works in Windows 8.1.

1. If you have not already, turn off "Make everything on your screen bigger".
2. Click/tap on the Download button below to download the file below.​
Change_Number_of_Apps_Tile_Rows_on_Start.vbs
download
3. Save the .vbs file to your Desktop.​
4. Double click/tap on the downloaded .vbs file to run it.​
5. If prompted, click/tap on Open.​
NOTE: If you like, you can stop getting the Open prompt by unblocking the downloaded .vbs file.

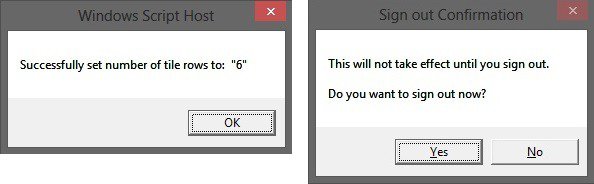

6. Follow the instructions in the vbscript dialog pop-up boxes until finished. (see screenshot below)​
NOTE: You'll notice that the script will let you know what range you are able to set for your specific PC to help.​

7. If this did not help, then also try changing the DPI scaling for the Start screen. It may take a bit of experimenting to find the scale that works best for you though.​







OPTION THREE
To Change Number of Apps Tile Rows on "Start" Screen in Registry Editor


Note   Note
This option only works in Windows 8, and no longer works in Windows 8.1.

1. If you have not already, turn off "Make everything on your screen bigger".​
2. Press the Windows+R keys to open the Run dialog box.​

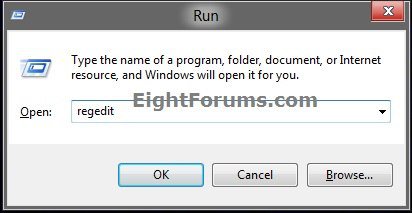

3. In Run, type regedit, and click/tap on OK. (see screenshot below)​
4. If prompted by UAC, then click/tap on Yes.​

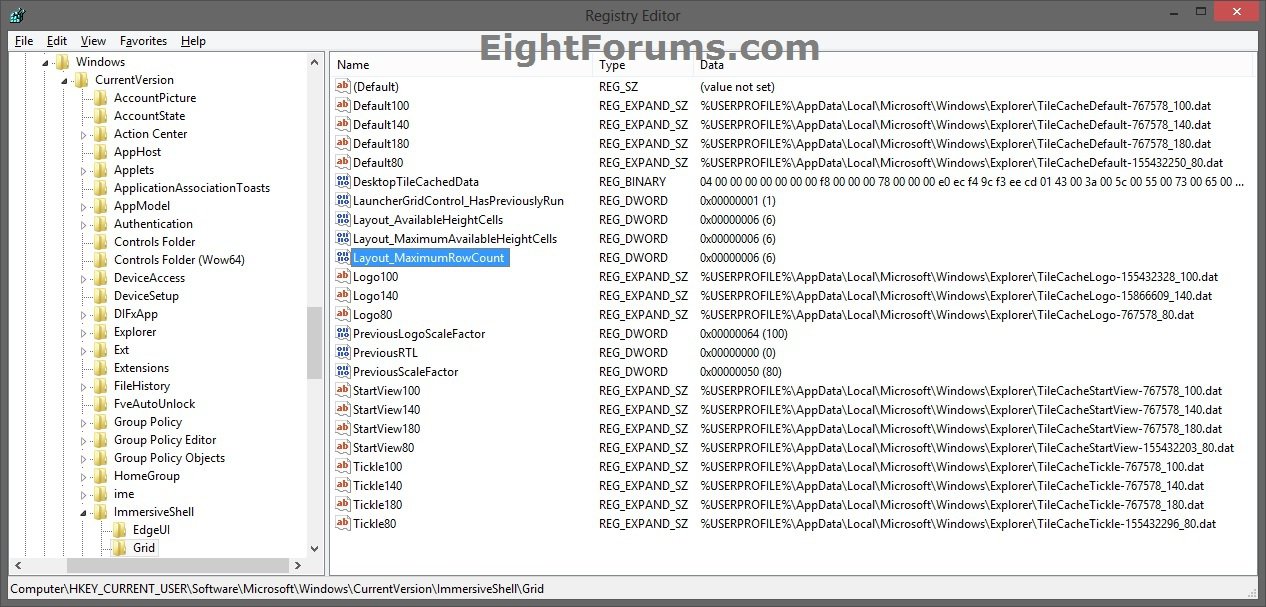

5. In regedit, navigate to the location below. (see screenshot below)​
Code:
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\ImmersiveShell\Grid
6. In the right pane of Grid, double click/tap on Layout_MaximumRowCount. (see screenshot above)​
NOTE: If you do not have the DWORD Layout_MaximumRowCount, then right click on an empty space in the right pane of Grid, click/tap on New and DWORD (32-bit) Value, then type Layout_MaximumRowCount and press Enter.​
7. Using the table below as a guide, type in how many apps tile rows you want, and click/tap on OK. (see screenshot below)​
Note   Note
The table below will give you the default and maximum number of apps tile rows you can usually set with your current screen resolution. Generally, the larger the vertical resolution the more app tile rows you are able to have.
Note   Note

  • The minimum amount of apps tiles rows must be 1.
  • The maximum amount of apps rows in the table below is determined by the value of the Layout_MaximumAvailableHeightCells DWORD in the same registry location from step 5.

Screen Resolution (HxV)

Default

Max

Min

800 x 600

3

3

1

1024 x 768

4

4

1

1152 x 864

5

5

1

1280 x 720

4

4

1

1280 x 900

5

5

1

1280 x 960

5

6

1

1280 x 1024

5

6

1

1400 x 1050

6

6

1

1440 x 900

5

5

1

1600 x 900

5

5

1

1680 x 1050

6

6

1

1900 x 1080

5

6

1

1920 x 1080

6

6

1

1920 x 1200

6

7

1

2560 x 1920

6

10

1




8. Close regedit.​
9. Sign out and in to apply.​
10. If this did not help, then also try changing the DPI scaling for the Start screen. It may take a bit of experimenting to find the scale that works best for you though.​








OPTION FOUR
To Restore Default Number of Apps Tile Rows on Metro Start Screen


Note   Note
This option will work no matter if you used OPTION ONE, OPTION TWO, or OPTION THREE above.

1. Click/tap on the Download button below to download the .bat file below, and run it.​
Restore_Default_Number_of_Apps_Rows.bat
download
2. If prompted, click/tap on Run and Yes (UAC).​
NOTE: If you like, you can stop getting the Run prompt by unblocking the downloaded .bat file.​
3. You will now notice your screen flash as explorer is restarted to apply the registry changes.​




That's it,
Shawn


Related Tutorials



Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

lmod

Member
Member
Posts
34
#2
My monitors are 1920 x 1200. This resolution will allow seven horizontal rows of start screen tiles, using the registry tweak detailed in Brinks tutorial. I had to add the "Layout_MaximumRowCount" value. I am running W8RTM x64.

Last edited:

My Computer

System One

  • OS
    Windows 8.1 PRO with Media Centre Upgrade x64
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Self built
    CPU
    Intel i5 3570K
    Motherboard
    Asus P8Z77-V
    Memory
    16GB
    Graphics Card(s)
    Gigabyte GeForce 650Ti+ Gigabyte GeForce 210
    Sound Card
    Creative X-Fi Elite
    Monitor(s) Displays
    2 x Samsung SMS24A50 / 1 x SamsungXL20
    Screen Resolution
    2 x 1920 x 1200 / 1 x 1600 x 1200
    Hard Drives
    Intel SSD 240GB;
    Hitachi HDS721010DLE630
    Seagate ST31000524AS 1 TB
    Samsung HD103SJ (1TB)
    Crucial 128GB m4 SSD
    PSU
    Corsair 600W
    Case
    CoolerMaster Storm
    Cooling
    Air - Fans
    Keyboard
    Microsoft 7000
    Mouse
    Microsoft 7000
    Internet Speed
    Very variable !
    Browser
    FF, Chrome, IE
    Antivirus
    Vipre Internet Security

Brink

Administrator
Administrator
mvp
Posts
23,444
#3
Thank you lmod. Updated. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
23,444
#5
Hello Jose,

1680 x 1050 added to note box. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Ex_Brit

Older - But No Wiser
Pro User
#6
I have Pro RTM & 1920 X 1080 res and the default number of rows is 6 anyway. As an exercise I tried adding that key for 7 rows - it failed to work.

I also noticed that it's futile tinkering with the other layout values as they revert to default after logging off and back in anyway.

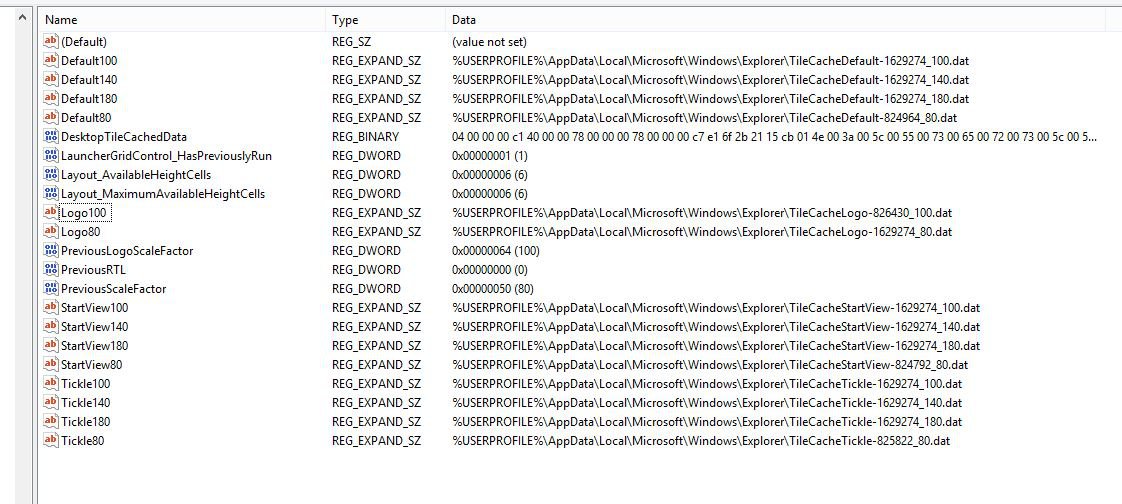

An interesting exercise anyway. Attached is a pic of that part of regedit in RTM:


Last edited by a moderator:

My Computer

System One

  • OS
    Win 10 Pro + Win 7 Ult SP1 (x64)
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Alienware® ALX X58
    CPU
    Intel® Core i7-975 Extreme 3.86 GHz 8MB Cache
    Motherboard
    ASUS P6T Deluxe V2 Socket 1366 Core i7, Dual Triple Channel DDR3 Mem
    Memory
    24GB Corsair Vengeance DDR3 SDRAM at 1600MHz - 6 x 4096MB
    Graphics Card(s)
    1792 MB NVIDIA® GeForce® GTX 295/Hauppauge HVR2250 TV Tuner
    Sound Card
    Onboard Soundmax® High definition Sound
    Monitor(s) Displays
    Samsung XL2370 LED
    Screen Resolution
    1920 X 1080P
    Hard Drives
    2 X 500gb SATA
    1 X 1TB SATA
    1 X 1TB external eSATA
    (Non-RAID)
    PSU
    Alienware® 1200 Watt Multi-GPU
    Case
    Alienware® P2 ALX Chassis with AlienIce 3.0 Video Cooling
    Cooling
    Alienware® High-Perf. Liquid Cooling + Acoustic Dampening
    Keyboard
    Microsoft® Wireless Entertainment 8000 + Logitech® G15 Wired
    Mouse
    Microsoft® Wireless Laser 8000 + Logitech® G9 Wired
    Internet Speed
    45mbps
    Other Info
    Using non-RAID on purpose as I find it too fussy and temperamental.

Brink

Administrator
Administrator
mvp
Posts
23,444
#7
Hello Peter,

Thank you. Yeah, it's to bad the other layout values don't stick.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Ex_Brit

Older - But No Wiser
Pro User
#8
Yes, I could easily cope with them being just a tad smaller, however, I guess some would find them hard to read then.

Last edited:

My Computer

System One

  • OS
    Win 10 Pro + Win 7 Ult SP1 (x64)
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Alienware® ALX X58
    CPU
    Intel® Core i7-975 Extreme 3.86 GHz 8MB Cache
    Motherboard
    ASUS P6T Deluxe V2 Socket 1366 Core i7, Dual Triple Channel DDR3 Mem
    Memory
    24GB Corsair Vengeance DDR3 SDRAM at 1600MHz - 6 x 4096MB
    Graphics Card(s)
    1792 MB NVIDIA® GeForce® GTX 295/Hauppauge HVR2250 TV Tuner
    Sound Card
    Onboard Soundmax® High definition Sound
    Monitor(s) Displays
    Samsung XL2370 LED
    Screen Resolution
    1920 X 1080P
    Hard Drives
    2 X 500gb SATA
    1 X 1TB SATA
    1 X 1TB external eSATA
    (Non-RAID)
    PSU
    Alienware® 1200 Watt Multi-GPU
    Case
    Alienware® P2 ALX Chassis with AlienIce 3.0 Video Cooling
    Cooling
    Alienware® High-Perf. Liquid Cooling + Acoustic Dampening
    Keyboard
    Microsoft® Wireless Entertainment 8000 + Logitech® G15 Wired
    Mouse
    Microsoft® Wireless Laser 8000 + Logitech® G9 Wired
    Internet Speed
    45mbps
    Other Info
    Using non-RAID on purpose as I find it too fussy and temperamental.
Posts
2
#9
1366x768

Yes, I could easily cope with them being just a tad smaller, however, I guess some would find them hard to read then.
And for my resolution? 1366x768? How can I increase rows?


My Computer

System One

  • OS
    Windows 8 RTM Pro 32 bit
    System Manufacturer/Model Number
    Compaq/HP
    CPU
    Intel
    Memory
    Western Digital
    Graphics Card(s)
    Intel

Brink

Administrator
Administrator
mvp
Posts
23,444
#10
Hello Fabio, and welcome to Eight Forums.

Unfortunately at that resolution the min and max number of rows you can have are the same, and you would not be able to increase it. :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
2
#11
Oh no!

Hello Fabio, and welcome to Eight Forums.

Unfortunately at that resolution the min and max number of rows you can have are the same, and you would not be able to increase it. :(
Thanks a lot. Another question: is there a metod to force increase resolution and then increase the rows?


My Computer

System One

  • OS
    Windows 8 RTM Pro 32 bit
    System Manufacturer/Model Number
    Compaq/HP
    CPU
    Intel
    Memory
    Western Digital
    Graphics Card(s)
    Intel

Brink

Administrator
Administrator
mvp
Posts
23,444
#12
Sorry, but not that I know of. :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

diquercia

New Member
Belgium

Posts
3
#13
I have a 1600x900 display with 4 rows only and I can't change it to 5. Adding a line in te registry doesn't do anything and when going to Tiles in settings, there is nohing to change the number of rows.
Any help is welcome


My Computer

System One

  • OS
    Windows 8
    System Manufacturer/Model Number
    Asus UX31E
    CPU
    2x 1.8ghz
    Memory
    4 gb
    Graphics Card(s)
    Intel HD 3000
    Monitor(s) Displays
    Generic PnP
    Screen Resolution
    1600x900
    Hard Drives
    Sandisk SSD 256gb

Brink

Administrator
Administrator
mvp
Posts
23,444
#14
Hello Diquercia, and welcome to Eight Forums.

At 1600x900 you should have 5 rows of tiles by default. Did you install anything that affects the Start screen?


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

diquercia

New Member
Belgium

Posts
3
#15
Thank you for your answer. No, I didn't install anything, it was in 4 rows after installtion. I have to say that I upgraded from windows 7.


My Computer

System One

  • OS
    Windows 8
    System Manufacturer/Model Number
    Asus UX31E
    CPU
    2x 1.8ghz
    Memory
    4 gb
    Graphics Card(s)
    Intel HD 3000
    Monitor(s) Displays
    Generic PnP
    Screen Resolution
    1600x900
    Hard Drives
    Sandisk SSD 256gb

Brink

Administrator
Administrator
mvp
Posts
23,444
#16
I'm not sure why you only have 4 instead of 5 rows. Every system I tested this on at 1600x900 had 5 rows. Possible something that carried over from Windows 7??

What brand and model # is your display/monitor or laptop, the brand and model # of your graphics card/chip, and how do you have them connected (ex: DVI, HDMI, VGA, etc....) ? We can see if others with the same have the same issue.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

diquercia

New Member
Belgium

Posts
3
#17
I have an Asus zenbook UX31E, 13" screen, i7 é677M cpu, 4gb memory, interl hd graphics 3000, but my display is a generic pnp monitor???


My Computer

System One

  • OS
    Windows 8
    System Manufacturer/Model Number
    Asus UX31E
    CPU
    2x 1.8ghz
    Memory
    4 gb
    Graphics Card(s)
    Intel HD 3000
    Monitor(s) Displays
    Generic PnP
    Screen Resolution
    1600x900
    Hard Drives
    Sandisk SSD 256gb
Posts
1
#18
Hi all, my name is Bruno and I ask for your help.

I have a PC and a laptop, running Windows 8 in both. In the laptop (image #1) I have five rows available and on the desktop (image #2) and have more available.




The resolution is the same (1920x1080). I try to change the row number with the registry method, but with no luck. The message at the right part just do not show up.
The only difference between them is that on the laptop, the default zoom is 125% and the PC is 100% (both at 100% right now).

Is there anything that I could do to make both at the same size (I wish I can continue with the PC default).

Thanks.


My Computer

System One

  • OS
    Windows 8

Brink

Administrator
Administrator
mvp
Posts
23,444
#19
Hello Bruno, and welcome to Eight Forums.

I've noticed that some laptops have not always had the same amount of rows as desktop with the exact same screen resolution settings. I'm afraid that I don't know if there's anything that can be done though. :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

scoop98

New Member
Posts
1
#20
A fix for the "not enough rows for the resolution because of screen size" problem.
I have a Samsung 9 13.3" with 1600x900 screen - it would only let me have FOUR rows - I want 5 :)
I have a Surface RT It defaults to THREE rows.

Been searching for a couple of the weeks - found this on XDA forums (great site/ppl)

Just need to change/add one thing to reg

Well for any one that wants to know I found a way.
It is to do with scaling

see below for the reg tweak:

http://www.eightforums.com/tutorials/19209-dpi-change-modern-ui-windows-8-a.html


[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Scaling]
"MonitorSize"="15"


---------------------------------------------------------------------------
worked for me - also works on RT device - change size to 12.1!

Last edited by a moderator:

My Computer

System One

  • OS
    win8 pro 64bit
