Show us your SSD performance


Ztruker

Well-Known Member
VIP Member
Guru
#21

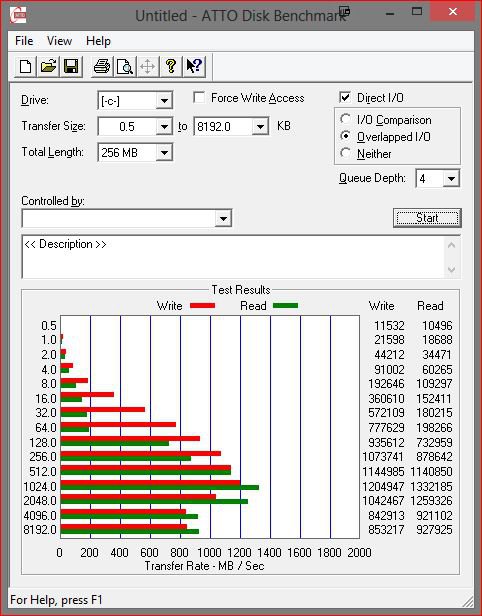

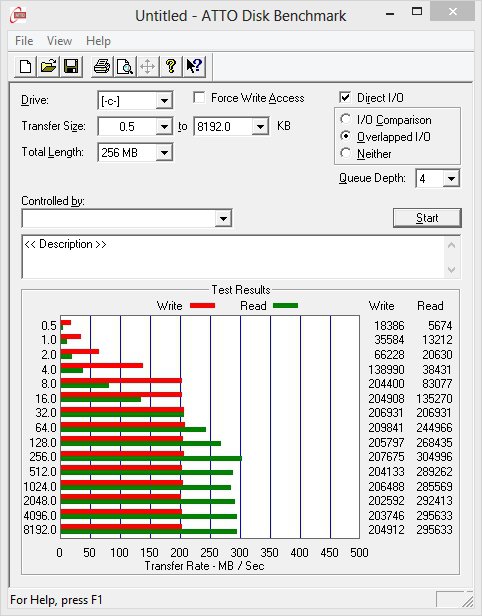

I can't figure out if this is good or bad?

Kingston SV299S3128G





My Computer

System One

  • OS
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel Quad Core i7-4770 @ 3.4Ghz
    Motherboard
    Lenovo
    Memory
    16.0GB PC3-12800 DDR3 SDRAM 1600 MHz
    Graphics Card(s)
    Intel Integrated HD Graphics
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    HP h2207
    Screen Resolution
    [email protected]
    Hard Drives
    250GB Samsung EVO SATA-3 SSD;
    2TB Seagate ST2000DM001 SATA-2;
    1.5TB Seagate ST3150041AS SATA
    PSU
    500W
    Keyboard
    Wired USB
    Mouse
    Wired USB
    Internet Speed
    3GB Up, 30GB Down
    Browser
    SeaMonkey
    Antivirus
    Windows Defender; MBAM Pro
    Other Info
    UEFI/GPT
    PLDS DVD-RW DH16AERSH

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#22
The 4K read is a bit shy. Did you have anything running during the Atto test ?


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

popeye

New Member
VIP Member
Guru
United States

Posts
3,090
#23
Mine. Sorry couldn't resist. I hope HDD's are a thing of the past very soon. Mechanical = Bad



My Computer

System One

  • OS
    Windows 8.1 Pro 64-bit
    Computer type
    Laptop
    System Manufacturer/Model
    Acer V3 771G-6443
    CPU
    i5-3230m
    Motherboard
    Acer VA70_HC (U3E1)
    Memory
    8GB DDR3 PC3-12800 (800 MHz)
    Graphics Card(s)
    HD4000 + GeForce GT 730M
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    17" Generic PnP Display on Intel HD Graphics 4000
    Screen Resolution
    1600x900 pixels
    Hard Drives
    Samsung SSD 850 EVO 250 GB
    ADATA SSD SP900 128GB
    PSU
    90 watt brick
    Mouse
    Bluetooth
    Antivirus
    Comodo
    Other Info
    Asus RT-AC56R dual-band WRT router (Merlin firmware). Intel 7260.HMWWB.R dual-band ac wireless adapter.

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#24
Mine. Sorry couldn't resist. I hope HDD's are a thing of the past very soon. Mechanical = Bad

View attachment 34913
I agree on the HDD part. But sticks are not the solution. They are far too slow. I use SSDs - more than half a dozen. Even as external drives to run my virtual machines. And that is fast. See my 8.1 boot time from an external.



My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

Ztruker

Well-Known Member
VIP Member
Guru
#25
The 4K read is a bit shy. Did you have anything running during the Atto test ?
I had a web browser (Seamonkey) open plus all the normal stuff that runs all the time. Should I do a Clean Boot then run the ATTO test?


My Computer

System One

  • OS
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel Quad Core i7-4770 @ 3.4Ghz
    Motherboard
    Lenovo
    Memory
    16.0GB PC3-12800 DDR3 SDRAM 1600 MHz
    Graphics Card(s)
    Intel Integrated HD Graphics
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    HP h2207
    Screen Resolution
    [email protected]
    Hard Drives
    250GB Samsung EVO SATA-3 SSD;
    2TB Seagate ST2000DM001 SATA-2;
    1.5TB Seagate ST3150041AS SATA
    PSU
    500W
    Keyboard
    Wired USB
    Mouse
    Wired USB
    Internet Speed
    3GB Up, 30GB Down
    Browser
    SeaMonkey
    Antivirus
    Windows Defender; MBAM Pro
    Other Info
    UEFI/GPT
    PLDS DVD-RW DH16AERSH

Michal

Member
Member
Posts
70
#27
@Ztruker
ATTO benchmark is not very reliable it can generate absurd results based on "best scenario". Personally I wish ATTO results that I have got would be true..
Anyway, get either Crystal Disk Mark, or ASSSD Benchmark (requires .NET 3.5 though) godd are also PC Mark 7, IOmeter, HD Tune PRO.
Notes:
ASSSD Benchmark is geared toward servers so don't worry about final score.

usefulness:
1000kb sequential r/w- important for video editing movies, software installation
4k random r/w- multitasking, word, excel

remember to run benchmarks on "clean" system, just after reboot (so you need to reboot of each test)


My Computer

System One

  • OS
    windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    MSI
    CPU
    i7-4800MQ
    Memory
    32GB
    Graphics Card(s)
    nVidia GeForce GTX 770M
    Browser
    Enhanced Protected Mode IE/protected mode Firefox
    Antivirus
    nope
    Other Info
    OpenNIC/DNSCrypt/VPN/EMET

besb

New Member
Member
Posts
116
#28

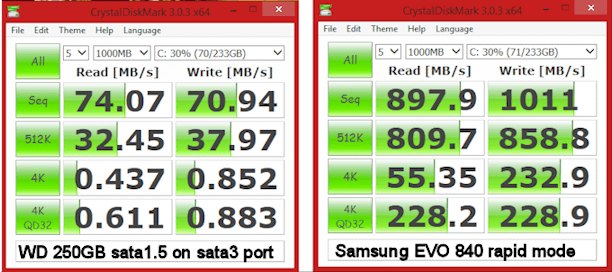

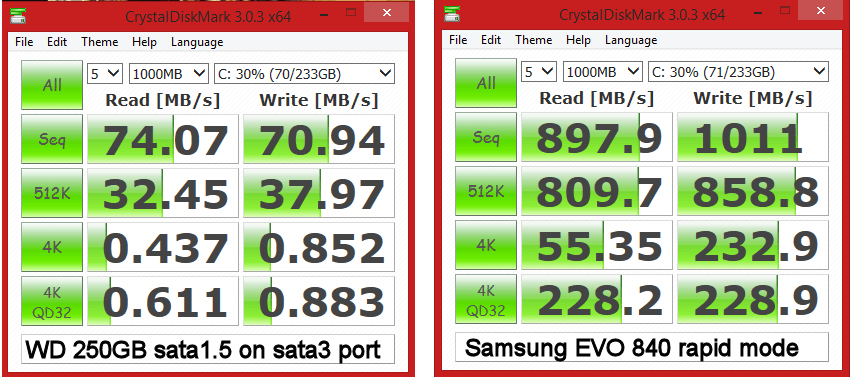

Samsung Evo 840 250GB v WD 250 Sata1.5 on sata 3 ports

Because of a few problems I upgraded W7 to W8 then W8.1 on an old WD250 250 gb drive.
Once I had it all working to my satisfaction i.e boot to desktop,classic shell menus, gadgets, elevated prompts to start up my W7 gadgets and other progs on startup ,W7 games etc installed. I was in a position to transfer to a 250GB ssd drive. Having read reviews, I settled on a Samsung evo 840 250GB for £120.
I decided to make a couple of tests on my way through this to see the effect.

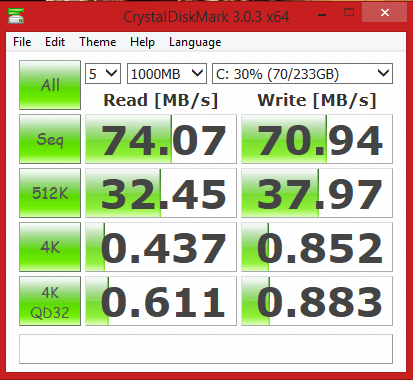

EVO 840 installed and WD digital 250 sata transferred. SSD bios upgraded to latest. Samsung magician run drive optimised and rapid disk enabled . The results using CrystalDiskMark before and after are:


Quite a difference, but real mode counts more than a couple of bencmarks so here is a couple of real figures:

Windows 8.1 load from blue W8 icon to first Desktop WD sata 54 secs: Evo 840 8 secs
Skyrim (game ) WD sata sata 62secs Evo 840 26 secs, and saves and cell changes appear to be instant.

Best upgrade ever. I have ckecked my profile but specs for this machine is :-
Gigabyte ga-890gpa-ud3h (6 sata 3 ports), amd 1090T (6core) at 3.4 ghz
Corsair dominator 8 GB at 1600
Nvidia gtx460, 2TB wd sata 250GB (buk data backups etc. samsung evo 840 for op system and games

Really posted to show users the advantage of swapping to an ssd even use a 120gb drive for your op and
and putting large files on a standard sata drive to save costs.
BesB


Attachments

My Computer

System One

  • OS
    xp , 7Pro, 8RP, Android phone, Tablet
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom
    CPU
    [email protected], amd 965 etc etc
    Motherboard
    gigabyte
    Memory
    8gb per
    Graphics Card(s)
    gts450 ,560gt etc
    Monitor(s) Displays
    3xsamsung 24in
    Screen Resolution
    3, 1920x1200
    Hard Drives
    To many! spread across 4 desktops,3 laptops 1 netbook
    ssd, sata 3's ide etc
    PSU
    Hyper Modular 600W
    Case
    lian li
    Cooling
    artic
    Internet Speed
    60Mb
    Other Info
    Basically the house has 4 desktops 3 in the study + the wifes,
    3 laptops 1 netbook 2 android tablets 2 android smart phones
    and ipad and iphone

Ztruker

Well-Known Member
VIP Member
Guru
#29
That's impressive. Definitely the best bang for the buck is a SSD.


My Computer

System One

  • OS
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel Quad Core i7-4770 @ 3.4Ghz
    Motherboard
    Lenovo
    Memory
    16.0GB PC3-12800 DDR3 SDRAM 1600 MHz
    Graphics Card(s)
    Intel Integrated HD Graphics
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    HP h2207
    Screen Resolution
    [email protected]
    Hard Drives
    250GB Samsung EVO SATA-3 SSD;
    2TB Seagate ST2000DM001 SATA-2;
    1.5TB Seagate ST3150041AS SATA
    PSU
    500W
    Keyboard
    Wired USB
    Mouse
    Wired USB
    Internet Speed
    3GB Up, 30GB Down
    Browser
    SeaMonkey
    Antivirus
    Windows Defender; MBAM Pro
    Other Info
    UEFI/GPT
    PLDS DVD-RW DH16AERSH

m4v3r1ck

New Member
Member
Posts
112
#30
Mac Pro 3.1 - OS X 10.8.5
Samsung 840 EVO 500GB in SATA-2 SDD sled running Windows 8 Pro x64 under OS X BootCamp 5.3.3

RAPID Mode = ON

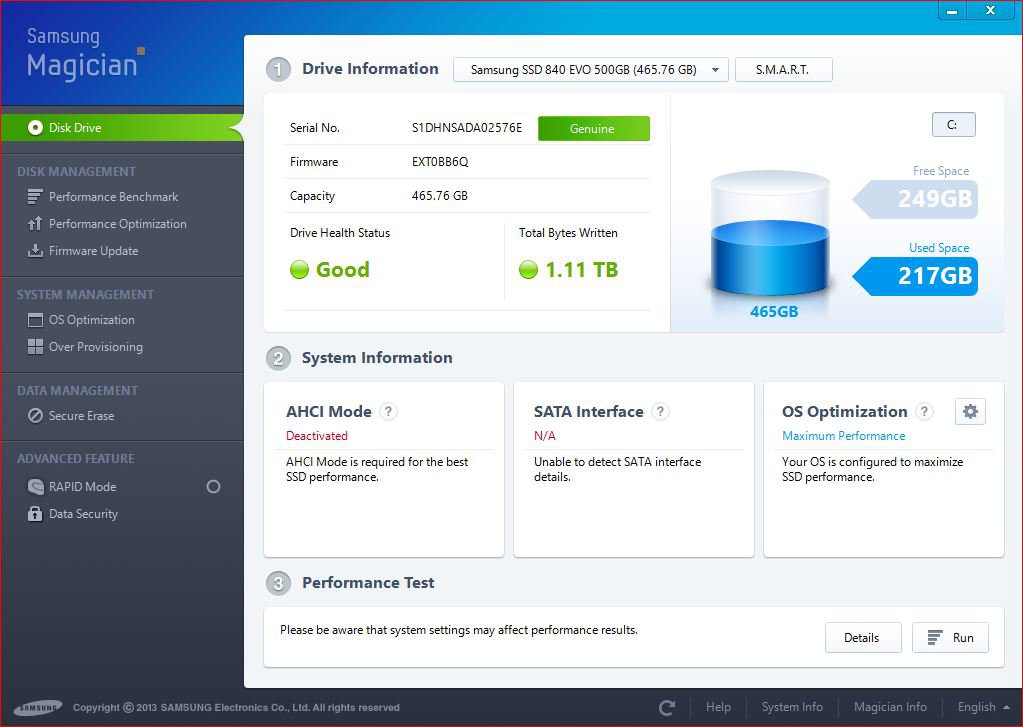

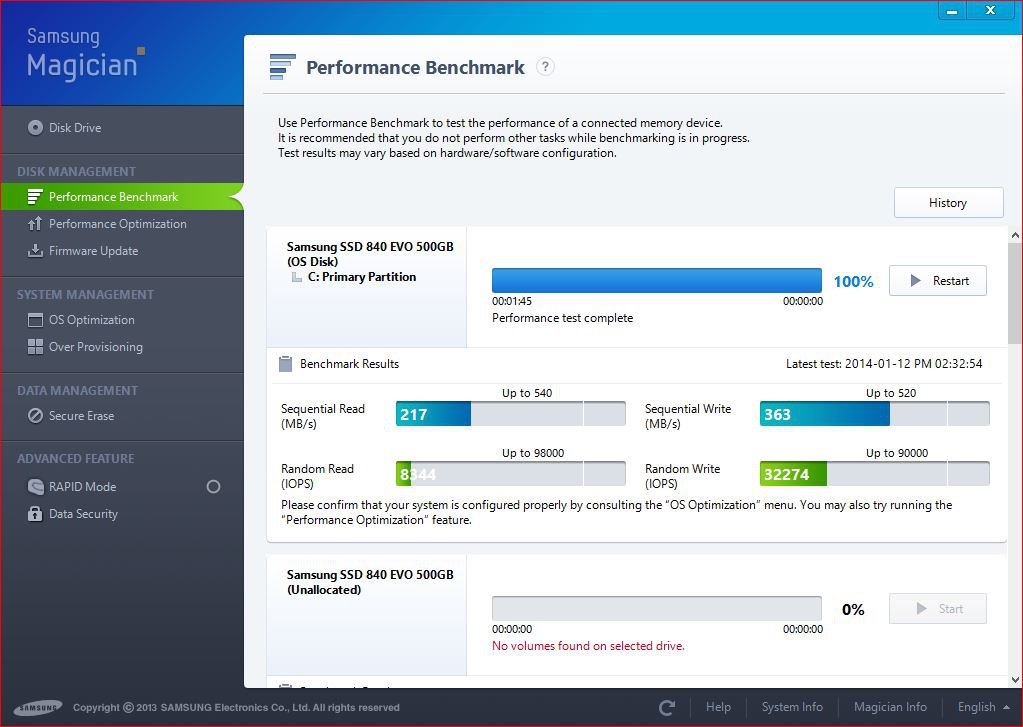

Samsung 1 - 840 EVO 500GB SATA-II RAPID (OSX BootCamp 5).JPG

Samsung 2 - 840 EVO 500GB SATA-II RAPID (OSX BootCamp 5).JPG

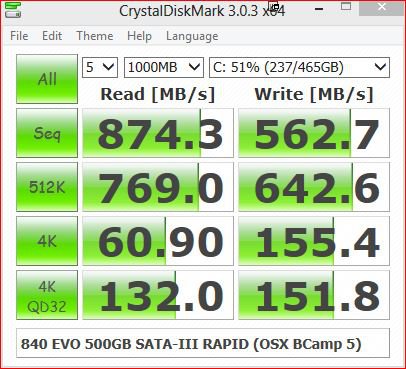

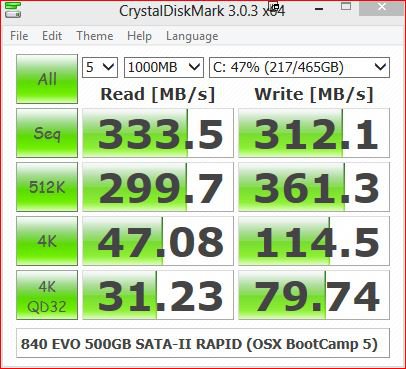

CrystalDiskMark x64 - 840 EVO 500GB SATA-II RAPID (OSX BootCamp 5).JPG

ATTO - 840 EVO 500GB SATA-II RAPID (OSX BootCamp 5).JPG

Due to boot problems on a PCIe expansioncard I had to insert this SSD into a SATA-2 sled.
Upgraded my OS X as wel with a RAID0 with 2x Samsung 840 EV0 500GB on the PCIe Velocity Solo X2 (SATA-3).
BEST upgrade I ever made....

Cheers

Last edited:

My Computer

System One

  • OS
    Windows 8 Pro x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Apple Mac Pro 5.1 (2012)
    CPU
    DODECA @ 2.66 GHz
    Motherboard
    MP 5.1
    Memory
    24 GB @ 1333 MHz
    Graphics Card(s)
    EVGA GTX-670-4GB-FTW-PC & ATI XT 2600 HD Mac
    Hard Drives
    Samsung 840 EVO's 500GB @ Apricorn Velocity DUO x2 PCIe
    Case
    The most beautiful IMHO
    Keyboard
    Wired
    Mouse
    Mighty Mouse
    Antivirus
    ESET Internet Security Pro

Michal

Member
Member
Posts
70
#31
@Maverick
ATTO results are misleading (results are much higher than should be). In your case 4x higher than crystal disk mark and Samsung Magician.
It is difficult to say what to expect from Windows running from bootcamp, but for Samsung Evo your SSD is underperforming.

If I would believe these ATTO data:

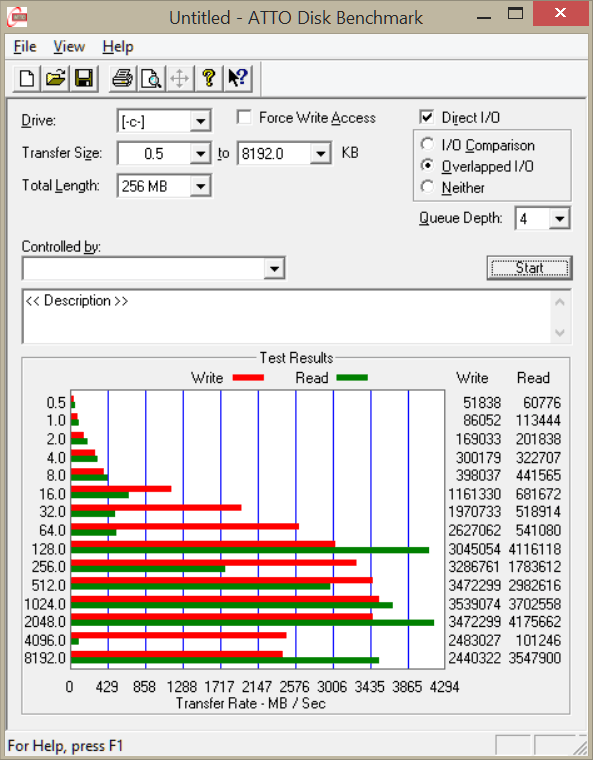

ATTO Disk Benchmark 01-10-2014.png

..my SATA 6GB/s would be faster than PCIe. Not possible.
I would stick with CrystalDiskMark


My Computer

System One

  • OS
    windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    MSI
    CPU
    i7-4800MQ
    Memory
    32GB
    Graphics Card(s)
    nVidia GeForce GTX 770M
    Browser
    Enhanced Protected Mode IE/protected mode Firefox
    Antivirus
    nope
    Other Info
    OpenNIC/DNSCrypt/VPN/EMET

m4v3r1ck

New Member
Member
Posts
112
#32
Thanks Michal,

I forgot to mention that the EVO for bootcamping Windows 8 is in a SATA-II sled of the MacPro. Due to boot problems in combination with a PCIe SATA-III card, which cannot hold the OSX and BC drive all together.


My Computer

System One

  • OS
    Windows 8 Pro x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Apple Mac Pro 5.1 (2012)
    CPU
    DODECA @ 2.66 GHz
    Motherboard
    MP 5.1
    Memory
    24 GB @ 1333 MHz
    Graphics Card(s)
    EVGA GTX-670-4GB-FTW-PC & ATI XT 2600 HD Mac
    Hard Drives
    Samsung 840 EVO's 500GB @ Apricorn Velocity DUO x2 PCIe
    Case
    The most beautiful IMHO
    Keyboard
    Wired
    Mouse
    Mighty Mouse
    Antivirus
    ESET Internet Security Pro
Posts
1
#33
Time to move this topic on?

A popular thread over at Windows 7 Forums, I thought I'd bring it over here to see what we're getting with the Windows 8 OS.

Here's mine, using the default settings:


The benchmark we tried to use is ATTO 2.47, available from...
or ...
Gee, we tried Dwarf. Your bench won't run on win81-64 with i7-3770k on Intel wares with 32gb, but somewhere around 5 times your punch +. Win81 install time circa 4 minutes, boot 0.7 secs. Every bench is dif, so I guess you should update this topic with PCMARK or anything up to the task.
Ciao.:confused:


My Computer

System One

  • OS
    Windows 8.1 Pro

larkoth

Member
Member
Posts
27
#34


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Self Build
    CPU
    Intel i7 3930k @ 4.2ghz
    Motherboard
    Asus Rampage Extreme IV ROG
    Memory
    32GB Corsair Vengeance XMS DDR3 @2133MHZ
    Graphics Card(s)
    EVGA ACX Superclocked GTX 780
    Sound Card
    Realtek HD 7.1
    Monitor(s) Displays
    Samsung Syncmaster SA950 27" FullHD 3D LED
    Screen Resolution
    1920*1080
    Hard Drives
    2xOCZ Vertex 3 - 120GB SSD's SataIII Raid-0
    2xWestern Digital 600GB Velociraptors SataIII Raid-0
    1x1TB Seagate SSHD SataIII
    1x2TB HDD SataIII
    PSU
    XFX 80+ Gold Pro series 1250W
    Case
    Thermaltake level10 GT LCS
    Cooling
    All Liquid cooled
    Keyboard
    Logitech G19
    Mouse
    Logitech G9X
    Internet Speed
    ADSL2+ (24mb)
    Browser
    Chrome
    Antivirus
    avast me hearties ;)

larkoth

Member
Member
Posts
27
#36
Pretty fast - what is that.

as is says in my system specs: 2xOCZ Vertex 3 - 120GB SSD's SataIII Raid-0

they are pretty fast especially in raid-0 should be upgrading them soon too (not faster just bigger)


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Self Build
    CPU
    Intel i7 3930k @ 4.2ghz
    Motherboard
    Asus Rampage Extreme IV ROG
    Memory
    32GB Corsair Vengeance XMS DDR3 @2133MHZ
    Graphics Card(s)
    EVGA ACX Superclocked GTX 780
    Sound Card
    Realtek HD 7.1
    Monitor(s) Displays
    Samsung Syncmaster SA950 27" FullHD 3D LED
    Screen Resolution
    1920*1080
    Hard Drives
    2xOCZ Vertex 3 - 120GB SSD's SataIII Raid-0
    2xWestern Digital 600GB Velociraptors SataIII Raid-0
    1x1TB Seagate SSHD SataIII
    1x2TB HDD SataIII
    PSU
    XFX 80+ Gold Pro series 1250W
    Case
    Thermaltake level10 GT LCS
    Cooling
    All Liquid cooled
    Keyboard
    Logitech G19
    Mouse
    Logitech G9X
    Internet Speed
    ADSL2+ (24mb)
    Browser
    Chrome
    Antivirus
    avast me hearties ;)

whs

New Member
VIP Member
Guru
Germany/Florida

Posts
4,514
#37
I personally am not a fan of Raid setups. They just complicate your life. And although they produce nice measurements, in real life there is little difference because the access time is the same.


My Computer

System One

  • OS
    Vista and Win7
    System Manufacturer/Model
    2xHP, 2xGateway, 1xDell, 1xSony
    Hard Drives
    5 SSDs and 12 HDs

larkoth

Member
Member
Posts
27
#38
interesting opinion on raid setups, i personally like them, they are simple and can un-complicate your life if you mirror (always got a backup)


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Self Build
    CPU
    Intel i7 3930k @ 4.2ghz
    Motherboard
    Asus Rampage Extreme IV ROG
    Memory
    32GB Corsair Vengeance XMS DDR3 @2133MHZ
    Graphics Card(s)
    EVGA ACX Superclocked GTX 780
    Sound Card
    Realtek HD 7.1
    Monitor(s) Displays
    Samsung Syncmaster SA950 27" FullHD 3D LED
    Screen Resolution
    1920*1080
    Hard Drives
    2xOCZ Vertex 3 - 120GB SSD's SataIII Raid-0
    2xWestern Digital 600GB Velociraptors SataIII Raid-0
    1x1TB Seagate SSHD SataIII
    1x2TB HDD SataIII
    PSU
    XFX 80+ Gold Pro series 1250W
    Case
    Thermaltake level10 GT LCS
    Cooling
    All Liquid cooled
    Keyboard
    Logitech G19
    Mouse
    Logitech G9X
    Internet Speed
    ADSL2+ (24mb)
    Browser
    Chrome
    Antivirus
    avast me hearties ;)

m4v3r1ck

New Member
Member
Posts
112
#39
UPDATE:

Mac Pro 3.1 - OS X 10.8.5
Samsung 840 EVO 500GB connected to SATA-3 PCIe card Apricorn Velocity SOLO-X2 running Windows 8 Pro x64 under OS X BootCamp 5.3.3

Finally been able to operate the SSD in AHCI mode!!!!

RAPID Mode = ON

Sata-II

CrystalDiskMark x64 - 840 EVO 500GB SATA-II RAPID (OSX BootCamp 5).JPG

Sata-III

CrystalDiskMark x64 - 840 EVO 500GB SATA-III RAPID (OSX BootCamp 5).JPG


My Computer

System One

  • OS
    Windows 8 Pro x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Apple Mac Pro 5.1 (2012)
    CPU
    DODECA @ 2.66 GHz
    Motherboard
    MP 5.1
    Memory
    24 GB @ 1333 MHz
    Graphics Card(s)
    EVGA GTX-670-4GB-FTW-PC & ATI XT 2600 HD Mac
    Hard Drives
    Samsung 840 EVO's 500GB @ Apricorn Velocity DUO x2 PCIe
    Case
    The most beautiful IMHO
    Keyboard
    Wired
    Mouse
    Mighty Mouse
    Antivirus
    ESET Internet Security Pro

pparks1

New Member
VIP Member
Guru
Westland, MI

Posts
3,658
#40
interesting opinion on raid setups, i personally like them, they are simple and can un-complicate your life if you mirror (always got a backup)
Raid is not a backup, a mirror gives you redundancy, not a backup. For example, get a virus, and both drives are infected. Accidentally delete all of your pictures, all pictures are deleted from your "backup" as well. Raid provides redundancy in case a drive falls, but it should never be confused with a backup.


My Computer

System One

  • OS
    Windows 7
    System Manufacturer/Model
    Self-Built in July 2009
    CPU
    Intel Q9550 2.83Ghz OC'd to 3.40Ghz
    Motherboard
    Gigabyte GA-EP45-UD3R rev. 1.1, F12 BIOS
    Memory
    8GB G.Skill PI DDR2-800, 4-4-4-12 timings
    Graphics Card(s)
    EVGA 1280MB Nvidia GeForce GTX570
    Sound Card
    Realtek ALC899A 8 channel onboard audio
    Monitor(s) Displays
    23" Acer x233H
    Screen Resolution
    1920x1080
    Hard Drives
    Intel X25-M 80GB Gen 2 SSD
    Western Digital 1TB Caviar Black, 32MB cache. WD1001FALS
    PSU
    Corsair 620HX modular
    Case
    Antec P182
    Cooling
    stock
    Keyboard
    ABS M1 Mechanical
    Mouse
    Logitech G9 Laser Mouse
    Internet Speed
    15/2 cable modem
    Other Info
    Windows and Linux enthusiast. Logitech G35 Headset.

Users Who Are Viewing This Thread (Users: 0, Guests: 1)
