Scrollbar - Change Width Size in Windows 8
This tutorial will show you how to change the size of the scrollbar width for your user account in Windows 8 and 8.1.
Published by Brink
#1
Category:
ByLine
How to Change Scrollbar Width Size in Windows 8 and 8.1
Synopsis
This tutorial will show you how to change the size of the scrollbar width for your user account in Windows 8 and 8.1.
How to Change Scrollbar Width Size in Windows 8 and 8.1

information   Information
This tutorial will show you how to change the size of the scrollbar width for your user account in Windows 8, Windows RT, Windows 8.1, and Windows RT 8.1.

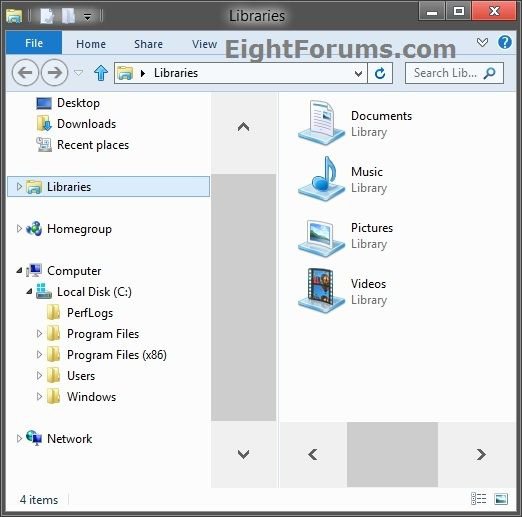

EXAMPLE: Scrollbar Size Set Wider
NOTE:
This is with the setting of -1000 in the steps below.





Here's How:

1. Press Windows + R keys to open the Run dialog, type regedit, and click/tap OK.

2. If prompted by UAC, then click/tap on Yes.

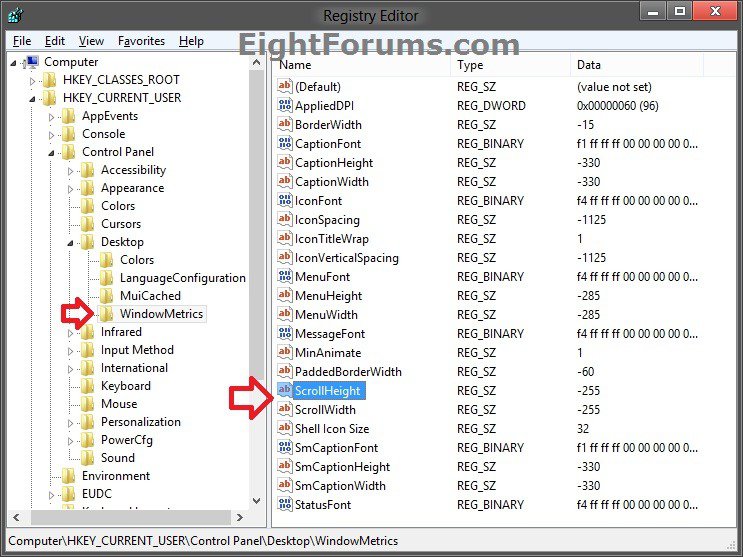

3. In regedit, navigate to the location below. (see screenshot below)
HKEY_CURRENT_USER\Control Panel\Desktop\WindowMetrics

4. In the right pane of WindowMetrics, double click/tap on ScrollHeight to be able to modify it. (see screenshot above)

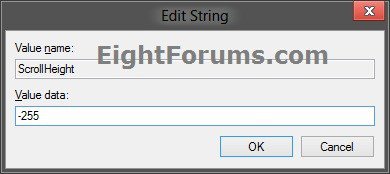

5. Type in a data value between -120 to -1500, and click/tap OK. (see screenshot below)
NOTE: The default value is -255. A higher value (ex: -1000) will give you a wider scrollbar, and lower value (ex: -100) will give you a thinner scrollbar.

6. In the right pane of WindowMetrics, double click/tap on ScrollWidth to be able to modify it. (see screenshot below step 3)

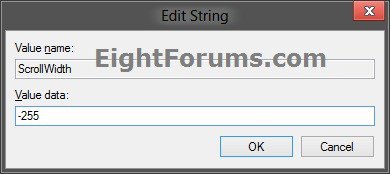

7. Type in the same data value you entered for "ScrollHeight" in step 5 above, and click/tap OK. (see screenshot below)

8. Close regedit.

9. Sign out and sign in with your user account to apply.


That's it,
Shawn




Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

commander

Member
Member
Posts
298
#2
are you serious? ok XP it was just a few clicks with a mouse and oh forget it. I do not have the computer know-how to do that.
it's almost as if some somebody at Microsoft went out their way to make this OS diffacult on older people. thanks anyway.


My Computer

System One

  • OS
    windows 8
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    dell i660s-5390bk
    CPU
    1tb
    Memory
    8gb
    Graphics Card(s)
    intel
    Browser
    msn.com
    Antivirus
    norton

Brink

Administrator
Administrator
mvp
Posts
23,584
#3
Hello commander,

If you wanted to do it, t's not so bad if you follow the tutorial step by step. We're happy to help as needed. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

roccy

New Member
Posts
1
#4
Big Help on Acer W3

I bumped mine to -400, and that gives me enough width to use it (most of the time). A technique to keep in mind is to hold your fingertip on there long enough to "register" - seems to be about 1-2 seconds.

Watch out though if using the GUI Display setting control to later change overall size (like medium/125% or Custom Sizing) - adjusting those seemed to reset my scrollbar settings.

I agree with the poster about how annoying this is compared to the full control XP gives via the GUI, but I am familiar with this kind of tweaking from my experience with Windows CE/HPC/PPC/WM 5/6 (Jornada 728 or XV6900 anyone?) that required registry edits like this for a lot of settings. Good ol' MS and its one-size-fits-all/why tweak notions.


My Computer

System One

  • OS
    Windows 8

Tom721

New Member
Posts
1
#5
I split the screen, with these instructions on the left, and the regedit screen on the right. Then, just follow the instructions carefully. NOTE that there are 2 values that need to be changed: one is HEIGHT, the other is WIDTH, and they need to have the same value. I changed mine to -500, which worked out fine. But if that's not enough, you can go back in and make it a bigger value. Plus, it's a good exercise in getting 'under the hood' of this OS.-Tom


My Computer

System One

  • OS
    windows 8
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Dell 660S
    CPU
    G2030
    Memory
    4 GB
    Graphics Card(s)
    Intel HD Graphics
    Browser
    Firefox 24.0

Brink

Administrator
Administrator
mvp
Posts
23,584
#7
Hello TheVictor, and welcome to Eight Forums. :)

Anything below "-120" is no different.

You can play with different values if you like. I just find that it gives better results with them as the same.
