SATA Drivers - Load in Windows 8 System Image Recovery
This will show you how to load the SATA drivers in Windows 8 System Image Recovery.
Published by theog
#1
Category:
ByLine
How to Load SATA Drivers in Windows 8 System Image Recovery
Synopsis
This will show you how to load the SATA drivers in Windows 8 System Image Recovery.
How to Load SATA Drivers in Windows 8 System Image Recovery

information   Information
This will show you how to load the SATA drivers in System Image Recovery when Windows 8 cannot find your backup hard drive due to lack of loaded drivers.




Here's How:

1) Copy your SATA driver to a disk. (Floppy, CD, USB)
NOTE: Keep this disk in a safe place. For this example, I am using a Floppy disk.

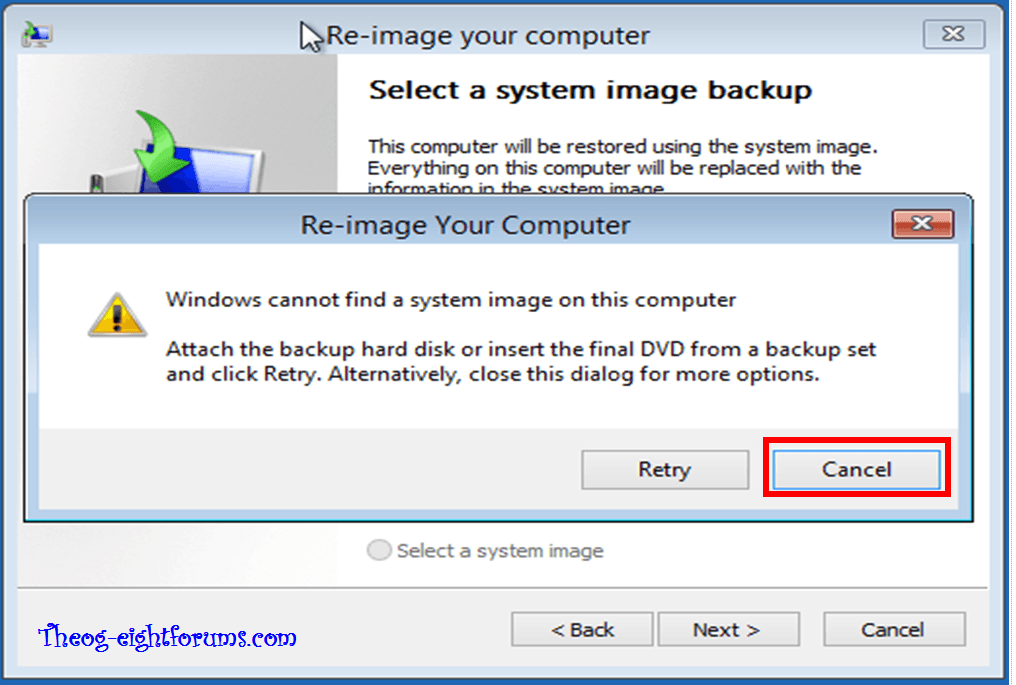

2) Click Cancel

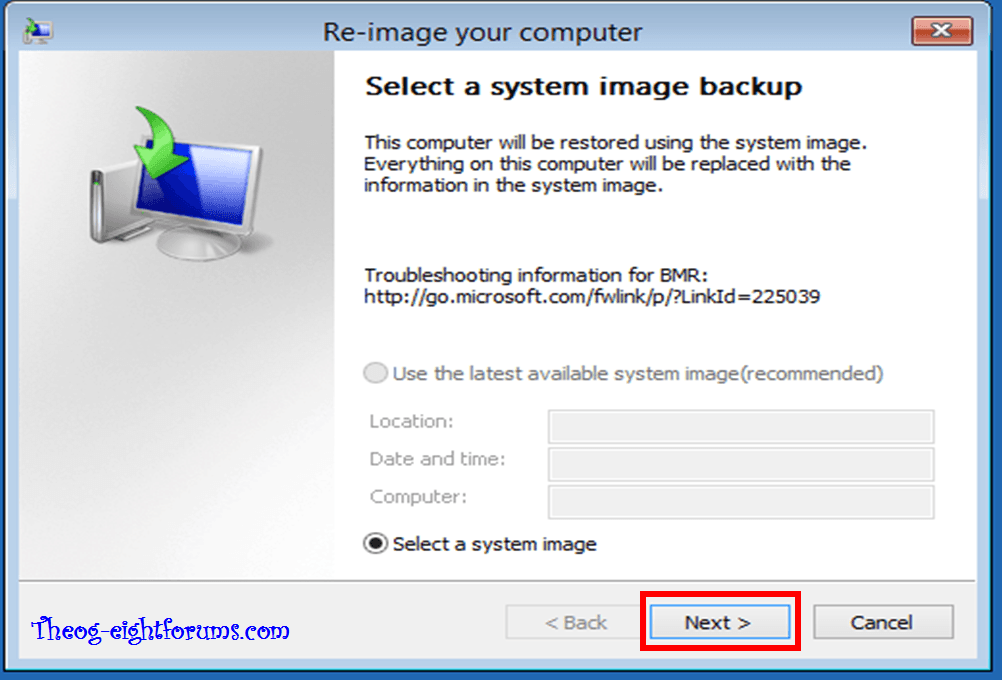

3) Click Next

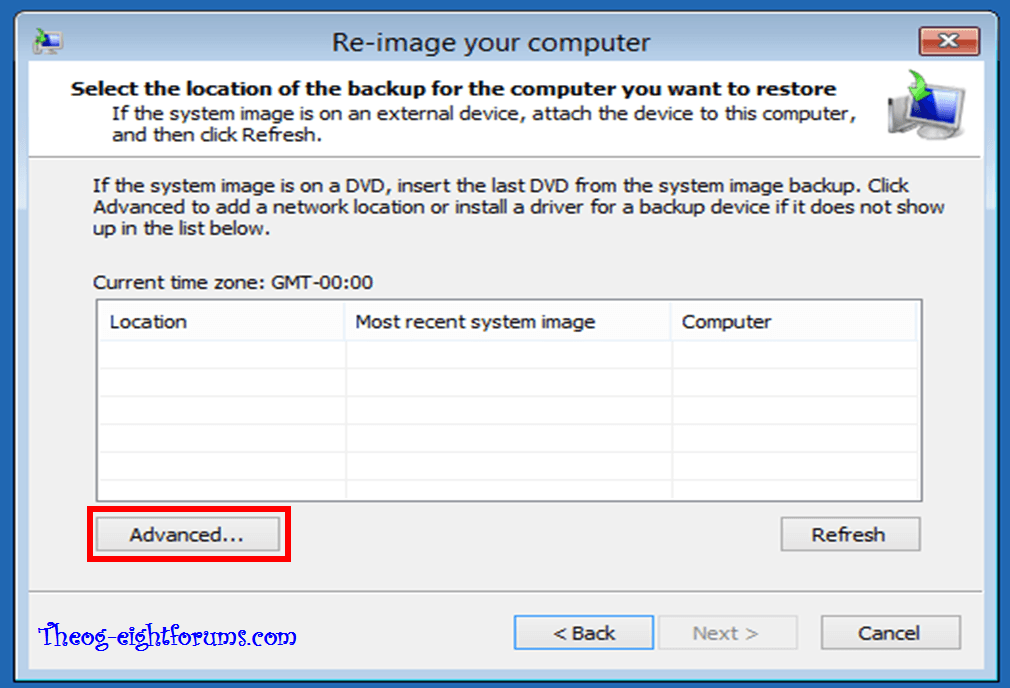

4) Click Advanced

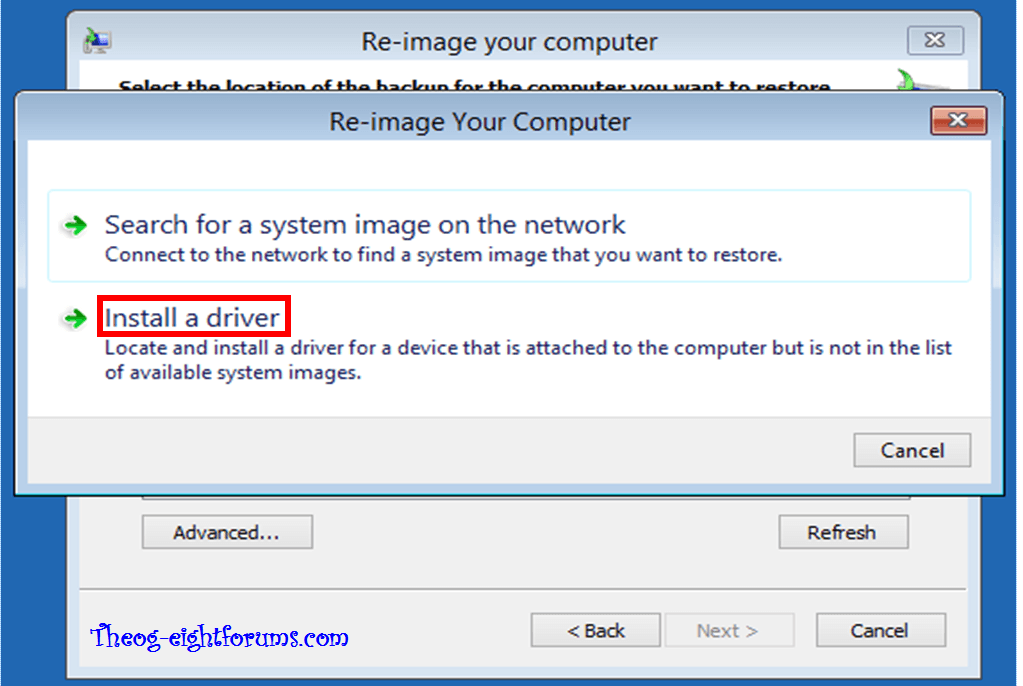

5) Click Install a Driver

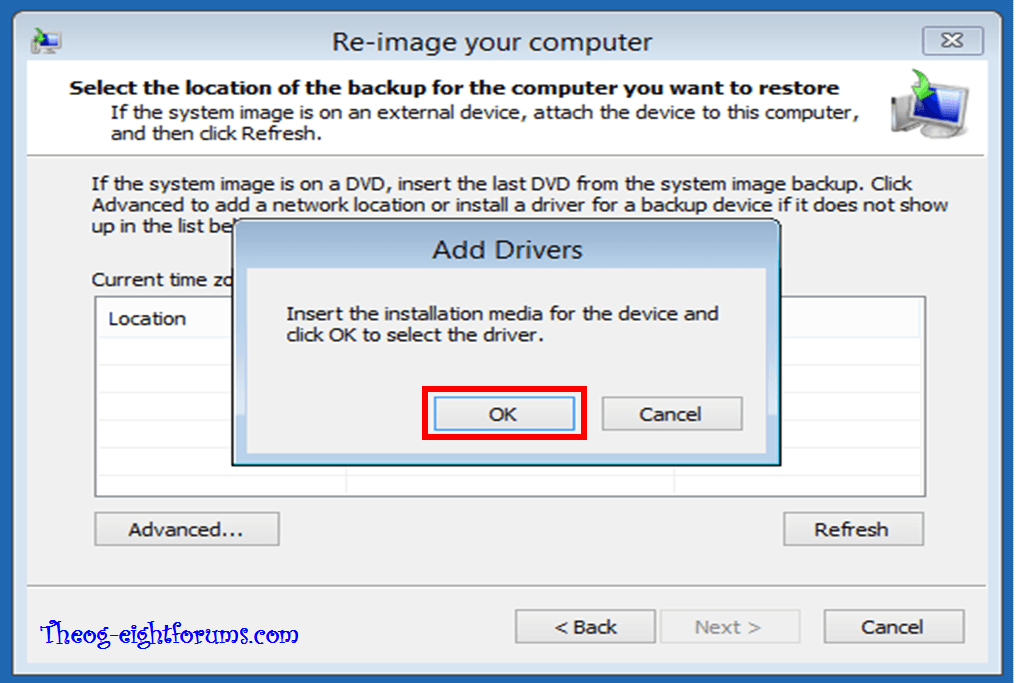

6) Click OK

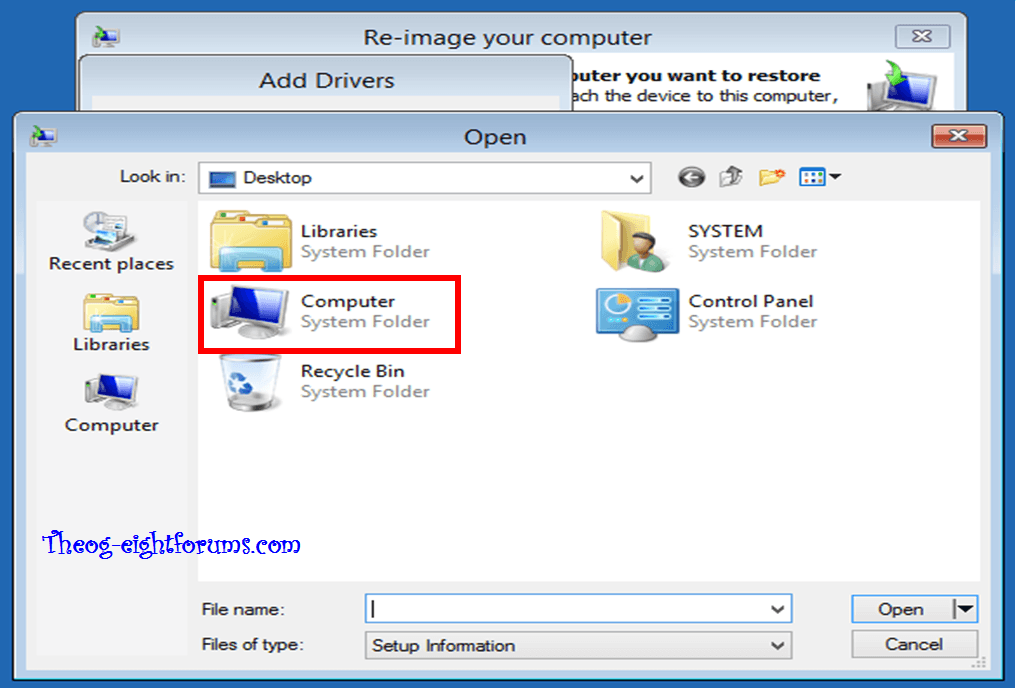

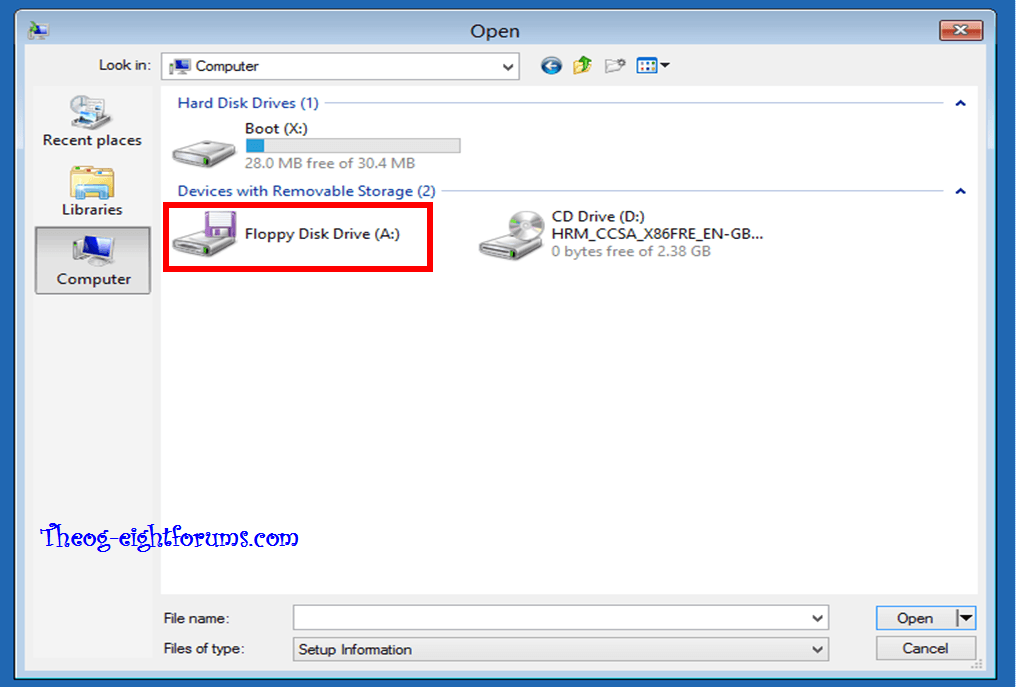

7) Click Computer.

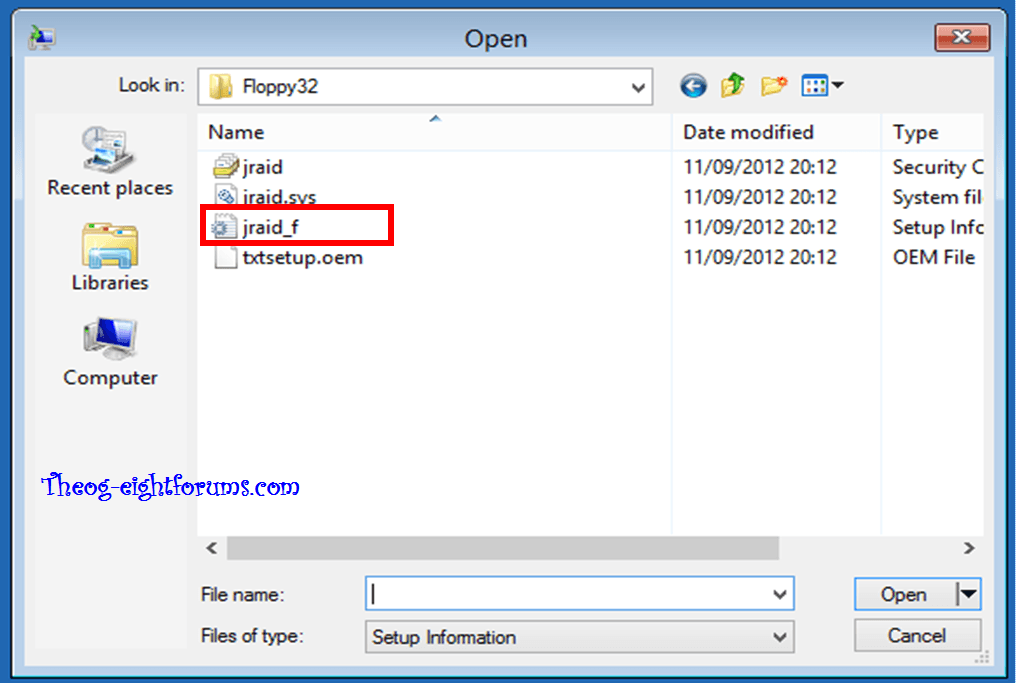

8) Choose your Sata Controller. Double Click on setup inf file.
NOTE: For this example, I am using JMicron JMB36X SATA/RAID Controller card.

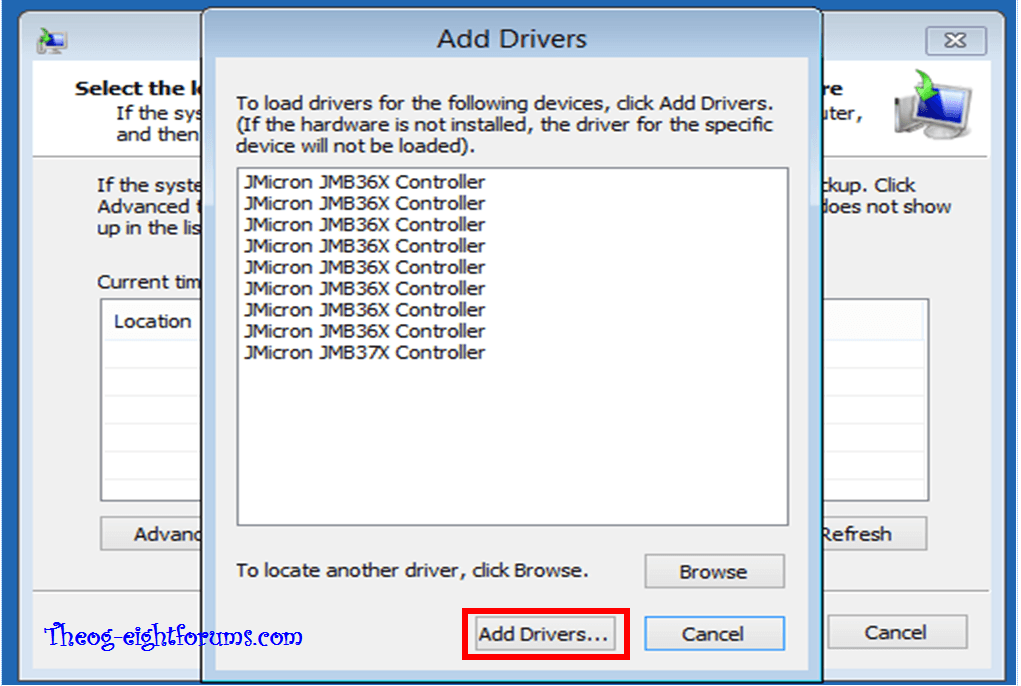

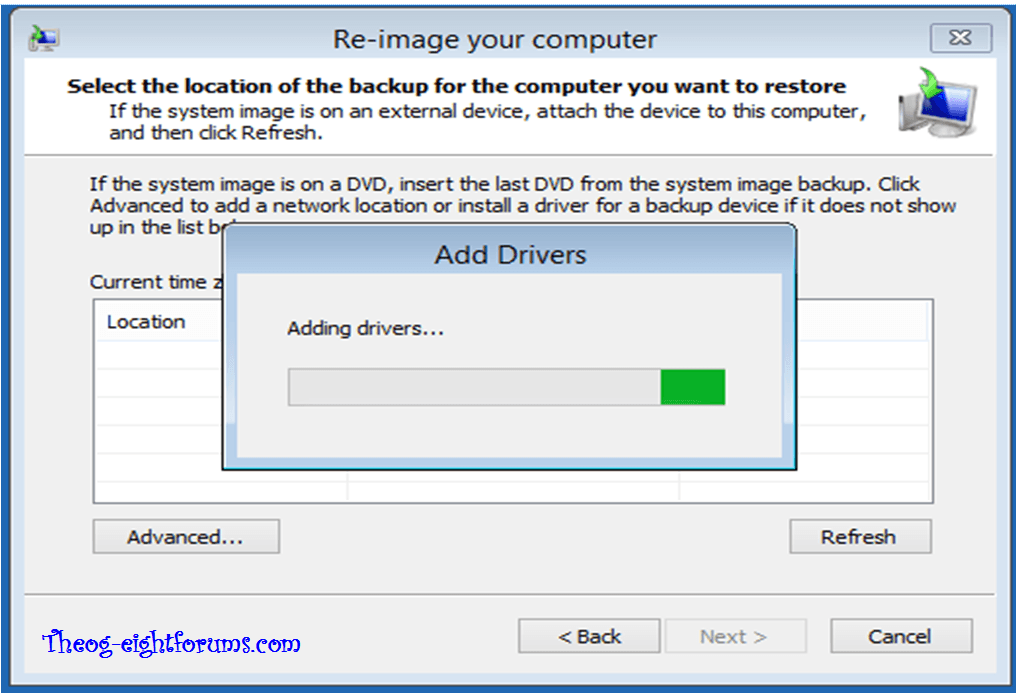

9) Choose your Sata Controller. Click Add drivers.

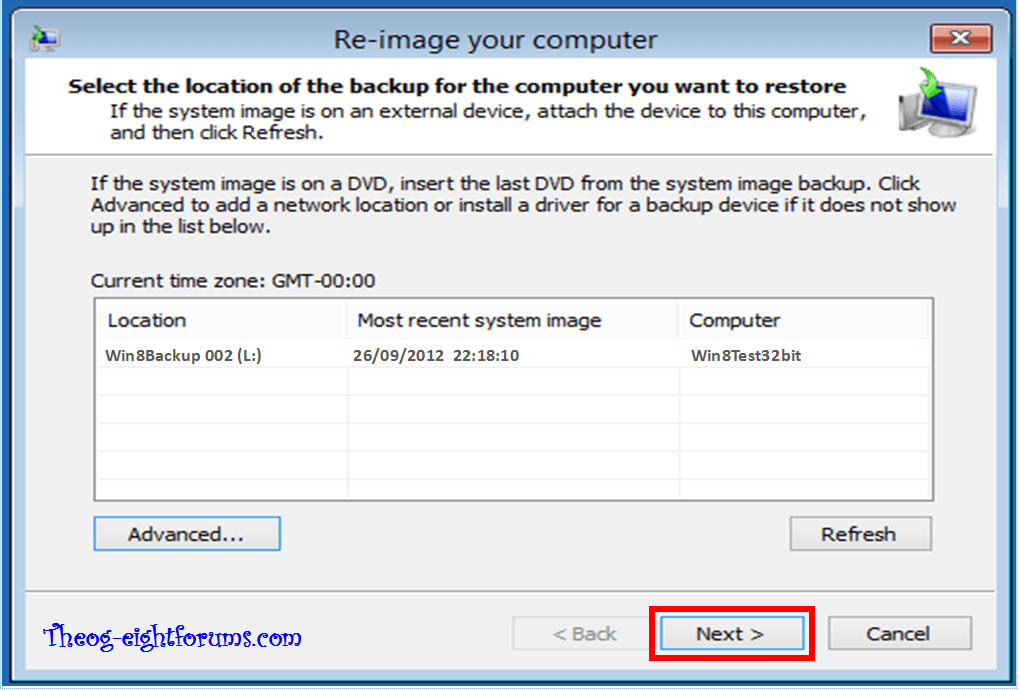

10) Click Next & Continue with Re-imaging at step 6 C of:
System Image Recovery - Restore Image on Computer in Windows 8



All done.
Ray



Last edited by a moderator:

My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

SIW2

Well-Known Member
Team Member
Posts
5,360
#2
Not sure everyone will know where to find their SATA drivers. ( or even what SATA drivers are, for that matter).

I don't use windows system image - but perhaps if your windows installation sees the backup HD - might be easiest to point at your install partition driverstore.

Applies to win7 too, I imagine.


My Computer

System One

  • OS
    7/8/ubuntu/Linux Deepin
    Computer type
    PC/Desktop

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#3
SIW1 said:
I don't use windows system image - but perhaps if your windows installation sees the backup HD - might be easiest to point at your install partition driverstore.
Hi Si
For this example, I am using JMicron JMB36X SATA/RAID Controller card.
No drivers in the Windows 8 DVD.

http://www.eightforums.com/tutorials/9573-sata-driver-load-windows-8-setup.html

SIW1 said:
Applies to win7 too, I imagine.
Yes, it would applle.
SATA Driver - Load in Windows 7 or Vista Setup - Windows 7 Forums
SATA drivers - Load in Windows System Image Recovery - Windows 7 Forums

Ray

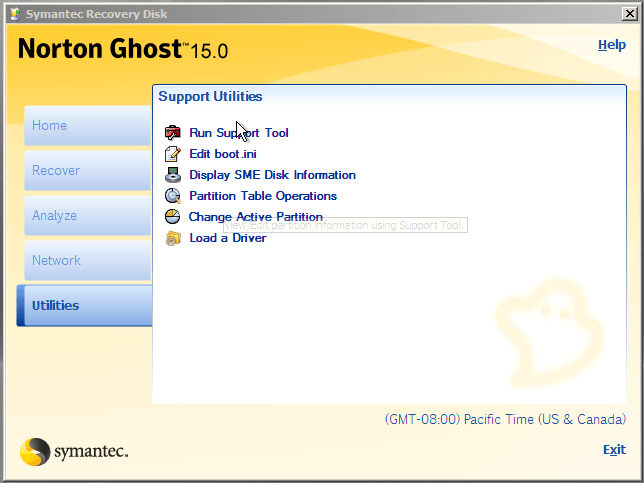

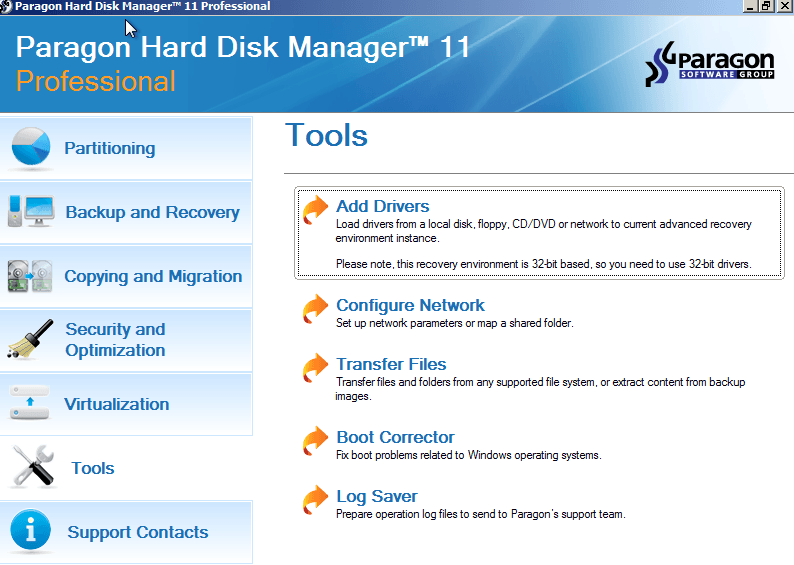

PS. You can also Sata Drivers in Norton Ghost & Paragon.


Last edited:

My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

znod

New Member
Power User
Posts
2,156
#4
Would greatly appreciate help/insights.

Having trouble seeing created system image backups on backup drive--using created system repair disk. Worked before I thought, but not now. Backup drive is older Seagate Freeagent firewire (IEEE 1394) drive. I am told "Windows cannot find a system image on this computer," etc. So, I would try to install a driver, but have not been able to find what's needed. Snips of what I know obtained via Device Manager are below. Still, what is happening does not make much sense to me because when I try to locate the needed driver, I can go directly to the Freeagent drive and see my created system image backups. Same problem occurs when I connect the drive via USB alternative.

This is the best I can do (no snips being allowed):

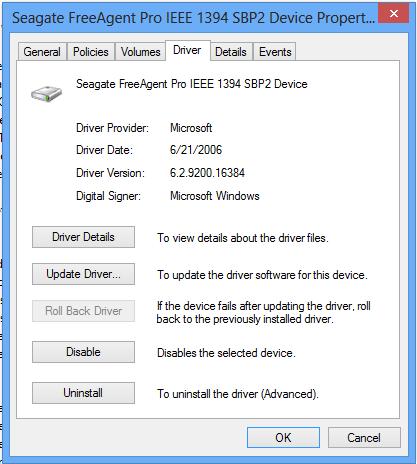

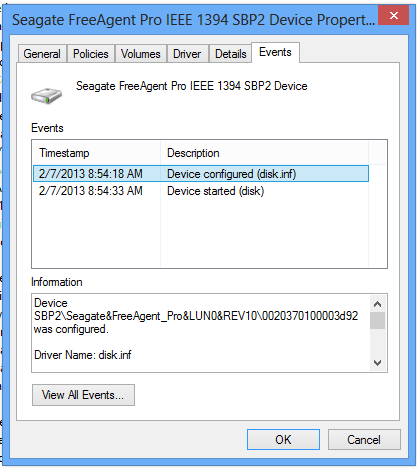

driver name: disk.inf
Seagate FreeAgent Pro IEEE 1394 SBP2 Device
Driver Date: 6/21/06
Driver Version: 6.2.9200.16384
Digital Signer: Microsoft Windows
Device: SBP2\Seagate&Freeagent_Pro&LUN0&REV10\0020370100003d92



Sorry having trouble with my snips right now. Don't understand that either. Will get them up ASAP.

Help. Why can't I upload two small png files?

This isn't my day.
:D

Last edited:

My Computer

System One

  • OS
    Win7 Ult on DIY; Win8 Pro on MBP/Parallels; Win7 Ult on MBP/Boot Camp; Win7 Ult/Win8 Pro on HP
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    DIY Rig; MacBook Pro (MBP)/Parallels/Boot Camp; HP Pavilion dv6500t Laptop
    CPU
    Intel i7-2600K (sometimes OC'd to 4.8 GHz)
    Motherboard
    ASUS P8P67 Deluxe Rev B3
    Memory
    16 GB Corsair Vengeance
    Graphics Card(s)
    EVGA 570 SC
    Monitor(s) Displays
    Gateway
    Hard Drives
    Dual Boot:
    Win7 Ult RAID 0 on OCZ Revo x2 and
    Win7 Ult RAID 0 on Caviar Black SATA 3's
    PSU
    Cooler Master Silent Pro 1000W
    Case
    Cooler Master 932 HAF
    Cooling
    Zalman CNPS9900MAX-B CPU Fan
    Keyboard
    Logitech Cordless Desktop MX 5500
    Mouse
    Logitech Cordless Desktop MX 5500
    Internet Speed
    20 Mbps Download/2+ Mbps Upload
    Other Info
    Pioneer Blu-ray Burner/DVD Burner

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#5
Would greatly appreciate help/insights.

Having trouble seeing created system image backups on backup drive--using created system repair disk. Worked before I thought, but not now. Backup drive is older Seagate Freeagent firewire (IEEE 1394) drive. I am told "Windows cannot find a system image on this computer," etc. So, I would try to install a driver, but have not been able to find what's needed. Snips of what I know obtained via Device Manager are below. Still, what is happening does not make much sense to me because when I try to locate the needed driver, I can go directly to the Freeagent drive and see my created system image backups. Same problem occurs when I connect the drive via USB alternative.

This is the best I can do (no snips being allowed):

driver name: disk.inf
Seagate FreeAgent Pro IEEE 1394 SBP2 Device
Driver Date: 6/21/06
Driver Version: 6.2.9200.16384
Digital Signer: Microsoft Windows
Device: SBP2\Seagate&Freeagent_Pro&LUN0&REV10\0020370100003d92



Sorry having trouble with my snips right now. Don't understand that either. Will get them up ASAP.

Help. Why can't I upload two small png files?

This isn't my day.
:D
If use a USB 3.0 port, try loading the drivers.


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

znod

New Member
Power User
Posts
2,156
#6
Would greatly appreciate help/insights.

Having trouble seeing created system image backups on backup drive--using created system repair disk. Worked before I thought, but not now. Backup drive is older Seagate Freeagent firewire (IEEE 1394) drive. I am told "Windows cannot find a system image on this computer," etc. So, I would try to install a driver, but have not been able to find what's needed. Snips of what I know obtained via Device Manager are below. Still, what is happening does not make much sense to me because when I try to locate the needed driver, I can go directly to the Freeagent drive and see my created system image backups. Same problem occurs when I connect the drive via USB alternative.

This is the best I can do (no snips being allowed):

driver name: disk.inf
Seagate FreeAgent Pro IEEE 1394 SBP2 Device
Driver Date: 6/21/06
Driver Version: 6.2.9200.16384
Digital Signer: Microsoft Windows
Device: SBP2\Seagate&Freeagent_Pro&LUN0&REV10\0020370100003d92



Sorry having trouble with my snips right now. Don't understand that either. Will get them up ASAP.

Help. Why can't I upload two small png files?

This isn't my day.
:D
If use a USB 3.0 port, try loading the drivers.
Thanks much for the help. I think you probably saw this above: "Same problem occurs when I connect the drive via USB alternative." The old clunkers I am using are USB 2.0. In this regard, device manager does not "tell me" which driver(s) to load. USB 2.0 would be very slow, but I'd use it if I have to--and it would work. On the other hand, I might be able to reinstall faster. Don't know.

Can't use esata. Computer doesn't have a port.


My Computer

System One

  • OS
    Win7 Ult on DIY; Win8 Pro on MBP/Parallels; Win7 Ult on MBP/Boot Camp; Win7 Ult/Win8 Pro on HP
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    DIY Rig; MacBook Pro (MBP)/Parallels/Boot Camp; HP Pavilion dv6500t Laptop
    CPU
    Intel i7-2600K (sometimes OC'd to 4.8 GHz)
    Motherboard
    ASUS P8P67 Deluxe Rev B3
    Memory
    16 GB Corsair Vengeance
    Graphics Card(s)
    EVGA 570 SC
    Monitor(s) Displays
    Gateway
    Hard Drives
    Dual Boot:
    Win7 Ult RAID 0 on OCZ Revo x2 and
    Win7 Ult RAID 0 on Caviar Black SATA 3's
    PSU
    Cooler Master Silent Pro 1000W
    Case
    Cooler Master 932 HAF
    Cooling
    Zalman CNPS9900MAX-B CPU Fan
    Keyboard
    Logitech Cordless Desktop MX 5500
    Mouse
    Logitech Cordless Desktop MX 5500
    Internet Speed
    20 Mbps Download/2+ Mbps Upload
    Other Info
    Pioneer Blu-ray Burner/DVD Burner

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#8

My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

SIW2

Well-Known Member
Team Member
Posts
5,360
#9
You might need to install the drivers in winre.wim, before you boot it up.

Hy,

I have tried to load the system image using the above method. Once I upload drivers it says I have to restart.

I downloaded the drivers x64 bit from:
https://downloadcenter.intel.com/Detail_Desc.aspx?agr=Y&ProdId=2101&DwnldID=23060&ProductFamily=Software+Products&ProductLine=Chipset+Software&ProductProduct=Intel%c2%ae+Rapid+Storage+Technology+(Intel%c2%ae+RST)&lang=eng

I initially was running on windows 8 on my hp pavilion dv7. Kindly help


My Computer

System One

  • OS
    7/8/ubuntu/Linux Deepin
    Computer type
    PC/Desktop

CVJ

New Member
Posts
3
#10
I had a main C drive of apprx 650gb and a small D Drive of approx 15GB. How do I install the drivers in winre.wim?
Will this let me restore the image because currently the system image recovery does not detect the image at all.


My Computer

System One

  • OS
    8

Brink

Administrator
Administrator
mvp
Posts
23,373
#11
Hello CVJ, and welcome to Eight Forums.

What drive did you save the system image to, and is it connected?

It can't be on C:, and D: is to small. A system image is not the same as the factory recovery partition or a custom refresh image.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

CVJ

New Member
Posts
3
#13
The image was about 40gb and was initially created on the C drive via command prompt. I copied the same to my external powered hard drive.

I have a HP pavilion dv7


My Computer

System One

  • OS
    8

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#14

My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4
Posts
3
#15
Where are the sata drivers???

You are so right! Can someone please give nice step by step instructions on what to do if your computer cant find any system image backups?

I have a factory reset 1 month old HP Pavilion laptop, windows 8.1. I want to restore the image I saved from it with recimg to a 3TB USB hard drive. The drive is plugged in to the laptop. The CustomRefresh.wim is in the RefreshImage folder on it exactly as per your instructions elsewhere. It can find it easily in file explorer. Cant find it in the "re-image your computer" window as per your screenshot above. I tried copying the wim file to desktop, then to C:\. Did the setcurrent instruction as per your instructions. NOTHING WORKED. Still reported "cannot find a system image on this computer". I tried straight refresh as read somewhere that it uses the recimg file. That returned an error, "nothing has changed".

You say "copy your SATA driver to a disk". Um, where is the SATA driver located please? What is it named??? Will this fix the cannot find problem if the backup image is already on my C drive??? Can I just drag it to a USB drive? How will the laptop find it if it can't read USB drives??? I don't understand any of the discussion on this page. Tried dragging .sys files showing in properties as drivers for the backup drive to a USB, but clicking each of these returned :does not contain information" error message.

I am really glad I tried this on a spare laptop and did not wait until I really needed it...

Can anyone help please?

================================================
