SATA Driver - Load in Windows 8 Setup


theog

VIP Member
VIP Member
Gold Member
Posts
5,591
SATA Driver - Load in Windows 8 Setup
This will show you how to load the SATA driver during the Windows 8 setup when setup cannot find your hard drive.
Published by theog
#1
Category:
ByLine
How to Load SATA Driver During Windows 8 Setup
Synopsis
This will show you how to load the SATA driver during the Windows 8 setup when setup cannot find your hard drive.
How to Load SATA Drivers During Windows 8 Setup


information   Information

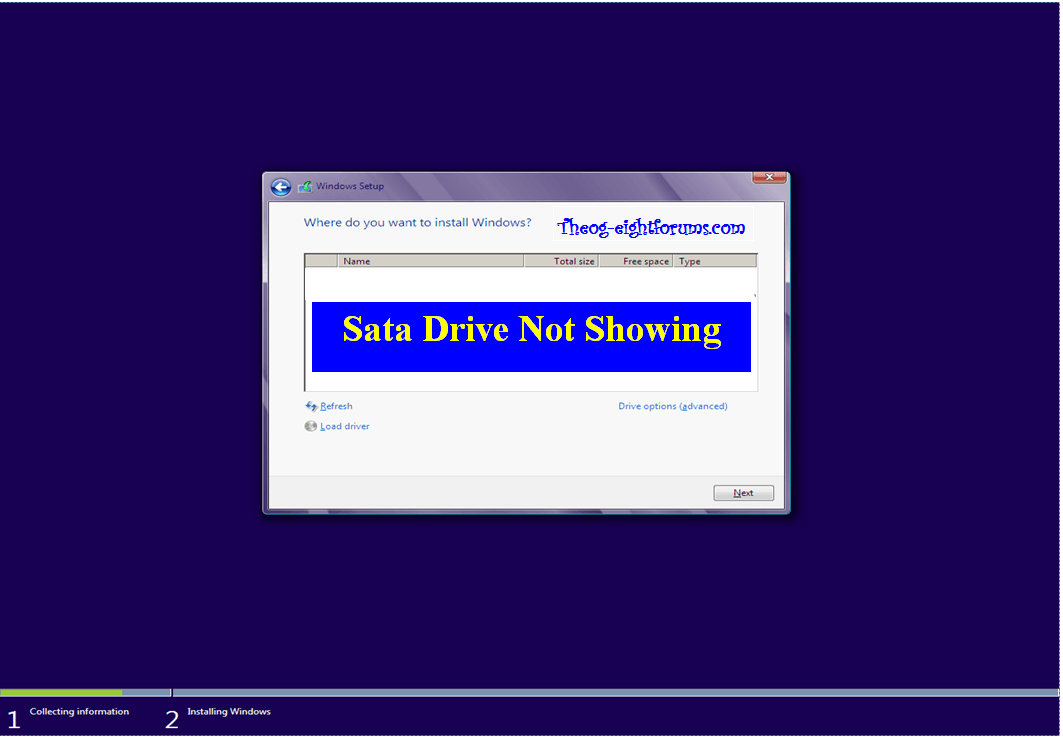

This will show you how to load the SATA driver during the Windows 8 setup when setup cannot find your hard drive.




LD Setup 1-8.PNG




Here's How:

1) Copy your SATA drivers to a disk. (Floppy, CD, USB)
NOTE: Keep this disk in a safe place, as it will be need to use in the Recovery Console.
System Image Recovery - Restore Image on Computer in Windows 8

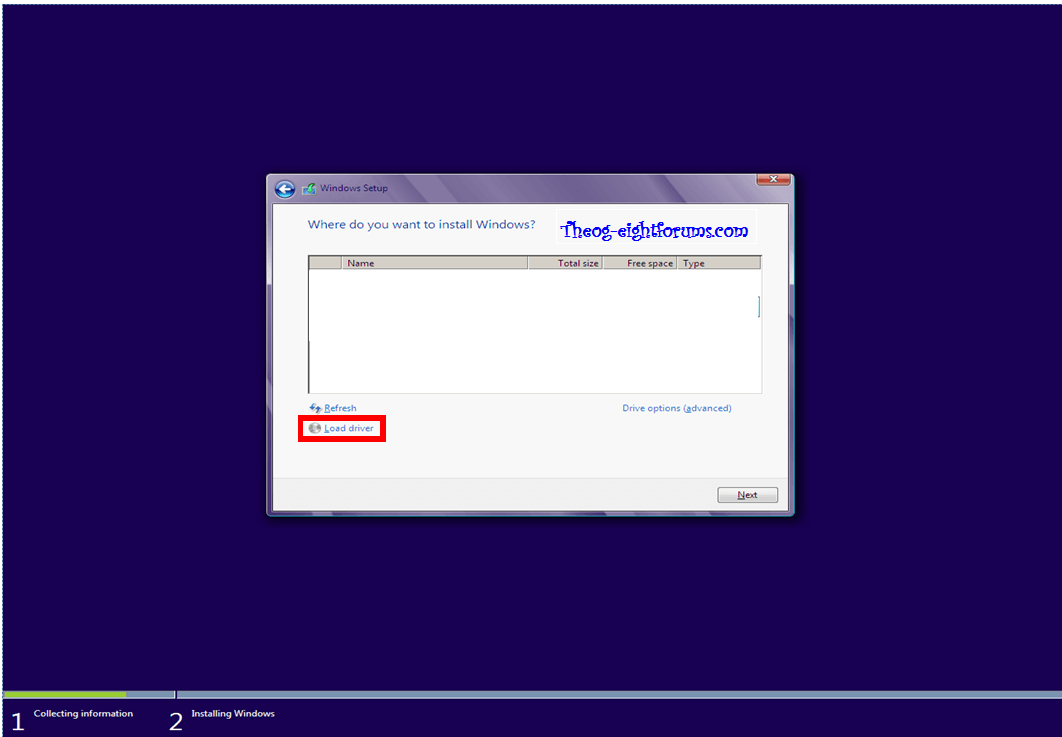

2) Click Load Drivers
LD Setup 2-8.PNG

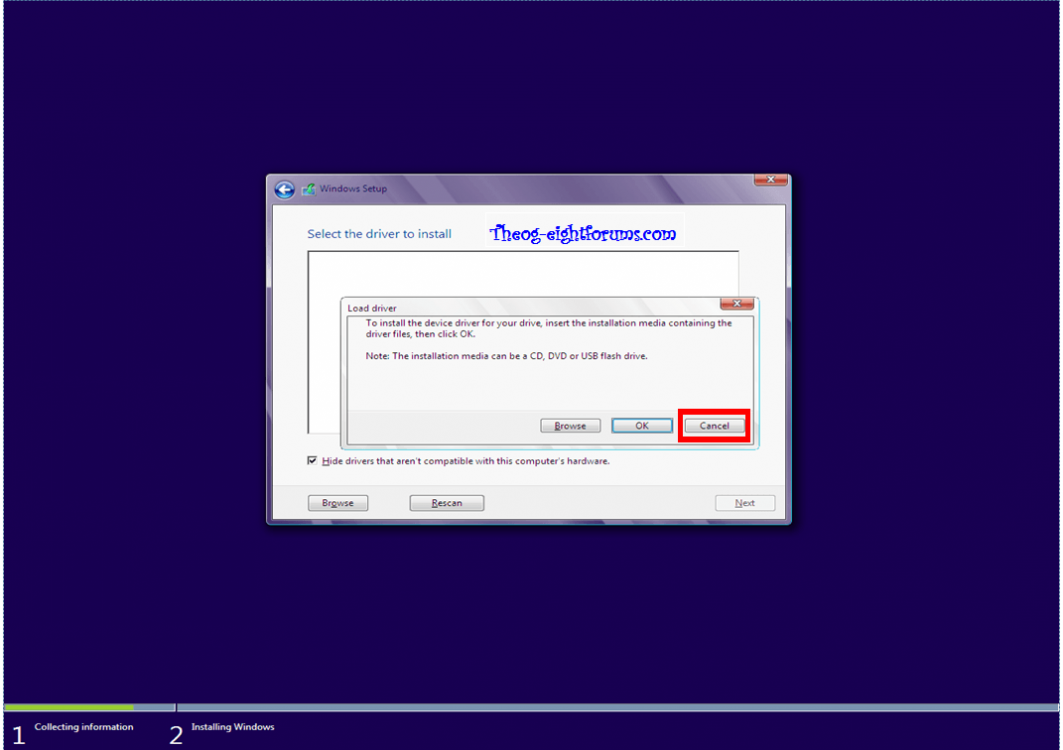

3) Click Cancel
LD Setup 3-8.PNG

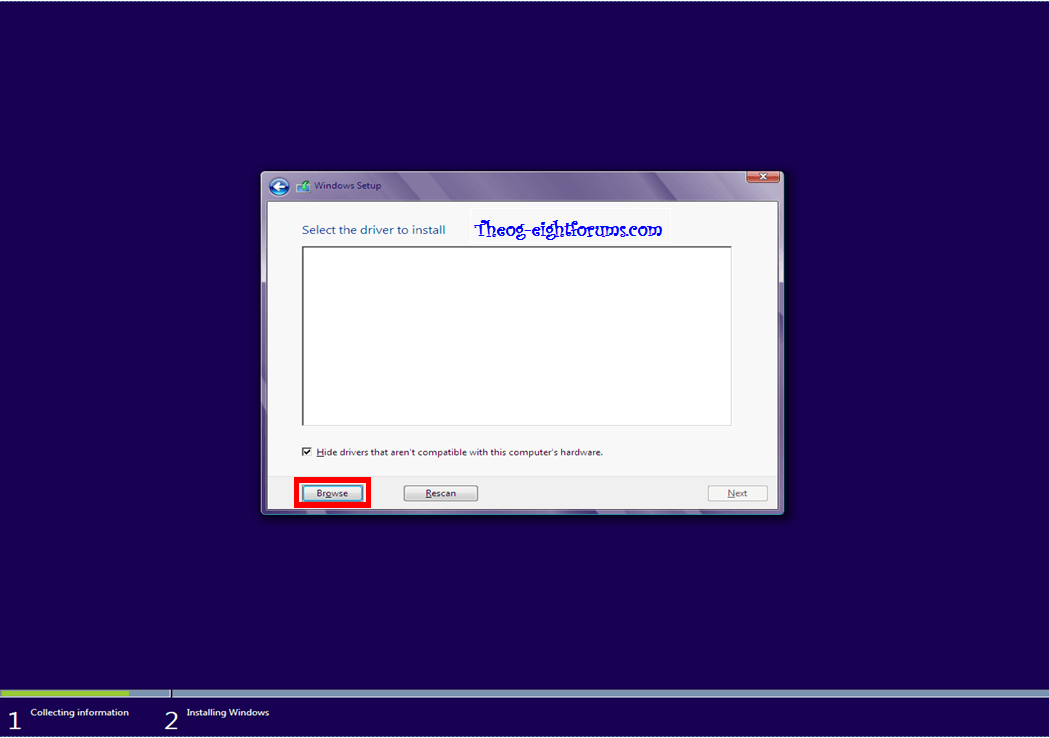

4) Click Browse.
LD Setup 4-8.PNG

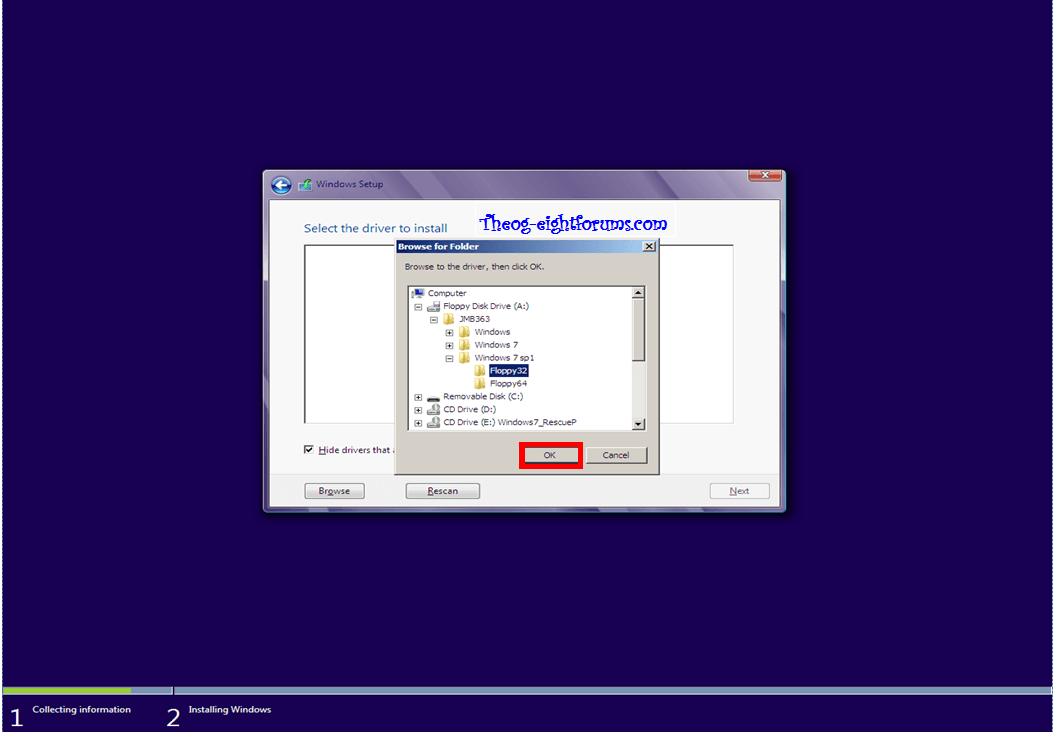

5) Choose your Sata Controller. Click OK
NOTE:
For this example, I am using JMB363.
LD Setup 8-8.PNG

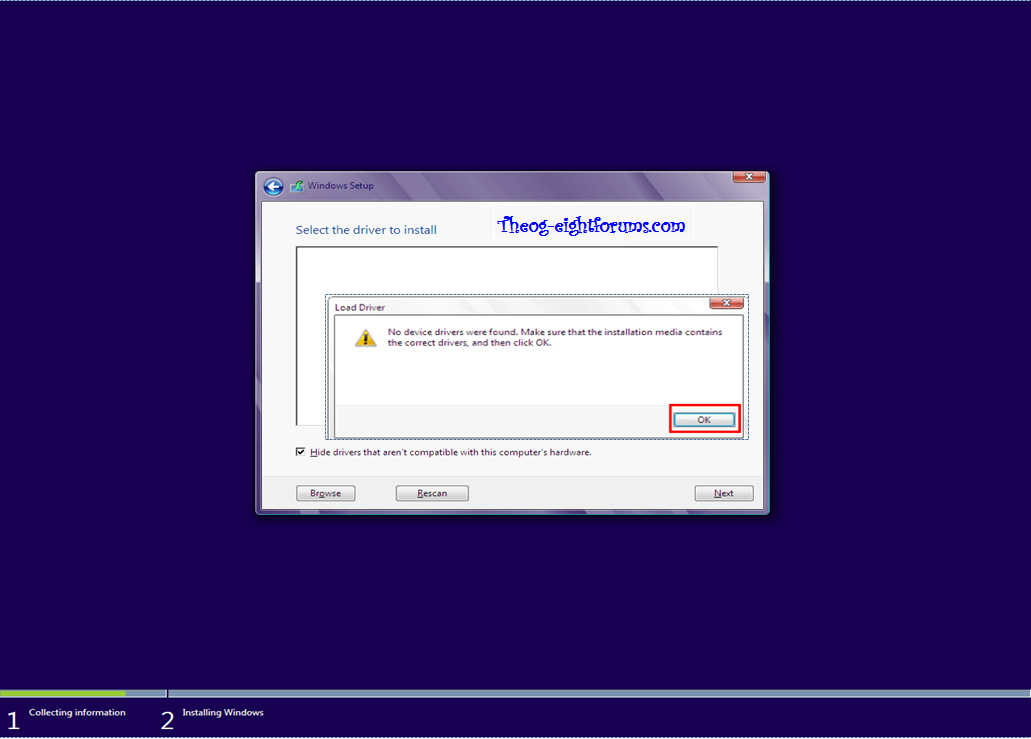

6) Click OK
LD Setup 9-8.PNG

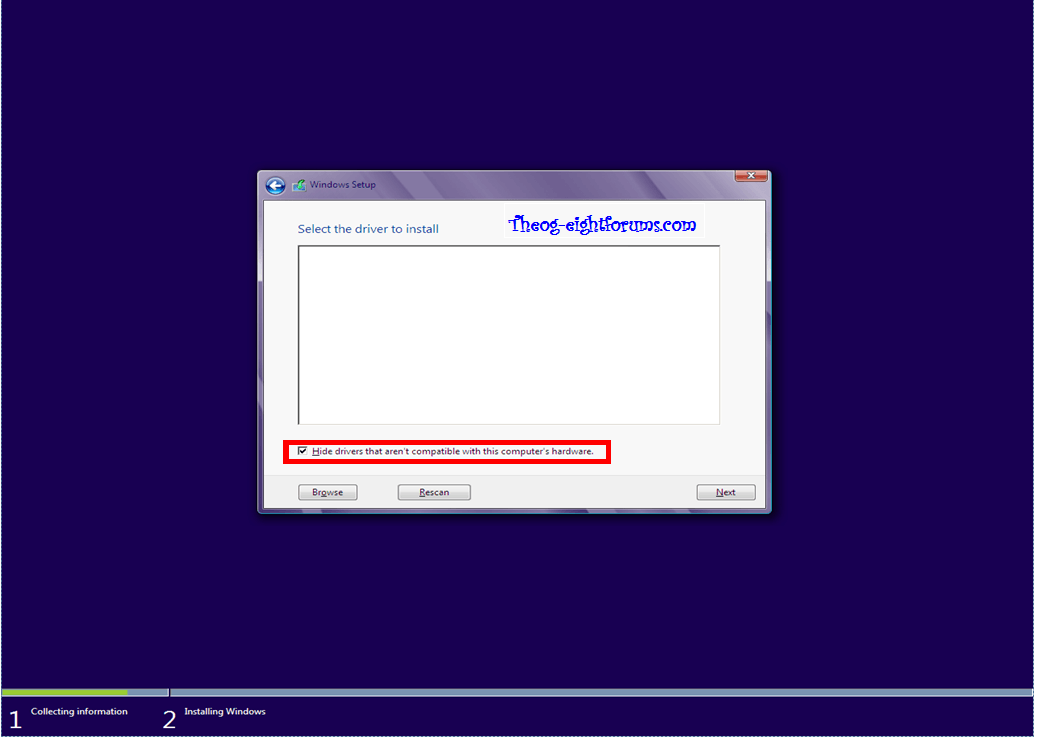

7) Click Unhide
LD Setup 10-8.PNG

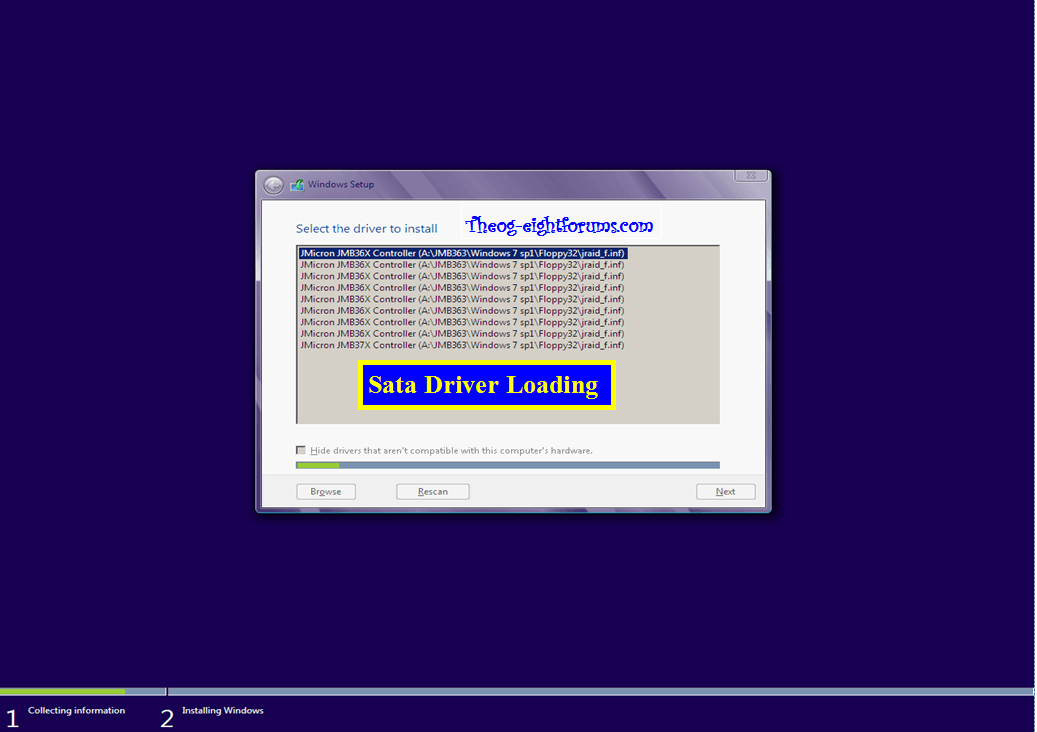

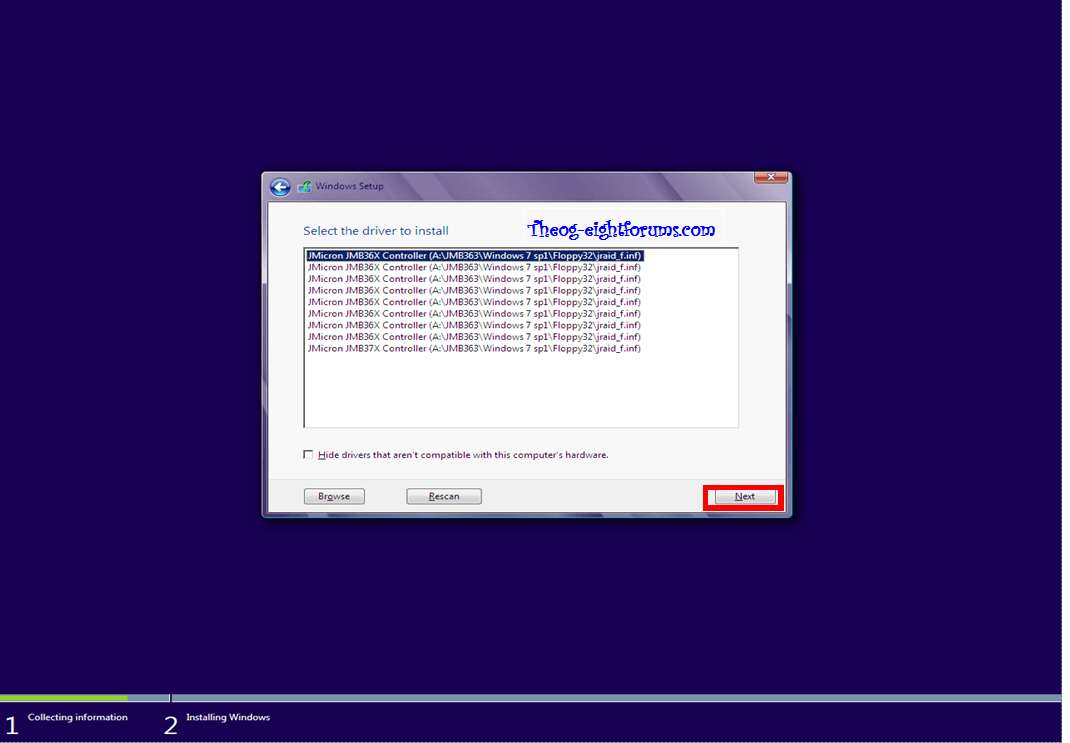

8) Choose your Sata Controller. Click Next
LD Setup 11-8.PNG

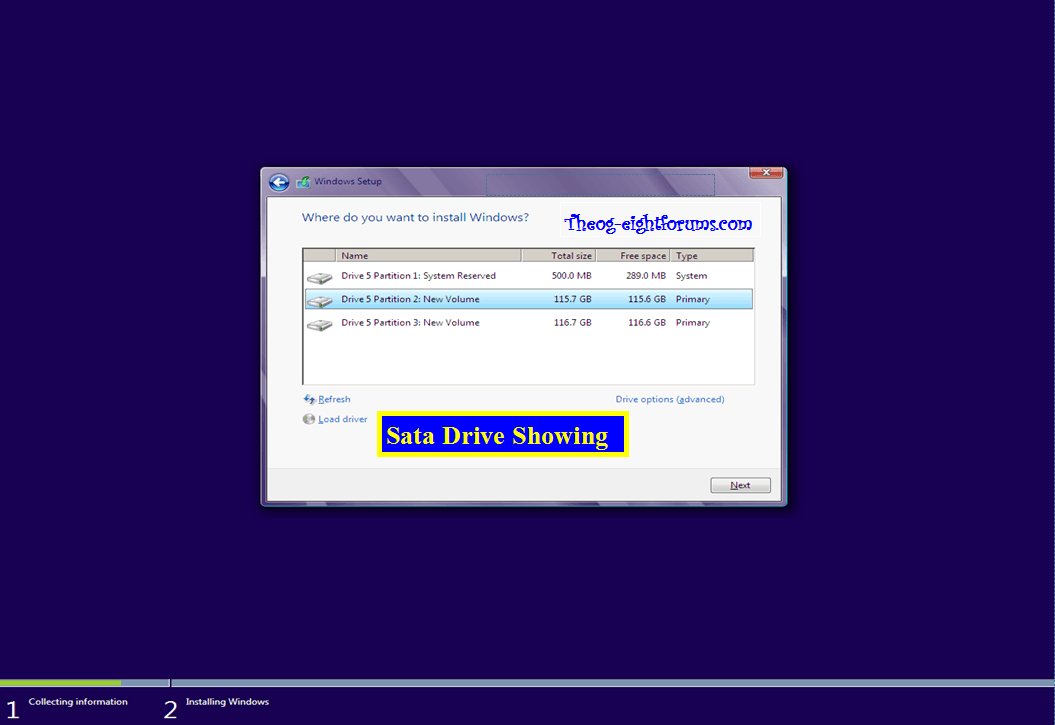

9) Continue with setup.
LD Setup 12-8.PNG
LD Setup 13-8.PNG


All Done
Ray



Last edited by a moderator:

My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#3
Thank you, Robert.
Ray


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

Hopachi

Polyhedric Stellation
VIP Member
Pro User
Orbiting the Moon

Posts
2,975
#4
Nice tutorial!

I'm impressed because standard SATA drivers should be included on the Win8 DVD.
On all the VM's and the laptops I use SATA and the disk shows always on the list.
But yes, it depends what hardware you use.

If one day I'll see nothing on the list, I'll try not to freak out and take a look here.

Thanks
Hopachi


My Computer

System One

  • OS
    Windows 10 x64
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy DV6 7250
    CPU
    Intel i7-3630QM
    Motherboard
    HP, Intel HM77 Express Chipset
    Memory
    16GB
    Graphics Card(s)
    Intel HD4000 + Nvidia Geforce 630M
    Sound Card
    IDT HD Audio
    Monitor(s) Displays
    15.6' built-in + Samsung S22D300 + 17.3' LG Phillips
    Screen Resolution
    multiple resolutions
    Hard Drives
    Samsung SSD 250GB + Hitachi HDD 750GB
    PSU
    120W adapter
    Case
    small
    Cooling
    laptop cooling pad
    Keyboard
    Backlit built-in + big one in USB
    Mouse
    SteelSeries Sensei
    Internet Speed
    slow and steady
    Browser
    Chromium, Pale Moon, Firefox Developer Edition
    Antivirus
    Windows Defender
    Other Info
    That's basically it.

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#5
Thank you, Hopachi.


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

lookito

New Member
Posts
4
#6
i cant pass step 8 any driver that i choose isnt the correct one i have done the same thing on windows 7 plenty of times on this pc so i really dont know what's the problem


My Computer

System One

  • OS
    windows 7

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#7
i cant pass step 8 any driver that i choose isnt the correct one i have done the same thing on windows 7 plenty of times on this pc so i really dont know what's the problem
Are you doing STEP 7.

also are using the updated Windows 8 driver.


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#9

My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4
#11
How to obtain SATA drivers of Windows 7

5) Choose your Sata Controller. Click OK
NOTE: For this example, I am using JMB363.
I have windows 7 and when trying to install Windows 8, it cannot find my laptop's Hard Drive.
According to your tutorial, I can make Win 8 recognize the SATA HDD. But how can I get my Windows 7 SATA drivers? Is there any topic on sevenforums or here that can shows how to do it?


My Computer

System One

  • OS
    Windows 7 Pro x64
    System Manufacturer/Model
    Toshiba Satellite C655-S5049
    CPU
    Intel® Celeron® processor 900o 2.2GHz, 1MB L2 Cache, 800MHz FSB
    Motherboard
    Mobile Intel® GL40 Express Chipset
    Memory
    Configured with 2GB DDR3 (max 4GB, works at 800MHz)
    Graphics Card(s)
    Intel® Graphics Media Accelerator 4500M with 128MB-829MB
    Sound Card
    Built-in stereo speakers
    Monitor(s) Displays
    15.6” diagonal widescreen TruBrite® TFT LCD display
    Screen Resolution
    1366 x 768 native resolution (HD)
    Hard Drives
    250GB (5400 RPM) Serial ATA hard disk drive
    Keyboard
    Standard US keyboard with 10-key (black)
    Mouse
    TouchPad™ pointing device with multi-touch control
    Internet Speed
    10/100 Ethernet Wi-Fi® Wireless networking (802.11b/g/n)9

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#12
5) Choose your Sata Controller. Click OK
NOTE: For this example, I am using JMB363.
I have windows 7 and when trying to install Windows 8, it cannot find my laptop's Hard Drive.
According to your tutorial, I can make Win 8 recognize the SATA HDD. But how can I get my Windows 7 SATA drivers? Is there any topic on sevenforums or here that can shows how to do it?

Welcome to EightForums

You need to download your drivers from the manufacturer's website.


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4
#13
Thank you,
What are SATA drivers actually for? Are they the drivers to HDD, GPU, CPU, Chipset...?
My laptop is "Toshiba Satellite C655-S5049". In the download page on Toshiba website, I cannot locate SATA drivers?
Where can I get my SATA Drivers? Thank you for your great forum.

Toshiba Satellite C655-S5049
Processor: Intel® Celeron® processor 900o 2.2GHz, 1MB L2 Cache, 800MHz FSB
Chipset: Mobile Intel® GL40 Express Chipset
Graphics: Intel® Graphics Media Accelerator 4500M with 128MB-829MB
Memory: Configured with 2GB DDR3 (max 4GB, works at 800MHz)
Storage Drive: 250GB (5400 RPM) Serial ATA hard disk drive
Operating System: Windows 7 Pro 64bit


My Computer

System One

  • OS
    Windows 7 Pro x64
    System Manufacturer/Model
    Toshiba Satellite C655-S5049
    CPU
    Intel® Celeron® processor 900o 2.2GHz, 1MB L2 Cache, 800MHz FSB
    Motherboard
    Mobile Intel® GL40 Express Chipset
    Memory
    Configured with 2GB DDR3 (max 4GB, works at 800MHz)
    Graphics Card(s)
    Intel® Graphics Media Accelerator 4500M with 128MB-829MB
    Sound Card
    Built-in stereo speakers
    Monitor(s) Displays
    15.6” diagonal widescreen TruBrite® TFT LCD display
    Screen Resolution
    1366 x 768 native resolution (HD)
    Hard Drives
    250GB (5400 RPM) Serial ATA hard disk drive
    Keyboard
    Standard US keyboard with 10-key (black)
    Mouse
    TouchPad™ pointing device with multi-touch control
    Internet Speed
    10/100 Ethernet Wi-Fi® Wireless networking (802.11b/g/n)9

Brink

Administrator
Administrator
mvp
Posts
23,928
#14

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#15
Thank you,
What are SATA drivers actually for? Are they the drivers to HDD, GPU, CPU, Chipset...?
My laptop is "Toshiba Satellite C655-S5049". In the download page on Toshiba website, I cannot locate SATA drivers?
Where can I get my SATA Drivers? Thank you for your great forum.

Toshiba Satellite C655-S5049
Processor: Intel® Celeron® processor 900o 2.2GHz, 1MB L2 Cache, 800MHz FSB
Chipset: Mobile Intel® GL40 Express Chipset
Graphics: Intel® Graphics Media Accelerator 4500M with 128MB-829MB
Memory: Configured with 2GB DDR3 (max 4GB, works at 800MHz)
Storage Drive: 250GB (5400 RPM) Serial ATA hard disk drive
Operating System: Windows 7 Pro 64bit
Hello Robert,

You can get the latest Intel AHCI/SATA drivers for Windows 8 at the Intel link below. :)

http://downloadcenter.intel.com/SearchResult.aspx?lang=eng&keyword="AHCI+SATA+Driver"
You can find more of drivers here:
Model Content Page

From I can see most of them are BETA drivers for Windows 8.


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4
#16
Which one should I download as my SATA driver?
* Intel Management Engine Interface v6.0.40.1215 (Security Driver Utility Application Special)
* Intel Rapid Storage Technology Driver v11.5.2.1001 (Driver HDD)

Just one more question; since this is an msi .exe file, can it be installed while I am stuck in not recognizing my HDD window during installation of Win 8? Or I need to decompile (extract) it? If so, how can I extract .exe files?


My Computer

System One

  • OS
    Windows 7 Pro x64
    System Manufacturer/Model
    Toshiba Satellite C655-S5049
    CPU
    Intel® Celeron® processor 900o 2.2GHz, 1MB L2 Cache, 800MHz FSB
    Motherboard
    Mobile Intel® GL40 Express Chipset
    Memory
    Configured with 2GB DDR3 (max 4GB, works at 800MHz)
    Graphics Card(s)
    Intel® Graphics Media Accelerator 4500M with 128MB-829MB
    Sound Card
    Built-in stereo speakers
    Monitor(s) Displays
    15.6” diagonal widescreen TruBrite® TFT LCD display
    Screen Resolution
    1366 x 768 native resolution (HD)
    Hard Drives
    250GB (5400 RPM) Serial ATA hard disk drive
    Keyboard
    Standard US keyboard with 10-key (black)
    Mouse
    TouchPad™ pointing device with multi-touch control
    Internet Speed
    10/100 Ethernet Wi-Fi® Wireless networking (802.11b/g/n)9

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#17
View attachment 11123
Which one should I download as my SATA driver?
* Intel Management Engine Interface v6.0.40.1215 (Security Driver Utility Application Special)
* Intel Rapid Storage Technology Driver v11.5.2.1001 (Driver HDD)

Just one more question; since this is an msi .exe file, can it be installed while I am stuck in not recognizing my HDD window during installation of Win 8? Or I need to decompile (extract) it? If so, how can I extract .exe files?

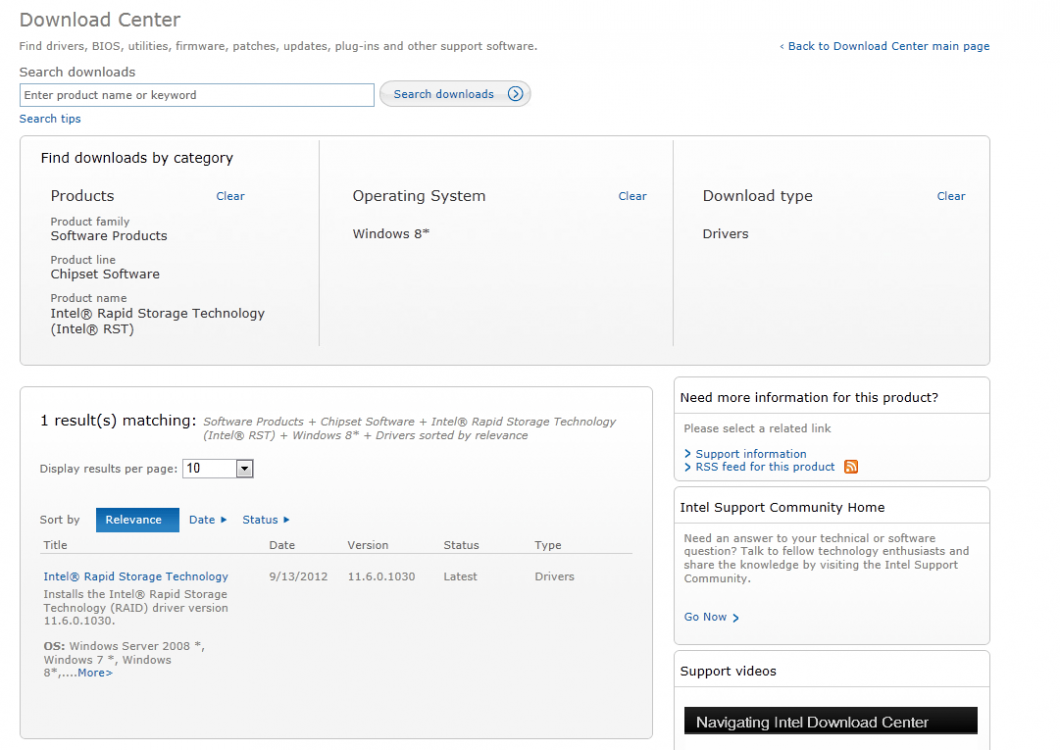

Download from here:
http://downloadcenter.intel.com/Sea...=Intel®+Rapid+Storage+Technology+(Intel®+RST)

Intel Sata 001.PNG

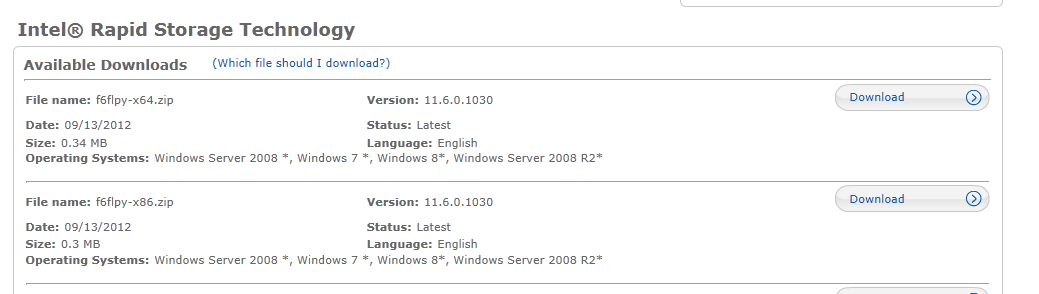

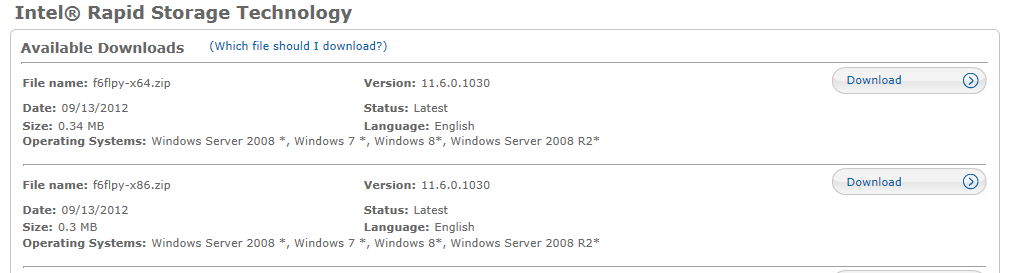

32 bit or 64 bit

Intel Sata 002.PNG


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

TORO35

Member
Member
Posts
21
#18
View attachment 11123
Which one should I download as my SATA driver?
* Intel Management Engine Interface v6.0.40.1215 (Security Driver Utility Application Special)
* Intel Rapid Storage Technology Driver v11.5.2.1001 (Driver HDD)

Just one more question; since this is an msi .exe file, can it be installed while I am stuck in not recognizing my HDD window during installation of Win 8? Or I need to decompile (extract) it? If so, how can I extract .exe files?
Download from here:
http://downloadcenter.intel.com/SearchResult.aspx?lang=eng&ProductFamily=Software+Products&ProductLine=Chipset+Software&ProductProduct=Intel%C2%AE+Rapid+Storage+Technology+(Intel%C2%AE+RST)

View attachment 11187


32 bit or 64 bit

View attachment 11188
Thank you Theog!!
I was able to install me dual boot using this procedures. 10++++


My Computer

System One

  • OS
    WINDOWS 7 AND 8

taji

New Member
Posts
1
#19
Trying to install Windows 8 upgrade, I’m having the same problem here; I don’t know what SATA/RAID drivers to download. Here are my desktops specs:

PC: HP Pavilion m7690y CTO
Mainboard : Asus Basswood
Processor: Intel Core 2 Duo E6600
Chipset: Intel P965
Graphics: Intel® Graphics Media Accelerator 4500M with 128MB-829MB
Memory: 4096 MB (4 x 1024 DDR2-SDRAM )
Storage Drive: 1 TB (5400 RPM) Serial ATA hard disk drive
Video Card: ATI Radeon HD 4600 Series
Operating System: Windows XP Professional Media Center 5.01.2600 Service Pack 3 (32-bit)

Thanks


My Computer

System One

  • OS
    Windows XP
    System Manufacturer/Model
    HP
    CPU
    Intel Core 2 Duo E6600
    Motherboard
    ASUS
    Memory
    4GB
    Graphics Card(s)
    Radion HD 4670
    Sound Card
    Creative
    Monitor(s) Displays
    SAMSUNG

theog

VIP Member
VIP Member
Gold Member
Posts
5,591
#20
Trying to install Windows 8 upgrade, I’m having the same problem here; I don’t know what SATA/RAID drivers to download. Here are my desktops specs:

PC: HP Pavilion m7690y CTO
Mainboard : Asus Basswood
Processor: Intel Core 2 Duo E6600
Chipset: Intel P965
Graphics: Intel® Graphics Media Accelerator 4500M with 128MB-829MB
Memory: 4096 MB (4 x 1024 DDR2-SDRAM )
Storage Drive: 1 TB (5400 RPM) Serial ATA hard disk drive
Video Card: ATI Radeon HD 4600 Series
Operating System: Windows XP Professional Media Center 5.01.2600 Service Pack 3 (32-bit)

Thanks
Welcome to EightForums.

You can Download the Intel F6 drive from here:
http://downloadcenter.intel.com/Sea...=Intel®+Rapid+Storage+Technology+(Intel®+RST)


My Computer

System One

  • OS
    ME, XP,Vista,Win7,Win8,Win8.1
    Computer type
    PC/Desktop
    Other Info
    Notebooks x 3

    Desktops x 5

    Towers x 4

Users Who Are Viewing This Thread (Users: 0, Guests: 1)
