Replace C: drive with bigger disk - clone OS somehow?


raindog308

New Member
Posts
1
#1
I have Windows 8.1 Pro running and my C: drive is an SSD which is only 120GB. I'd like to replace it with a large drive, but I don't want to go through the headache of reinstalling Windows, reinstalling all my apps, etc.

Is there a way to:


  1. connect a replacement drive
  2. clone my present 120GB C: drive to the new drive
  3. switch them, boot off the new drive, and everything works the same as before (except I have more space)

I don't mind buying a third-party product if that's the best route. Someone mentioned CloneZilla to me but I'm not that familiar with it. Obviously, the partitions won't be the same in the sense of doing a 1:1 clone new drive would have a much larger partition :)

Thanks!


My Computer

System One

  • OS
    Windows 8.1

axe0

BSOD Kernel Dump Analyst
VIP Member
Pro User
Posts
2,393
#2
I've used Macrium Reflect free version for creating a backup of my 1TB HDD and used the backup on my 250GB SSD.
Ofcourse I had a lot of stuff removed and had the free space trimmed to let the backup fit.
For you it would be much easier as you don't have to trim any space.

Short answer, yes there is a very easy way to do.

EDIT: only thing required is creating a bootable USB or CD with Macrium, a Windows PE (Pre Environment) to use the backup


My Computer

System One

  • OS
    Windows 10 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom build
    CPU
    i5-6500 @3.20GHz
    Motherboard
    Gigabyte B150-HD3P-CF
    Memory
    16GB DDR4 2133 Crucial Ballistix Sport LT
    Graphics Card(s)
    MSI GeForce GTX 1060 GAMING X 6G
    Sound Card
    Built-in
    Monitor(s) Displays
    Liyama ProLite XB2483HSU-B2
    Screen Resolution
    1920 x 1080
    Hard Drives
    Crucial MX200 500GB & Toshiba DT01ACA300 3TB
    PSU
    Corsair RM550x
    Case
    Fractal Design Define S
    Cooling
    Cooler Master TX3 i
    Keyboard
    Func KB-460 (MX Red)
    Mouse
    Corsair Gaming M65 RGB
    Browser
    Google Chrome
    Antivirus
    Bitdefender Total Security 2017 + MBAM Pro + MBAE Pro
    Other Info
    Creative Sound Blaster Tactic3D Rage V2 headset

KYHI

Well-Known Member
Pro User
Posts
2,737
#3
EDIT: only thing required is creating a bootable USB or CD with Macrium, a Windows PE (Pre Environment) to use the backup
Win8.1SE in my sig below


My Computer

System One

  • OS
    Windows 3.1 > Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Dell XPS 8700
    CPU
    I7
    Memory
    24 GB

topgundcp

Well-Known Member
VIP Member
Guru
San Jose - California

Posts
2,847
#4

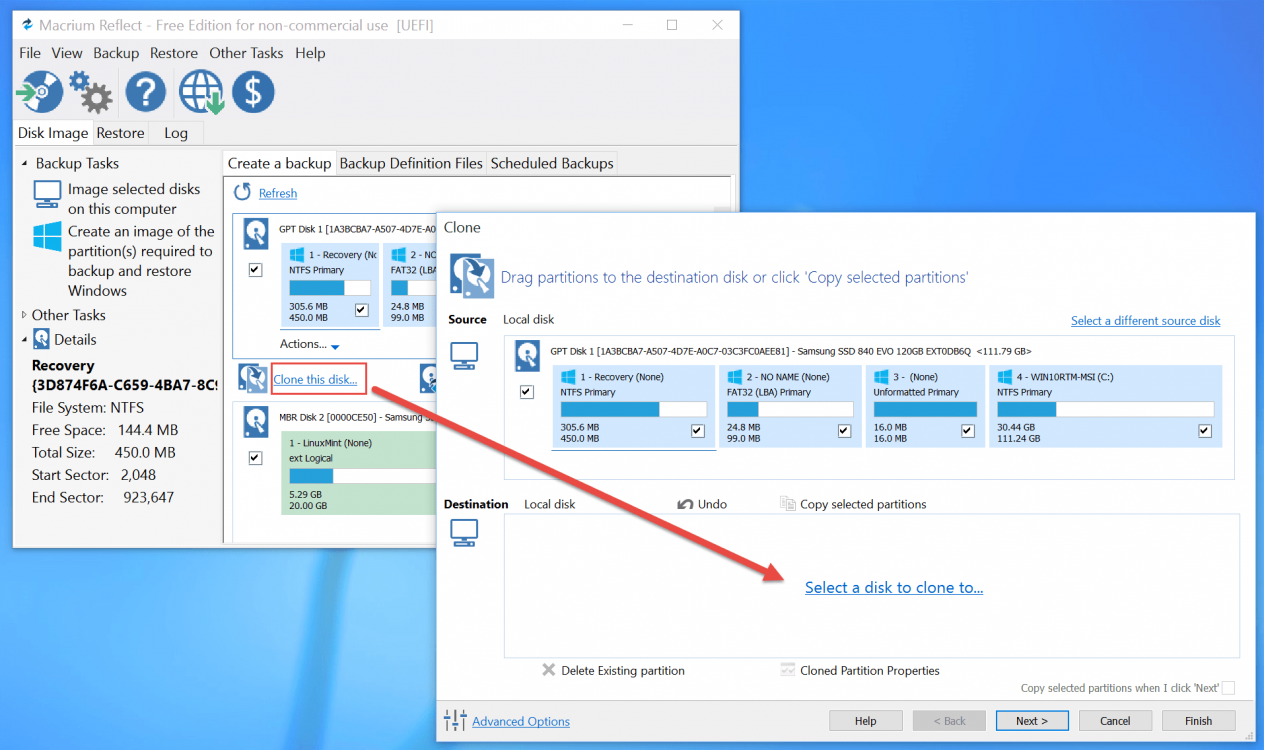

Install Macrium in the current drive and connect the new drive to your PC. Click on clone and select the new drive as the destination drive. Disconnect your current drive and boot up.

EDIT: After booting up from the new drive, Open disk management, right click on it the select Extend Volume.
