Solved red x in email on Outlook 2013


windstory

Member
Member
Posts
37
#1
There are red 'x'es in email on Outlook 2013.


However when I log in as Administrator, I can see images in email without red x.

The value of "HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\User Shell Folders\Cache" is "Z:\Temporary Internet Files".

And I tried "safe mode" way - open outlook in safe mode and close and open - but it's not working.


Any helpful comment would be appreciated.

Thanks in advance.


My Computer

System One

  • OS
    windows 8.1 pro wmc x64
    System Manufacturer/Model Number
    customise
    CPU
    i7-920
    Motherboard
    asus p6x58d
    Memory
    G Skill F3-12800CL9-2GBNQ 2G x 6
    Graphics Card(s)
    Nvidia Geforce 9600 GT
    Screen Resolution
    2560 x 1440

theveterans

New Member
Member
Posts
179
#2

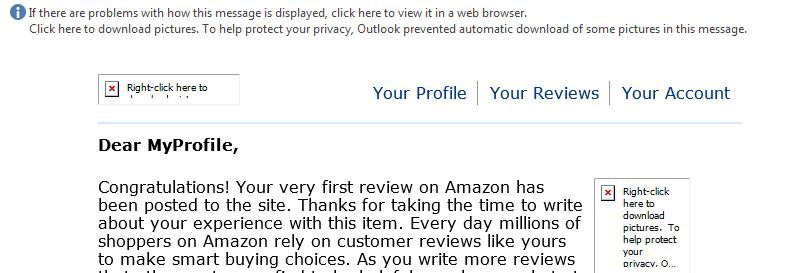

Do you mean this red x on the picture below?

Just point your mouse and click "click here to download ..." and the red x should disappear


My Computer

System One

  • OS
    Windows 8.1 Pro x64 with Media Center
    Computer type
    Tablet
    System Manufacturer/Model Number
    Surface Pro 3
    CPU
    Core i5 4300U @ 1.9 GHz
    Motherboard
    Surface Pro 3
    Memory
    8092 MB DDR3-L 1.35 V SDRAM @ 1600 MHz
    Graphics Card(s)
    Intel HD 4400 @ 200 MHz
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Built-in 3:2 display
    Screen Resolution
    2160 x 1440
    Hard Drives
    256 GB SSD + 128 GB micro SD
    PSU
    36 Watt power brick
    Cooling
    Active
    Keyboard
    On Screen Keyboard
    Mouse
    Surface pen
    Internet Speed
    300 / 20 TWC
    Browser
    IE 11 Metro, IE 11 Desktop
    Antivirus
    Windows Defender

windstory

Member
Member
Posts
37
#3
Yes, but after repair this with your tip, now there comes "Cannot display linked images" problem.


My Computer

System One

  • OS
    windows 8.1 pro wmc x64
    System Manufacturer/Model Number
    customise
    CPU
    i7-920
    Motherboard
    asus p6x58d
    Memory
    G Skill F3-12800CL9-2GBNQ 2G x 6
    Graphics Card(s)
    Nvidia Geforce 9600 GT
    Screen Resolution
    2560 x 1440

windstory

Member
Member
Posts
37
#4
Actually I installed ramdisk, and place "Temporary Internet Explorer Files" folder on "z:" drive. And I found the temp folder of outlook is "Content.Outlook" in "z:\Temporary Internet Explorer Files\Content.Outlook".

About the permmission of this drive is problem. Because I made this ramdisk drive as Administrator. So I've change privilegeses and ownership to my account.

Unfortunatelly, even though I did what I can do, "Cannot display linked images" problem was not resolved.


My Computer

System One

  • OS
    windows 8.1 pro wmc x64
    System Manufacturer/Model Number
    customise
    CPU
    i7-920
    Motherboard
    asus p6x58d
    Memory
    G Skill F3-12800CL9-2GBNQ 2G x 6
    Graphics Card(s)
    Nvidia Geforce 9600 GT
    Screen Resolution
    2560 x 1440

theveterans

New Member
Member
Posts
179
#5
It's my first time seeing that problem with Outlook. Not sure about the RAMdisk drive, but is your Outlook installed on the RAMdisk or on your main HDD? Try temporarily moving your outlook data files (.ost ) and your temporary internet files to the same drive as to where Outlook is installed and see if that resolves the issue.


My Computer

System One

  • OS
    Windows 8.1 Pro x64 with Media Center
    Computer type
    Tablet
    System Manufacturer/Model Number
    Surface Pro 3
    CPU
    Core i5 4300U @ 1.9 GHz
    Motherboard
    Surface Pro 3
    Memory
    8092 MB DDR3-L 1.35 V SDRAM @ 1600 MHz
    Graphics Card(s)
    Intel HD 4400 @ 200 MHz
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Built-in 3:2 display
    Screen Resolution
    2160 x 1440
    Hard Drives
    256 GB SSD + 128 GB micro SD
    PSU
    36 Watt power brick
    Cooling
    Active
    Keyboard
    On Screen Keyboard
    Mouse
    Surface pen
    Internet Speed
    300 / 20 TWC
    Browser
    IE 11 Metro, IE 11 Desktop
    Antivirus
    Windows Defender
Posts
474
#6
It is a security feature on Outlook. You have to change your settings under Tools>>>Options>>>Security (or Trust Center depending on Outlook version) and configure your Outlook to automatically download images on your incoming email messages.


My Computer

System One

  • OS
    Win 8 (64) : Win 7 (64) : Vista (64) : Android JB 4.2 : iOS 6
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Acer AX Series & HP i-5 2400s
    Screen Resolution
    Main PC - 2x Sony PS3 3D LED Displays + 1x 22" Philips; HTPC - 47" HDTV w/ 17" LCD secondary display
    Hard Drives
    Internal- 1TB on each system; 1x120GB SSD on main PC
    External (network attached)- 1x2TB Seagate backup; 1x1TB ext. storage; 1x500GB,
    Other Info
    http://tinyurl.com/br4uxrk

    http://tinyurl.com/cwj93pj

windstory

Member
Member
Posts
37
#7
theveterans /
Thanks for your continous interest.

I've installed OUTLOOK on main hdd.

And I couldn't find outlook data files (.ost ) and how to move it. But I can try to move and restore temporary internet files to the same drive as to where Outlook is installed, and I'll post here result.



fourthofjuly / I alerady did it, but it didn't work.


My Computer

System One

  • OS
    windows 8.1 pro wmc x64
    System Manufacturer/Model Number
    customise
    CPU
    i7-920
    Motherboard
    asus p6x58d
    Memory
    G Skill F3-12800CL9-2GBNQ 2G x 6
    Graphics Card(s)
    Nvidia Geforce 9600 GT
    Screen Resolution
    2560 x 1440

windstory

Member
Member
Posts
37
#8
I fixed this problem.

I re-typing the path of "Temporary InternetExplorer Files" at Internet Expolorer's option box, and reboot.


My Computer

System One

  • OS
    windows 8.1 pro wmc x64
    System Manufacturer/Model Number
    customise
    CPU
    i7-920
    Motherboard
    asus p6x58d
    Memory
    G Skill F3-12800CL9-2GBNQ 2G x 6
    Graphics Card(s)
    Nvidia Geforce 9600 GT
    Screen Resolution
    2560 x 1440

theveterans

New Member
Member
Posts
179
#9
Glad you worked it out.
