Problem with backup system image

[Lorenzo Farina]

Hi to all

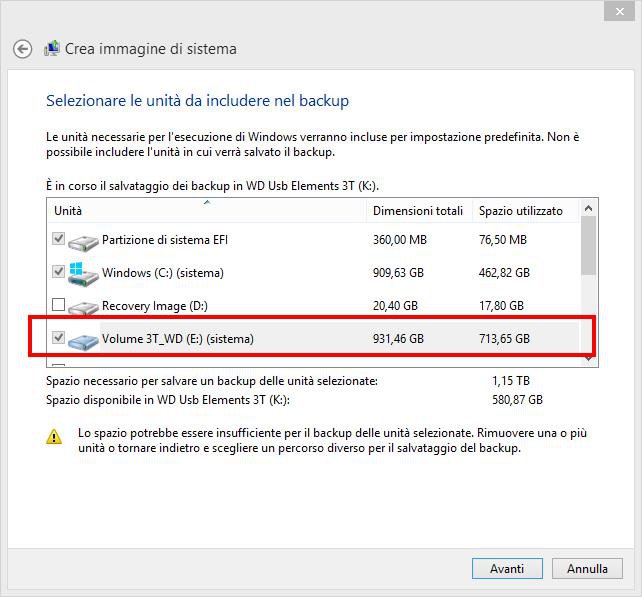

i have this problem when i try to create a backup image system, i find volume E (hdd internal) read like system.



The volume E it's a partition of internal hdd.

Thanks



[KYHI]

What is on E:\ ??

from cmd prompt(admin)
diskpart
list disk
select disk # (# being the disk number containing E;\)
list partition
select partition # (# being the partition number containing E;\)
detail partition

post pic of cmd windows



[Lorenzo Farina]

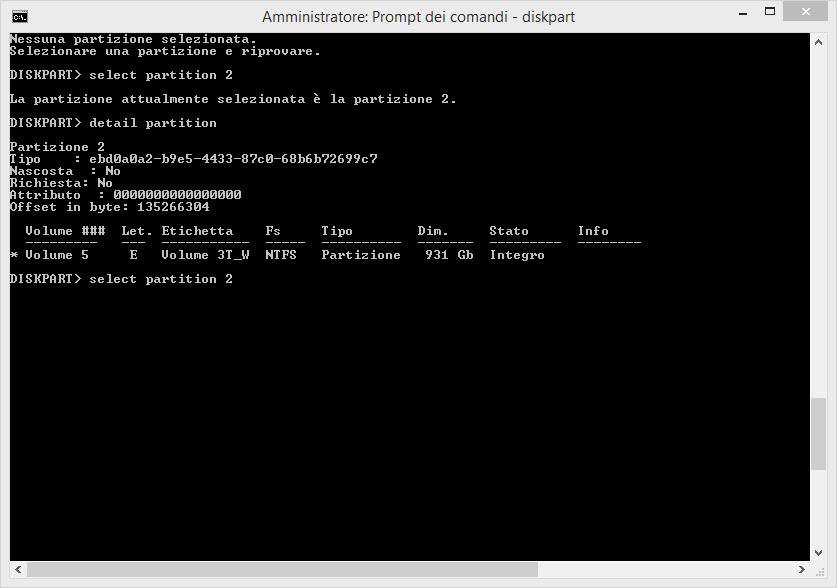

Detail partition:


For to be clear Volume E (partition) it not partition of system but there are programs and games



[KYHI]

and the partition attributes show it as a primary partition..

BUT you are selecting Detail partition 2

Follow the Directions ABOVE exactly
and post pic

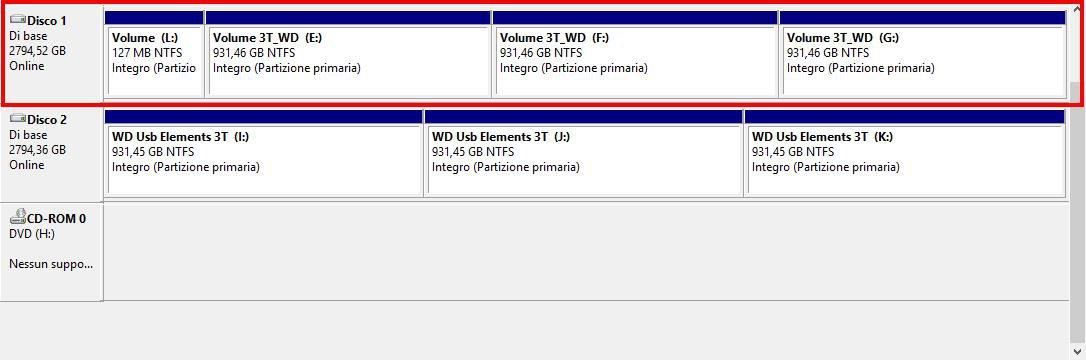

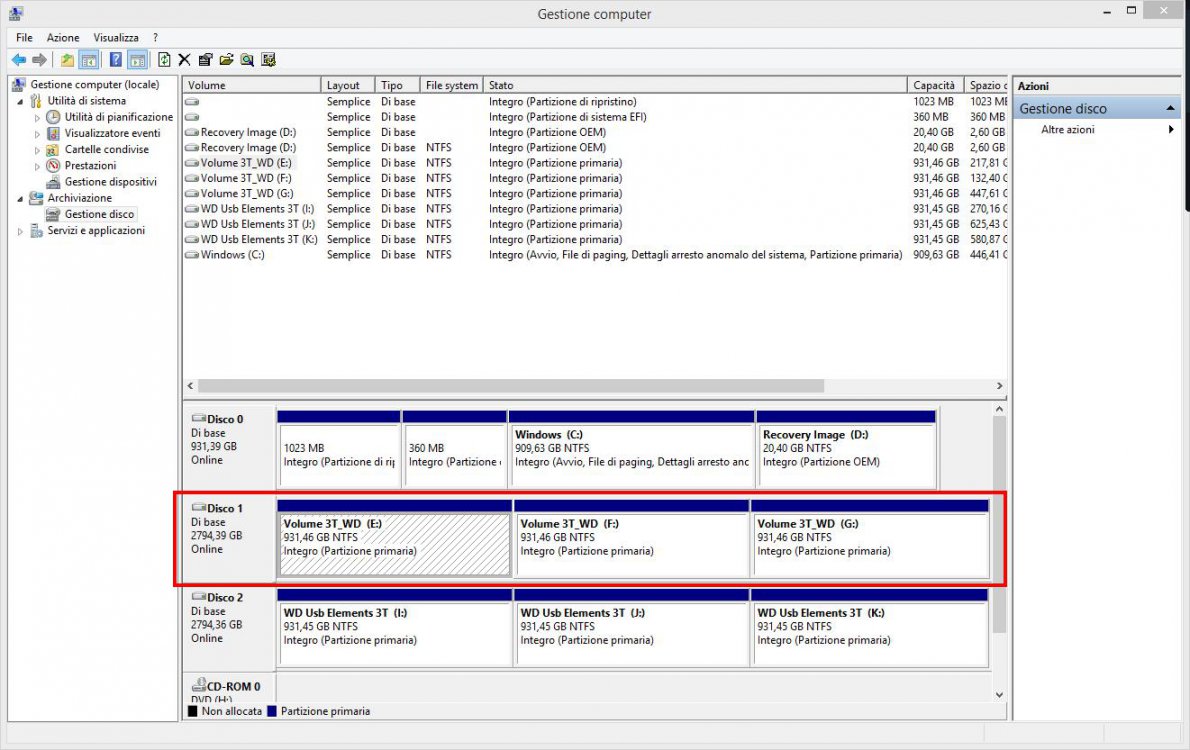

Also post pic of Disk management



[Lorenzo Farina]

Must i select partition 1 ?

Partition 2 it's E partition

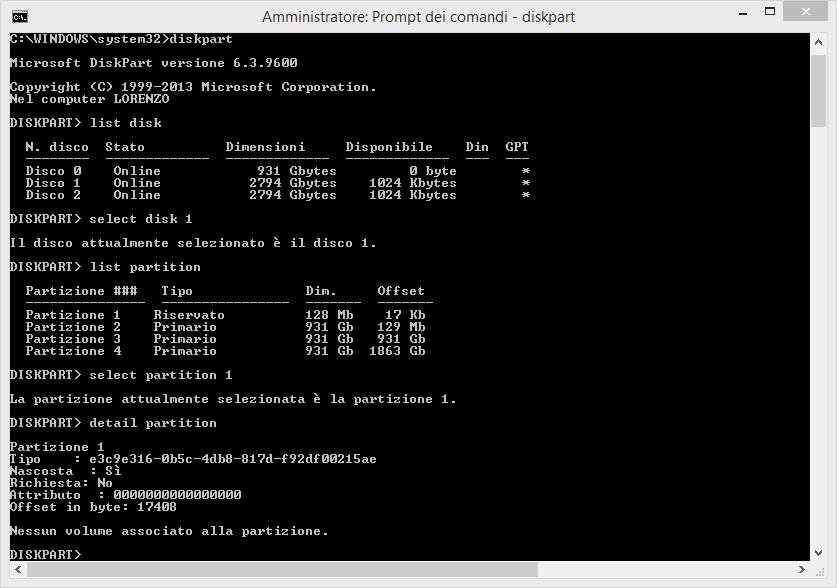

Details partition 1 bellow



Partition 1 it's hide and not "request"



[KYHI]

diskpart
select disk 1
select partition 1
set id=EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

That partition has the attributes of a reserve partition - need to change the attributes to a primary partition (as above)



[Lorenzo Farina]

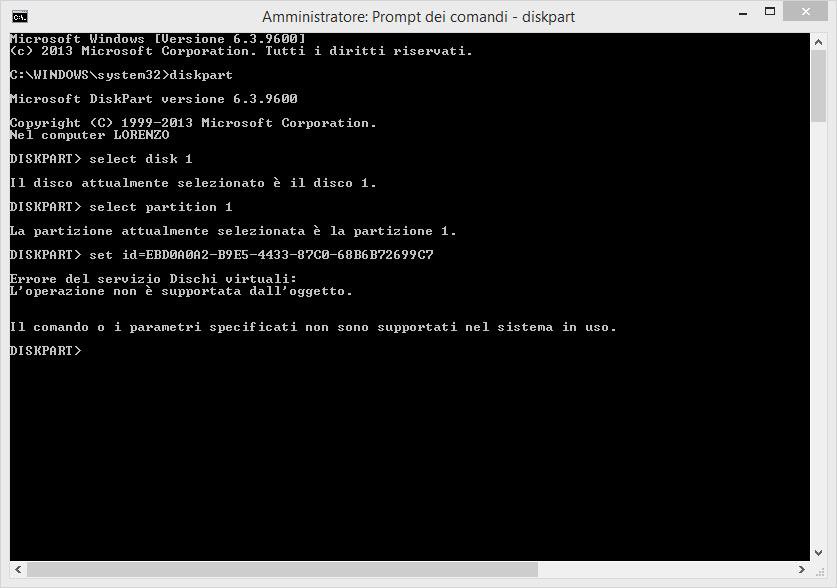

Error by service virtual disks
The operation is not supported by object.
The command or parameters specified aren't supported in the system in use.



[KYHI]

Kind of figured that would be the case....
Because you can not change the ID on a reserve partition....

You would have to Delete the partition and re-create it...



[Lorenzo Farina]

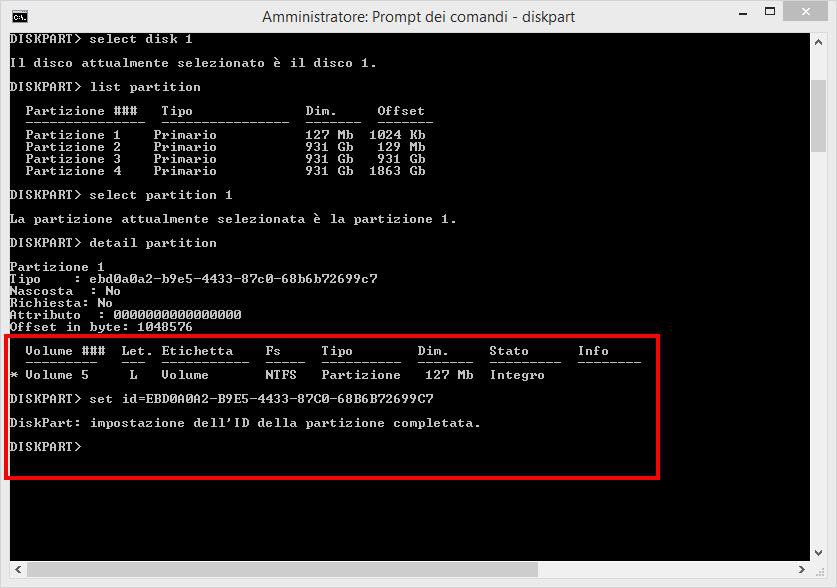

I set disk 1 partition 1 to id EBD0A0A2-B9E5-4433-87C0-68B6B72699C7.

But partition E it is yet read like system



[KYHI]

did you reboot after the ID change ??



[Lorenzo Farina]

Yes i reboot

If i format and reinstall all os and i format the disk that contain E partition can i solve the problem.

And i set other id of partition 2 (not 1) ?



[Lorenzo Farina]

Some other ideas



[KYHI]

Disk 0 is your OS drive ?? correct ??

Disk 1 and disk 2 are DATA drives ??? Or what ??



[Lorenzo Farina]

Disk 1 and 2 are data drive (software, games and other data)

Disk 2 is an external Western Digital desktop Elements 3 Tb



[KYHI]

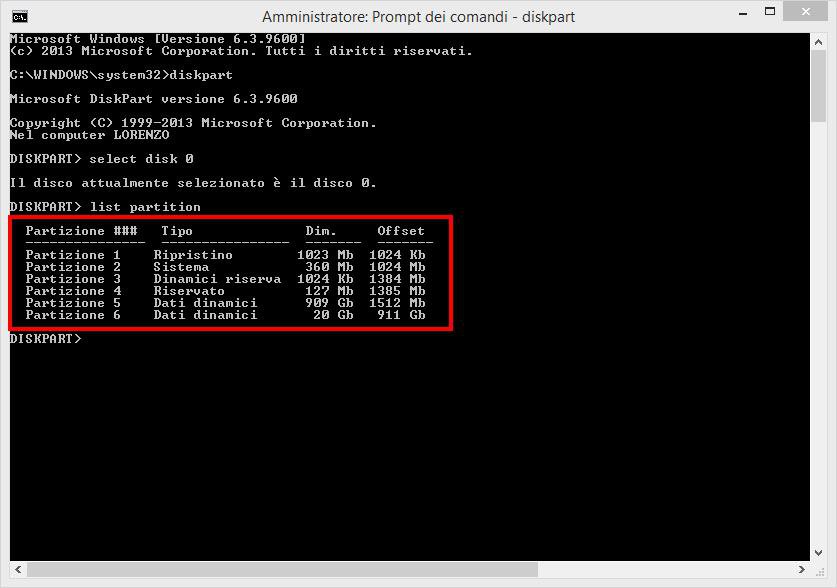

diskpart select disk 0
list partition
post pic



[Lorenzo Farina]

There are dynamic partition (my error), but it's not the problem.

The problem appears also before



[Lorenzo Farina]

Ok partially solved.

I reinstalled so (but not format disk with partition E)

Now works perfectly. I make a buck up of disk c (system).

But how can restore the back up ?

Thanks for your patience KYWI.http://www.eightforums.com/member.php?u=50690
