prefect/superfetch performance difference ?

davexnet

Member
I have not tried turning Superfetch off to see the impact, but I'm presenting my finding on
one particular app, comparing two different PC's.

DELL Dimension 4600 (2003) Penium 4 2800 GHz single core, 2GB Ram
AMD FX4300 based PC (2014) quad-core processor, 4GB RAM

They both have the same version of Photoshop installed (version 9.02)

On the old Dell, the app screen appears in 2 seconds, ready to use in 10 seconds
On the FX 4300, the app screen appears in 4 - 5 seconds, ready to use in 15

In a task like video encoding the FX4300 is perhaps 5 - 10 times faster that the Dell,
(CPU only, no graphics card assistance)
but for the startup of programs, the DELL is faster.

Any thoughts?


My Computer

System One

  • OS
    8.1
    Computer type
    PC/Desktop
    CPU
    AMD FX 4300
    Motherboard
    Asrock 960gc-gs
    Memory
    4gb
    Graphics Card(s)
    onboard
    Browser
    Firefox

Bree

Member
VIP Member
Member
for the startup of programs, the DELL is faster.

According to the specs for your Dell Dimension 4600 here on Cnet it has a 7200 rpm HDD. If your other machine has a normal 5400 rpm HDD then that could explain the difference.

15 seconds / 7200 x 5400 = 11.25 seconds, near enough the same as the 10 seconds you measured.


My Computers

System One System Two

  • OS
    8.1
    System Manufacturer/Model
    Hyper-V

davexnet

Member
I'm pretty sure the AMD PC has a 7200 RPM; can you recommend a disk utility that may help with some
meaningful disk performance info? Or indeed any system benchmarks that might give an overall picture?
Perhaps there is something in the real world operation that's a factor.
The Dell is running Windows 7 (originally XP; upgraded by the original owner)
AMD FX4300 running Windows 8.1
I took some more timings; I disabled the Superfetch service on the AMD PC and rebooted, there is hit - it takes
approx 25% more seconds for the app to startup.
Tried the same on the DELL, with the Dell Superfetch off, and the AMD on, they app startup is about the same


My Computer

System One

  • OS
    8.1
    Computer type
    PC/Desktop
    CPU
    AMD FX 4300
    Motherboard
    Asrock 960gc-gs
    Memory
    4gb
    Graphics Card(s)
    onboard
    Browser
    Firefox

Bree

Member
VIP Member
Member
I use CrystalDiskInfo to read a drive's specs, including rotation speed and SMART data. For performance testing I use CrystalDiskMark. Both are available as portable apps.




My Computers

System One System Two

  • OS
    8.1
    System Manufacturer/Model
    Hyper-V

davexnet

Member

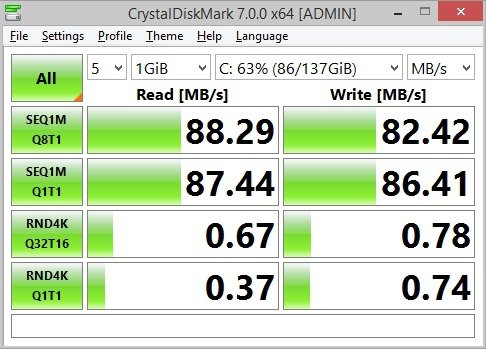

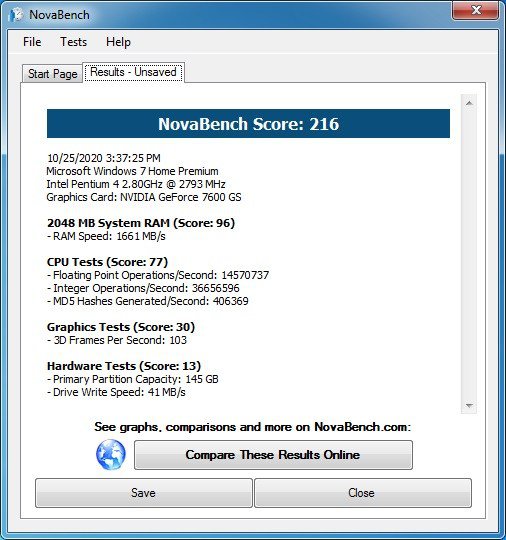

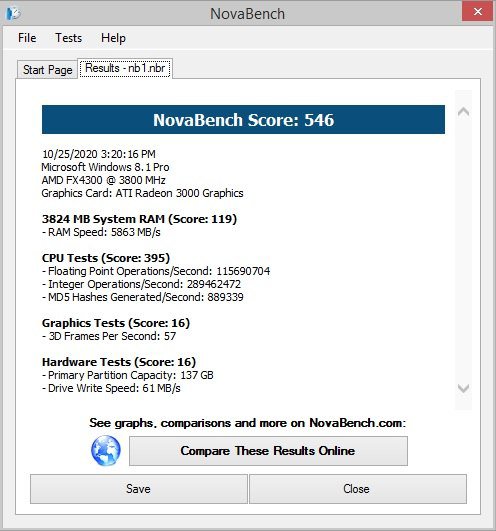

I installed NovaBench 3, and the Crystal BM, I don't see anything unexpected


Attachments

  • cdm-dell.jpg
    75.1 KB · Views: 3
  • cdm-amd.jpg
    68.1 KB · Views: 3
  • NVB-Dell.jpg
    87.3 KB · Views: 3
  • NVB-AMD.jpg
    75.8 KB · Views: 3

My Computer

System One

  • OS
    8.1
    Computer type
    PC/Desktop
    CPU
    AMD FX 4300
    Motherboard
    Asrock 960gc-gs
    Memory
    4gb
    Graphics Card(s)
    onboard
    Browser
    Firefox

davexnet

Member
Both PC's running Windows Defender; I disabled it on the AMD box and I got about a second knocked off the startup time.
I tried some other apps, the old DELL was always slightly faster.
Perhaps it's the Intel chipset on the motherboard that gives it better performance in certain situations?

This AMD bios has an option "load performance defaults" - I'm going to try it and see if it affects this.
(I've got no idea what option actually does)


My Computer

System One

  • OS
    8.1
    Computer type
    PC/Desktop
    CPU
    AMD FX 4300
    Motherboard
    Asrock 960gc-gs
    Memory
    4gb
    Graphics Card(s)
    onboard
    Browser
    Firefox

Bree

Member
VIP Member
Member
The Dell is running Windows 7....
AMD FX4300 running Windows 8.1

The overheads of the operating system are going to be a factor. Windows 7 almost certainly has lower overheads than Windows 8.1.

I can demonstrate that. I have a test machine with Macrium images I can restore, each with identical software installed but running under a different OS. As this is the same hardware and software for each test, then the only variable will be the OS and the AV it uses.

There is a PowerShell applet called measure-command that you can use to measure the time it takes to run a command. I used that to measure the time it takes to open Excel 2007 with this command:

measure-command {start "C:\Program Files\Microsoft Office\Office12\excel.exe"}

Do not run the app before timing it in PowerShell, else you may well be reading the .exe from a memory cache rather than from the HDD. For consistent results restart the PC before running the test, and make sure the test is the first thing you run.

In Windows 7 with MSE Excel opens in 490ms, in Windows 10 and Defender it takes 643ms. I don't have Windows 8.1 to test, but I would expect it to be closer to the W10 times than to W7 (ie. about 30% slower to open an app on the same hardware).

Start Excel - W7.PNG

Start Excel - W10.PNG

Last edited:

My Computers

System One System Two

  • OS
    8.1
    System Manufacturer/Model
    Hyper-V

davexnet

Member
Hi Bree, thanks for posting info about this tool, it's new to me and I will look into it.

On a positive note I enabled the AMD FX4300 "load performance defaults" bios setting.
After booting the system, and waiting 5 or 6 minutes for all the Superfetch disk activity
to complete, I started Photoshop and saw a 50% startup performance improvement,
it was ready to use in 8 seconds

There is a warning in the BIOS on this option, it says in some cases Windows may not start properly.
I haven't seen any problem. I would love know what it actually does

Thanks for your help and suggestions


My Computer

System One

  • OS
    8.1
    Computer type
    PC/Desktop
    CPU
    AMD FX 4300
    Motherboard
    Asrock 960gc-gs
    Memory
    4gb
    Graphics Card(s)
    onboard
    Browser
    Firefox

Bree

Member
VIP Member
Member
I enabled the AMD FX4300 "load performance defaults" bios setting....
...I would love know what it actually does

Apparently....

According to this manual on Manualslib.com

Load Performance Defaults​

If you select this item and press Enter a dialog box will appear. If you select [OK], and
then Enter, the Setup Utility loads a set of performance default values. These default
settings are quite demanding and your system might not function properly if you are
using slower CPU, memory, or other low-performance components.


My Computers

System One System Two

  • OS
    8.1
    System Manufacturer/Model
    Hyper-V

davexnet

Member
That's interesting. I will certainly keep an eye on it. I'll probably look at CPUZ to see if I can find any memory timing
differences. The old Dell system has such a simple Bios, there are no settings like this.
Perhaps it's some combination of Dell's expertise and Intel chipset


My Computer

System One

  • OS
    8.1
    Computer type
    PC/Desktop
    CPU
    AMD FX 4300
    Motherboard
    Asrock 960gc-gs
    Memory
    4gb
    Graphics Card(s)
    onboard
    Browser
    Firefox
