Power Options - Add or Remove "Dim display after"
This tutorial will show you how to add or remove the Dim display after setting under Display in Power Options for all users in Vista, Windows 7 and Windows 8.
Published by Brink
#1
Category:
ByLine
How to Add or Remove Dim display after in Power Options in Windows
Synopsis
This tutorial will show you how to add or remove the Dim display after setting under Display in Power Options for all users in Vista, Windows 7 and Windows 8.
Add or Remove "Dim display after" in Power Options in Windows


information   Information
The display can use more power than any other part of a PC. Reducing the display brightness level can help extend your battery life before needing to recharge.

The Dim display after setting under Display in Power Options specifies how long your computer is inactive before your display(s) dims.


This tutorial will show you how to add or remove the Dim display after setting under Display in Power Options for all users in Vista, Windows 7 and Windows 8.

You must be signed in as an administrator to be able to do the steps in this tutorial.

Note   Note
This could be handy if you wanted to set this how you wanted, then remove the setting to prevent other users from being able to change it in Power Options.


If you did not originally have the Dim display after option available, then it means that it is not supported on your PC.

Instead, your display(s) will automatically dim by the percentage set in "Dimmed display brightness" exactly 15 seconds before what is set in "Turn off display after".

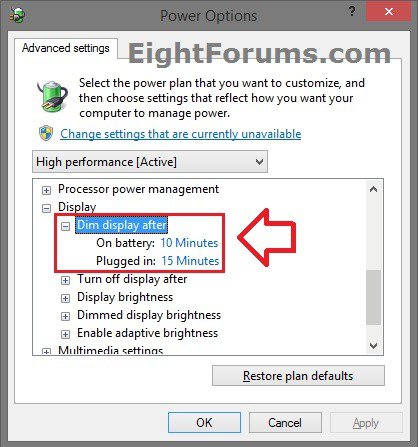

EXAMPLE: "Dim display after" added to Advanced Power Settings



Here's How:

1. Do step 2 or 3 below for what you would like to do.

2. Add "Dim display after" to Advanced Power Settings
A) Click/tap on the Download button below to download the file below, and go to step 4 below.​
Add_Dim_Display_After.reg
download

3. Remove "Dim display after" from Advanced Power Settings
A) Click/tap on the Download button below to download the file below, and go to step 4 below.​
Remove_Dim_Display_After.reg
download

4. Save the .reg file to your desktop.

5. Double click/tap on the downloaded .reg file to Merge it.

6. If prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

7. You can now delete the downloaded .reg file if you like.




That's it,
Shawn


Related Tutorials



Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

TBolt

Member
Member
Posts
36
#2
Oh maaaaaaaaaan ... you are AWESOME, Brink! Thank you so much for the easy tweak!

I wish you the best of holidays! :)


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    Laptop
    System Manufacturer/Model Number
    Toshiba Qosmio X505-Q894
    CPU
    Intel Core i7 740QM(1.73GHz)
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GTX 460M
    Monitor(s) Displays
    18.4" (main) + 2 external monitors
    Screen Resolution
    1680x945 (main)
    Other Info
    Overall, very happy with this laptop -- great for work & was very good for gaming when I originally bought it (haven't tried any games last year or so).

Brink

Administrator
Administrator
mvp
Posts
23,581
#3
You're most welcome TBolt. I hope you have a great holidays as well. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

TBolt

Member
Member
Posts
36
#4
---
{edit}
No luck thus far. Updated NVIDIA drivers again -- the laptop screen still won't dim.

---

Well, this must be a Microsoft or NVIDIA thing that they need to fix. :) Even though I set the dim to 1 minute in both Balanced Mode & High Performance Mode, the laptop display is not dimming.


  • I disconnected external monitors/TVs.
  • I even turned off the mouse to make sure there was no input to the PC.
  • No videos playing.


It was a brilliant effort though, Brink! :)


Last edited:

My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    Laptop
    System Manufacturer/Model Number
    Toshiba Qosmio X505-Q894
    CPU
    Intel Core i7 740QM(1.73GHz)
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GTX 460M
    Monitor(s) Displays
    18.4" (main) + 2 external monitors
    Screen Resolution
    1680x945 (main)
    Other Info
    Overall, very happy with this laptop -- great for work & was very good for gaming when I originally bought it (haven't tried any games last year or so).

Brink

Administrator
Administrator
mvp
Posts
23,581
#5

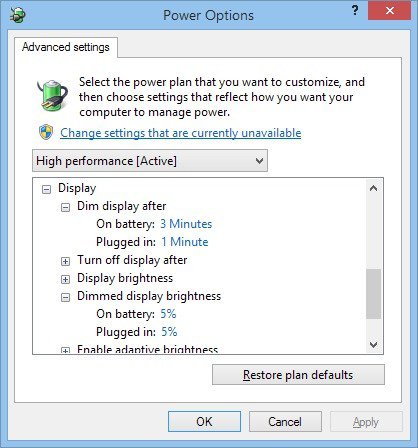

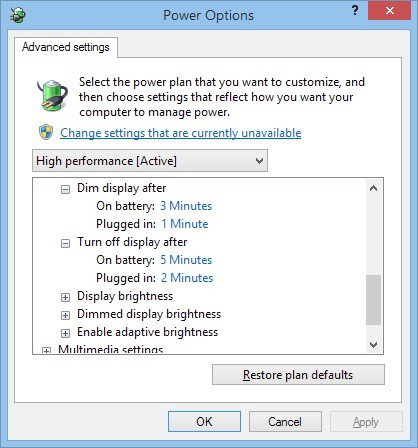

Well, so much for that. What I have set for "Dim display after" doesn't get applied for me as well.

However, I noticed that the display will automatically dim by the percentage set in "Dimmed display brightness" exactly 15 seconds before what is set in "Turn off display after". :party:

Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

TBolt

Member
Member
Posts
36
#6
Well, so much for that. What I have set for "Dim display after" doesn't get applied for me as well.

However, I noticed that the display will automatically dim by the percentage set in "Dimmed display brightness" exactly 1 minute before what is set in "Turn off display after". :party:
Interesting. For me, the main laptop display dimmed 15 seconds before the screen turned off at 2 minutes. Tested it twice - same result.


So, do you feel this is just a bug that MS will need to fix?

Thank you, Brink!


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    Laptop
    System Manufacturer/Model Number
    Toshiba Qosmio X505-Q894
    CPU
    Intel Core i7 740QM(1.73GHz)
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GTX 460M
    Monitor(s) Displays
    18.4" (main) + 2 external monitors
    Screen Resolution
    1680x945 (main)
    Other Info
    Overall, very happy with this laptop -- great for work & was very good for gaming when I originally bought it (haven't tried any games last year or so).

Brink

Administrator
Administrator
mvp
Posts
23,581
#7
I don't think it's a bug, but was changed for whatever reason. Oops, yep 15 seconds.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Frog

New Member
Posts
9
#8
Hi Brink,

I just tried your reg fix and yes, it brings the option back up in the advanced settings but it doesn't have any effect.

My laptop is a HP Compaq 6710b core 2 duo T7500 2.2GHz 3GB RAM now running Win 8.1 update.

It was working fine in Win 8 but not in the Win 8.1 update.

I have used the Intel driver update program you suggested in another post and all my drivers are up to date and no problems in the device manager.


My Computer

System One

  • OS
    8.1 update

Brink

Administrator
Administrator
mvp
Posts
23,581
#9
Hello Frog, and welcome to Eight Forums.

It appears that the Dim display after option is no longer supported on your PC.

Instead, your display(s) will automatically dim by the percentage set in "Dimmed display brightness" exactly 15 seconds before what is set in "Turn off display after". :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

pikalax

New Member
Posts
3
#10
Awesome, thank you Brink. That was one of the many useful features they removed between Win7 and Win8.1. Personally I don't see why they need to make a desktop computer behave like a mobile device. Give it up, Microsoft, a 25-lb tower will never be a tablet no matter how much fat you trim on the software side.


My Computer

System One

  • OS
    Windows 8.1

crimson

Member
Member
Posts
103
#11
Why don't they have the "dim display after x min" feature in W8.1?

According to IBM:
"Dim the display does not display in the edit plan settings. This new behavior is designed for Windows® 8.1. Dimming will be set to occur 15 seconds before display off."

So is this true? For W8.1, it will automatically dim the screen 15sec before shutting off, but there's no option to set it to dim after a certain idle time?


My Computer

System One

  • OS
    Windows 8.1 Pro 64
    Computer type
    Tablet
    System Manufacturer/Model Number
    Microsoft Surface Pro 3
    CPU
    i5-4300U
    Memory
    4 GB
    Graphics Card(s)
    Intel HD 4000
    Monitor(s) Displays
    3 x 2
    Screen Resolution
    2160 x 1440
    Hard Drives
    128 GB SSD
    Keyboard
    Rip-off type cover
    Antivirus
    Avast, Malwarebytes, Online Armor

Brink

Administrator
Administrator
mvp
Posts
23,581
#12
Hello Crimson,

Only for what is in the blue note box at the top of the tutorial in Windows 8.1. :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

crimson

Member
Member
Posts
103
#13
I don't understand. It just says it won't work if it's not supported by the PC. So it's something built in the hardware? Because the desktop I built is just a normal desktop build. So it's only for something like laptops where the display is integrated into the hardware of the system?


My Computer

System One

  • OS
    Windows 8.1 Pro 64
    Computer type
    Tablet
    System Manufacturer/Model Number
    Microsoft Surface Pro 3
    CPU
    i5-4300U
    Memory
    4 GB
    Graphics Card(s)
    Intel HD 4000
    Monitor(s) Displays
    3 x 2
    Screen Resolution
    2160 x 1440
    Hard Drives
    128 GB SSD
    Keyboard
    Rip-off type cover
    Antivirus
    Avast, Malwarebytes, Online Armor

Brink

Administrator
Administrator
mvp
Posts
23,581
#14
Correct. Desktops would not have this as an option. Only PCs that have a battery would, but I have not seen this setting available since Windows 8.1. :(


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

usawake

New Member
stockholm

Posts
1
#15
Can you give a link for a "Add_Dim_Display_After.reg" file download for windows 8.1??

Oh! I have a Lenovo laptop (brand new one too)

Last edited by a moderator:

My Computer

System One

  • OS
    windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model Number
    lenovo ideapad 710
    CPU
    intel 4700
    Motherboard
    intel
    Memory
    8
    Graphics Card(s)
    nvidia 745
    Sound Card
    jbl
    Monitor(s) Displays
    TFT
    Screen Resolution
    FULL
    Hard Drives
    1TR HRBRID
    Browser
    ie
    Antivirus
    norton 360 v21

Brink

Administrator
Administrator
mvp
Posts
23,581
#16
Hello usawake, and welcome to Eight Forums.

This tutorial is for Windows 8.1 as well. Windows 8 is just generic for all Windows 8 builds and versions. :)

Be sure to read the blue Note box at the top of the tutorial. If you did not originally have the Dim display after option available, then it means that it is not supported on your PC. etc...


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

tprothro1

Member
Member
norcal

Posts
50
#17
ran the reg file on my windows 8.1 based tablet and it successfully added "dim display after" to the display power options. however after setting the "dim display after" time, 5 minutes in my case, nothing happens, the screen does not dim. is this feature dependent on setting the "turn off display after" to x minutes? i don't want my screen to ever turn off, i just want it to dim 75% or so after idle for x minutes, my tablet is always plugged in. if i allow the tablet's screen to turn off, the tablet goes into sleep or hibernate mode, depending on the setting, and requires a power button push to waken, i don't want that. any thought or help is much appreciated!


My Computer

System One

  • OS
    windows 8 pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    hp z1
    CPU
    xeon 1245
    Memory
    16gb
    Graphics Card(s)
    gtx 675m
    Monitor(s) Displays
    27"
    Screen Resolution
    2560x1440
    Hard Drives
    several: ssd, hybrid, ide, etc.
    Case
    aio
    Browser
    maxthon
    Antivirus
    defender/ mbam pro

Brink

Administrator
Administrator
mvp
Posts
23,581
#18
ran the reg file on my windows 8.1 based tablet and it successfully added "dim display after" to the display power options. however after setting the "dim display after" time, 5 minutes in my case, nothing happens, the screen does not dim. is this feature dependent on setting the "turn off display after" to x minutes? i don't want my screen to ever turn off, i just want it to dim 75% or so after idle for x minutes, my tablet is always plugged in. if i allow the tablet's screen to turn off, the tablet goes into sleep or hibernate mode, depending on the setting, and requires a power button push to waken, i don't want that. any thought or help is much appreciated!
Unfortunately, if you did not originally have the Dim display after option available, then it means that it is not supported on your PC. :(

Instead, your display(s) will automatically dim by the percentage set in "Dimmed display brightness" exactly 15 seconds before what is set in "Turn off display after".


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

tprothro1

Member
Member
norcal

Posts
50
#19
ran the reg file on my windows 8.1 based tablet and it successfully added "dim display after" to the display power options. however after setting the "dim display after" time, 5 minutes in my case, nothing happens, the screen does not dim. is this feature dependent on setting the "turn off display after" to x minutes? i don't want my screen to ever turn off, i just want it to dim 75% or so after idle for x minutes, my tablet is always plugged in. if i allow the tablet's screen to turn off, the tablet goes into sleep or hibernate mode, depending on the setting, and requires a power button push to waken, i don't want that. any thought or help is much appreciated!
Unfortunately, if you did not originally have the Dim display after option available, then it means that it is not supported on your PC. :(

Instead, your display(s) will automatically dim by the percentage set in "Dimmed display brightness" exactly 15 seconds before what is set in "Turn off display after".
thanks for the prompt reply but i'm a bit confused, i thought the reg "fix" was for those who didn't have the "dim display after" option originally, i.e. that it would give them it, assuming a battery driven pc... if that's not the case, what is this "fix" for? thanks again...


My Computer

System One

  • OS
    windows 8 pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    hp z1
    CPU
    xeon 1245
    Memory
    16gb
    Graphics Card(s)
    gtx 675m
    Monitor(s) Displays
    27"
    Screen Resolution
    2560x1440
    Hard Drives
    several: ssd, hybrid, ide, etc.
    Case
    aio
    Browser
    maxthon
    Antivirus
    defender/ mbam pro

Brink

Administrator
Administrator
mvp
Posts
23,581
#20
Nar, it's to be able add or remove it if you already had it by default.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
