Picture Password - Create, Change, or Remove in Windows 8
This tutorial will show you how to create, change, or remove a picture password for your user account in Windows 8 and Windows 8.1.
Published by Brink
#1
Category:
ByLine
How to Create, Change, or Remove a Picture Password in Windows 8 and 8.1
Synopsis
This tutorial will show you how to create, change, or remove a picture password for your user account in Windows 8 and Windows 8.1.
How to Create, Change, or Remove a Picture Password in Windows 8 and 8.1

information   Information
A picture password is a new way to help protect your Windows 8 computer or touchscreen PC. You can choose to use any picture, and the three gestures you use with the picture, to create a strong unique password for your user account in Windows 8.

This tutorial will show you how to create, change, or remove a picture password for your user account in Windows 8 and Windows 8.1.

Note   Note

  • This will not work if your PC is part of a domain. Picture passwords only work for workgroups.
  • After creating a picture password, you will need to perform the three gestures you setup below on the picture to be able to sign in to your user account in Windows 8.
  • On the sign in screen, you will have an option to Switch to password to be able to enter you user account's password instead of using the picture password.
  • If you used Switch to password, you will still be able to click/tap on the Sign-in options link to select the picture password icon icon.jpg to sign in with the picture password instead.
  • If you use the picture password and you know you did something wrong while trying to sign in, you can press the Start Over button and start again. If you don’t get the gestures right five times in a row, Windows 8 will automatically switch back to the alphanumeric password option.
  • With the alphanumeric password option, you are reminded with your password hit and the password reset option after the first attempt to sign in. After five attempts, you will have to wait for a while (about 30 seconds or longer) before the next attempt. This deliberate delay is a Windows security feature that is designed to help prevent hackers from continuing to try and guess your user name and password.

The image you select for your picture password is stored in the hidden PicturePassword folder location below as the Cloud.jpg and Local.jpg files.

C:\Users\(user-name)\AppData\Local\Microsoft\Windows\PicturePassword

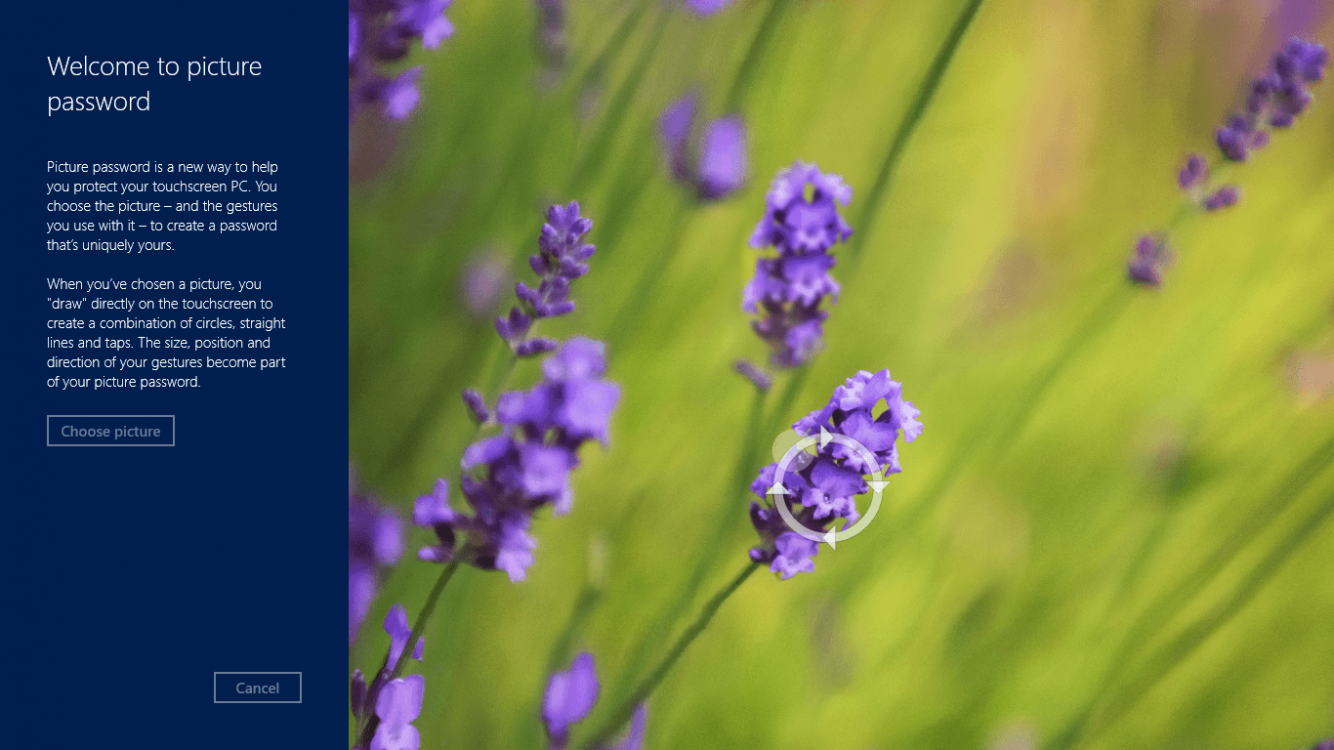

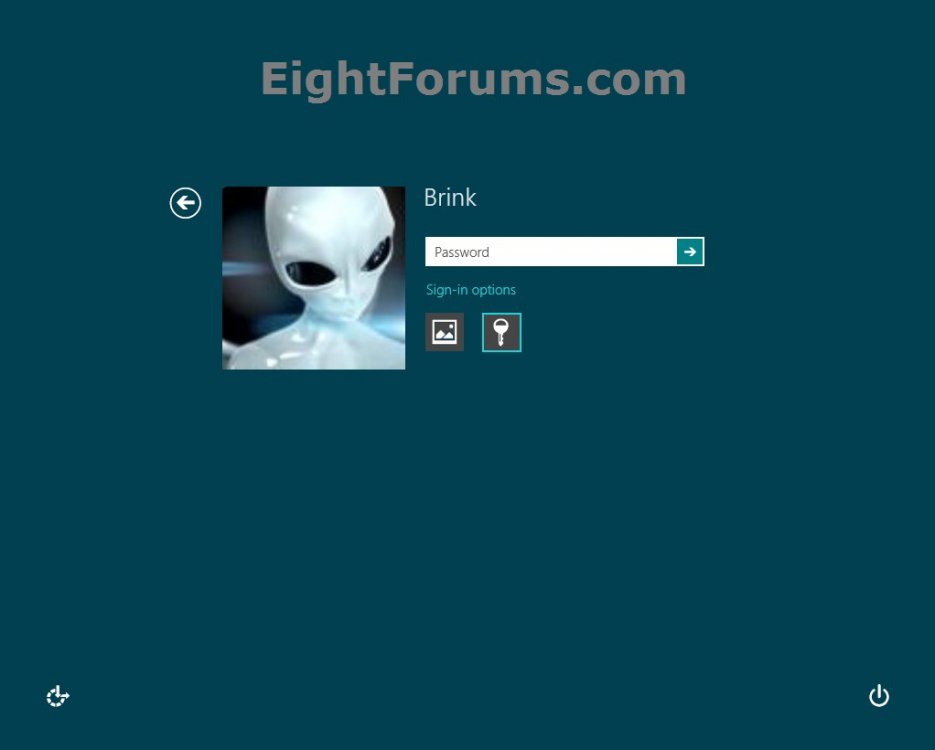

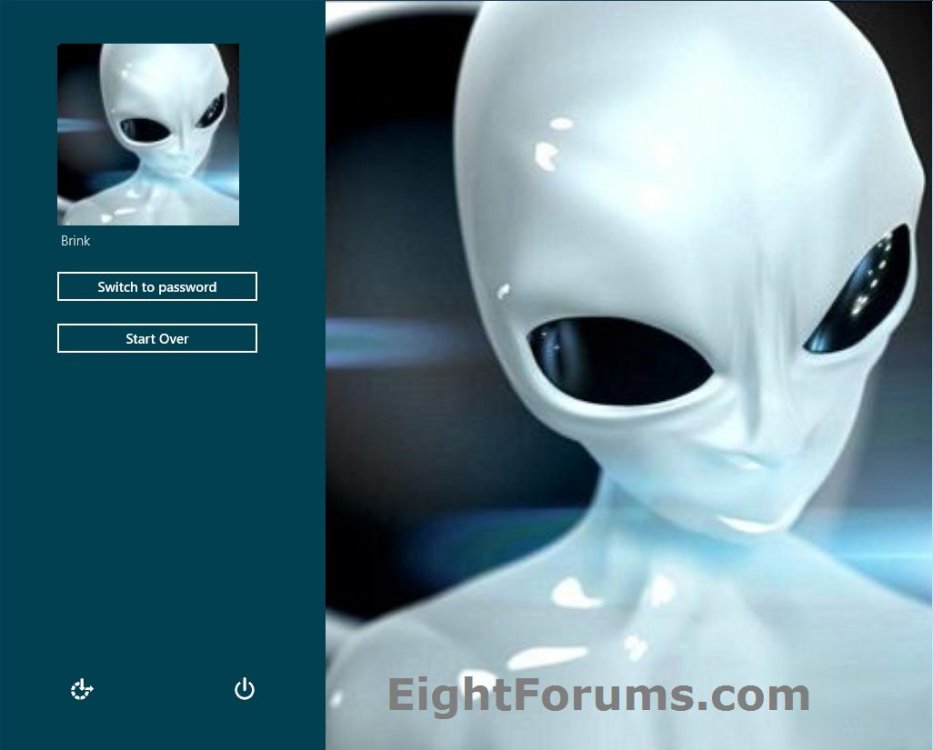

EXAMPLE: Picture Password on Sign in Screen






OPTION ONE
To "Create a Picture Password" for your Windows 8 User Account

NOTE: It is required that you have already created a password for your user account first to be able to create a picture password.

1. Open PC settings, and do step 2 or 3 below for what Windows 8 you have.

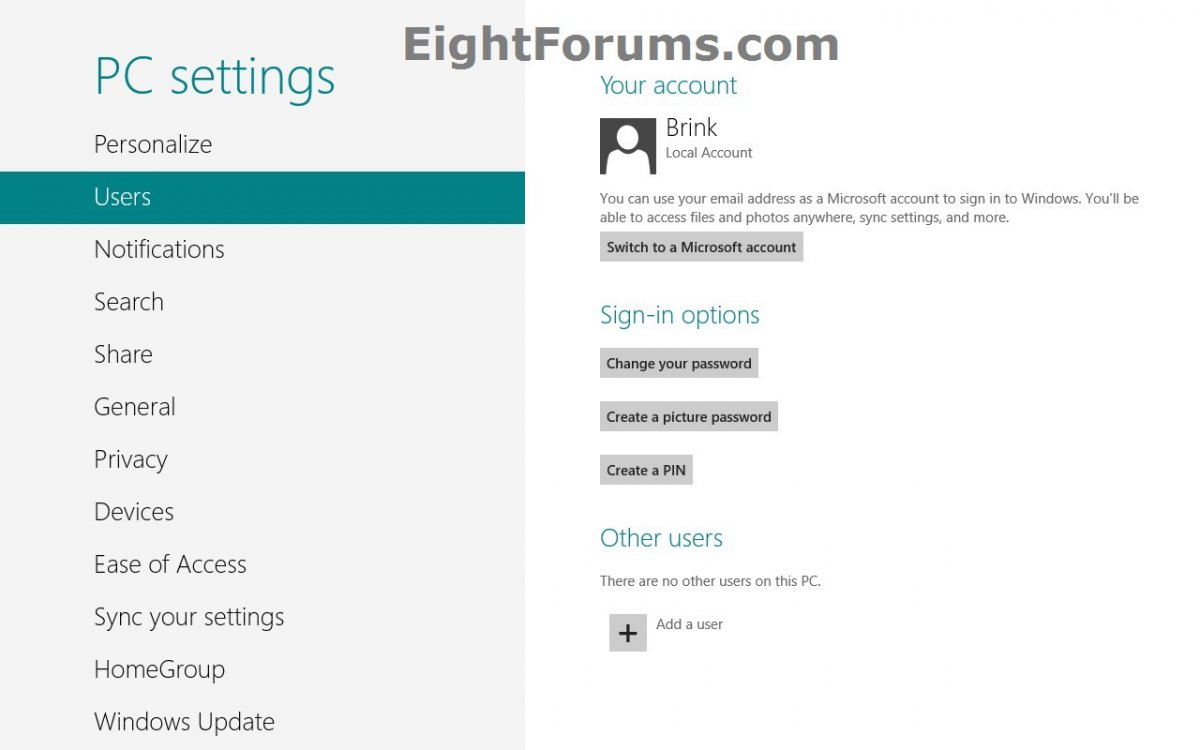

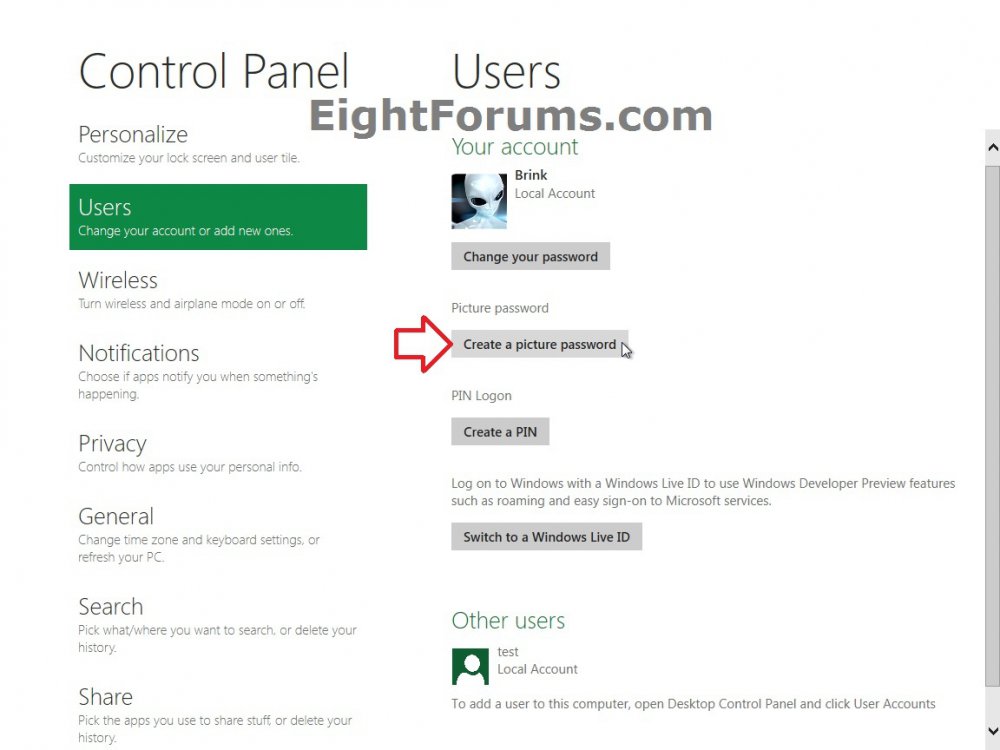

2. In Windows 8 or Windows RT, click/tap on Users in the left pane, click/tap on Create a picture password in the right pane, and go to step 4 below. (see screenshot below)

3. In Windows 8.1 or Windows RT 8.1, click/tap on Accounts on the left side. (see screenshot below)

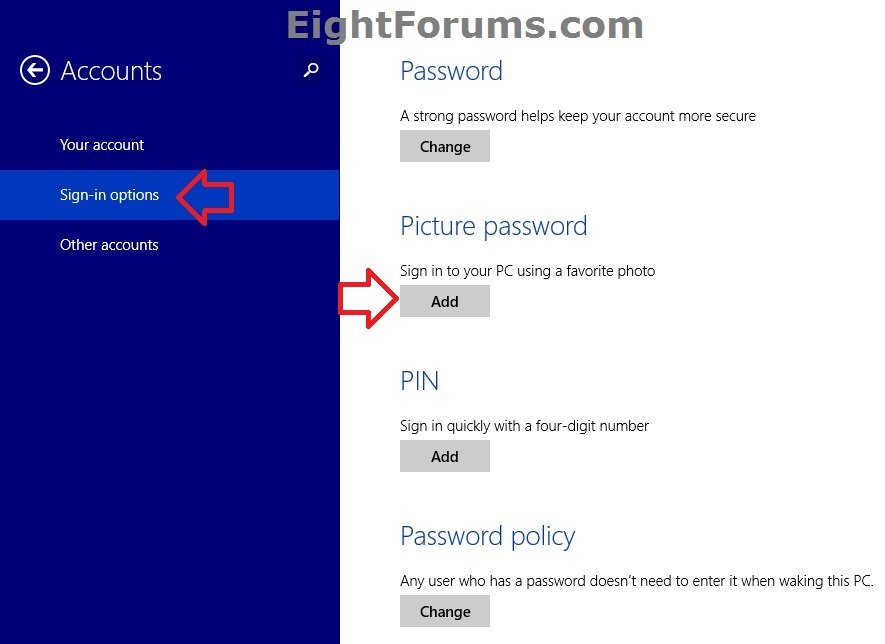

A) Click/tap on Sign-in options on the left side, click/tap on Add under Picture password on the right, and go to step 4 below. (see screenshot below)​

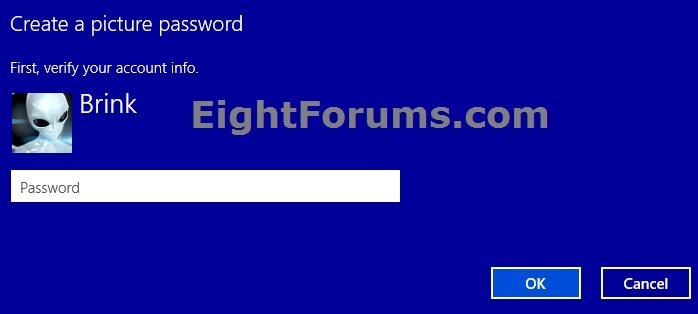

4. Type in your user account's password, and press Enter or click/tap on OK. (see screenshot below)

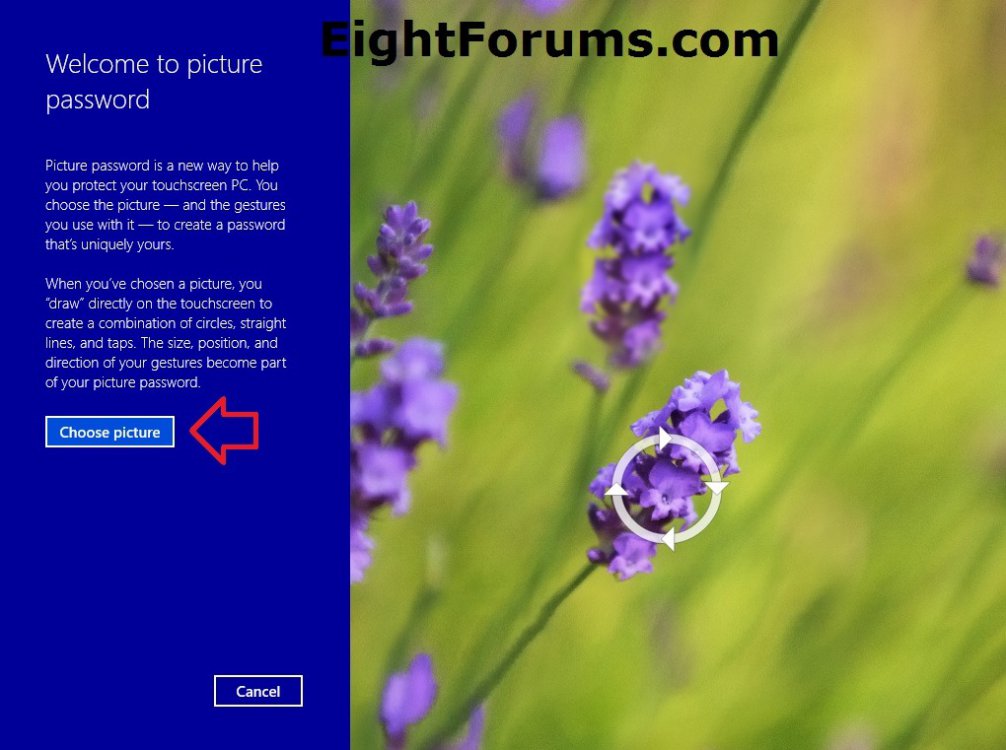

5. Click/tap on Choose a picture. (see screenshot below)

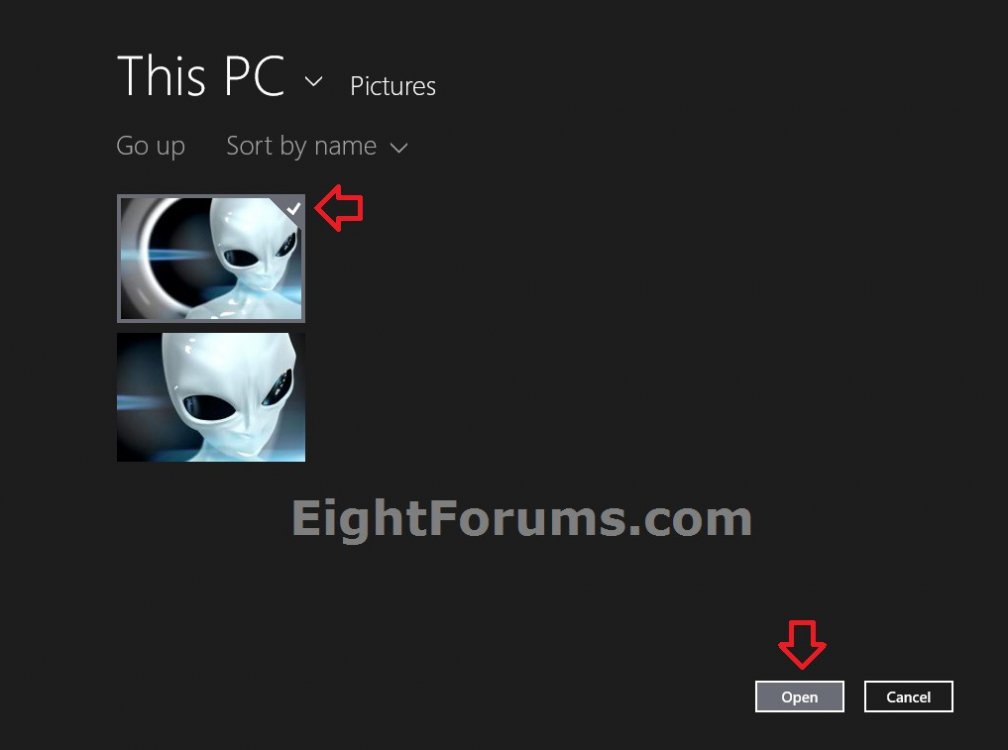

6. Navigate to and select the folder that contains the picture that you want to use, select the image by clicking/tapping on it, then click/tap on the Open button at the bottom right corner. (see screenshot below)

Tip   Tip
How to Navigate:

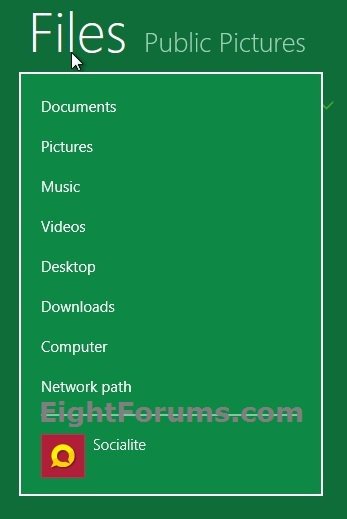

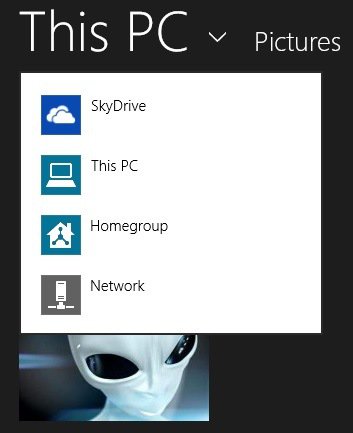

A) Click/tap on Files (Windows 8) or This PC (Windows 8.1) to open a root folder to have it's subfolders open in the main window.

B) Click/tap on a folder in the main window to open it's subfolders in the main window.

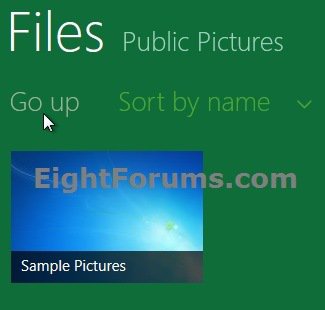

C) During this, you can click/tap on Go up to go up one folder level in the main window.

Files.jpg Windows_8.1_Navigate.jpg

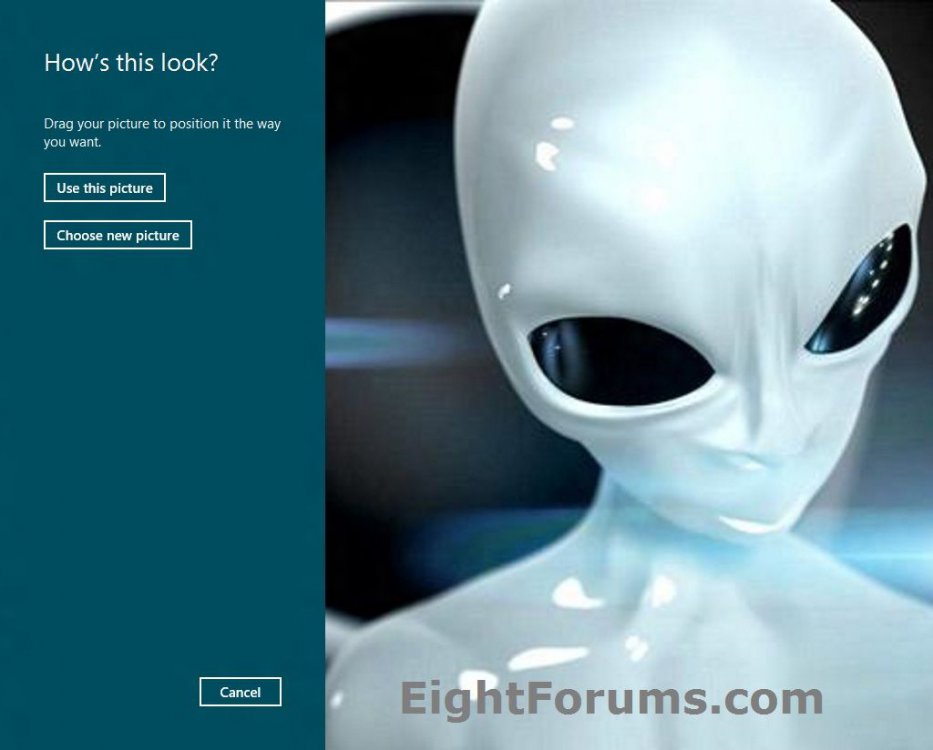

7. If you like the selected picture, then click/tap on Use this picture and continue on to step 8. If not, then click/tap on Choose new picture and repeat step 6. (see screenshot below)

8. From here, you will need to draw three gestures on the picture one at a time. You can use any combination of circles, straight lines, and taps/clicks. The size, position, and direction of your gestures -- and the order in which you make them become part of your picture password. (see screenshot below)
NOTE: If you make a mistake while drawing your gestures, then you can click/tap on the Start Over button.

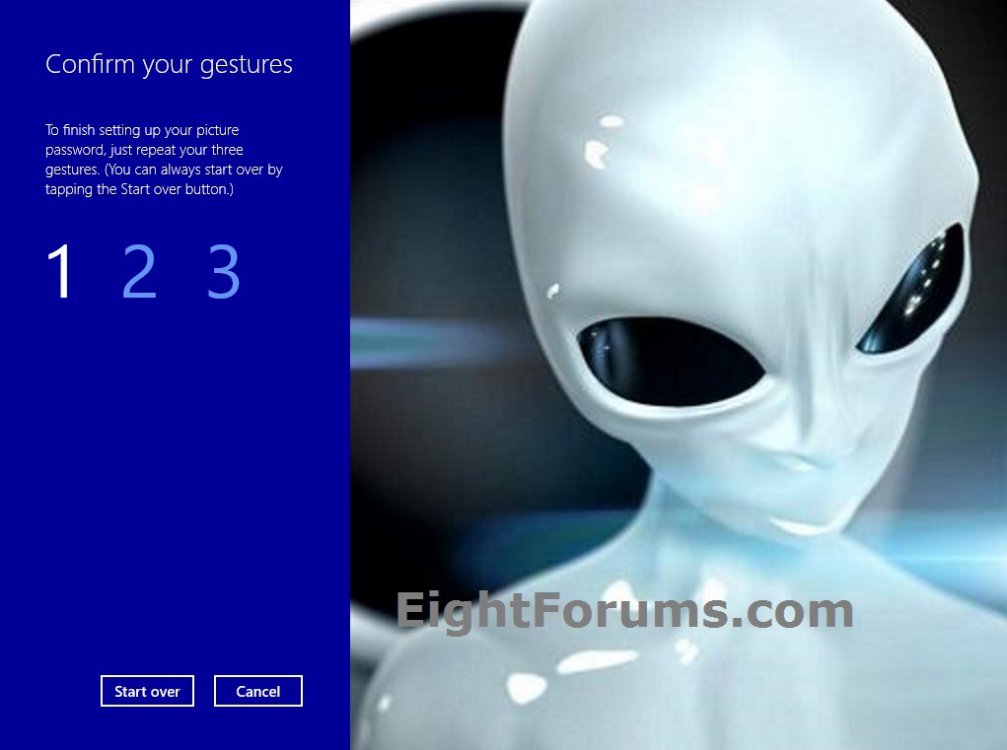

9. When finished drawing the three gestures, you will now have to repeat them again exactly one by one again to confirm them. (see screenshot below)
NOTE: If you make a mistake while drawing your gestures, then you can click/tap on the Start Over button.

10. If something didn't successfully go right with confirming your gestures, then click/tap on Try again and repeat step 9. (see screenshot below)

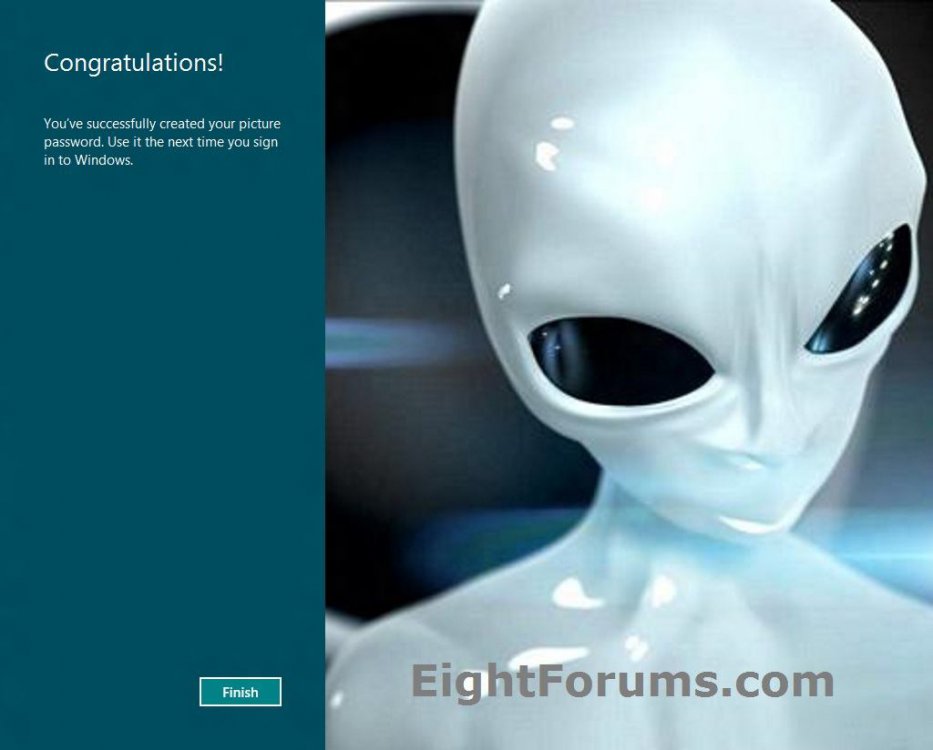

11. When successfully finished, click/tap on Finish. Your picture password has now been created. (see screenshot below)

Note   Note
If you get an "Enrollment Failure" error, then you will need to set the Credential Manager service to be Automatic and started (running). Afterwards, start the tutorial over to try creating your picture password again.

How to Start, Stop, and Disable Services in Windows 8



12. If you like, you could now close PC settings.






OPTION TWO
To "Change Picture Password" for your Windows 8 User Account


1. Open PC settings, and do step 2 or 3 below for what Windows 8 you have.

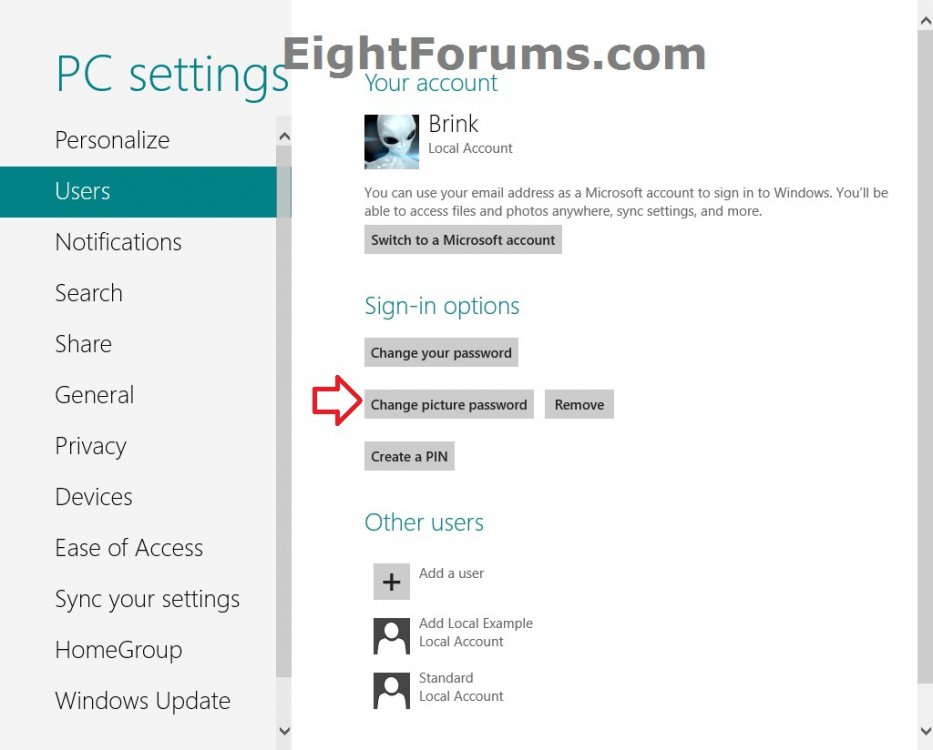

2. In Windows 8 or Windows RT, click/tap on Users in the left pane, click/tap on Change picture password in the right pane, and go to step 4 below. (see screenshot below)

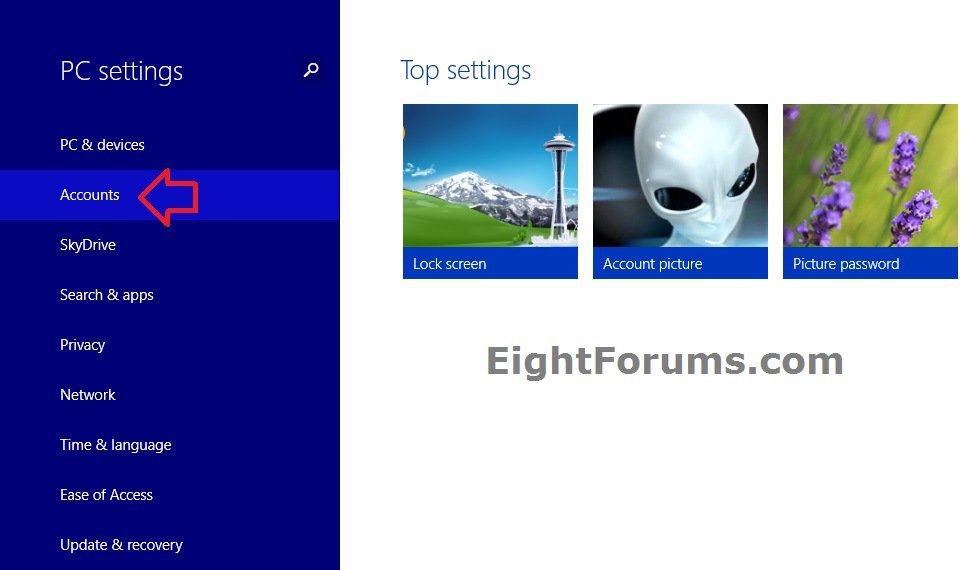

3. In Windows 8.1 or Windows RT 8.1, click/tap on Accounts on the left side. (see screenshot below)

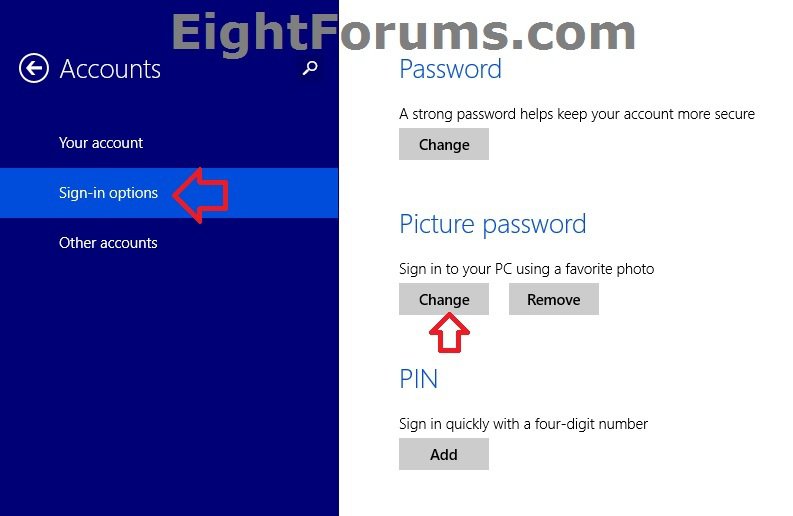

A) Click/tap on Sign-in options on the left side, click/tap on Change under Picture password on the right, and go to step 4 below. (see screenshot below)​

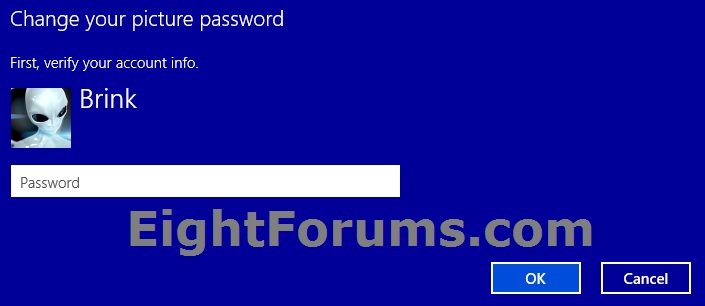

4. Type in your user account's password, and press Enter or click/tap on OK. (see screenshot below)

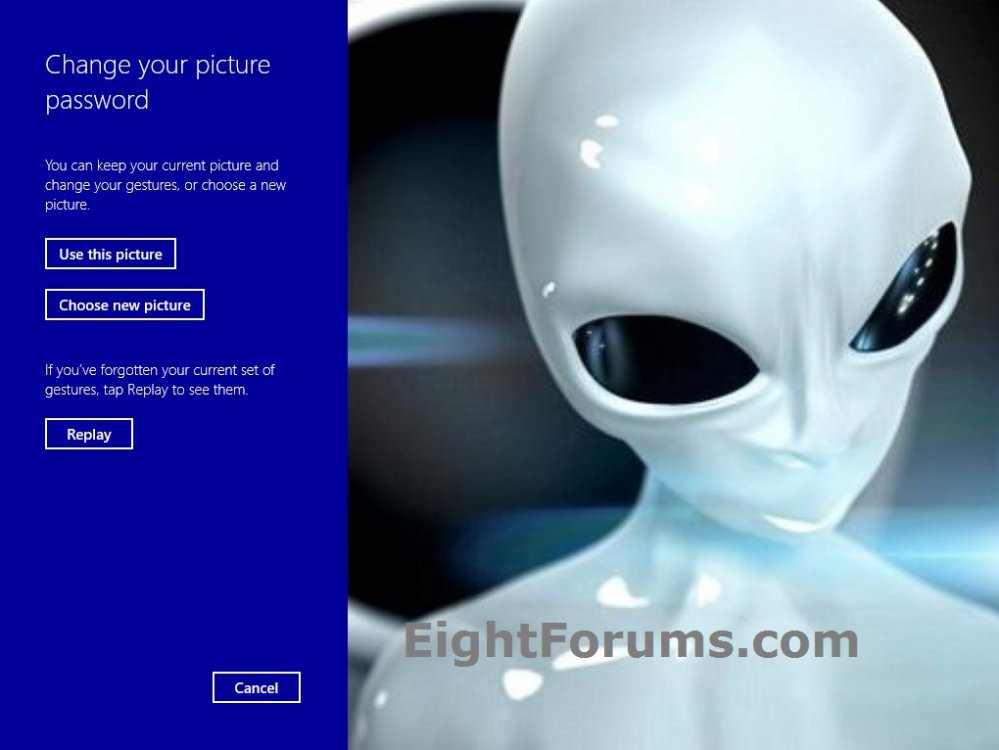

5. From here, you can select to Use this picture or to Choose a different picture. (see screenshot below)

6. When finished selecting a picture to use, you can now repeat steps 7 to 12 in OPTION ONE above to draw 3 gestures for the selected picture.






OPTION THREE
To "Remove Picture Password" from your Windows 8 User Account


1. Open PC settings, and do step 2 or 3 below for what Windows 8 you have.

2. In Windows 8 or Windows RT, click/tap on Users in the left pane, then click/tap on Remove to the right of Change picture password in the right pane. (see screenshot below)

3. In Windows 8.1 or Windows RT 8.1, click/tap on Accounts on the left side. (see screenshot below)

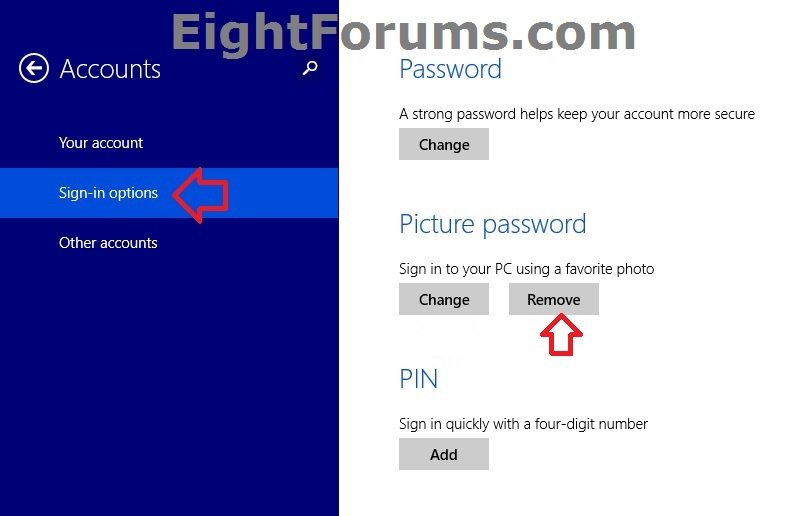

A) Click/tap on Sign-in options on the left side, click/tap on Remove under Picture password on the right, and go to step 4 below. (see screenshot below)​

4. The picture password for your user account has now been removed.

5. If you like, you could now close PC settings.


That's it,
Shawn


Related Tutorials



Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

aar407

Member
Member
Posts
31
#2
Hi Brink

When I try creating a picture password, the box is greyed out

Screenshot (174).png

Is there a way to fix this?

Thanks

aar407


My Computer

System One

  • OS
    Windows 8
    System Manufacturer/Model
    Hewlett-Packard
    Memory
    6GB (2+4)
    Graphics Card(s)
    Intel HD 4000
    Monitor(s) Displays
    1
    Screen Resolution
    1366x768
    Hard Drives
    2 (1x 1TB and 1x 20GB - Recovery)
    Keyboard
    UK Layout
    Mouse
    Touchpad
    Internet Speed
    60mb (originally 30mb) (VIRGIN MEDIA)

Brink

Administrator
Administrator
mvp
Posts
23,795
#3
Hello aar407,

Restart the PC to see if it may just be a glitch, and you will hopefully be able to afterwards.

If not, then run a sfc /scannow command to see if it finds and can repair any corrupted or modified system files that may be responsible. Afterwards, see how it works.

Hope this helps, :)
Shawn


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

bagavan

New Member
Power User
bangalore

Posts
634
#4
I think he might have the same problem I had experience . Picture password enrollment failure
