Solved No Network connection Window 7 Pro guest under Hyper V

xendistar

New Member
I have setup Hyper V on my Windows 8.1 laptop, the guest OS is Window 7 Pro. I have followed the eightforum how to

http://www.eightforums.com/tutorials/19359-hyper-v-virtual-switch-manager.html

But still cannot get a connection.

The network icon appear on the win7 taskbar with the yellow exclamation mark on it. The Laptop is connecting via ethernet cable and gets its IP via DHCP. I have set the virtaul adapter on the win7 guest to dhcp and static but still no connection. I have setup up the virtaul switch on Hyper V.

Can anybody give me any pointers please.

Tim


My Computer

System One

  • OS
    Win 8, Win7, WinXP, Debian

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
I am asking you to do quite a lot, take a bunch of screenshots and post them here, but it's only to get as much information as possible in order to possibly find the reason for your issue.

Please post screenshots showing the following Windows dialogs and settings, my example screenshots show exactly what I am asking for (click screenshots to enlarge):

- From the Windows 7 virtual machine, the Network and Sharing Center, Ethernet Status and Network Connection Details:



- The same as above from the host PC

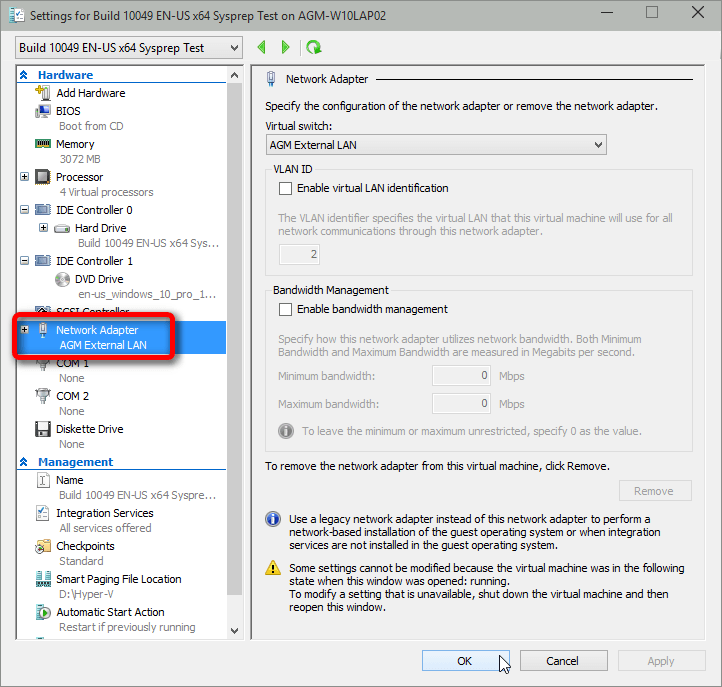

- The Windows 7 virtual machine Settings dialog with the Network Adapter selected on the left pane:

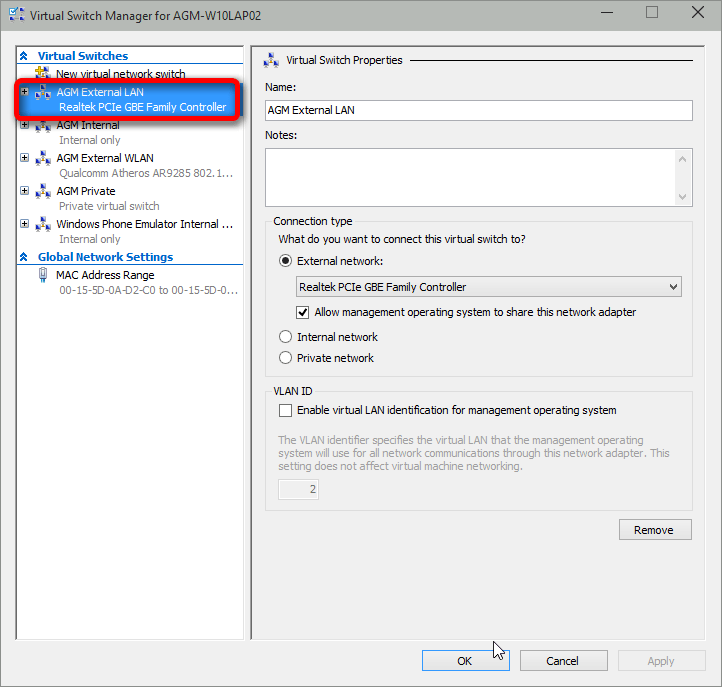

- The Hyper-V Virtual Switch Manager with the active virtual switch used by Windows 7 vm selected on the left pane:



Post these and we'll go from that :).

In case you need help in making and posting the screenshots, see these tutorials:

Kari


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

xendistar

New Member
Hi Kari thanks for trying to help, hopefully I have all the images you want

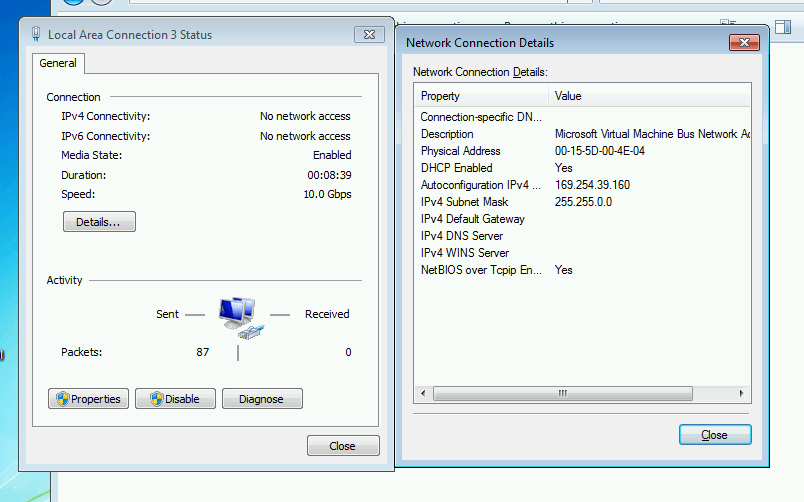

Virtual network setting (win7)

attachment.php

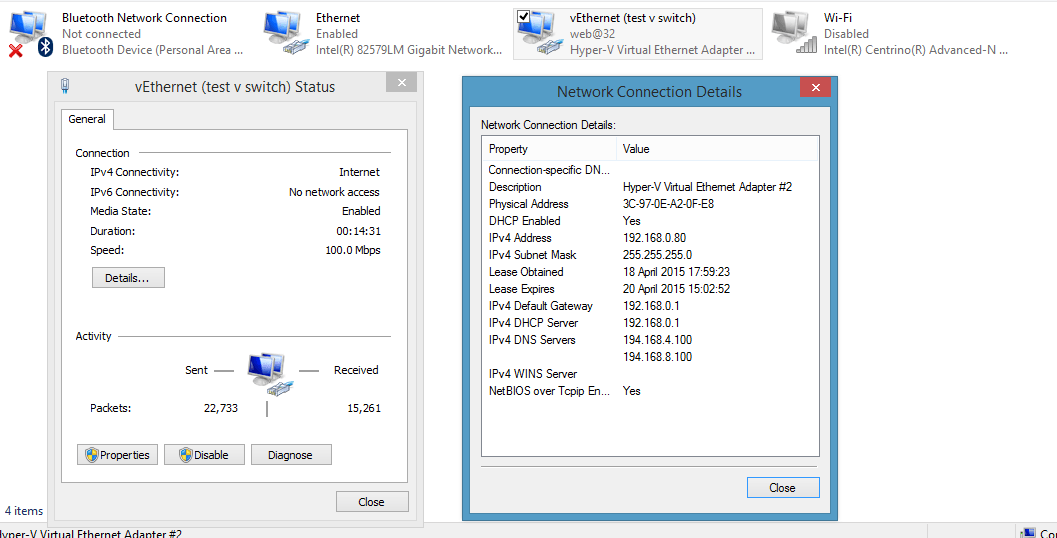

Host network settings (win8.1)
attachment.php

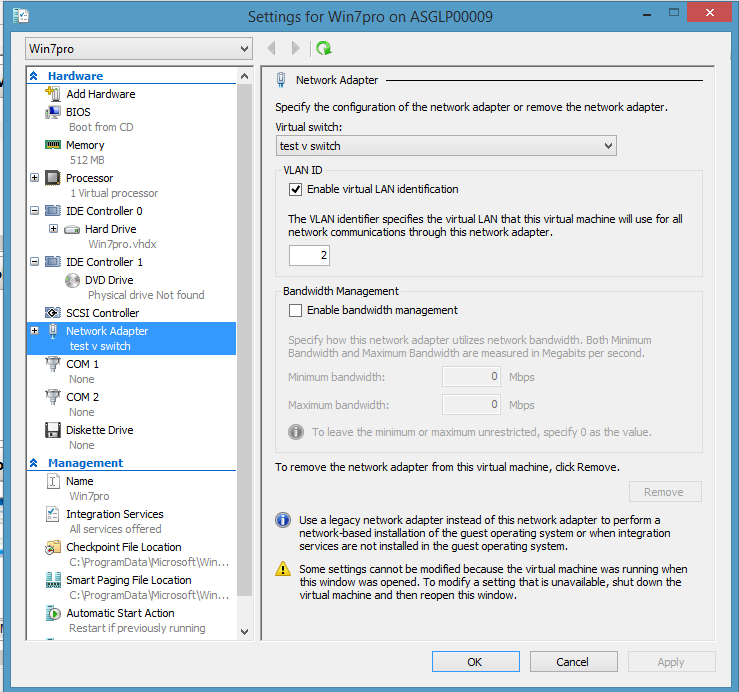

Virtual Network Adapter setting
attachment.php

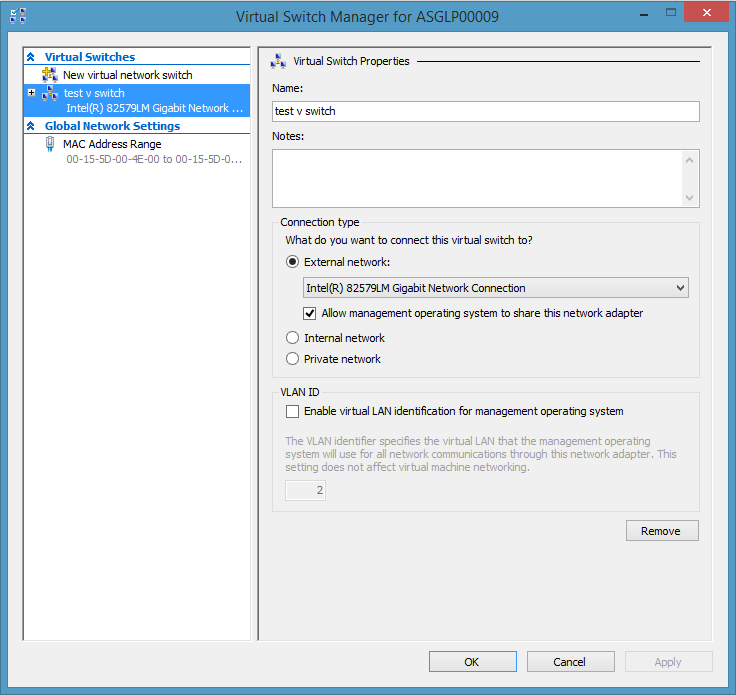

Virtual Switch settings
attachment.php


Attachments

  • vpic1.png
    32.3 KB · Views: 26
  • hpic1.png
    47.5 KB · Views: 26
  • vpic2.png
    56.6 KB · Views: 26
  • vpic3.png
    25.4 KB · Views: 25

My Computer

System One

  • OS
    Win 8, Win7, WinXP, Debian

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
OK, one thing clear is that the Windows 7 vm is not at all connected. This is most probably because you have enabled the virtual LAN identification.

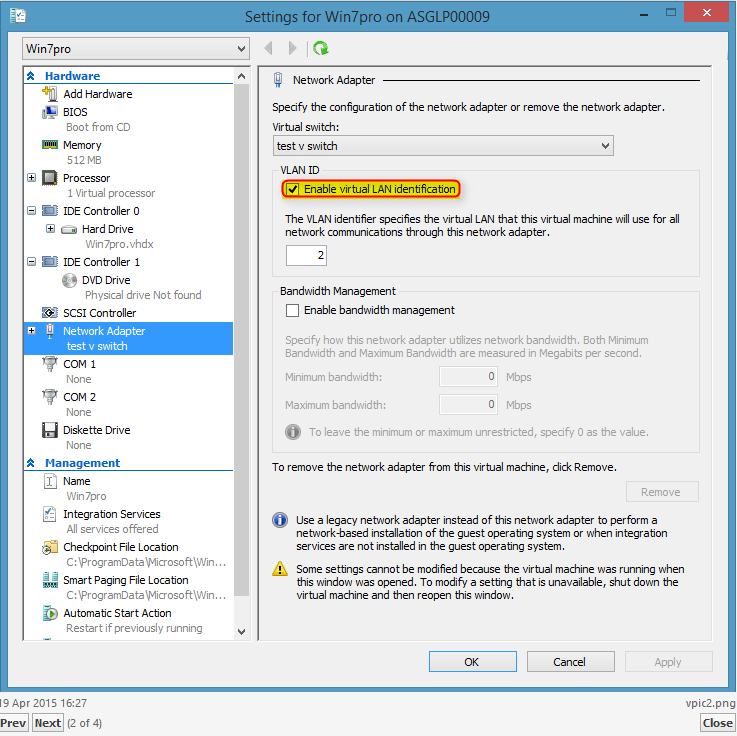

Disable it in vm settings, I've highlighted the checkbox in your screenshot you should unselect:



Try that and come back to tell how it went.

Kari


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
You are welcome :).


My Computer

System One

  • OS
    Windows 8.1 Pro with Media Center
    Computer type
    Laptop
    System Manufacturer/Model
    HP ENVY 17-1150eg
    CPU
    1.6 GHz Intel Core i7-720QM Processor
    Memory
    6 GB
    Graphics Card(s)
    ATI Mobility Radeon HD 5850 Graphics
    Sound Card
    Beats sound system with integrated subwoofer
    Monitor(s) Displays
    17" laptop display, 22" LED and 32" Full HD TV through HDMI
    Screen Resolution
    1600*900 (1), 1920*1080 (2&3)
    Hard Drives
    Internal: 2 x 500 GB SATA Hard Disk Drive 7200 rpm
    External: 2TB for backups, 3TB USB3 network drive for media
    Cooling
    As Envy runs a bit warm, I have it on a Cooler Master pad
    Keyboard
    Logitech diNovo Media Desktop Laser (bluetooth)
    Mouse
    Logitech MX1000 Laser (Bluetooth)
    Internet Speed
    50 MB VDSL
    Browser
    Maxthon 3.5.2., IE11
    Antivirus
    Windows Defender 4.3.9431.0
    Other Info
    Windows in English, additional user accounts in Finnish, German and Swedish.

Kari

Old geek, new tricks
Team Member
VIP Member
Pro User
Found this post through google

@Kari Thanks for the solution, it was indeed that checkbox which was not letting the host and guest talk.

You are welcome :)
