New SSD installed but unallocated space


strollin

Old Guys Rule!
VIP Member
Pro User
N. Calif

Posts
4,595
#2
Yes there is but not with Windows built-in Disk Management utility. You need a 3rd party utility such as https://www.partitionwizard.com/free-partition-manager.html

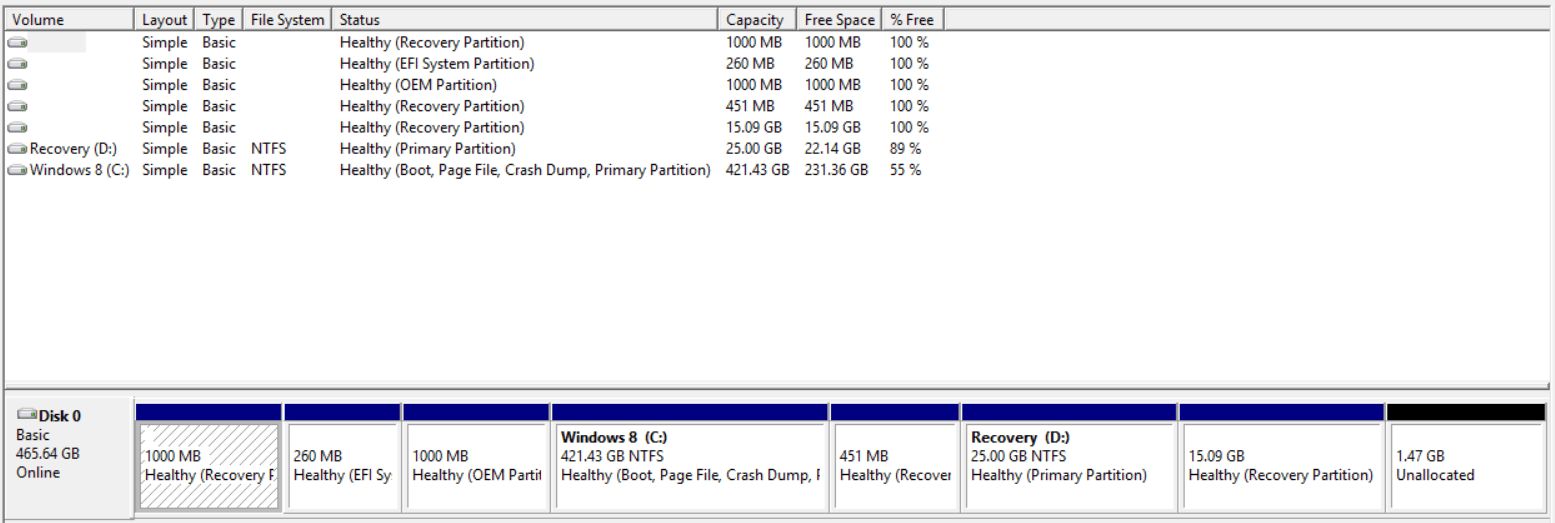

You need to be able to move the unallocated partition so that it is situated to the right of the C: partition, then you will be able to expand the C: partition into the unallocated space.

It looks like you have too many Recovery partitions as well, personally, I would get rid of them and use an external drive and imaging software instead.


My Computer

System One

  • OS
    W10 Pro (desktop), W10 (laptop), W10 Pro (tablet), W10 (laptop)
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Home built i7-8700K, Toshiba Satellite S55-A Laptop, MS Surface Pro 3, Dell Inspiron 15 5000
    CPU
    3.7Ghz Core i7-8700K, 2.4Ghz Core i7-3630QM, 1.9Ghz Core i5 4300U, 2.8Ghz Core i5 6200U
    Motherboard
    ASUS TUF Z370-Pro Gaming, Toshiba, MS, Dell
    Memory
    16G, 12G, 4G, 8G
    Graphics Card(s)
    Nvidia GTX 1050, Intel HD Graphics 4000
    Sound Card
    ATI High Definition Audio (Built-in to mobo)
    Monitor(s) Displays
    Dell S2817Q 28", 15.6"
    Screen Resolution
    3840x2160, 1366x768 (laptop)
    Hard Drives
    500GB ssd boot drive with 2 & 10TB Data on Desktop, 512GB ssd for laptop, 128GB SSD tablet, 500GB ssd laptop
    PSU
    Corsair CX 750M
    Case
    Antec 100
    Cooling
    Coolermaster CM 212+
    Keyboard
    IBM Model M - used continuously since 1986
    Mouse
    Microsoft IntelliMouse
    Internet Speed
    120Mbps/6Mbps down/up
    Browser
    FireFox
    Antivirus
    MSE on desktop, Defender on laptop
    Other Info
    Retired after working in the tech industry for 41 years. First 10 years as a Technician, the rest as a programmer/software engineer. After 1 year of retirement, I was bored so went back to work as a Robotic Process Automation Consultant.

pbcopter

Member
Member
Florida, USA

Posts
147
#3
Personally, I would leave the unallocated space for the SSD to use for additional over provisioning.


My Computer

System One

  • OS
    Windows 8.1 Pro x64 with Media Center, Windows 10 Pro x64, Windows 7 x64 Ultimate SP1
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom System
    CPU
    INTEL Xeon E5-2670 LGA 2011
    Motherboard
    Gigabyte GA X79 UD5 v1.0 F13s
    Memory
    64GB (8 X 8 GB) G-Skill Ripjaws Z DDR3 2133 Quad Channel
    Graphics Card(s)
    EVGA GTX 1060 SC 3 GB
    Sound Card
    Realtek Onboard ALC898
    Monitor(s) Displays
    2 x Samsung S27E310
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung 850 PRO 256 GB SSD
    1 x 6TB WD 6003FZBX SATA
    13 x 3TB WD 30EFRX SATA
    PSU
    Seasonic X-1050
    Case
    Thermaltake Armor+
    Cooling
    INTEL BXRTS2011LC Liquid-cooled
    Keyboard
    Logitech G510s
    Mouse
    Microsoft Wireless Explorer Mouse
    Internet Speed
    7.0 Mb/s
    Browser
    IE 11, Chrome
    Antivirus
    ESET NOD32 11.1, Malwarebytes Pro 3.5.1
    Other Info
    ASUS RT-AC68U router

LPhoeliu

New Member
Posts
46
#5
Try EaseUS Partition Master, in principle, this tool works the same as the Windows Disk Management tool. The difference is that it offers more features and is a lot more flexible, for example because you can extend a partition, regardless of where the unallocated space sits.


My Computer

System One

  • OS
    windows8
