When helping you with network problems it is vital that we have some understanding of your network configuration since this will greatly determine what solution to propose. Before posting a thread please read this with care and follow the steps so that the relevant information can be posted with your problem.

Note   Note
This can take some time





First
IPCONFIG


When posting network problems it is important to see your IP configuration. To do this please follow the these steps:

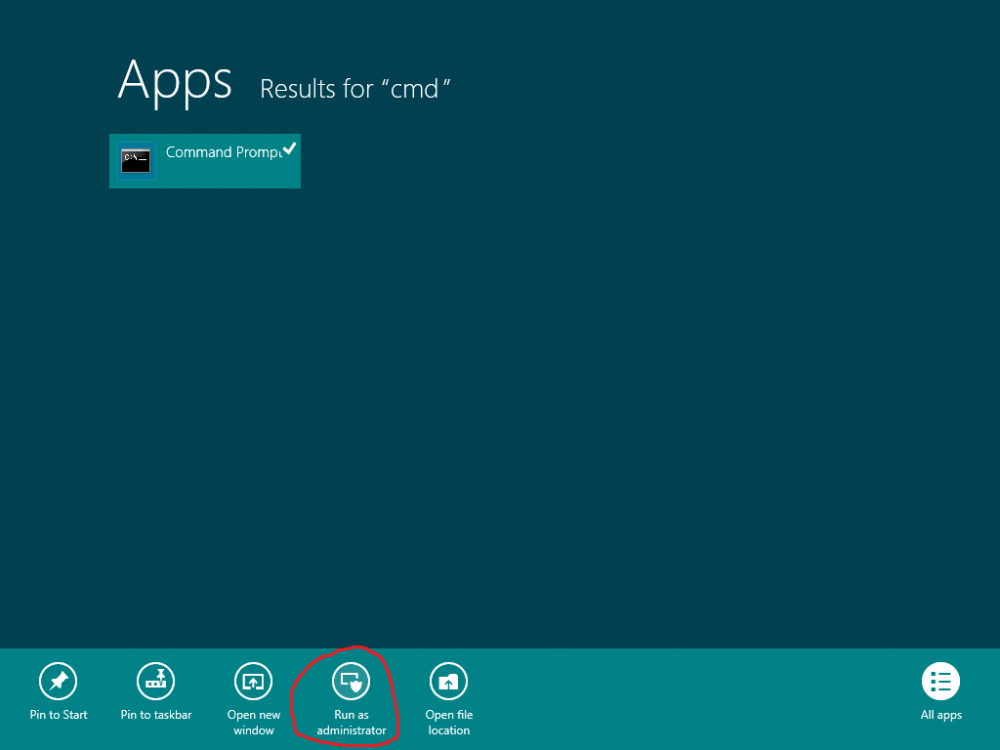

1. Press Start and search for cmd

a. Right Click on Command Prompt and click on Run as Administrator


b. You may need to click Continue if a UAC prompt appears​

2. Once the Command Prompt windows Opens Please type in the following code

Code:
ipconfig /all

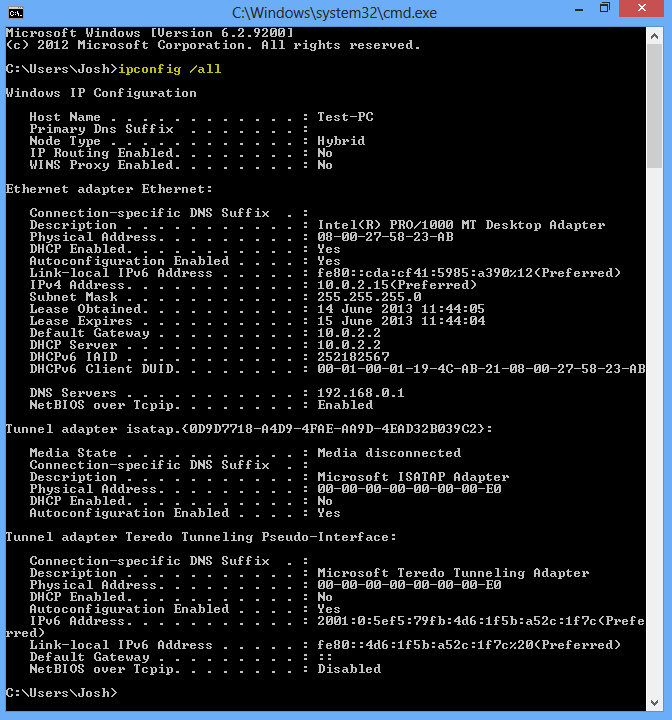

Then press enter. You will then be presented with some information similar to the one below.


Now you need to upload this information in a screenshot with your next post. To do this please follow this tutorial and make sure that all the information given in the prompt is displayed:


http://www.eightforums.com/tutorials/2596-screenshot-create-paint-windows-8-a.html & http://www.eightforums.com/tutorials/2598-screenshots-files-upload-post-eight-forums.html




Second
Resetting TCP/IP & Flush DNS


This next step will help clear any DNS cache and restore your HOSTS file back to normal since these can cause some minor network hiccups. To do so please run the attatched file at the end of this post as an Administrator.

warning   Warning
The file will automatically restart your computer and delete itself permanently from your machine after executed


The code of the file is as follows:

Code:
@Echo on
pushd\windows\system32\drivers\etc
attrib -h -s -r hosts
echo 127.0.0.1 localhost>HOSTS
attrib +r +h +s hosts
popd
ipconfig /release
ipconfig /renew
ipconfig /flushdns
netsh winsock reset all
netsh int ip reset all
shutdown -r -t 1
del %0






Third
Wireless Issues


For wireless related problems we will require some additional information in order to help you.

Please download and install Xirrus Wi-Fi Inspector - Xirrus Wi-Fi Inspector - Free download and software reviews - CNET Download.com. Once done please follow the steps above to take a screenshot of the wireless channels and information and then upload it with your post.

After completing this simply start a new thread here with the uploaded screenshot and we will help as much as we can.

Many Thanks for your co-operation,
Josh


Attachments

Last edited:

My Computer

System One

  • OS
    Windows 8.1 Pro 64-bit ; Windows Server 2012 R2 Standard
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom Built
    CPU
    Intel Core i5 2400 @ 3.10GHz
    Motherboard
    Foxconn H67MP-S/-V/H67MP (CPU 1)
    Memory
    8.0GB DDR3 @ 665MHz (2GBx4)
    Graphics Card(s)
    AMD Radeon HD 6800 Series (Sapphire/PCPartner)
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    SMB1930NW + AOC 2243W
    Screen Resolution
    1440x900 + 1920x1080
    Hard Drives
    977GB Seagate ST31000524AS ATA Device (SATA)
    250GB WD iSCSI attached drive
    PSU
    750W PSU
    Case
    Novatech Night
    Keyboard
    Dell Standard PS/2 Keyboard
    Mouse
    R.A.T 7 Gaming Mouse
    Browser
    Google Chrome
    Other Info
    Optiarc DVD RW AD-5260S ATA Device
Posts
74
#2
thanks for he help here as i was juggling much with the same posting problem but now going through the help you have provided has suggest me best about the cause.. now going to apply in my case to see its effects ..


My Computer

System One

  • OS
    4.1
    Computer type
    PC/Desktop
    System Manufacturer/Model
    e4166
    CPU
    core 2 duel
    Motherboard
    i3
    Graphics Card(s)
    Dell
    Browser
    compe
    Antivirus
    kpersky

Shadowjk

Network Enthusiast
VIP Member
Power User
#3
No Problem, If your problem was not fixed with the batch file then simply make a new thread with the attached ipconfig and we will do our best to help you! :)


My Computer

System One

  • OS
    Windows 8.1 Pro 64-bit ; Windows Server 2012 R2 Standard
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom Built
    CPU
    Intel Core i5 2400 @ 3.10GHz
    Motherboard
    Foxconn H67MP-S/-V/H67MP (CPU 1)
    Memory
    8.0GB DDR3 @ 665MHz (2GBx4)
    Graphics Card(s)
    AMD Radeon HD 6800 Series (Sapphire/PCPartner)
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    SMB1930NW + AOC 2243W
    Screen Resolution
    1440x900 + 1920x1080
    Hard Drives
    977GB Seagate ST31000524AS ATA Device (SATA)
    250GB WD iSCSI attached drive
    PSU
    750W PSU
    Case
    Novatech Night
    Keyboard
    Dell Standard PS/2 Keyboard
    Mouse
    R.A.T 7 Gaming Mouse
    Browser
    Google Chrome
    Other Info
    Optiarc DVD RW AD-5260S ATA Device

Shadowjk

Network Enthusiast
VIP Member
Power User
#5
Note   Note
Wireless option added, if you have an issue with wireless connectivity then please follow the last step so we can more easily help you


Many Thanks,
Josh
