Network Location - Set to Private or Public in Windows 8
This tutorial will show you how to set your network to be connected to a public or private type of location for if you would like to turn sharing and connect to devices on or off in Windows 8.
Published by Brink
#1
ByLine
How to Set Network Location to be Public or Private in Windows 8 and 8.1
Synopsis
This tutorial will show you how to set your network to be connected to a public or private type of location for if you would like to turn sharing and connect to devices on or off in Windows 8.
How to Set Network Location to be Public or Private in Windows 8 and 8.1
The first time you connect to a network, you'll be asked if you want to turn on sharing between PCs and connect to network devices such as printers. Your answer automatically sets the appropriate Windows Firewall and security settings for the type of network (private or public) that you connected to. You can turn sharing on or off anytime.

This tutorial will show you how to set your network to be connected to a public or private type of location for if you would like to turn sharing and connect to devices on or off in Windows 8, Windows RT, Windows 8.1, and Windows RT 8.1.

You must be signed in as an administrator to be able to do the steps in this tutorial.

Private network - Choose Yes, turn on sharing and connect to devices below for home or small office (work) networks, or when you know and trust the people and devices on the network. This setting allows your PC to connect to devices on the network, such as printers. Computers on a private network can belong to a homegroup.

Public network - Choose No, don't turn on sharing or connect to devices below for networks in public places (such as coffee shops or airports), or when you don't know or trust the people and devices on the network. This location is designed to keep your computer from being visible to other computers around you and to help protect your computer from any malicious software from the Internet. HomeGroup is not available on public networks, and network discovery is turned off.

Unidentified network - See: Unidentified Networks - Set as Private or Public - Windows 7 Forums


  • Turning on sharing prepares your PC for sharing files and devices on a network.
  • The network sharing setting is only available for Wi-Fi, Ethernet, VPN (non-domain), and dial-up (non-domain) connections. It's unavailable for domain networks. On VPN or dial-up connections, you must connect to the network first, then press and hold or right-click the network name to change the network sharing setting.
  • Turning on sharing changes your firewall settings to allow some communication, which can be a security risk. If you know you won't need to share files or printers, the safest choice is No, don't share or connect to devices.
  • Choosing No, don't turn on sharing or connect to devices blocks the following apps and services from working: PlayTo, file sharing, network discovery, and automatic setup of network devices.

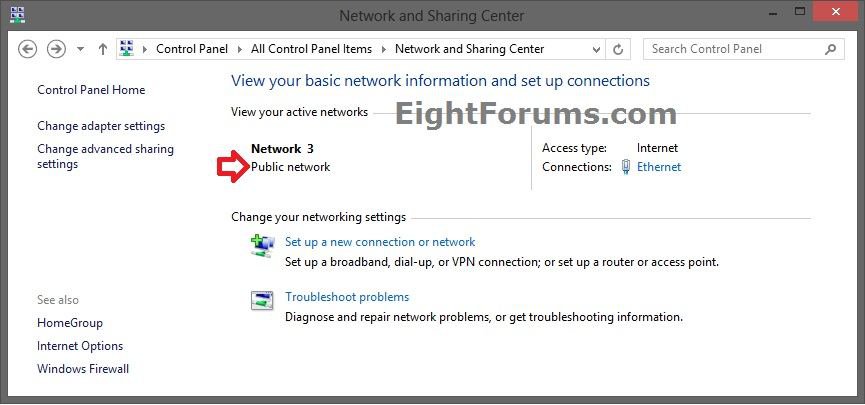

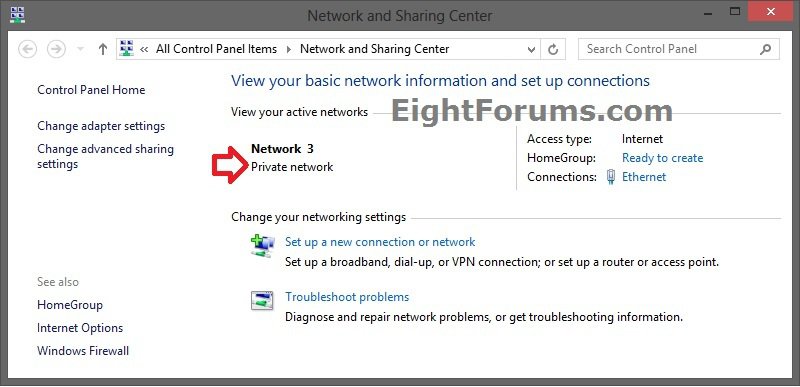

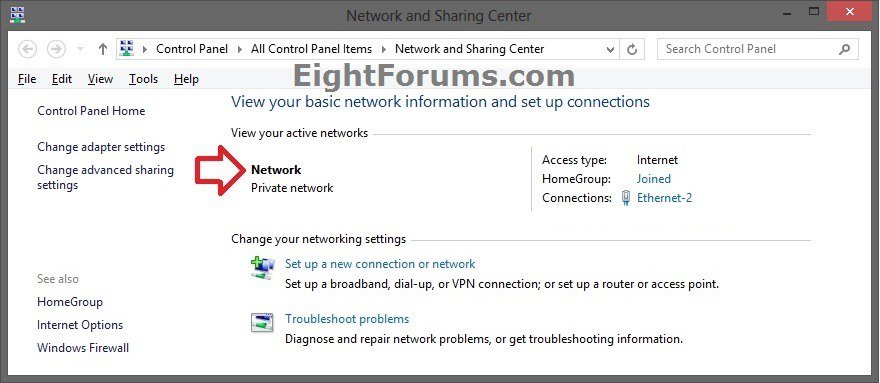

EXAMPLE: Private or Public Network in "Network and Sharing Center"
NOTE: The Network and Sharing Center can let you see if your network is public or private. To open the "Network and Sharing Center", you could open the Control Panel (icons view) and click/tap on the Network and Sharing Center icon.








OPTION ONE
Set Network to be Private or Public in Windows 8 Networks



1. Do step 2 or 3 below for how you would like to open the Networks flyout.

2. On the desktop, click/tap on the Network system icon in the taskbar notification area, and go to step 4 below. (see screenshot below)




3. Open the Charms bar, and click/tap on Settings.
NOTE: You could also press the Windows + I keys to open the Settings flyout.

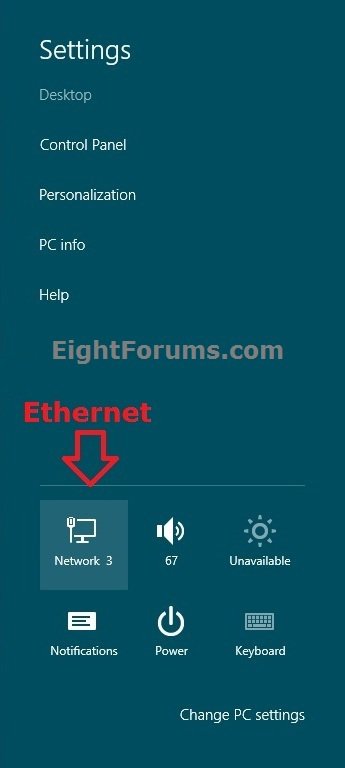

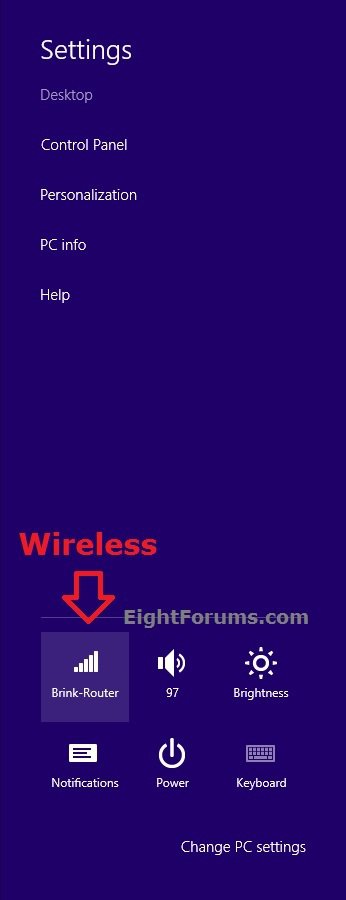

A) In the Settings flyout, click/tap on the Network icon, and go to step 4 below. (see screenshots below)
NOTE: The Network icon will have the name of your network under it. The example below is for either an ethernet or wireless network.

Settings.jpg Wireless-1.jpg

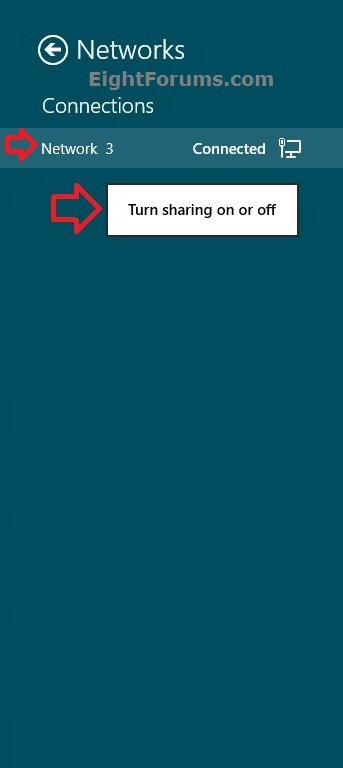

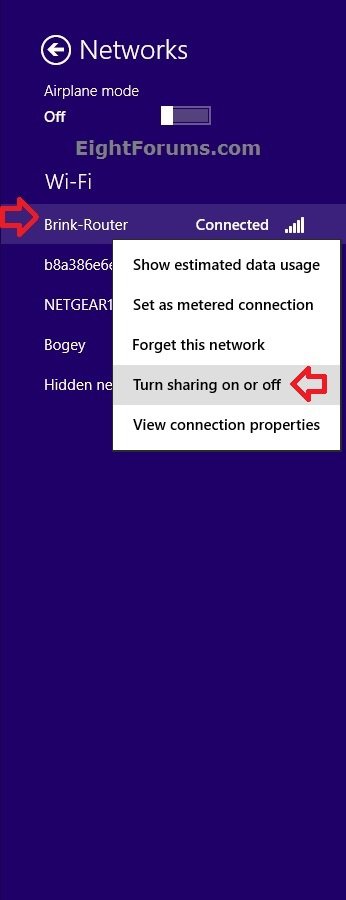

4. In the Networks flyout, right click or press and hold on your network connection (ex: "Network 3" or "Brink-Router"), and click/tap on Turn sharing on or off. (see screenshots below)

Network.jpg Wireless-2.jpg

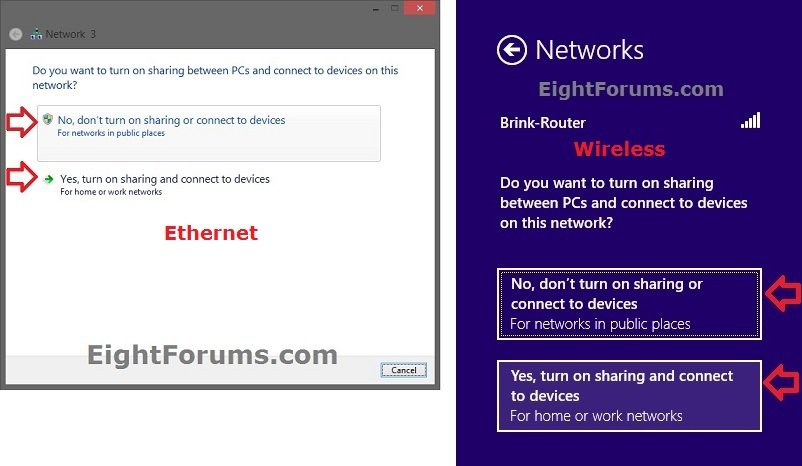

5. Do step 6 or 7 below for what you would like to do. (see screenshots below)




6. To Set Network Location to be Public in Windows 8

A) Click/tap on No, don't turn on sharing or connect to devices, and go to step 8 below. (see screenshots below step 5)


7. To Set Network Location to be Private in Windows 8

A) Click/tap on Yes, turn on sharing and connect to devices, and go to step 8 below. (see screenshots below step 5)



8. If prompted by UAC, then click/tap on Yes.






OPTION TWO
Set Network to be Private or Public in Windows 8.1 Networks

NOTE: PCs with an ethernet network connection will be set as a private network by default, and doesn't appear to be able to be changed using this option.

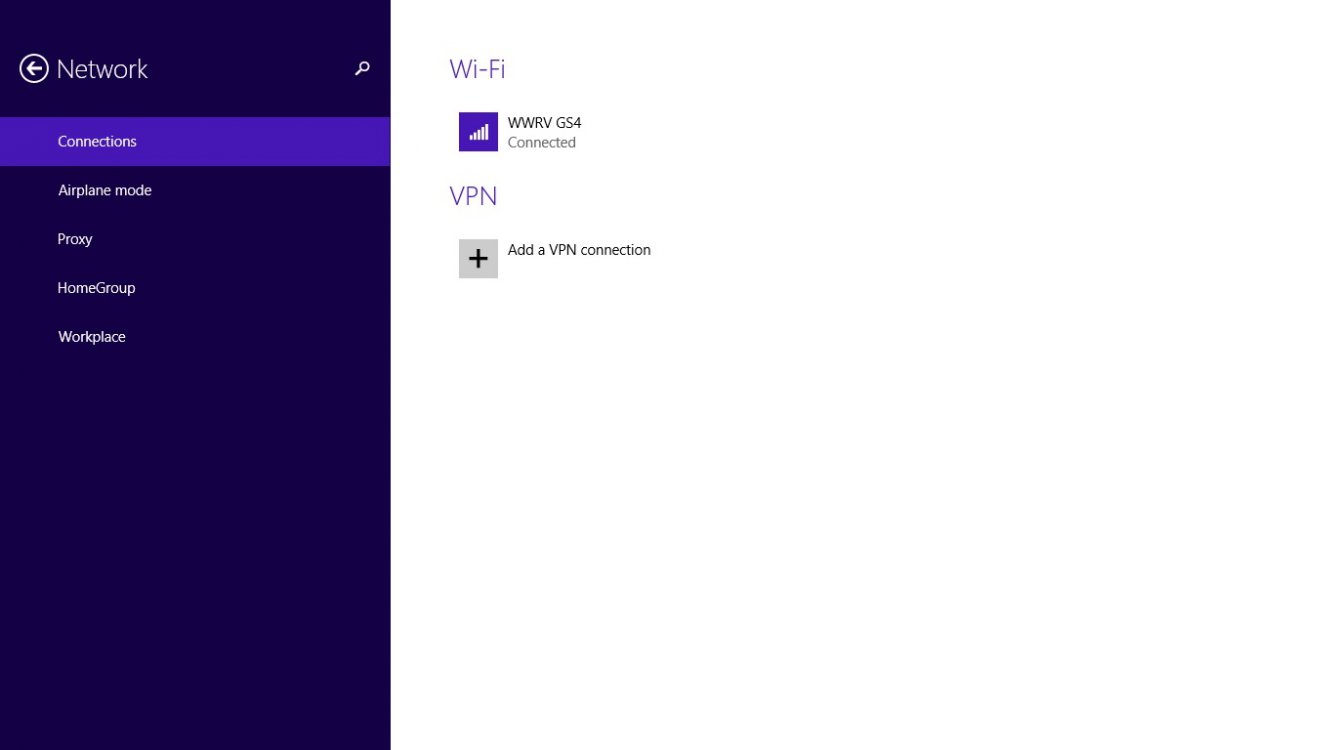

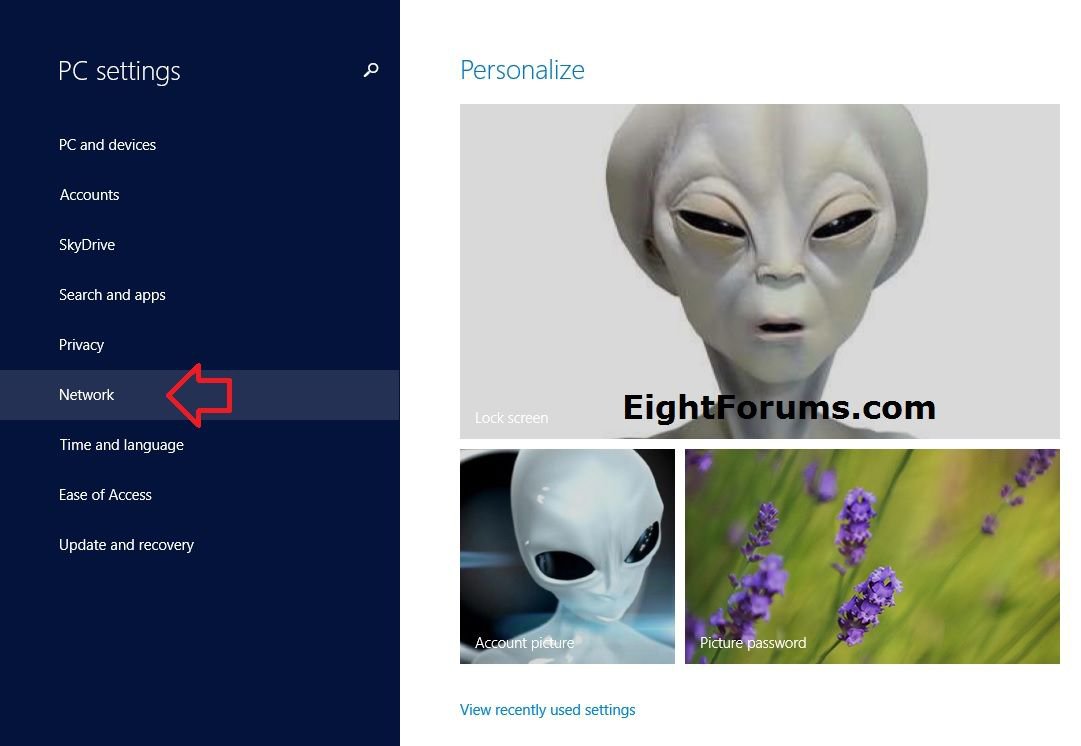

1. Open PC settings, and click/tap on Network on the left side. (see screenshot below)

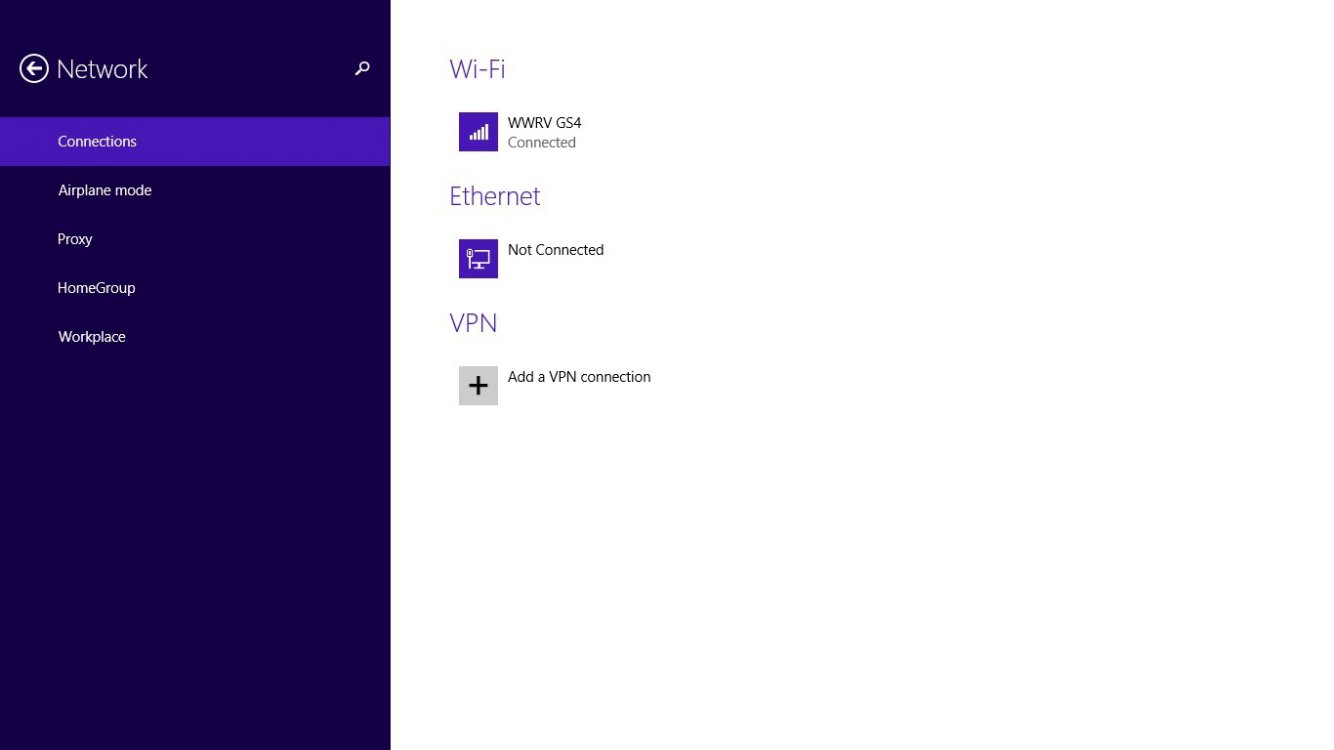

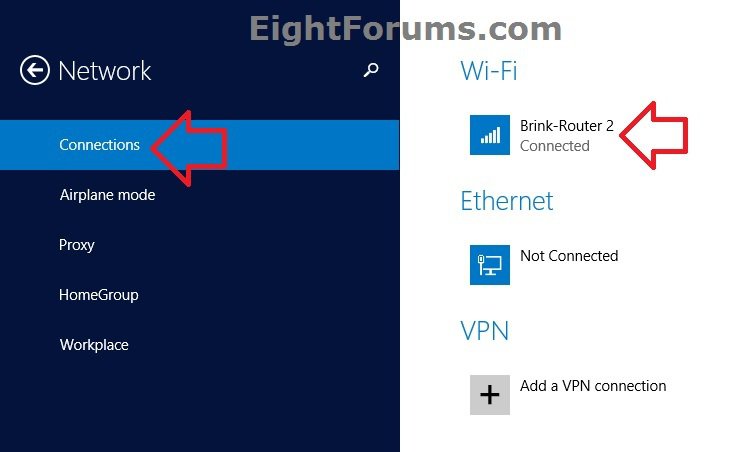

2. Click/tap on Connections on the left side of "Network", and click/tap on the network (ex: Brink-Router 2) on the right side that you want to set as public or private. (see screenshot below)

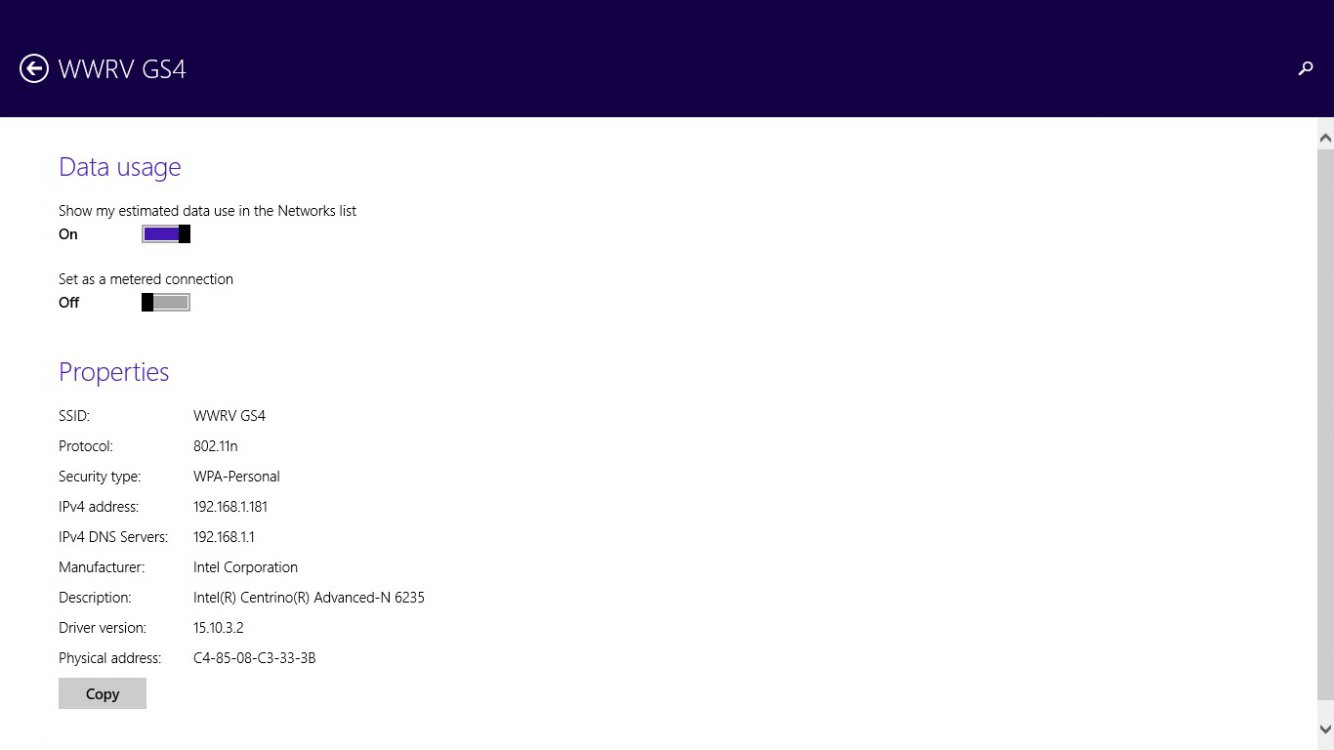

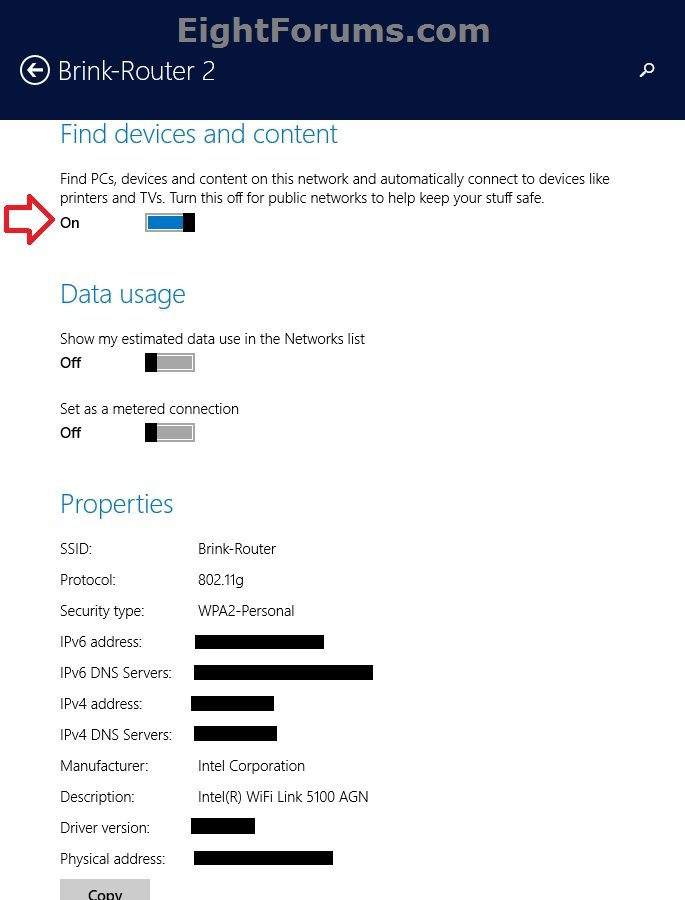

3. Under Find devices and content, do step 4 or 5 below for what you would like to do. (see screenshot below)

Note   Note
The Find devices and content option will not be available for PC with an ethernet network connection.

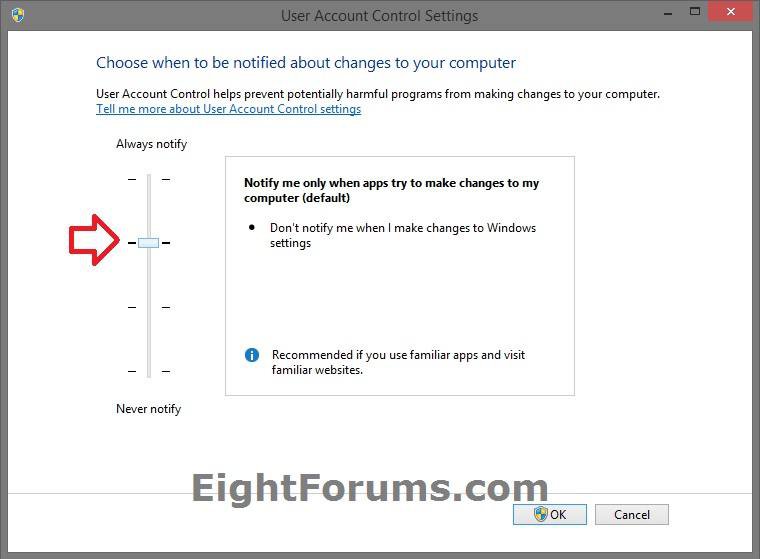

You will need to have your UAC settings set to the default or lower level to have the Find devices and content option available for other types of network connections. The Find devices and content option will not be available if you have your UAC settings set to the top "Always Notify" level. Close and reopen PC settings afterwards if you needed to change your UAC settings.








4. To Set Network Location to be Public in Windows 8.1

A) Move the slider to the left to turn it off, and go to step 6 below. (see screenshot below step 3)


5. To Set Network Location to be Private in Windows 8.1

A) Move the slider to the right to turn it on, and go to step 6 below. (see screenshot below step 3)


6. When finished, you can close PC settings if you like.






OPTION THREE
Set Network to be Private or Public in Windows 8 and 8.1 in Registry


1. Press the :winkey: + R keys to open the Run dialog, type regedit, and press Enter.

2. If prompted by UAC, then click/tap on Yes.

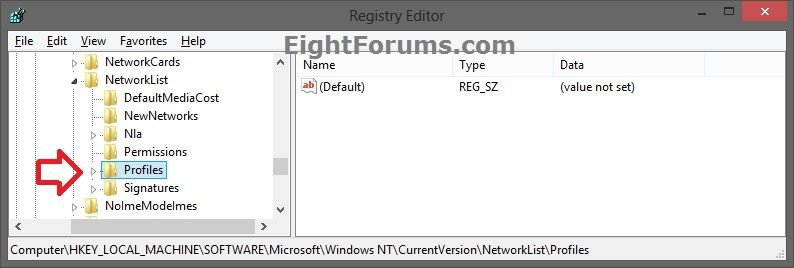

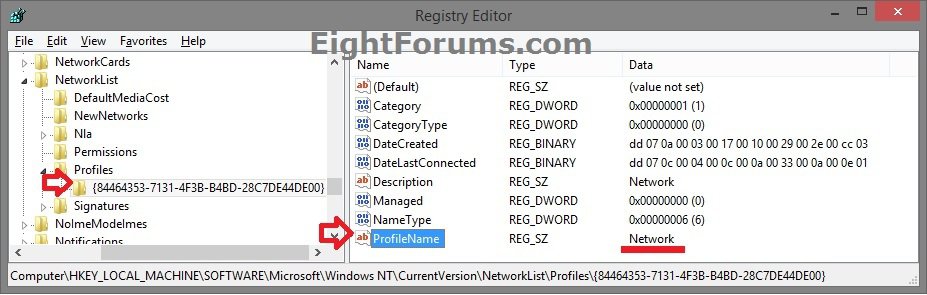

3. In Registry Editor, navigate to the location below. (see screenshot below)

Code:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles



4. Double click/tap on the Profiles key in the left pane to expand it. Click/tap on each long GUID number subkey, and look at it's ProfileName string value in the right pane to see if it has the current network name (ex: Network) until found. (see screenshots below)

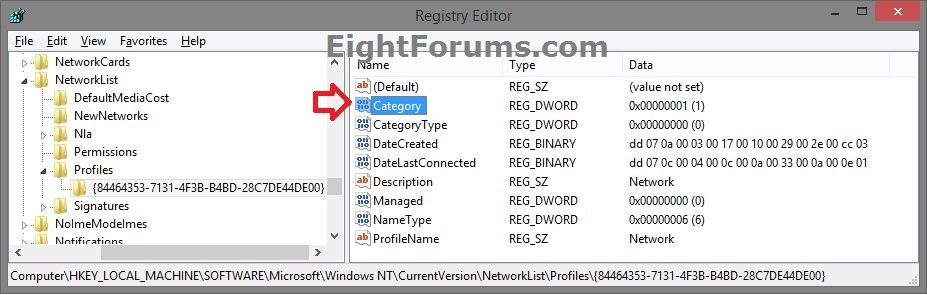

5. When you find the correct ProfileName for your network name, double click/tap on the Category DWORD value in the same right pane to modify it. (see screenshot below)

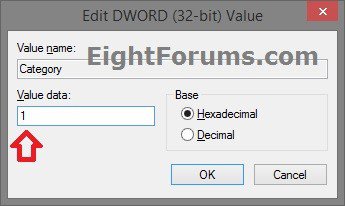

6. Type in a new Data value number for the network location you want, and click/tap on OK. (see screenshot below)

Network Location

Data Value

Public

0

Private

1

Domain

2






7. When finished, you can now close Registry Editor if you like.

8. Sometimes you may need to sign out and in of your user account to apply the new network location.






OPTION FOUR
Set Network to be Private or Public in Local Security Policy


NOTE: This option will override the other options above.

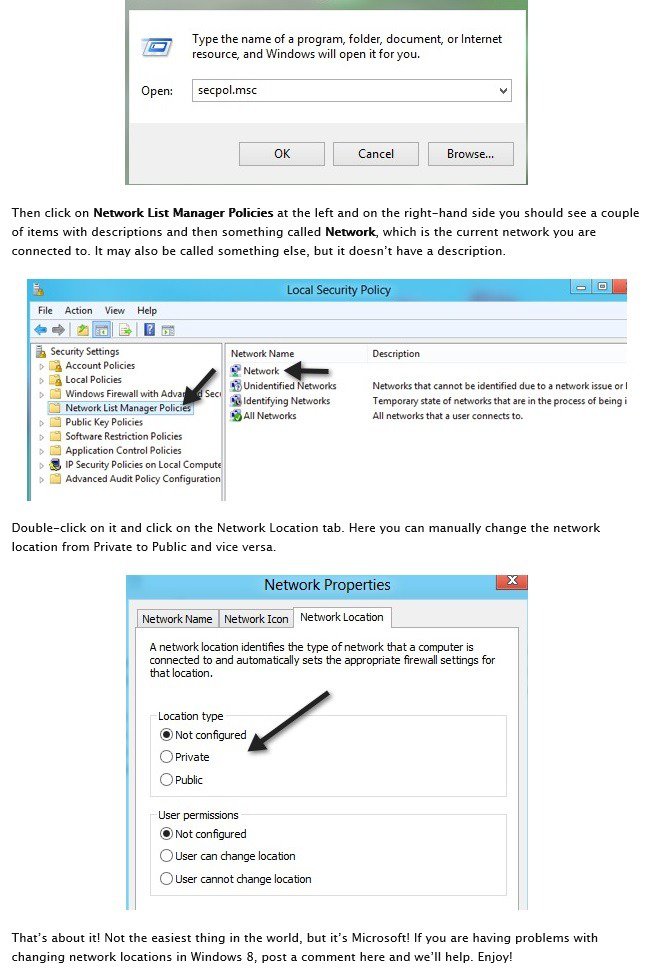

1. Open the Local Security Policy (secpol.msc).

2. In the left pane, click/tap on Network List Manager Policies. (see screenshot below)




3. In the right pane of Network List Manager Policies, double click/tap on your network name (ex: Network). (see screenshot above)

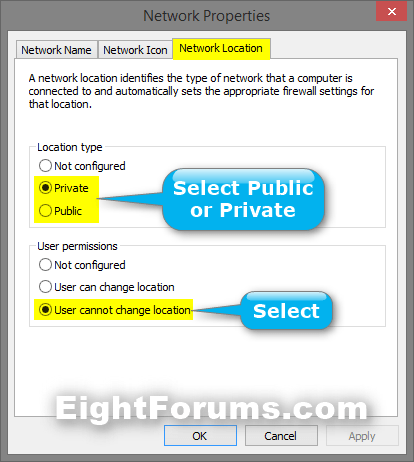

4. Click/tap on the Network Location tab, and do step 5, 6, or 7 below for what you would like to set. (see screenshot below)




5. To Set Network Location to be Public

A) Under Location type, select (dot) Public. (see screenshot below step 4)

B) Under User permissions, select (dot) User cannot change location.

C) Click/tap on OK, and go to step 8 below.



6. To Set Network Location to be Private

A) Under Location type, select (dot) Private. (see screenshot below step 4)

B) Under User permissions, select (dot) User cannot change location.

C) Click/tap on OK, and go to step 8 below.



7. To Allow Network Location to be changed by user
NOTE: This is the default setting, and will allow you to be able to use OPTION ONE, OPTION TWO, or OPTION THREE above.

A) Under Location type, select (dot) Not configured. (see screenshot below step 4)

B) Under User permissions, select (dot) Not configured.

C) Click/tap on OK, and go to step 8 below.



8. When finished, you can close Local Security Policy if you like.



That's it,
Shawn



Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Spencer

New Member
Posts
4
#2
I'm having an issue with Windows 8.1 automatically assigning new wifi networks as public. When following the tutorial to change the network to private, I run into an issue at Option 2, Step 3.

The "Find Devices and Content" option is not available at all. I'm on a wifi connection, not ethernet. I disabled the ethernet device so it is no longer an option in the network list, but that did not solve the problem.

This is an issue for setting up a network because windows is automatically assigning new networks as public, then won't allow me to change them to private!

Any help or thoughts would be appreciated!

TIA
Spencer


My Computer

System One

  • OS
    Windows 8.1

Brink

Administrator
Administrator
mvp
Posts
23,279
#3
Hello Spencer, and welcome to Eight Forums. :)

Restart the PC with the Ethernet disconnected to see if the "Find Devices and Content" option may be available afterwards.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Spencer

New Member
Posts
4
#4
Hello Spencer, and welcome to Eight Forums. :)

Restart the PC with the Ethernet disconnected to see if the "Find Devices and Content" option may be available afterwards.
Brink,

Thanks for the quick response.

I should have clarified, Ethernet is listed in the connection list under Network/Connections but it is "Not Connected." I've attached a screenshot to show what I mean. I don't currently use an ethernet connection on this laptop. I've tried disabling the ethernet adapter within windows, and this removes the ethernet connection from this list but still doesn't solve the problem of the missing switch.

Unfortunately, restarting has not helped.




Spencer

Last edited by a moderator:

My Computer

System One

  • OS
    Windows 8.1

Brink

Administrator
Administrator
mvp
Posts
23,279
#5
As a test, disabled the Ethernet adapter in Network Connections, then see what do you see when you click/tap on the WWRV GS4 Wi-Fi connection in your screenshot above afterwards.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
23,279
#7
In that case, check to make sure that network discovery is turned on for "Private" profiles, and see if you are able to change it afterwards.
If not, then go head and delete your current wireless network profile, and set up the wireless network again to see if you may be able to set as private during the setup.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Spencer

New Member
Posts
4
#8
Verified discovery is turned on for private network.

I tried both forgetting the network and deleting the profile via command prompt. Neither worked. Upon reconnecting to the wifi network, there is no prompt asking whether I want to share. It automatically assigns the network sharing. I noticed the absence of this prompt earlier, but what is interesting is that windows has always automatically assigned new networks as public. When I forced windows to forget my private network (or via deleting network profile), when I reconnected to the network with the password, windows automatically assigned it as a private network. There seems to be some memory of the network within windows which automatically assigns sharing based on the network's previous settings.

As a test, I changed the router to a new network name, and windows automatically assigned it as public network.

I did find another website which listed a registry edit workaround.

HKLM\Software\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles

Find network profile and change category value to "1" (private) from "0" (public). This works, but it seems ridiculous that I have to edit the registry to change the share settings on a network!

Any other thoughts are much appreciated.


My Computer

System One

  • OS
    Windows 8.1

Brink

Administrator
Administrator
mvp
Posts
23,279
#9
I'll look into seeing if I may be able to find an easier way if able, and add to the tutorial.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
23,279
#10
Spencer,

I have yet to find another way to set the network location when it won't change normally. I've added Option Three to help others with the same issue.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Brink

Administrator
Administrator
mvp
Posts
23,279
#12
You're most welcome Charlton, and welcome to Eight Forums. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
#13
Perhaps an option 4 showing how to set to Public or Private though the Local Security Policy would fit into this tutorial.

Maybe you have this some place else for this already but it seems like it could be added to the options here. I'd post a picture of this but it won't let me.

Just type secpol.msc into the run box. That will bring up the Local Security policy. Go to Network List Policy's, Then to Network at the top, double click that then click the Network Location tab and click Public or Private etc.

I'm pretty sure that setting the Advanced Sharing Setting for the Private network to turn on Network Discovery, File and Printer Sharing after setting up the new network would have the same effect but I think people are forgetting this step.


My Computer

System One

  • OS
    Windows 8.1 Pro WMC
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Home built
    CPU
    Q9650 @ 4.05 GHz
    Motherboard
    Gforce 780i SLI FTW
    Memory
    8GB Gskill DDR2 1200Mhz
    Graphics Card(s)
    GTX-480
    Sound Card
    Asus D2 Xonar
    Monitor(s) Displays
    HannsG
    Screen Resolution
    1680x1050
    Hard Drives
    Gskill 120GB SSD
    PSU
    Thermal Take 1000watts
    Case
    Thermal Take Xtreme
    Cooling
    9 fans air cooled
    Keyboard
    G15 logitech
    Mouse
    G9 logitech
    Internet Speed
    50mbps

Brink

Administrator
Administrator
mvp
Posts
23,279
#14
Thank you for the reminder Rob. Added as OPTION FOUR. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

TonyB

New Member
Power User
Posts
529
#15
Wow thank you Brink i don't know how long mine was set to public network LOL maybe just when i got my new modem from comcast, i was wondering why i was missing stuff in my network area, i had one question i fixed it back to private network, do you think it affected anything in my firewall area or do you think all that will transfer over now that i made the switch. :) thanks for the awesome tutorial for me to fix this was great.


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Myself
    CPU
    Intel(R) Core(TM) i7-3770 CPU @ 3.40GHz
    Motherboard
    MSI Z77A-G45
    Memory
    8 gigs
    Graphics Card(s)
    PNY GeForce GTX 660 Ti
    Sound Card
    onboard
    Monitor(s) Displays
    Samsung Sync Master s27B550
    Screen Resolution
    1080p
    Hard Drives
    1 TB internal driver and one 1TB external drive.
    PSU
    Antec NeoECO 620 watt
    Case
    custom case
    Cooling
    Fans
    Keyboard
    steelseries apex
    Mouse
    stellseris sensel
    Internet Speed
    Unknowen
    Browser
    Google chrome
    Antivirus
    Norton 360 from comcast

Brink

Administrator
Administrator
mvp
Posts
23,279
#16
Hello Tony,

If you are using Windows Firewall, then it should automatically be set properly along with the settings made in the tutorial. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

TonyB

New Member
Power User
Posts
529
#17
Hello Tony,

If you are using Windows Firewall, then it should automatically be set properly along with the settings made in the tutorial. :)
Yup i'm good to go then thanks so much and have a great night :)


My Computer

System One

  • OS
    Windows 8.1 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Myself
    CPU
    Intel(R) Core(TM) i7-3770 CPU @ 3.40GHz
    Motherboard
    MSI Z77A-G45
    Memory
    8 gigs
    Graphics Card(s)
    PNY GeForce GTX 660 Ti
    Sound Card
    onboard
    Monitor(s) Displays
    Samsung Sync Master s27B550
    Screen Resolution
    1080p
    Hard Drives
    1 TB internal driver and one 1TB external drive.
    PSU
    Antec NeoECO 620 watt
    Case
    custom case
    Cooling
    Fans
    Keyboard
    steelseries apex
    Mouse
    stellseris sensel
    Internet Speed
    Unknowen
    Browser
    Google chrome
    Antivirus
    Norton 360 from comcast

Brink

Administrator
Administrator
mvp
Posts
23,279
#18
You're welcome Tony, and have a great night as well. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

okap1

New Member
Posts
14
#19
When I get the dropdown list in step for the last option is FORGET THIS NETWORK. The remaining 2 are not there (ie: Sharing & View). How do I correct this?
Also, noob question, where exactly do I see & change Public to Home? I'm using KIS 2014 and when I log on it gives brief warning about dangers of Public setting.
Thanks

MSI GS70 2OD-002US

[TD="class: spec-gray, align: left"]

Laptop[/TD]

[TD="class: spec-gray, align: left"] wireless connection - Most current Verizon router[/TD]

[TD="class: spec-gray, align: left"]

[/TD]



My Computer

System One

  • OS
    Windows 8

Brink

Administrator
Administrator
mvp
Posts
23,279
#20
Hello Okap, and welcome to Eight Forums.

If you mean the right screenshot under step 4 in OPTION ONE, then it's because OPTION ONE is only there in Windows 8 and not 8.1.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
