Hyper-V Remote File Browser Shortcut - Create
This tutorial will show how to create or download a Hyper-V Remote File Browser shortcut in Windows 8. This shortcut can be used or pinned where you like.
Published by Brink
#1
Category:
ByLine
How to Create a Hyper-V Remote File Browser Shortcut in Windows 8 and 8.1
Synopsis
This tutorial will show how to create or download a Hyper-V Remote File Browser shortcut in Windows 8. This shortcut can be used or pinned where you like.
How to Create a Hyper-V "Remote File Browser" Shortcut in Windows 8 and 8.1

information   Information
Hyper-V Remote File Browsing is a shell namespace extension implemented by Hyper-V that provides a way to browse the folders/files on a remote Hyper-V server without requiring the server to open an extra shell over the network you are managing. The benefit of the "Remote File Browsing" is you don't have to use the normal network share to access any location on that Hyper-V server. If you want to create a new folder, you may need to add the folder name at the end of the export path.

This tutorial will show how to create or download a "Hyper-V Remote File Browser" shortcut in Windows 8.

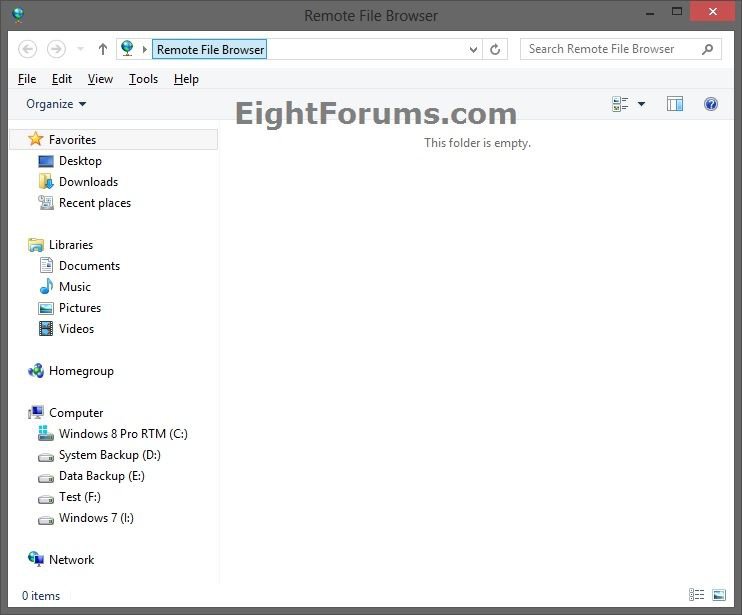

EXAMPLE: Hyper-V "Remote File Browser" in Windows 8






OPTION ONE
To Download a "Hyper-V Remote File Browser" Shortcut

1. Click/tap on the Download button below to download the ZIP file below.​
Hyper-V_Remote_File_Browser_Shortcut.zip
download
2. Save the .zip file to the desktop.​
3. Open the .zip file and extract (drag and drop) the Hyper-V Remote File Browser shortcut to the desktop.​
4. Unblock the extracted Hyper-V Remote File Browser shortcut.​
5. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​
6. When finished, you can delete the downloaded .zip file on the desktop if you like, or save it to use again.​




OPTION TWO
To Manually Create a "Hyper-V Remote File Browser" Shortcut

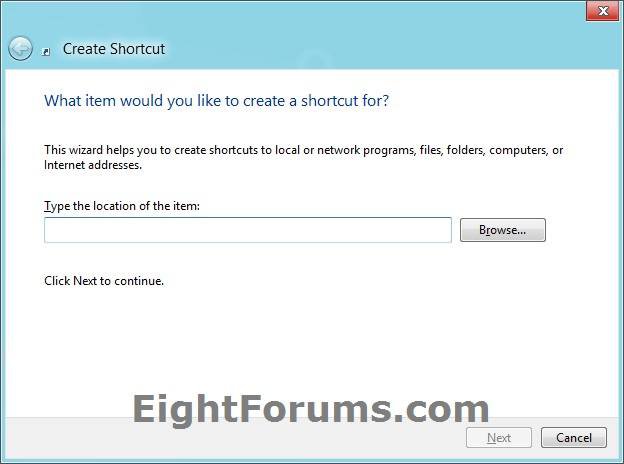

1. Right click or press and hold on a empty area of the desktop, and click/tap on New and Shortcut.​
2. Copy and paste the command below into the location area, and click/tap on the Next button. (see screenshot below)​
%windir%\explorer.exe shell:::{0907616E-F5E6-48D8-9D61-A91C3D28106D}

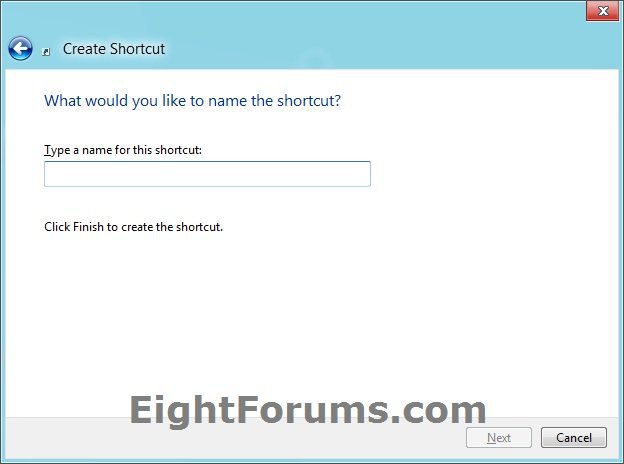

3. Type Hyper-V Remote File Browser for the name, and click/tap on the Finish button. (see screenshot below)​
NOTE: You can name this shortcut anything you would like though.
4. Right click or press and hold on the new Hyper-V Remote File Browser shortcut, and click/tap on Properties.​

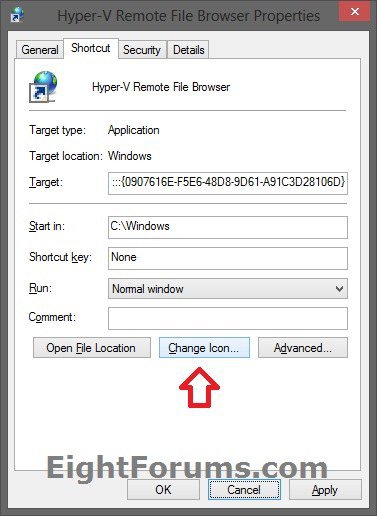

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)​

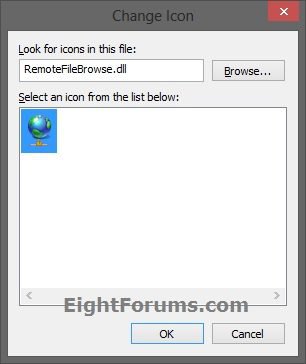

6. In the line under "Look for icons in this file", copy and paste the location below and press Enter. (see screenshot below)​
RemoteFileBrowse.dll
7. Select the icon highlighted in blue above, and click/tap on OK. (see screenshot above)​
NOTE: You can use any icon that you would like instead though.​
8. Click/tap on OK. (see screenshot below step 5)​
9. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​

That's it,
Shawn



Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Guiri

Member
Member
Posts
28
#2
I am wondering what this actually does... Can anyone help me here? :huh:


My Computer

System One

  • OS
    Windows 8 Pro x64
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    DIY
    CPU
    Intel i5-3570
    Motherboard
    Asus P8Z77-V deluxe
    Memory
    Corsair Vengeance DDR3,1600-16GB KIT
    Graphics Card(s)
    Sapphire AMD Radeon HD7870 FLEX GHZ PCI-E
    Sound Card
    On-board
    Monitor(s) Displays
    2x Eizo S2410W
    Screen Resolution
    2x 1920x1200
    Hard Drives
    Samsung 840 series Pro 256GB
    2x Western Digital Green 3TB - 3.5inch
    PSU
    Corsair HX 650W
    Case
    Define R4 Arctic White
    Cooling
    Mugen 3 PC Games Edition
    Keyboard
    Microsoft Wireless 6000
    Mouse
    Microsoft Wireless 6000
    Browser
    IE 10, of course

Brink

Administrator
Administrator
mvp
Posts
23,639
#3
Hello Guiri,

I've added some more information at the top of the tutorial to help with what Hyper-V Remote File Browsing is for. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

Guiri

Member
Member
Posts
28
#4

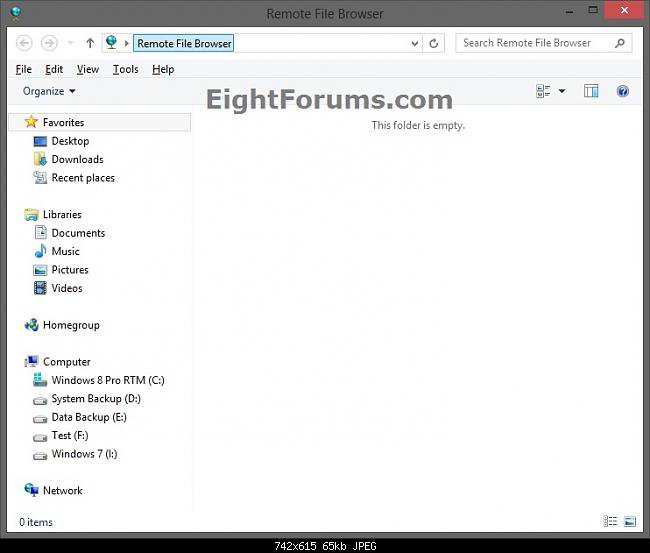

Thanks for the addition but I'm afraid I still only get what you showed in your first screen shot:

In other words: an empty screen.

I just started experimenting with Hyper-V so maybe I'll find out anyway. ;)

Off-topic: I noticed that the CPU frequency displayed in Task Manager stays fixed as soon as Virtualization is enabled in the BIOS and it no longer changes depending on the load. If I set Virtualization at disabled, the frequency starts changing again but then I cannot start VMs. Found some posts online back from September reporting this, strange it's still not fixed...


My Computer

System One

  • OS
    Windows 8 Pro x64
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    DIY
    CPU
    Intel i5-3570
    Motherboard
    Asus P8Z77-V deluxe
    Memory
    Corsair Vengeance DDR3,1600-16GB KIT
    Graphics Card(s)
    Sapphire AMD Radeon HD7870 FLEX GHZ PCI-E
    Sound Card
    On-board
    Monitor(s) Displays
    2x Eizo S2410W
    Screen Resolution
    2x 1920x1200
    Hard Drives
    Samsung 840 series Pro 256GB
    2x Western Digital Green 3TB - 3.5inch
    PSU
    Corsair HX 650W
    Case
    Define R4 Arctic White
    Cooling
    Mugen 3 PC Games Edition
    Keyboard
    Microsoft Wireless 6000
    Mouse
    Microsoft Wireless 6000
    Browser
    IE 10, of course

Brink

Administrator
Administrator
mvp
Posts
23,639
#5
Yeah, you'll have to set up the folders to be in it. I haven't done it myself, so I'm not sure on the specifics on how. I just created this shortcut for those that already have it setup.

Here's a couple of links below for more info about it.

Using Constrained Delegation to remotely manage a server running Hyper-V that uses CIFS/SMB file shares - Jose Barreto's Blog - Site Home - TechNet Blogs

Part 1 - Hyper-V Remote Management: You do not have the required permission to complete this task. Contact the administrator of the authorization policy for the computer

Last edited:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
6
#6
I am confused with this one, it seems to just open My Documents folder for the local computer.


My Computer

System One

  • OS
    Windows 7 , 8 , OpenSuse12.1, Ubuntu 12.04, Fedora
    System Manufacturer/Model Number
    HP
    CPU
    AMD Turion
    Motherboard
    HP
    Memory
    8gb
    Graphics Card(s)
    ATI, AMD

Brink

Administrator
Administrator
mvp
Posts
23,639
#7
Hello S3curityPlu5,

You would need to have Hyper-V (available in Windows 8 Pro and Enterprise only) turned on in Windows Features before you will see the "Remote File Browser" window.

Hope this helps, :)
Shawn


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

kevvy69

New Member
Posts
1
#8
Hello Brink,

Thanks a lot for this tutorial! How do i actually put folders in this box? I realize you haven't done this before but do you know where I can look for more information? I have looked through the web and no one seems to have an answer, the two websites that you posted don't seem to have the answer either. The server I am running is a Hyper-V core server 2012 and the client is Windows 7 or Windows 8. To make it even more strange when I go to ::{0907616E-F5E6-48D8-9D61-A91C3D28106D}\HYPERV-SERVER\D: it says invalid path but that is the path that is used when going to the "Browse" button on the new virtual machine wizard... What am I missing?

Thanks in advance!


My Computer

System One

  • OS
    Windows 7

Brink

Administrator
Administrator
mvp
Posts
23,639
#9
Hello Kevvy, and welcome to Eight Forums.

I don't have anything to test with for this, but I'll do some digging to see what else I can find that may help and post back. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
Posts
6
#10
Oh I have Hyper-V turned on and I also have several Virtual Machines running all the time on Hyper-V but when I open this shortcut it still just opens My documents folder from my logged on user account. I have not yet had time to look into this, as I just noticed the email that told me someone responded to this so that's why I thought to come back here. Now I will go investigate further, but I definitely have Hyper-V turned on and running at all times. I use it for SharePoint, System Center Configuration Manager and for a Windows 8.1 preview VM.


My Computer

System One

  • OS
    Windows 7 , 8 , OpenSuse12.1, Ubuntu 12.04, Fedora
    System Manufacturer/Model Number
    HP
    CPU
    AMD Turion
    Motherboard
    HP
    Memory
    8gb
    Graphics Card(s)
    ATI, AMD

Users Who Are Viewing This Thread (Users: 0, Guests: 1)
