Hyper-V - Change Default Virtual Hard Disk Location
This tutorial will show you how to change the default location where your virtual hard disks (VHDs) are saved to in Hyper-V.
Published by Harrylowt
#1
Category:
ByLine
How to Change Default Virtual Hard Disk Location in Hyper-V
Synopsis
This tutorial will show you how to change the default location where your virtual hard disks (VHDs) are saved to in Hyper-V.
How to Change Default Virtual Hard Disk Location in Hyper-V

information   Information
This tutorial will show you how to change the default location where your virtual hard disks (VHDs) are saved to in Hyper-V.

Note   Note
If you change the default Virtual Hard Disk location you will still be able to change the location when creating new Virtual Machines or Virtual Disks.



Here's How:

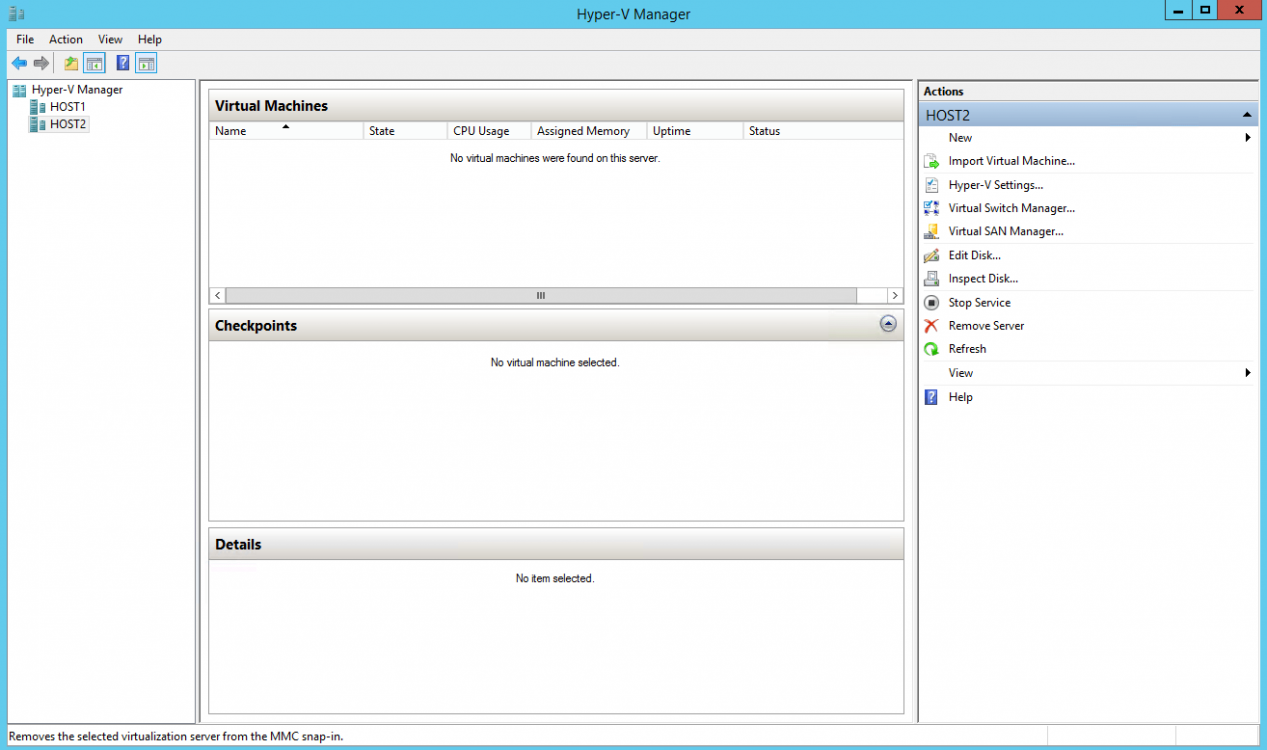

1. Press the :winkey: + R keys to open the Run dialog, type virtmgmt.msc, and click/tap on OK.
Screen Shot 2014-02-23 at 00.22.49.png

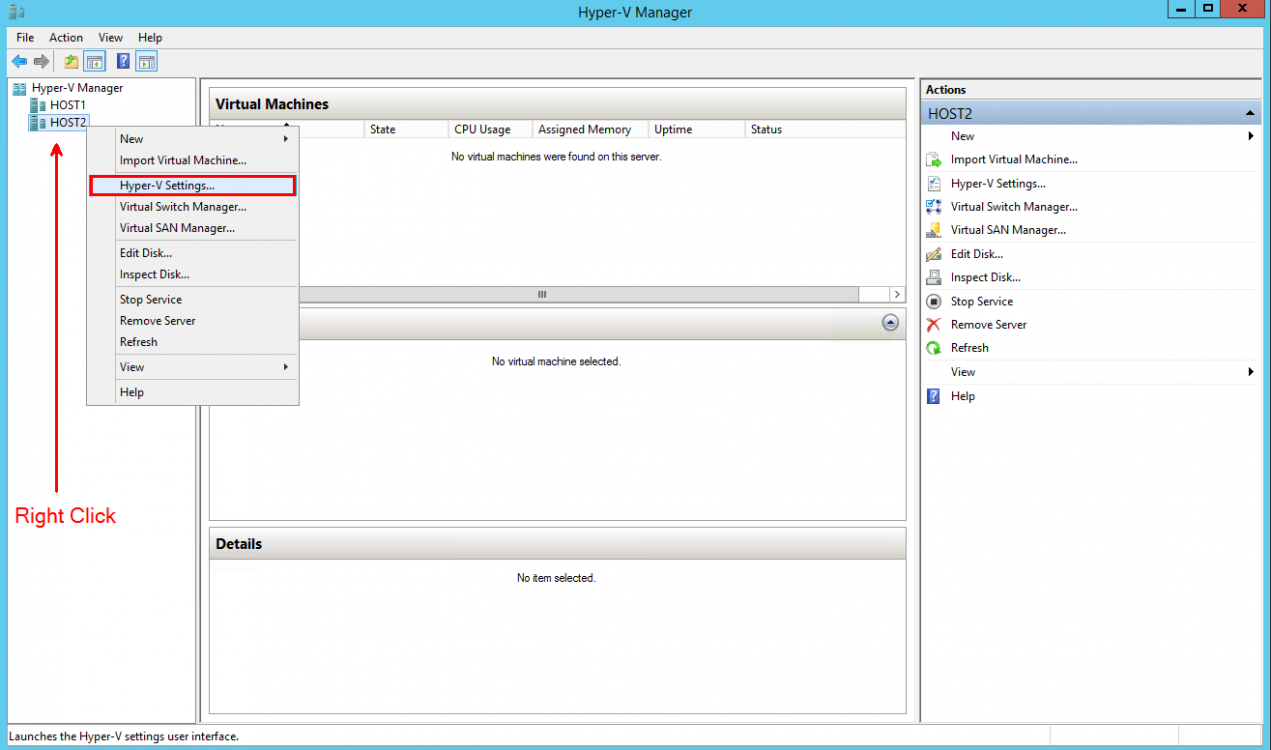

2. In the left pane, right click or press and hold on your Hyper-V Server (ex: Host1), and click/tap on Hyper-V settings.

NOTE: Alternatively, you could also click/tap on Hyper-V settings under Actions in the far right pane.
Screen Shot 2014-02-23 at 00.27.43.png

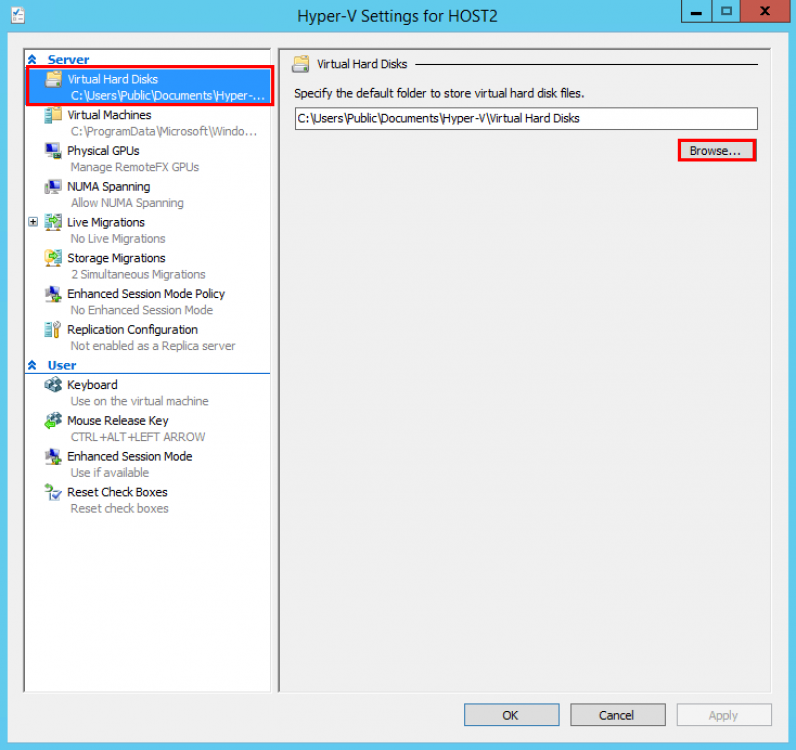

3. Click/tap on Virtual Hard Disks in the left pane, and click/tap on Browse.
Screen Shot 2014-02-23 at 00.40.55.png

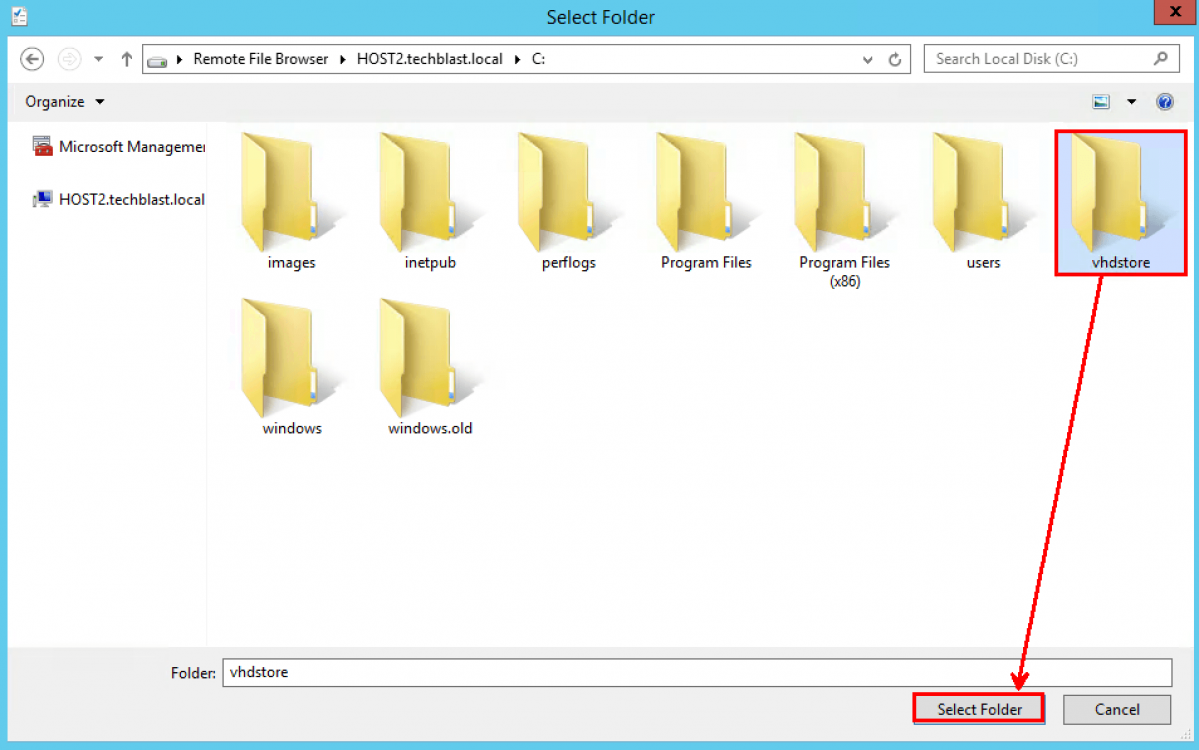

4. Navigate to and select the folder you want to have has the default location, and click/tap Select folder.
Screen Shot 2014-02-23 at 00.45.38.png

5. Click/tap on OK from step 3.

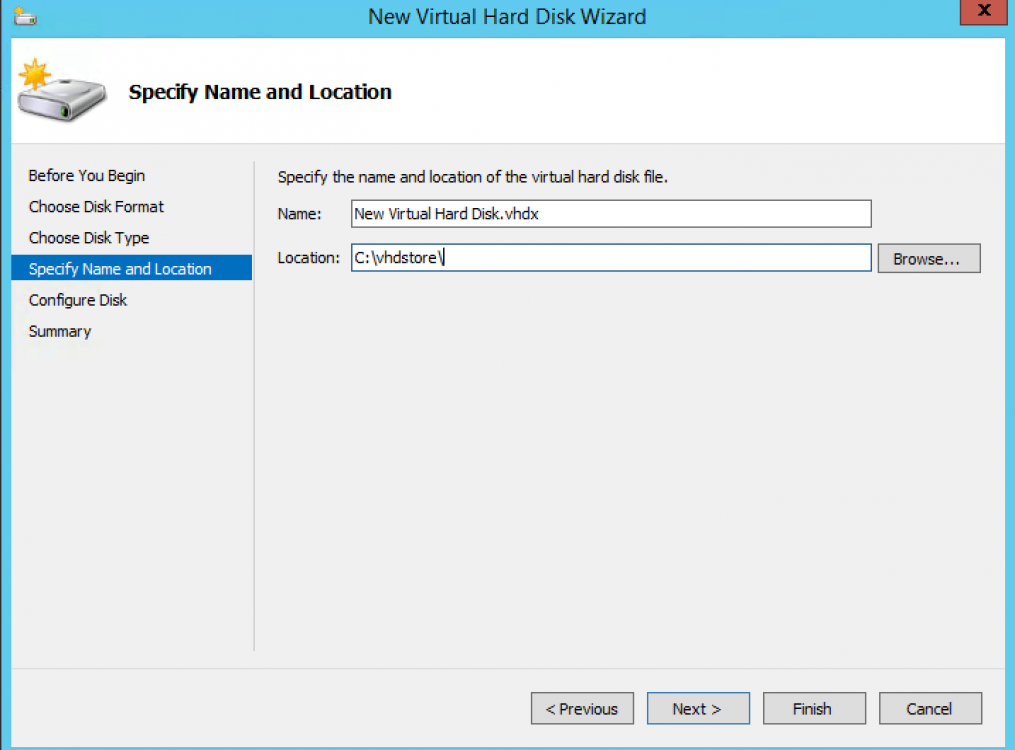

6. To confirm the settings have worked, you can go to the Actions panel on the far right, click/tap on New and Hard Disk, and skip through to Specify Name and Location. Under location,you will see the file path you specified.
Screen Shot 2014-02-23 at 00.50.18.png
