Solved How to combine two partitions on the same hard drive


Posts
216
#1

My Computer

System One

  • OS
    Windows 8.1 x64 with 8.1 Update
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Asus
    CPU
    Intel(R) Core(TM) i5-3450 CPU @ 3.10GHz
    Motherboard
    Asus
    Memory
    8Gig
    Graphics Card(s)
    Poor
    Monitor(s) Displays
    Asus

SIW2

Well-Known Member
Team Member
Posts
5,360
#2
You would need to be specific about what you are asking. Can you post a screenshot of disk management and which partitions you want to combine?

Most 3rd party partition managers will do it, if the partitions are on the same HD and of the same type.


My Computer

System One

  • OS
    7/8/ubuntu/Linux Deepin
    Computer type
    PC/Desktop
Posts
216
#3
Hi

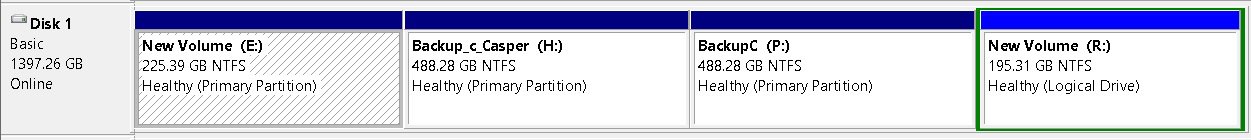

here is a screen shot, I want to merge New Volume E and New Volume R

Thanks for your help

Daniel


Attachments

My Computer

System One

  • OS
    Windows 8.1 x64 with 8.1 Update
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Asus
    CPU
    Intel(R) Core(TM) i5-3450 CPU @ 3.10GHz
    Motherboard
    Asus
    Memory
    8Gig
    Graphics Card(s)
    Poor
    Monitor(s) Displays
    Asus

Ztruker

Well-Known Member
VIP Member
Guru
#4
You can't merge non-contiguous partitions, so from what I see, this is what you need to do.

Delete E:
Move all the other partitions to the left so the free space is to the right of R:
Expand R: to encompass the free space.

This is a good program to do this with: Free merge partitions into bigger one with merge partition manager software in Windows 2000/XP/2003/Vista/2008/Windows 7/8.

This is another that is Linux based: GParted -- A free application for graphically managing disk device partitions

Before I would do this I would create image backups of anything I was not willing to lose.


My Computer

System One

  • OS
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel Quad Core i7-4770 @ 3.4Ghz
    Motherboard
    Lenovo
    Memory
    16.0GB PC3-12800 DDR3 SDRAM 1600 MHz
    Graphics Card(s)
    Intel Integrated HD Graphics
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    HP h2207
    Screen Resolution
    [email protected]
    Hard Drives
    250GB Samsung EVO SATA-3 SSD;
    2TB Seagate ST2000DM001 SATA-2;
    1.5TB Seagate ST3150041AS SATA
    PSU
    500W
    Keyboard
    Wired USB
    Mouse
    Wired USB
    Internet Speed
    3GB Up, 30GB Down
    Browser
    SeaMonkey
    Antivirus
    Windows Defender; MBAM Pro
    Other Info
    UEFI/GPT
    PLDS DVD-RW DH16AERSH

SIW2

Well-Known Member
Team Member
Posts
5,360
#6
@whs,

I think only PW PRO will merge, not the free version as far as I know.Although the extend function can take unallocated space from anywhere it seems.


@Daniel

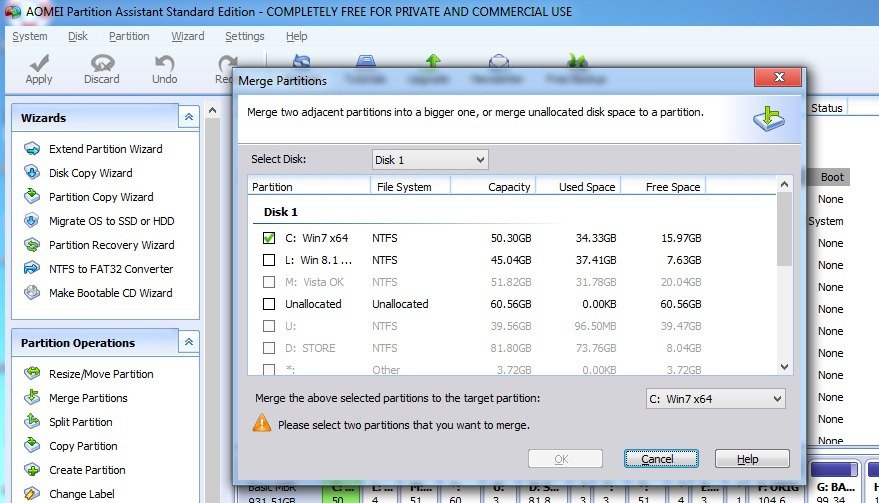

Aomei is the best freebie for that. It will merge adjacent partitions. It will also merge with a non adjacent unallocated space. It will do the data moving automatically. If you have a lot of stuff on the intervening partitions ( H and P ) then it is a long job.



Free Partition Manager - AOMEI Partition Assistant Standard


My Computer

System One

  • OS
    7/8/ubuntu/Linux Deepin
    Computer type
    PC/Desktop

Clintlgm

Active Member
Pro User
Lacombe, Louisiana

Posts
894
#7

My Computer

System One

  • OS
    Windows 8.1 Pro MC
    Computer type
    Laptop
    System Manufacturer/Model
    Asus G75VW / Z97 Pro
    CPU
    Intel Core i7-3610QM / I7-4790K
    Motherboard
    Z97 Pro
    Memory
    16 GB Hyundai HTM315156CFR8C-PB PC3-12800
    Graphics Card(s)
    nVIDIA GeForce GTX 670M (GF114M)
    Sound Card
    VIA 6.0.10.1600
    Screen Resolution
    1080
    Hard Drives
    Samsung 850 Pro 256, Samsung 850 Pro 1TB
    Internet Speed
    30 down 3 up
    Browser
    Explorer 11
    Antivirus
    NIS and Malwarebytes
Posts
216
#8
@whs,

I think only PW PRO will merge, not the free version as far as I know.Although the extend function can take unallocated space from anywhere it seems.


@Daniel

Aomei is the best freebie for that. It will merge adjacent partitions. It will also merge with a non adjacent unallocated space. It will do the data moving automatically. If you have a lot of stuff on the intervening partitions ( H and P ) then it is a long job.

View attachment 31884


Free Partition Manager - AOMEI Partition Assistant Standard
Hi

thanks to everyone who helped, the AOMEI PA worked well, and I will certainly be using it again in the future.

Thanks

Daniel
