Solved Extract driver from machine 1 and install it in machine 2?


antares

New Member
Member
Posts
241
#1
Hi all, I need to do the following: I have a driver installed in one machine (Sdo Sensor V2 version 10.0.10240.16384, Microsoft) that I need to install in another machine. Is there a way to extract the driver from machine 1 and install it in machine 2? I know that there are 3rd party tools that do this, any recommendation? Thanks
P.D.:The reason I want to do this is that I can't find these drivers anywhere on the web, not even in Dell's Support site

Last edited:

My Computer

System One

  • OS
    Windows 8.1x64 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    self made
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Z170-A
    Memory
    Corsair Vengeance LPX 32GB (4 x 8GB) DDR4 2400MHz
    Graphics Card(s)
    Intel HD Graphics 530
    Sound Card
    Onboard Realtek HD
    Monitor(s) Displays
    LG 23EA53 23" LED IPS
    Screen Resolution
    1920x1080 32bit
    Hard Drives
    Samsung 256GB 830 Series SSD main+HGST 4TB 7200RPM as 2nd internal
    PSU
    Thermaltake Toughpower Grand 850W TPG-850M
    Case
    Corsair Obsidian 650DW-1 Midtower
    Cooling
    Noctua NH-D14
    Keyboard
    Logitech K800
    Mouse
    Logitech M510
    Antivirus
    NIS2014

KYHI

Well-Known Member
Pro User
Posts
2,742
#2
on machine 1

Make a D:\DRIVERS folder

from cmd prompt type..

Dism /online /Export-Driver /Destination:D:\Drivers

on machine 2
point device manager to the D:\drivers folder to load the drver

change BOLD text to suit your needs


My Computer

System One

  • OS
    Windows 3.1 > Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Dell XPS 8700
    CPU
    I7
    Memory
    24 GB

antares

New Member
Member
Posts
241
#3
on machine 1

Make a D:\DRIVERS folder

from cmd prompt type..

Dism /online /Export-Driver /Destination:D:\Drivers
I successfully completed the above step but in the list of exported folders I see no reference to the driver I'm looking for, i.e. I searched in the "D:\DRIVERS" folder for WUDfrd.sys and found nothing
This is the driver I need as it shows in machine 1:

Last edited:

My Computer

System One

  • OS
    Windows 8.1x64 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    self made
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Z170-A
    Memory
    Corsair Vengeance LPX 32GB (4 x 8GB) DDR4 2400MHz
    Graphics Card(s)
    Intel HD Graphics 530
    Sound Card
    Onboard Realtek HD
    Monitor(s) Displays
    LG 23EA53 23" LED IPS
    Screen Resolution
    1920x1080 32bit
    Hard Drives
    Samsung 256GB 830 Series SSD main+HGST 4TB 7200RPM as 2nd internal
    PSU
    Thermaltake Toughpower Grand 850W TPG-850M
    Case
    Corsair Obsidian 650DW-1 Midtower
    Cooling
    Noctua NH-D14
    Keyboard
    Logitech K800
    Mouse
    Logitech M510
    Antivirus
    NIS2014

topgundcp

Well-Known Member
VIP Member
Guru
San Jose - California

Posts
2,847
#4

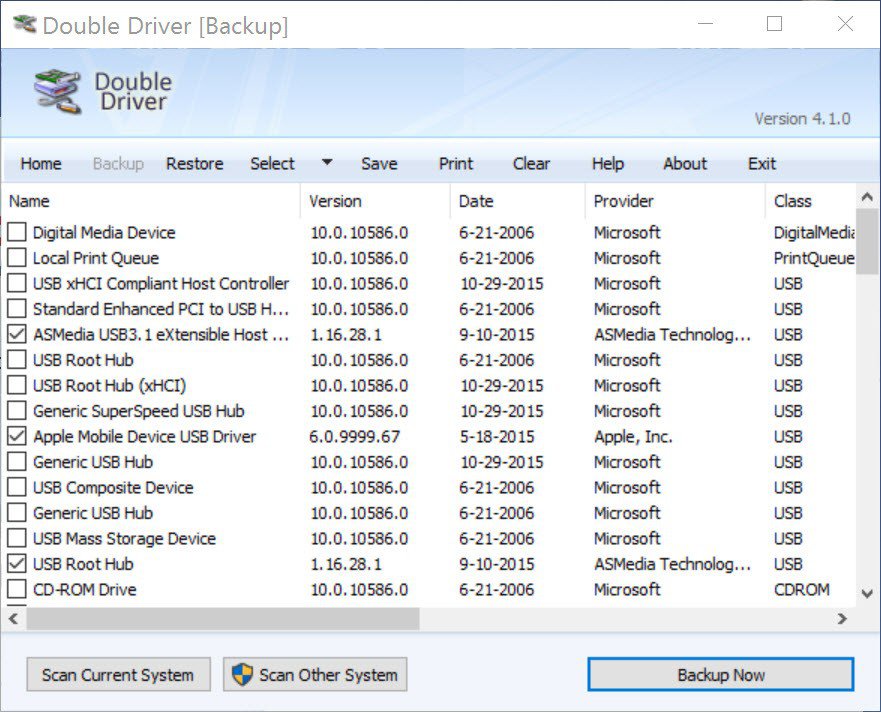

Then download: Driver 4.1 Backup Download. Unzip and run, you will get a screen with the names of the drivers. check mark on what you want, click on back up now. Save it to a USB. Connect to the other PC then restore:


My Computer

System One

  • OS
    8.1x64PWMC Ubuntu14.04x64 MintMate17x64
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Home Brewed
    CPU
    I7 4970K OC'ed @4.7 GHz
    Motherboard
    MSI-Z97
    Memory
    16 GB G-Skill Trident X @2400MHZ
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    X-Fi Titanium Fatal1ty Professional Series
    Monitor(s) Displays
    Dual HP-W2408
    Screen Resolution
    1920X1200
    Hard Drives
    256 GB M2 sm951, (2) 500GB 850EVO, 5TB, 2 TB Seagate
    PSU
    Antec 850W
    Case
    Antec 1200
    Cooling
    Danger Den H20
    Keyboard
    Logitech
    Mouse
    Logitech Performance Mouse MX
    Internet Speed
    35/12mbps
    Browser
    Firefox

KYHI

Well-Known Member
Pro User
Posts
2,742
#5
That is because it is a Microsoft Driver
Dism /Export is for 3rd party drivers

machine 2 - should auto load that driver or update that driver through windows update

do you have driver updates blocked on machine 2 ??


My Computer

System One

  • OS
    Windows 3.1 > Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Dell XPS 8700
    CPU
    I7
    Memory
    24 GB

antares

New Member
Member
Posts
241
#6
Then download: Driver 4.1 Backup Download. Unzip and run, you will get a screen with the names of the drivers. check mark on what you want, click on back up now. Save it to a USB. Connect to the other PC then restore:
View attachment 66534
Hi topgun, will this utility also backup/restore Microsoft drivers or just 3rd party ones? Thanks

That is because it is a Microsoft Driver
Dism /Export is for 3rd party drivers

machine 2 - should auto load that driver or update that driver through windows update

do you have driver updates blocked on machine 2 ??
That might be a possibility, I might have driver updates blocked on machine2, will check it up and report back. Regardless, is there any way to perform same procedure for Microsoft drivers too?

Last edited:

My Computer

System One

  • OS
    Windows 8.1x64 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    self made
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Z170-A
    Memory
    Corsair Vengeance LPX 32GB (4 x 8GB) DDR4 2400MHz
    Graphics Card(s)
    Intel HD Graphics 530
    Sound Card
    Onboard Realtek HD
    Monitor(s) Displays
    LG 23EA53 23" LED IPS
    Screen Resolution
    1920x1080 32bit
    Hard Drives
    Samsung 256GB 830 Series SSD main+HGST 4TB 7200RPM as 2nd internal
    PSU
    Thermaltake Toughpower Grand 850W TPG-850M
    Case
    Corsair Obsidian 650DW-1 Midtower
    Cooling
    Noctua NH-D14
    Keyboard
    Logitech K800
    Mouse
    Logitech M510
    Antivirus
    NIS2014

KYHI

Well-Known Member
Pro User
Posts
2,742
#7
you can get a complete list of drivers with dism, but EXPORT only does 3rd party drivers

try the Double Driver program TopGun suggested - backup machine 1 drivers
and search the list as you did with exported drivers


My Computer

System One

  • OS
    Windows 3.1 > Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Dell XPS 8700
    CPU
    I7
    Memory
    24 GB

antares

New Member
Member
Posts
241
#8
I tried the Double Driver 4.1 program, I successfully created the driver backup, however when restoring it I was unable because "the 3rd party driver lacks digital signature information". I found this weird because the original driver that was backed up was digitally signed by Microsoft. Anyway, I could override digital signature requirement by pressing SHIFT+RESTART/Troubleshoot/Advanced Options/Option 7. After having Doible Driver 4.1 successfully install the driver, went to Device Manager and the driver was installed but without any digital signature. The functionality that this driver is supposed to provide (Auto Rotation when using laptop in tent ot tablet mode) is not present even though the driver is installed (Auto Rotation unlock is not present in Action Center or in Display Advanced Properties). Any hint? I'm about to give up :(


My Computer

System One

  • OS
    Windows 8.1x64 Pro
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    self made
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Z170-A
    Memory
    Corsair Vengeance LPX 32GB (4 x 8GB) DDR4 2400MHz
    Graphics Card(s)
    Intel HD Graphics 530
    Sound Card
    Onboard Realtek HD
    Monitor(s) Displays
    LG 23EA53 23" LED IPS
    Screen Resolution
    1920x1080 32bit
    Hard Drives
    Samsung 256GB 830 Series SSD main+HGST 4TB 7200RPM as 2nd internal
    PSU
    Thermaltake Toughpower Grand 850W TPG-850M
    Case
    Corsair Obsidian 650DW-1 Midtower
    Cooling
    Noctua NH-D14
    Keyboard
    Logitech K800
    Mouse
    Logitech M510
    Antivirus
    NIS2014

antares

New Member
Member
Posts
241
#9
I finally solved the issue by performing a clean install of Windows. Now the "Rotation Lock" button displays in the Action Center and the option to Lock Rotation also shows in the Display's Settings. Windows properly rotates when tilting the laptop, so working fine. Something was obviously messed up in my original Windows install.
