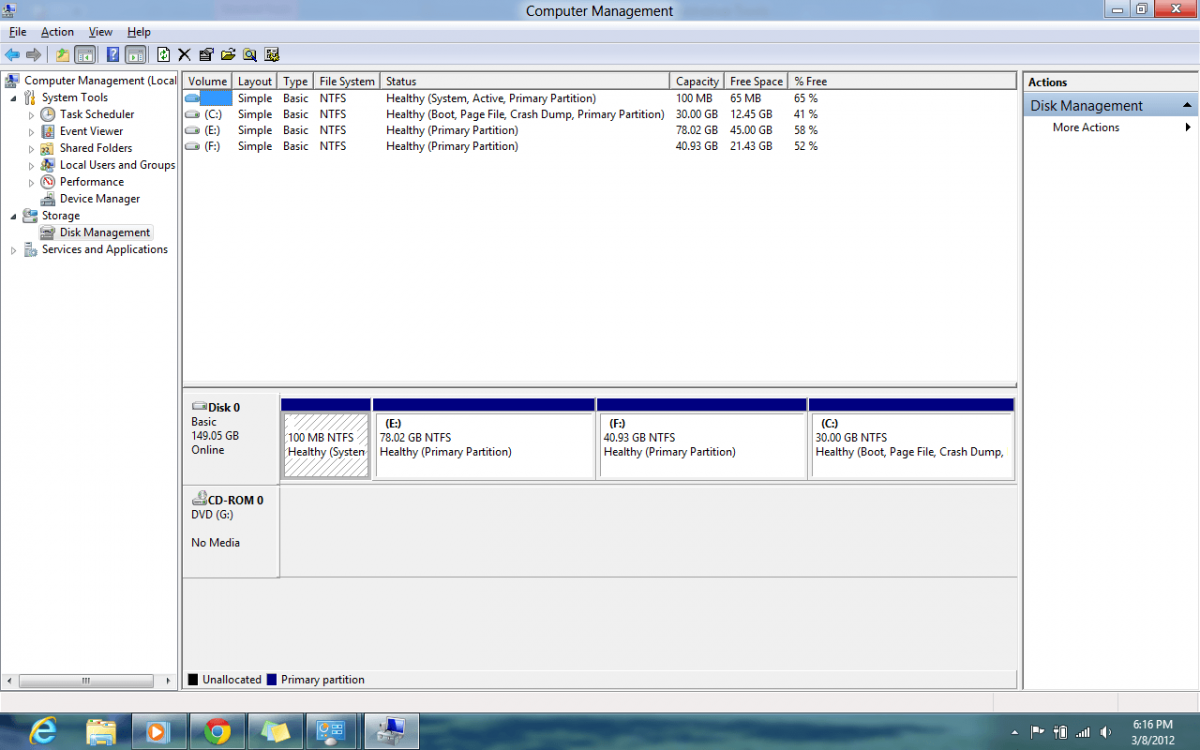

How do I expand my C drive??..Here is a pic of disk management..

Screenshot (5).png


My Computer

System One

  • OS
    Windows 8.1 professional x64 + WMC
    System Manufacturer/Model Number
    Acer Aspire 5920
    CPU
    Core 2 duo T5550
    Motherboard
    ACER CHAPALA
    Memory
    4GB DDR2
    Graphics Card(s)
    Intel GMA X3100
    Screen Resolution
    1280 X 800
    Hard Drives
    160 GB HDD

tcman50

New Member
Member
Palm Coast FLorida

Posts
370
#2
25GB is the recommended disk space for a window 8 consumer preview install, your C: drive just isn't big enough unless you wipe your OS that's all ready on it and you wouldn't want to do that, only install windows 8 on a test machine or as dual boot install in my opinion.

It looks like you have enough space on your E: drive where you could create a 25GB blank partition and then you could install Windows 8 consumer preview there, if not then get another or bigger hard drive.

You could also make a ghost image of your C: drive, get a bigger C: hard drive, reghost your C: drive back onto the new bigger hard drive and then create a blank partition on it of 25GB or bigger and install windows 8 there, that's above my head though and could be kind of hard to do.

hope something helps


My Computer

System One

  • OS
    Windows 8 Pro ($39.99 upgrade)
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Home Built
    CPU
    Intel I5 3570K overclocked to 4.2ghz
    Motherboard
    Asus P8Z77-V LX
    Memory
    Cosrair DDR3-1600 (4 x 4gb)
    Graphics Card(s)
    Nvidia GeForce GT 610 2GB
    Sound Card
    None
    Monitor(s) Displays
    AOC 27" LCD
    Screen Resolution
    1920x0180
    Hard Drives
    Seagate HDD 500gb (windows)
    Seagate HDD 1.5tb (media)
    Seagate HDD 1tb (media)
    Seagate HDD 1tb (media)
    PSU
    CoolMax 700watt
    Case
    Cosiar R400 Carbide series
    Cooling
    Cool Master H212
    Keyboard
    Dell
    Mouse
    PowerUp 3 button mouse
    Internet Speed
    12mb down, 1mb up
    Other Info
    qty. (5) 120mm fans, four are monitored by motherboard.
    Logitech T650 Touchpad for touch screen gestures

bagavan

New Member
Power User
bangalore

Posts
634
#3
25GB is the recommended disk space for a window 8 consumer preview install, your C: drive just isn't big enough unless you wipe your OS that's all ready on it and you wouldn't want to do that, only install windows 8 on a test machine or as dual boot install in my opinion.

It looks like you have enough space on your E: drive where you could create a 25GB blank partition and then you could install Windows 8 consumer preview there, if not then get another or bigger hard drive.

You could also make a ghost image of your C: drive, get a bigger C: hard drive, reghost your C: drive back onto the new bigger hard drive and then create a blank partition on it of 25GB or bigger and install windows 8 there, that's above my head though and could be kind of hard to do.

hope something helps
This is installed as dual boot..E drive contains windows 7.


My Computer

System One

  • OS
    Windows 8.1 professional x64 + WMC
    System Manufacturer/Model Number
    Acer Aspire 5920
    CPU
    Core 2 duo T5550
    Motherboard
    ACER CHAPALA
    Memory
    4GB DDR2
    Graphics Card(s)
    Intel GMA X3100
    Screen Resolution
    1280 X 800
    Hard Drives
    160 GB HDD

Dave76

Team Member
VIP Member
Pro User
#4
First thing you need to get a backup image of your HDD.

Do you have an external HDD to keep it on?

This kind of partition adjustment can possibly fail and you will need it to restore your original partitions.
The other option, if you have a failure, is to re-install Win7 and Win8 and loose all your personal data.

How much do you want to add to the Win8 partition?

If you want to take 10GB from partition F, it would be the easiest.

Use Free Macrium Reflect to make a backup image, best to save the backup to a separate HDD.

This tutorial will explain how to use it: Imaging with free Macrium


Since Windows will not allow you to expand a partition to the left, you will need a third party app for that.
Partition Wizard is a highly recommended partition adjustment app.
Use the bootable CD version.
Another tutorial to explain how to use it.
PartitionWizard : Use the Bootable CD


This example is for getting 10GB free space from Partition F and adding it to your Win8 Partition C.
Do this in two separate steps.
1. Shrink partition F from the right side 10GB, this will leave a 10GB unallocated space between partitions F and C.

2. Extend the C Partition to the left to take the Unallocated Space.


Where do you want to get the space from for the C Partition?

This is just a quick explanation for this procedure, have a look at the links above, and ask any questions you have.
