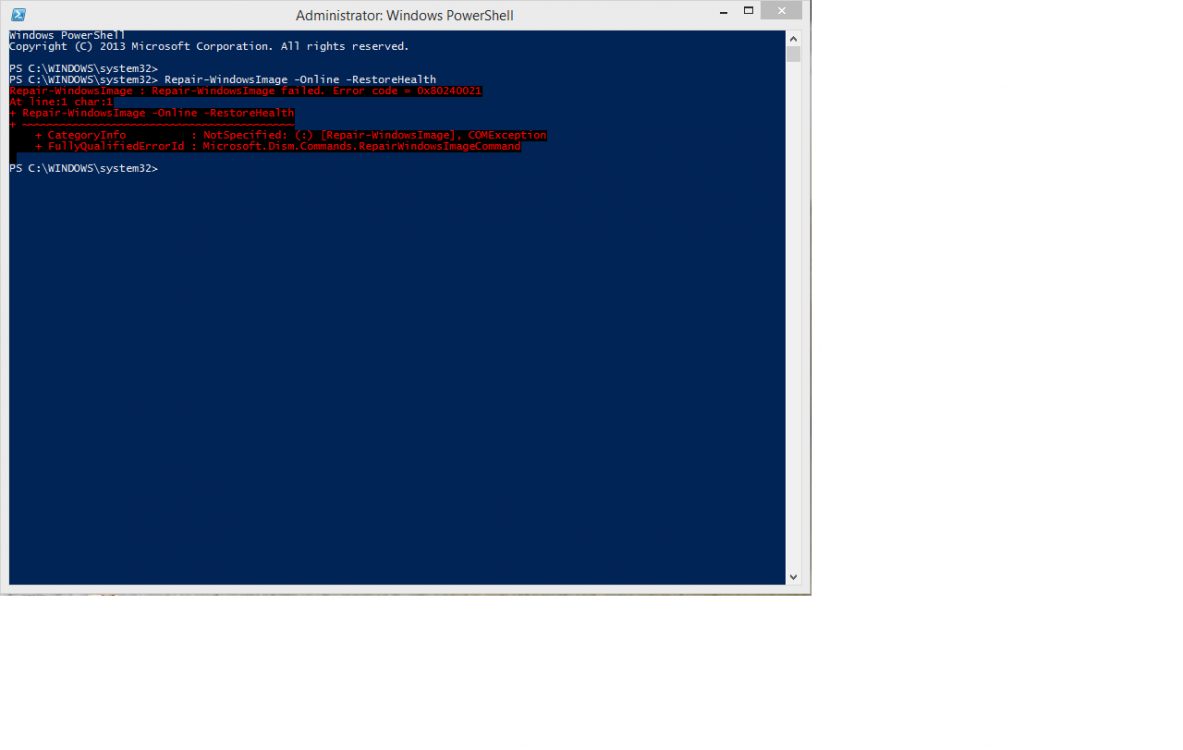

Solved Dism online restore health function gets error 0x80240021


sidv88

New Member
Posts
6
#1
Hi,

I have a desktop computer running Windows 8.1 Pro 64-bit. My computer suffered from an improper shutdown during a power outage. I am getting multiple error messages on logging in, and the sfc /scannow command shows several corrupt files, including msvcr80.dll and multiple others, preventing programs like Microsoft Word from running properly.

I am getting the message after running sfc /scannow in an elevated command prompt that
Windows Resource Protection found corrupt files but was unable to fix some of them. Details are included in the CBS.Log %WinDir%\Logs\CBS\CBS.log. I used the findstr /c:"[SR]" %windir%\Logs\CBS\CBS.log >"%userprofile%\Desktop\sfcdetails.txt" command to get this log outputted to a sfcdetails.txt log, and it shows which files are corrupt.


I then decided to turn to DISM, in an elevated command prompt, to ensure the component store was good, so that SFC can fix the files. This is where I am getting lost.

Dism /Online /Cleanup-Image /CheckHealth states that: The component store is repairable. However, when I run Dism /Online /Cleanup-Image /RestoreHealth , I am told (after some minutes of it running) that DISM failed, no operation was taken, with an error code of 0x80240021.

Looking at the dism.log file, I am seeing a very long log. These are the initial lines:

[2344] Caller did not request sparse mount
[2344] Mounting new image.
Wim: [\\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim]
Image Index: [1]
Mount Path: [C:\WINDOWS\TEMP\35f47719-b059-4f12-b5ee-101b2768bade]
[2344] Wimserv process started for guid 5cf84338-3869-464a-8cdf-3266fc2b6432. Id is 1008
[1008] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[1008] Mounted image at C:\WINDOWS\TEMP\35f47719-b059-4f12-b5ee-101b2768bade.
[2344] [0x8007007b] FIOReadFileIntoBuffer:(1415): The filename, directory name, or volume label syntax is incorrect.
[2344] [0xc142011c] UnmarshallImageHandleFromDirectory:(511)
[2344] [0xc142011c] WIMGetMountedImageHandle:(2568)
[2344] [0x8007007b] FIOReadFileIntoBuffer:(1415): The filename, directory name, or volume label syntax is incorrect.
[2344] [0xc142011c] UnmarshallImageHandleFromDirectory:(511)
[2344] [0xc142011c] WIMGetMountedImageHandle:(2568)
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[2344] ImageUnmarshallHandle: Reconstituting wim at \\?\GLOBALROOT\device\harddisk0\partition1\Recovery\WindowsRE\Winre.wim.
[1008] Received unmount request for image with guid 5cf84338-3869-464a-8cdf-3266fc2b6432.
[1008] Unmount for image at C:\WINDOWS\TEMP\35f47719-b059-4f12-b5ee-101b2768bade complete.


From what I can make, some file name or directory is incorrect? I have attached my dism.log file (saved as a .doc file for attachment purposes), my sfcdetails.txt log (obtained from the sfc /scannow function), and a screenshot of the Repair-WindowsImage -Online -RestoreHealth error message when I run it in PowerShell. I would appreciate any input on how I can run DISM correctly to fix my component store. Thank you.


Attachments

My Computer

System One

  • OS
    Windows 8.1 Professional 64-bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP Pavilion a6750t
    CPU
    Core 2 Quad q9650
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GTX 670
    Browser
    Mozilla Firefox
    Antivirus
    Sophos Protection
Posts
1,360
#2
Start with running chkdsk to scan & repair the file system along with any potential damaged sectors.

Open an elevated command prompt, Type: chkdsk /r > Press Y to run the scan on reboot.

Reboot the computer then run sfc & dism again.

If the system is unable to repair file corruption restore the computer using System Restore.


My Computer

System One

  • OS
    Windows 8.1 Enterprise

sidv88

New Member
Posts
6
#3
I have been running chkdsk /r for the past 3 hours. It is a 2 TB drive, so I assume it will take a long time. Hopefully it will be done either today or tomorrow, then I will run sfc and dism again to see if the results are better.

Unfortunately the power outage that damaged the files also seems to have affected the previous system restores. The previous system restore points dated before the outage are no longer there, so system restore may not be an option.


My Computer

System One

  • OS
    Windows 8.1 Professional 64-bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP Pavilion a6750t
    CPU
    Core 2 Quad q9650
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GTX 670
    Browser
    Mozilla Firefox
    Antivirus
    Sophos Protection
Posts
1,360
#4
so I assume it will take a long time. Hopefully it will be done either today or tomorrow, then I will run sfc and dism again to see if the results are better.
Correct, chkdsk will take some time to complete. Although the good news is that once its finished you won't have to run it again.

I have attached a script for you which will run Dism & SFC for you. All you need to do is right click the file and select Run as Administrator.

The script will run through 3 phases. After each one has completed you'll be prompted to press any key.

Finally, run the Collect.bat file. This will create a folder on the Desktop called Logs. Right click the folder and select Send To > Compressed Folder. Please attach the folder to your next post.


Attachments

My Computer

System One

  • OS
    Windows 8.1 Enterprise

sidv88

New Member
Posts
6
#5
ectech,

Thank you so much! I ran the DISM.bat and Collect.bat programs, and most of the errors have been fixed. After the first 2 phases of DISM.bat ran, I got a message saying the component store was repaired. The 3rd phase, sfc /scannow, seemed to fix most of the errors, however I still got the
Windows Resource Protection found corrupt files but was unable to fix some of them. Details are included in the CBS.Log %WinDir%\Logs\CBS\CBS.log. message. However, looking at the sfcdetails.txt log, it did seem like the files were fixed, so I'm not 100% sure what files were unfixable. I have attached the Logs.zip file containing the logs to this message like you said.

Still, my computer seems to be working much better now, thank you! There are only 2 dll errors I am getting on startup: one seems to be related to an Apple/itunes file and the other affects Microsoft Office (MS Word still won't run). (screenshots attached) However, these may be due to non-system files and I will try reinstalling MS Office and Itunes to see if it fixes those problems.

I may run sfc /scannow one or two more times to ensure everything is fixed. I appreciate the help provided here very much.


Attachments

My Computer

System One

  • OS
    Windows 8.1 Professional 64-bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP Pavilion a6750t
    CPU
    Core 2 Quad q9650
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GTX 670
    Browser
    Mozilla Firefox
    Antivirus
    Sophos Protection
Posts
1,360
#6
Glad to see we are making progress.. :)

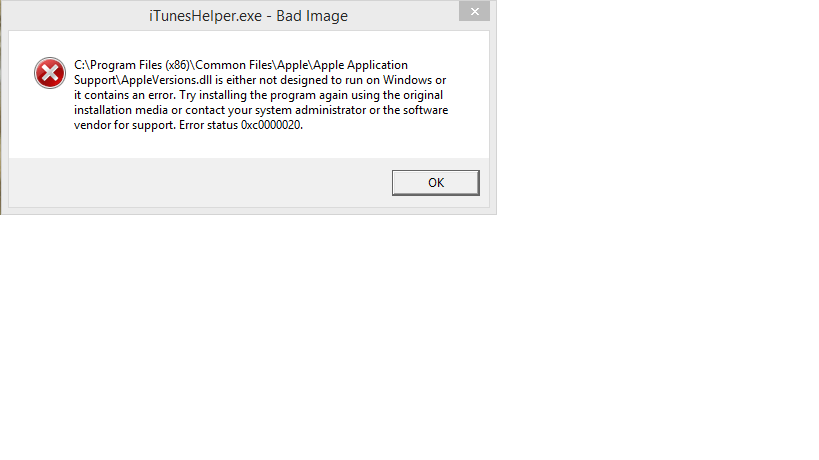

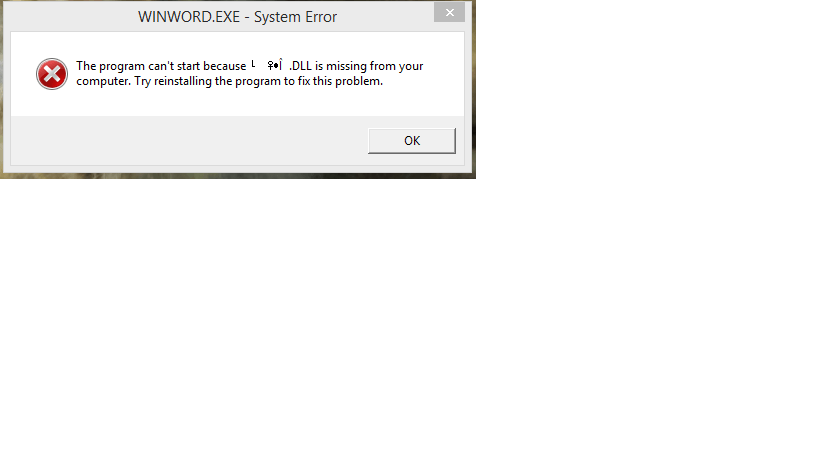

The first image you posted looks to me like malware. Here are a few programs to help you clean up your system..

1) Awdcleaner - http://download.bleepingcomputer.co...ecurity-utilities/a/adwcleaner/AdwCleaner.exe

2) Junkware Removal Tool - http://thisisudax.org/downloads/JRT.exe

3) Malwarebytes' - Download Malwarebytes Anti-Malware 1.75 - Download - FileHippo.com

Next, use MajorGeeks.com - MajorGeeks to remove iTunes, Bonjour & Apple Application Support. Then reinstall iTunes.

In the meantime I will prepare instructions to repair the damaged files sfc can not fix.


My Computer

System One

  • OS
    Windows 8.1 Enterprise

sidv88

New Member
Posts
6
#7
I keep my PC protected with antispyware and antivirus. I'm not sure if the MS Word error message is caused by malware, but I just did a repair install of Microsoft Office and MS Word and the Office Programs are working again, with no error message of the sort I posted earlier.

I reinstalled iTunes and now also no longer get error messages related to it regarding AppleVersions.dll (the ituneshelper screenshot error message is gone now).

There are now no error messages when starting up/rebooting the computer, and on the surface the PC seems exactly as it was before the power outage. I have set up an uninterruptible power supply to ensure that this sort of power outage incident does not occur in the future.

I have not had a chance to run sfc /scannow again to see if there is anything being missed, but will try to do so when I can. Thanks for your help in the matter.


My Computer

System One

  • OS
    Windows 8.1 Professional 64-bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP Pavilion a6750t
    CPU
    Core 2 Quad q9650
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GTX 670
    Browser
    Mozilla Firefox
    Antivirus
    Sophos Protection
#8
You can let sfc or dism run in the background.Just minimize them.

They will slow things down a bit though.


My Computer

System One

  • OS
    Windows 8.1.1 Pro with Media Center
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Gateway
    CPU
    AMD K140 Cores 2 Threads 2 Name AMD K140 Package Socket FT1 BGA Technology 40nm
    Motherboard
    Manufacturer Gateway Model SX2110G (P0)
    Memory
    Type DDR3 Size 8192 MBytes DRAM Frequency 532.3 MHz
    Graphics Card(s)
    ATI AMD Radeon HD 7310 Graphics
    Sound Card
    AMD High Definition Audio Device Realtek High Definition Audio USB Audio Device
    Monitor(s) Displays
    Name 1950W on AMD Radeon HD 7310 Graphics Current Resolution 1366x768 pixels Work Resolution 1366x76
    Screen Resolution
    Current Resolution 1366x768 pixels Work Resolution 1366x768 pixels
    Hard Drives
    AMD K140
    Cores 2
    Threads 2
    Name AMD K140
    Package Socket FT1 BGA
    Technology 40nm
    Specification AMD E1-1200 APU with Radeon HD Graphics
    Family F
    Extended Family 14
    Model 2
    Extended Model 2
    Stepping 0
    Revision ON-C0
    Instruction
    Browser
    Opera 24.0
    Antivirus
    Avast Internet Security

sidv88

New Member
Posts
6
#9

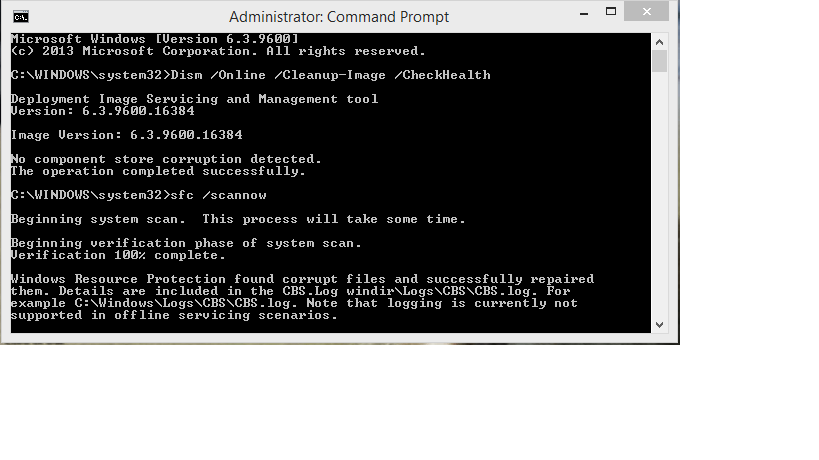

I ran sfc /scannow again, and got the result:
Windows Resource Protection found corrupt files and successfully repaired them. Details are included in the CBS.Log WinDir\Logs\CBS\CBS.log.

I have attached a screenshot of the scan as well as the log (sfcdetails.txt). It seems, for now, that all corrupted system files have been successfully fixed, going by the scan results.


Attachments

My Computer

System One

  • OS
    Windows 8.1 Professional 64-bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP Pavilion a6750t
    CPU
    Core 2 Quad q9650
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GTX 670
    Browser
    Mozilla Firefox
    Antivirus
    Sophos Protection
#10
That's good.
SFC does actually fix things sometimes. :)


My Computer

System One

  • OS
    Windows 8.1.1 Pro with Media Center
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Gateway
    CPU
    AMD K140 Cores 2 Threads 2 Name AMD K140 Package Socket FT1 BGA Technology 40nm
    Motherboard
    Manufacturer Gateway Model SX2110G (P0)
    Memory
    Type DDR3 Size 8192 MBytes DRAM Frequency 532.3 MHz
    Graphics Card(s)
    ATI AMD Radeon HD 7310 Graphics
    Sound Card
    AMD High Definition Audio Device Realtek High Definition Audio USB Audio Device
    Monitor(s) Displays
    Name 1950W on AMD Radeon HD 7310 Graphics Current Resolution 1366x768 pixels Work Resolution 1366x76
    Screen Resolution
    Current Resolution 1366x768 pixels Work Resolution 1366x768 pixels
    Hard Drives
    AMD K140
    Cores 2
    Threads 2
    Name AMD K140
    Package Socket FT1 BGA
    Technology 40nm
    Specification AMD E1-1200 APU with Radeon HD Graphics
    Family F
    Extended Family 14
    Model 2
    Extended Model 2
    Stepping 0
    Revision ON-C0
    Instruction
    Browser
    Opera 24.0
    Antivirus
    Avast Internet Security
Posts
1,360
#11
Everything contained in the log files looks to be repaired. If your not having any more issues you can make this topic solved.


My Computer

System One

  • OS
    Windows 8.1 Enterprise

sidv88

New Member
Posts
6
#12
Everything contained in the log files looks to be repaired. If your not having any more issues you can make this topic solved.

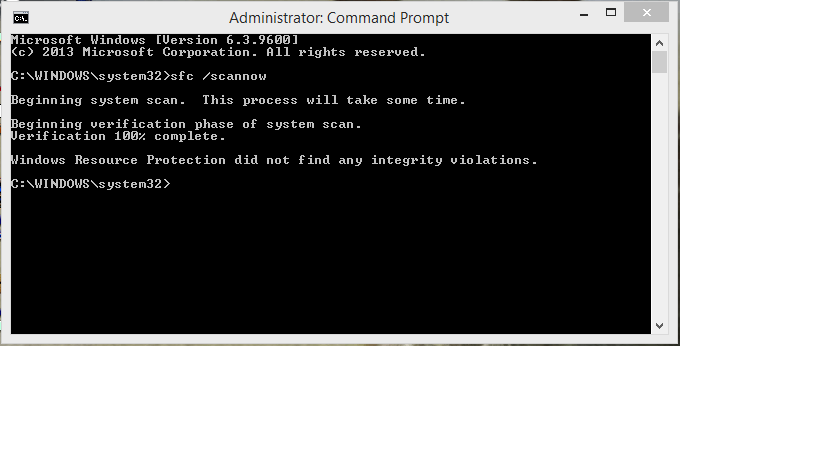

I haven't had any issues so far. The latest sfc scan I just ran (attached) shows a clean system; will mark this topic as solved.

Thanks for your help and input!


Attachments

My Computer

System One

  • OS
    Windows 8.1 Professional 64-bit
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP Pavilion a6750t
    CPU
    Core 2 Quad q9650
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GTX 670
    Browser
    Mozilla Firefox
    Antivirus
    Sophos Protection

orbitalfenestra

New Member
Member
Posts
157
#13
Edit: I ran into the same error. I've tried everything usual but nothing worked. It appeared it was Windows update the culprit. I looked for "troubleshooter" then "Windows Update". Started the thing... Windows asked to troubleshoot in admin mode... I said yes... Then Windows fixed Windows update (sorry I don't have a screenshot). Then I did restorehealth and 100 % done success!

The thing is that online DISM needs Win Update to be successful!

Hope this will help!
