Disk Space Shortcut - Create in Windows 8.1 Update

How to Create a Disk Space Shortcut in Windows 8.1 Update

information   Information
The Windows 8.1 Update released on April 8th 2014 via Windows Update, adds Disk space in PC settings that allows you to quickly view disk space usage by modern apps, media and files, and Recycle Bin.

This tutorial will show you how to create or download a shortcut that opens directly to Disk space in PC settings in Windows 8.1 Update.

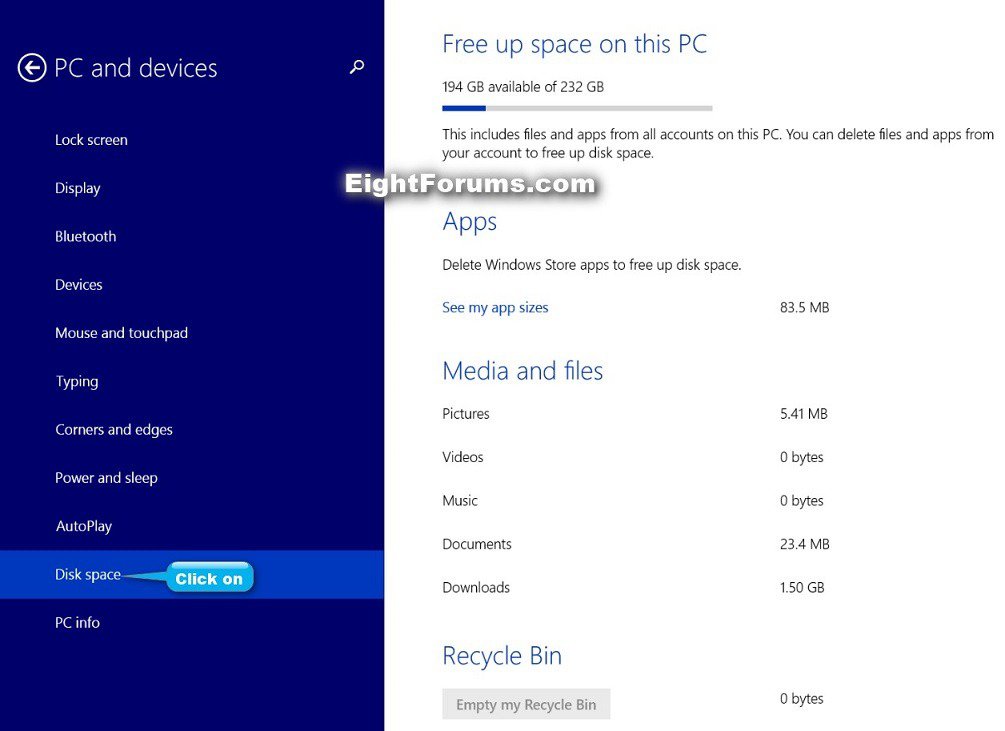

EXAMPLE: Disk space in PC settings






OPTION ONE
To Download a "Disk Space" Shortcut

1. Click/tap on the Download button below to download the ZIP file below.​
Disk_Space_Shortcut.zip
download
2. Save the .zip file to your desktop.​
3. Open the .zip file and extract (drag and drop) the shortcut to your desktop.​
4. Unblock the extracted shortcut.​
5. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​
6. When finished, you can delete the downloaded .zip file if you like.​





OPTION TWO
To Manually Create a "Disk Space" Shortcut

1. Right click or press and hold on an empty area of your desktop, and click/tap on New and Shortcut.​

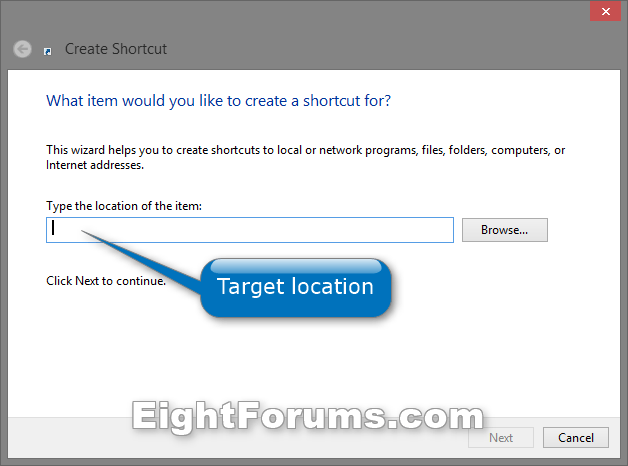

2. Copy and paste the command below into the location area, and click/tap on the Next button. (see screenshot below)​
Note   Note
If you do not have a US English Windows 8.1 Update installed, then you will need to change the en-US folder name in the command below for the folder name with your language instead for this to work.
Note   Note


Code:
%windir%\explorer.exe %localappdata%\Packages\windows.immersivecontrolpanel_cw5n1h2txyewy\LocalState\Indexed\Settings\[COLOR=#ff0000][B]en-US[/B][/COLOR]\AAA_SettingsPagePCDiskSpace.settingcontent-ms

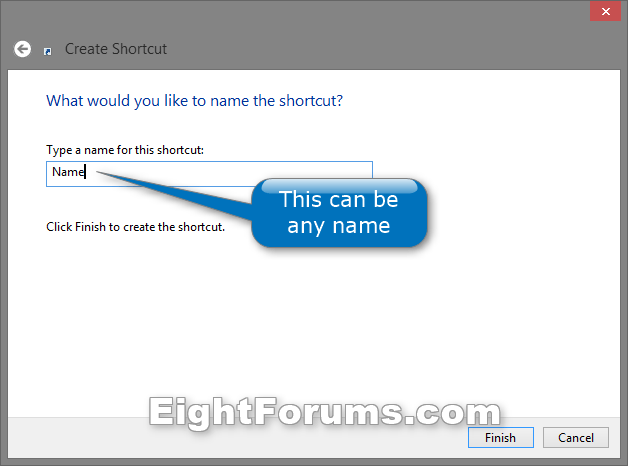

3. Type Disk Space for the name, and click/tap on the Finish button. (see screenshot below)​
NOTE: You can name this shortcut anything you would like though.
4. Right click or press and hold on the new Disk Space shortcut, and click/tap on Properties.​

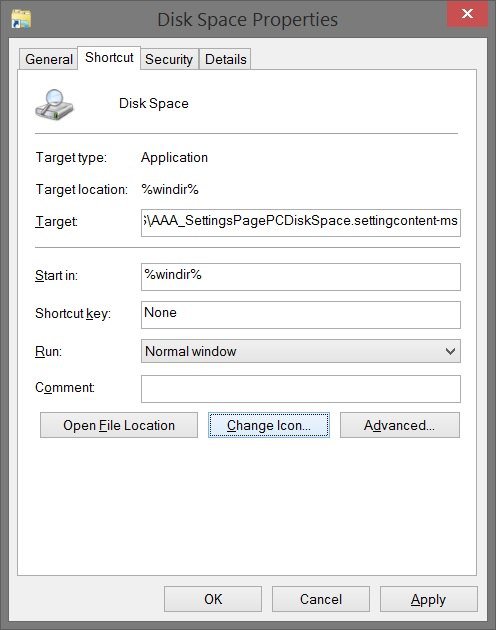

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)​

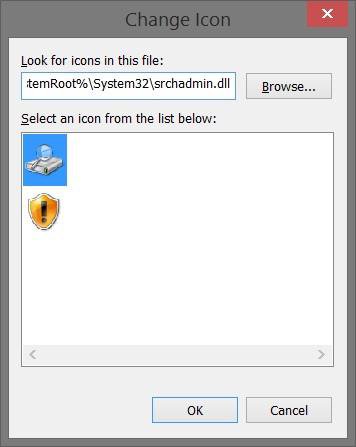

6. In the line under "Look for icons in this file", copy and paste the location below, and press Enter. (see screenshot below)​
%SystemRoot%\System32\srchadmin.dll
7. Select the icon highlighted in blue above, and click/tap on OK. (see screenshot above)​
NOTE: You can use any icon that you would like instead though.​
8. Click/tap on OK. (see screenshot below step 5)​
9. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​

That's it,
Shawn
