Bluetooth Devices Shortcut - Create in Windows 8


Brink

Administrator
Administrator
mvp
Posts
23,220
Bluetooth Devices Shortcut - Create in Windows 8
This tutorial will show you how to create or download a Bluetooth Devices shortcut that opens to the PC settings and Control Panel locations in Windows 8, Windows RT, Windows 8.1, and Windows RT 8.1.
Published by Brink
#1
ByLine
How to Create a "Bluetooth Devices" Shortcut in Windows 8 and 8.1
Synopsis
This tutorial will show you how to create or download a Bluetooth Devices shortcut that opens to the PC settings and Control Panel locations in Windows 8, Windows RT, Windows 8.1, and Windows RT 8.1.
How to Create a "Bluetooth Devices" Shortcut in Windows 8 and 8.1


information   Information
There are many different types of Bluetooth enabled devices you can add to your PC, such as mobile phones, wireless headsets, and wireless mouse devices and keyboards.

This tutorial will show you how to create or download a Bluetooth Devices shortcut that opens to the PC settings and Control Panel locations in Windows 8, Windows RT, Windows 8.1, and Windows RT 8.1.

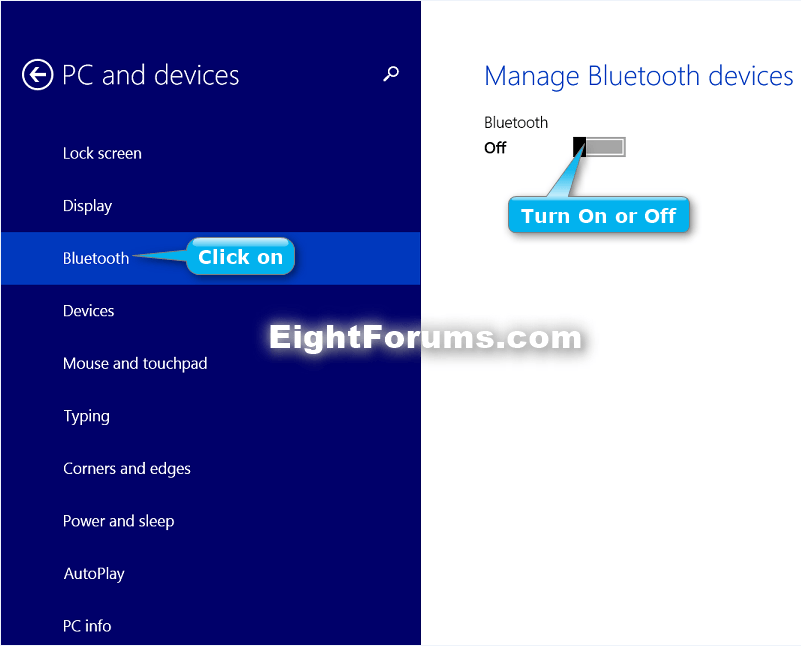

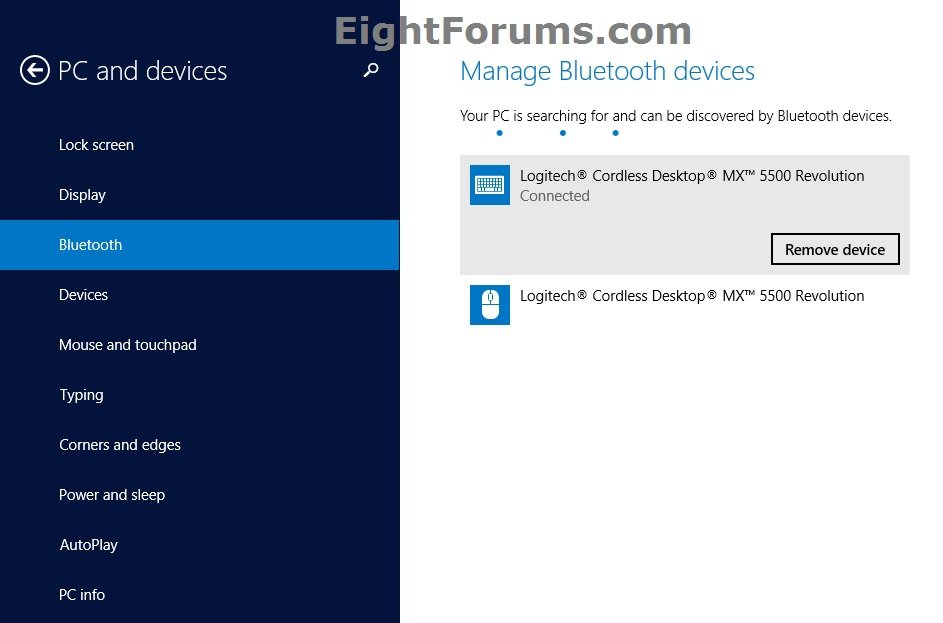

EXAMPLE: Bluetooth Devices in PC settings location
NOTE:
This shortcut will only work in Windows 8.1 and Windows RT 8.1 editions.

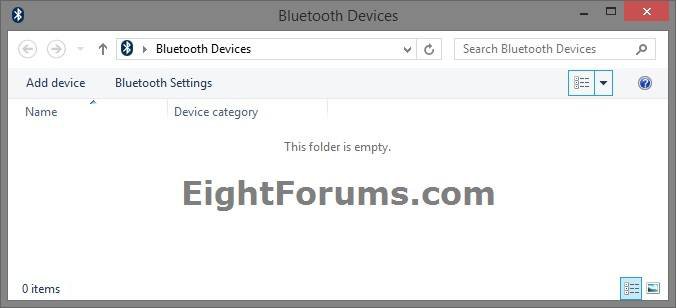

EXAMPLE: Bluetooth Devices in Control Panel location
NOTE:
This shortcut works in Windows 8, Windows RT, Windows 8.1, and Windows RT 8.1 editions.






OPTION ONE
To Download a "Bluetooth Devices" Shortcut

1. Do step 2 or 3 below for which shortcut you wanted.​
2. Bluetooth Devices in Control Panel Location Shortcut
A) Click/tap on the Download button below to download the ZIP file below, and go to step 4 below.​
Bluetooth_Devices_Shortcut.zip
download

3. Bluetooth Devices in PC settings Location Shortcut
A) Click/tap on the Download button below to download the ZIP file below, and go to step 4 below.​
Bluetooth_Devices-PC_settings_Shortcut.zip
download

4. Save the .zip file to your desktop.
5. Open the .zip file and extract (drag and drop) the shortcut to your desktop.
6. Unblock the extracted shortcut.​
7. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​
8. When finished, you can delete the downloaded .zip file if you like.






OPTION TWO
To Manually Create a "Bluetooth Devices" Shortcut

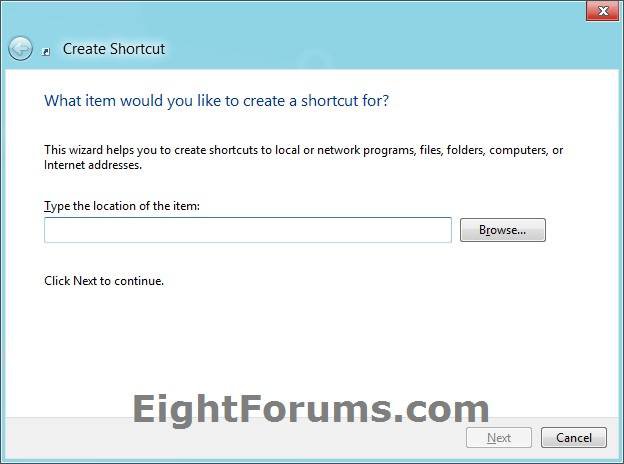

1. Right click or press and hold on an empty area of your desktop, and click/tap on New and Shortcut.​
2. Copy and paste either command below into the location area, and click/tap on the Next button. (see screenshot below)​

(Bluetooth Devices in PC settings location)

Note   Note
If you are not have a US English Windows 8.1 installed, then you will need to change the en-US folder name in the command below for the folder name with your language instead for this to work.



Code:
%windir%\explorer.exe %localappdata%\Packages\windows.immersivecontrolpanel_cw5n1h2txyewy\LocalState\Indexed\Settings\[COLOR=#ff0000][B]en-US[/B][/COLOR]\AAA_SettingsPagePCSystemBluetooth.settingcontent-ms
OR

(Bluetooth Devices in Control Panel location)
%windir%\explorer.exe shell:::{28803F59-3A75-4058-995F-4EE5503B023C}

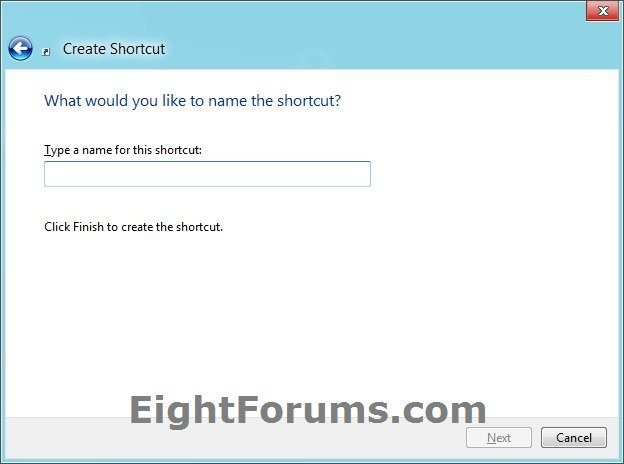

3. Type Bluetooth Devices for the name, and click/tap on the Finish button. (see screenshot below)​
NOTE: You can name this shortcut anything you would like though.

4. Right click or swipe down on the new Bluetooth Devices shortcut, and click/tap on Properties.​

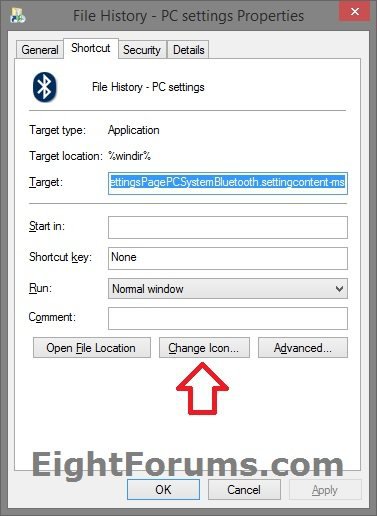

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)​

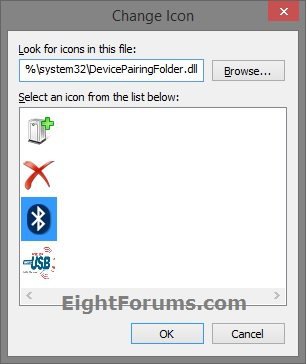

6. In the line under "Look for icons in this file", copy and paste the location below and press Enter. (see screenshot below)​
%SystemRoot%\system32\DevicePairingFolder.dll

7. Select the icon highlighted in blue above, and click/tap on OK. (see screenshot above)​
NOTE: You can use any icon that you would like instead though.​
8. Click/tap on OK. (see screenshot below step 5)​
9. If you like, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.​


That's it,
Shawn



Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

spokey

Member
Member
Posts
15
#2
I don't understand the

%windir%\explorer.exe shell:::{28803F59-3A75-4058-995F-4EE5503B023C}

control panel version. That is what I first did. I would like that better than the metro one except it doesn't show my connected bluetooth devices. It does show some non-pared devices (a couple roku players). The metro version shows those plus all the bluetooth items I have paired.

Am I doing something wrong?


My Computer

System One

  • OS
    win 8.1 Pro / 64
    Computer type
    Laptop
    System Manufacturer/Model Number
    HP Envy 15t-j100
    CPU
    Intel Core i7-4900MQ
    Motherboard
    HP
    Memory
    16G
    Graphics Card(s)
    Intel HD Graphics 4600
    Sound Card
    IDT High Definition
    Monitor(s) Displays
    Internal / Asus Proart PA248Q
    Screen Resolution
    1900x1080 / 1900x1200
    Hard Drives
    Seagate ST1000LM014
    External 2T in Vantec enclosure
    Cooling
    lately, very much so
    Keyboard
    Rosewill
    Mouse
    Wheelmouse Optical USB
    Internet Speed
    94/12 Mbps
    Browser
    Firefox
    Antivirus
    AVG

Brink

Administrator
Administrator
mvp
Posts
23,220
#3
Hello Spokey,

You didn't do anything wrong. I haven't found out why they do not always all show up in the control panel version. You might see if refreshing it or using "Add a device" may have them listed afterwards.


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

spokey

Member
Member
Posts
15
#4
i did get my cell phone blue tooth to get added to the control panel version but the whole thing seems pretty lame. There is no indication as to whether something is connected or not. I don't see any difference between that and the two roku units that aren't even paired.

I guess I'll have to succumb to use the metro version

thanks


My Computer

System One

  • OS
    win 8.1 Pro / 64
    Computer type
    Laptop
    System Manufacturer/Model Number
    HP Envy 15t-j100
    CPU
    Intel Core i7-4900MQ
    Motherboard
    HP
    Memory
    16G
    Graphics Card(s)
    Intel HD Graphics 4600
    Sound Card
    IDT High Definition
    Monitor(s) Displays
    Internal / Asus Proart PA248Q
    Screen Resolution
    1900x1080 / 1900x1200
    Hard Drives
    Seagate ST1000LM014
    External 2T in Vantec enclosure
    Cooling
    lately, very much so
    Keyboard
    Rosewill
    Mouse
    Wheelmouse Optical USB
    Internet Speed
    94/12 Mbps
    Browser
    Firefox
    Antivirus
    AVG
#5

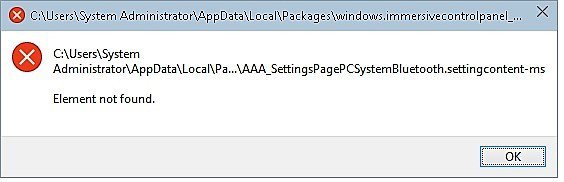

Hello. I pasted the following line as described, but I get an error. Not sure why...? Attached are snapshots of the shortcut plus the error. Any ideas? Thanks.

%windir%\explorer.exe %localappdata%\Packages\windows.immersivecontrolpanel_cw5n1h2txyewy\LocalState\Indexed\Settings\en-US\AAA_SettingsPagePCSystemBluetooth.settingcontent-ms

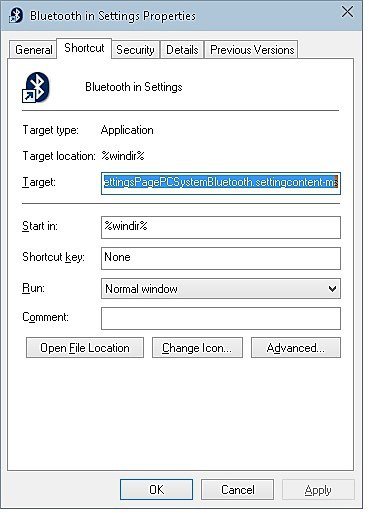

shortcut.jpg error.jpg


My Computer

System One

  • OS
    Win XP Home SP3 32bit and Win 10 Technical Preview 64bit
    Computer type
    PC/Desktop
#6

My Computer

System One

  • OS
    Win XP Home SP3 32bit and Win 10 Technical Preview 64bit
    Computer type
    PC/Desktop

Brink

Administrator
Administrator
mvp
Posts
23,220
#7
Glad to hear that you got it sorted. :)


My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-8700K OC'd to 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone

dotem

New Member
Posts
2
#8
Hi
I'd like to create shortcut to bluetooth settings (on/offbutton), but this code takes me only to the "PC Settings".
Any idea why?
