BIOS and UEFI Firmware Version - Find in Windows
This tutorial will show you different ways to find out what the current BIOS and UEFI firmware version is for your motherboard in Vista, Windows 7, Windows 8, and Windows 10.
Published by Brink
#1
ByLine
How to Find the BIOS and UEFI Firmware Version in Windows
Synopsis
This tutorial will show you different ways to find out what the current BIOS and UEFI firmware version is for your motherboard in Vista, Windows 7, Windows 8, and Windows 10.
How to Find the BIOS and UEFI Firmware Version in Windows


information   Information
BIOS is a program built into personal computers that starts the operating system when you turn on your computer. It is also referred to as system firmware. BIOS is part of your computer's hardware and is separate from Windows.

UEFI (Unified Extensible Firmware Interface) is a standard firmware interface for PCs, designed to replace BIOS (basic input/output system). This standard was created by over 140 technology companies as part of the UEFI consortium, including Microsoft. It's designed to improve software interoperability and address limitations of BIOS.

This tutorial will show you different ways to find out what the current BIOS and UEFI firmware version is for your motherboard in Vista, Windows 7, and Windows 8.

This could be helpful to see if you have the latest BIOS or UEFI firmware version installed.





OPTION ONE
Find BIOS and UEFI Firmware Version in System Information

1. Press the :winkey: + R keys to open the Run dialog, type msinfo32, and press Enter.​

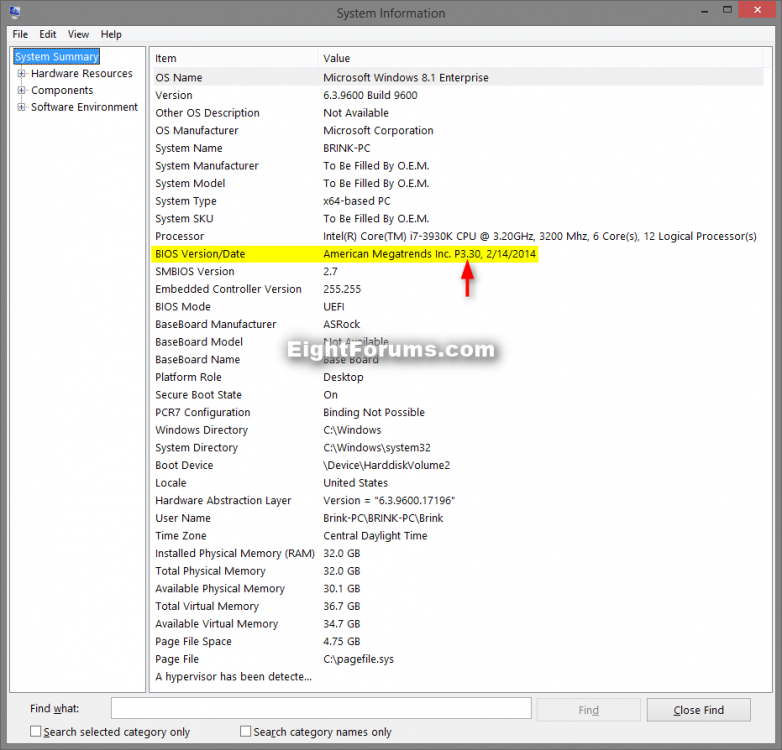

2. On the right side of System Summary, you will see the BIOS Version/Date. (see screenshot below)​





OPTION TWO
Find BIOS and UEFI Firmware Version in Registry Editor

1. Press the :winkey: + R keys to open the Run dialog, type regedit, and press Enter.​
2. If prompted by UAC, then click/tap on Yes (Windows 7/8) or Continue (Vista).​

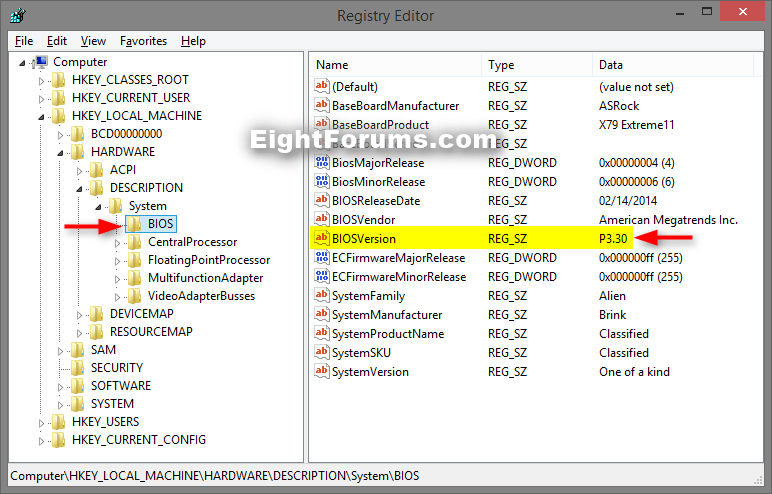

3. In Registry Editor, navigate to the location below. (see screenshot below)​
HKEY_LOCAL_MACHINE\HARDWARE\DESCRIPTION\System\BIOS

4. In the right pane of BIOS, you will see the BIOSVersion and BIOSReleaseDate string values.​





OPTION THREE
Find BIOS and UEFI Firmware Version in Command Prompt

1. Open a command prompt.​
2. In the command prompt, copy and paste the command below for which one you would like to use, and press Enter. (see screenshots below)​

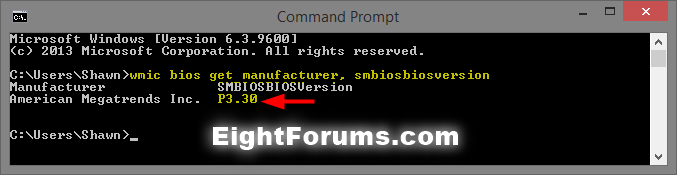

wmic bios get manufacturer, smbiosbiosversion

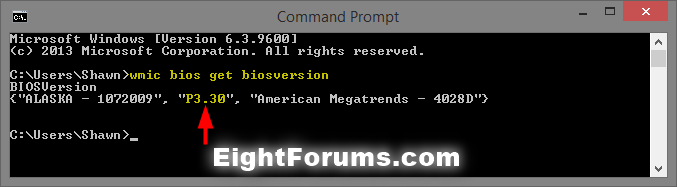

wmic bios get biosversion

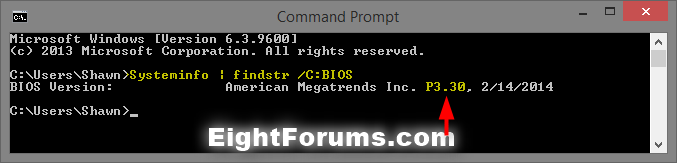

Systeminfo | findstr /C:BIOS

3. When finished, you can close the command prompt if you like.​







OPTION FOUR

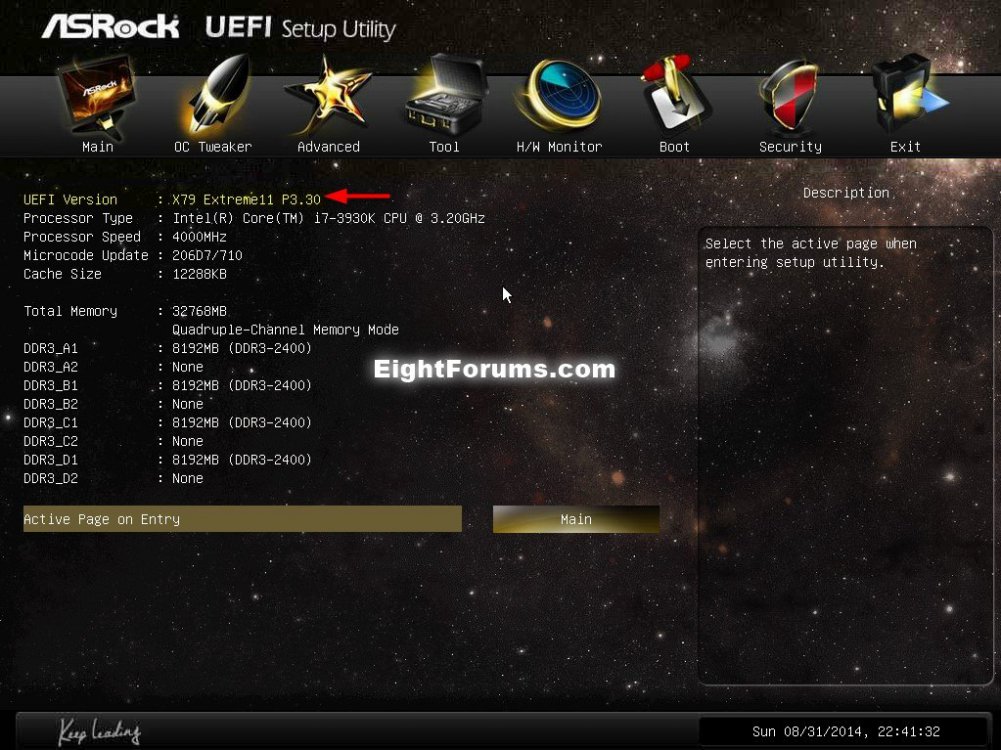

Find BIOS and UEFI Firmware Version in BIOS/UEFI

1. Do step 2 or 3 below for what you would like to do.​
2. To Boot to BIOS or UEFI
A) Procedures vary depending on the BIOS or UEFI manufacturer. Usually, you must press a key (such as F2, F12, Delete, or Esc) or a key combination immediately after you turn on your computer before Windows starts. For more information, check the information that came with your computer or motherboard, or go to the computer or motherboard manufacturer's website.​

3. To Boot to UEFI in Windows 8 and 8.1




That's it,
Shawn



Last edited by a moderator:

My Computer

System One

  • OS
    64-bit Windows 10
    Computer type
    PC/Desktop
    System Manufacturer/Model Number
    Custom self built
    CPU
    Intel i7-3930K 3.2 Ghz (O/C to 4 Ghz)
    Motherboard
    ASRock X79 Extreme11
    Memory
    32 GB (8GBx4) G.SKILL DDR3 Quad PC3-19200 2400 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    SB Recon 3Di Integrated Chip
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    256GB OCZ Vector
    6TB WD Black WD6001FZWX
    PSU
    OCZ Series Gold OCZZ1000M 1000W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master
    Internet Speed
    100 Mb/s Download and 10 Mb/s Upload
    Browser
    Internet Explorer 11
    Antivirus
    Malwarebyte Anti-Malware Premium
    Other Info
    Lite-On iHBS212 12x BD Writer
    Creative F200 webcam
    Samsung CLX-3175FW Printer
    Linksys EA9500 Router
    Arris SB6190 Cable Modem
    APC SMART-UPS RT 1000 XL

Cliff S

Missing my GIF avatars:(
Pro User
Bamberg Germany

Posts
2,356
#2
Reminder for after new BIOS Flash

I just updated(flashed) to the latest BIOS for my Lenovo H530(3rd time since I bought it in October last year) and one thing people should remember to do after is after the system reboots, one should go back into BIOS and check that everything is set to what you want/it should be. In my case it sets the BIOS to legacy default and I must go to "Set OS Optimized Settings", otherwise secure boot & quick boot are not turned on, and these are what makes Windows 8.xxxx the safest/fastest booting Windows OS to date.
