Solved Applications For Macrium Reflect Disc Imaging

Koukol

New Member
It was suggested I backup up my PC with Macrium Reflect Disc Imaging so I did.
I'm now wondering when I can take advantage of it.
Can I use it at any time?
Or should/can I only use it when my PC is stuck and needs to be wiped clean?
System Restore ( or is it Recovery?) doesn't retrieve deleted Trash Bin files...correct?

I'm asking now because I have a lot of unknown files in my trash bin so I'm afraid to delete them.
IF I delete then and delete a file that was essential to a program can it be recovered by MR if it was in place when I Imaged (backed-up)?


My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360

Boozad

Better Call Saul
Team Member
VIP Member
Pro User
Macrium images will restore your drive/partition to the exact same state it was in when you created the image. There's no point restoring images if you don't need to. It doesn't wipe your system clean either, just puts it back exactly how it was. The images are a fail safe to fall back on if something goes wrong.

If you have files in your Recycle Bin the chances are you put them there, and if your system is running fine without them then they should be good to get rid of.


My Computer

System One

  • OS
    Win7 Pro x64 | Win8.1 Pro x64 VM | Win 10TP x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Custom
    CPU
    i7-4790k
    Motherboard
    ASUS Sabertooth Z87 (BIOS 2004)
    Memory
    8GB Kingston HyperX Genesis @1600MHz
    Graphics Card(s)
    EVGA GTX 980 Classified
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Samsung S24B300
    Screen Resolution
    1920 x 1080
    Hard Drives
    Intel 520 Series 240GB SSD /
    Samsung 850 EVO 120GB SSD /
    2TB WD Caviar Black /
    2TB WD Caviar Black /
    2TB WD Caviar Green
    PSU
    Corasiar HX 850-80 Gold Modular
    Case
    Cooler Master Silencio 650
    Cooling
    Corsair H80i + 2x SP120s + 2x Noctua intakes
    Keyboard
    Microsoft Sidewinder X4
    Mouse
    Gigabyte M6900
    Internet Speed
    152Mb/s
    Browser
    Firefox
    Antivirus
    F-Secure

popeye

New Member
VIP Member
Guru
And image about once a week, replacing the old one, if you want it to be a bit more current especially if making lots of changes. A week's time is usually enough to know if something has created problems.

Oh, be sure to create the recovery disc built into Macrium options. It lets you boot into Macrium from disc even if your system totally crashes, Then you can restore your last image.


My Computer

System One

  • OS
    Windows 8.1 Pro 64-bit
    Computer type
    Laptop
    System Manufacturer/Model
    Acer V3 771G-6443
    CPU
    i5-3230m
    Motherboard
    Acer VA70_HC (U3E1)
    Memory
    8GB DDR3 PC3-12800 (800 MHz)
    Graphics Card(s)
    HD4000 + GeForce GT 730M
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    17" Generic PnP Display on Intel HD Graphics 4000
    Screen Resolution
    1600x900 pixels
    Hard Drives
    Samsung SSD 850 EVO 250 GB
    ADATA SSD SP900 128GB
    PSU
    90 watt brick
    Mouse
    Bluetooth
    Antivirus
    Comodo
    Other Info
    Asus RT-AC56R dual-band WRT router (Merlin firmware). Intel 7260.HMWWB.R dual-band ac wireless adapter.

broe23

Retired from the grind
VIP Member
Pro User
I use either Clonezilla or EaseUS ToDo Workstation, depending on the circumstances.
As for back up periods. I do them when I first install the OS & remove the garbage. Then one when there are major fixes.

Other than that, I could go six months before backing up. All documents, pictures, music. All get stored in two offsite Cloud Shares.

My laptops just contain the essential, nothing else. The reason is that if someone tries to gain entry into a laptop. The do not have any access to Private Confidential information.


My Computer

System One

  • OS
    Linux Mint 17.2
    Computer type
    Laptop
    System Manufacturer/Model
    Toshiba Satellite C850D-st3nx1
    CPU
    AMD E1-1200 APU with Radeon (tm) HD Graphics 1.40 GHZ
    Memory
    12GB
    Graphics Card(s)
    AMD Radeon™ HD 7310 Graphics
    Sound Card
    Realtek HD
    Monitor(s) Displays
    LCD
    Screen Resolution
    1366 x 768
    Hard Drives
    Crucial M500 240GB SSD
    Mouse
    Logitech M525
    Internet Speed
    45/6 - ATT U-Verse
    Browser
    Google Chrome
    Antivirus
    None needed. It is Linux.
    Other Info
    Arris NVG589 Gateway; Router - Cisco RV320; Switch - Netgear GS108 8-Port Switch & Trendnet TEG-S50g 5-Port Switch; Access Points - Engenius ECB350, Trendnet TEW-638APB; NAS - Lenovo ix2-4; Printer - Brother HL-2280DW; Air Print Server - Lantronix XPrintServer

    A/V UPS - Tripp-Lite Smart 1500LCD 1500 Va/900 W.

Koukol

New Member
Thanks guys.
The problem is with some files you don't know it's needed until you open a program that requires it and the program doesn't work.

I'll take the advice and wait a week or two before deleting.

Cheers!


My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360

mikeytg

New Member
Pro User
Another way to use macrium reflect is to mount the image and explore it for the particular files you need. To do this use "explore image" on the restore menu. This way you can restore files without reloading everything.


My Computer

System One

  • OS
    Windows 8.1 consumer 64 bit
    Computer type
    Laptop
    System Manufacturer/Model
    Acer Aspire M5 481PT-6644
    CPU
    Intel Core I5
    Memory
    6 GB
    Hard Drives
    Spinning/SSD hybrid 500GB/20GB
    Mouse
    ELAN Trackpad
    Internet Speed
    18mbs/5mbs
    Browser
    Chrome
    Antivirus
    Windows Defender

Koukol

New Member
Another way to use macrium reflect is to mount the image and explore it for the particular files you need. To do this use "explore image" on the restore menu. This way you can restore files without reloading everything.

Great advice...cheers!


My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360

fireberd

Beach Observer
VIP Member
Pro User
I only do full hard drive (all partitions) images (backups). No incremental. I keep two backup versions. The current backup and the previous. After I do an image backup, I then delete the oldest version and that leaves the current and previous versions.

Doing a full hard drive, all partitions, is especially critical for commercial built systems (e.g Dell, Lenovo, etc) that have recovery partitions. If you just back up, for example the "C Drive" and not the other partitions, if the drive were to fail, the factory restore image (and whatever else) is lost.


My Computer

System One

  • OS
    Win 10
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Home Built
    CPU
    i7 6700K
    Motherboard
    ASUS ROG Maximus VIII Hero
    Memory
    16 Gb G Skill TridentZ DDR4 3400
    Graphics Card(s)
    Intel (i7 CPU)
    Sound Card
    RealTek Integrated
    Monitor(s) Displays
    27" Dell SE2717HR
    Screen Resolution
    1920X1080
    Hard Drives
    500GB Samsung 850 SSD, 3TB for backups
    PSU
    EVGA Supernova 750 G2
    Case
    BeQuiet Silent Base 600
    Cooling
    Deepcool Captain 120EX
    Keyboard
    Microsoft Wireless
    Mouse
    Logitech wireless
    Internet Speed
    Cable - 100MB Downlink
    Browser
    Edge/Firefox
    Antivirus
    Microsoft
    Other Info
    Sonar Platinum 64 bit recording studio software with MOTU 896Mk3 Hybrid recording interface unit.

topgundcp

Well-Known Member
VIP Member
Guru
Another way to use macrium reflect is to mount the image and explore it for the particular files you need. To do this use "explore image" on the restore menu. This way you can restore files without reloading everything.

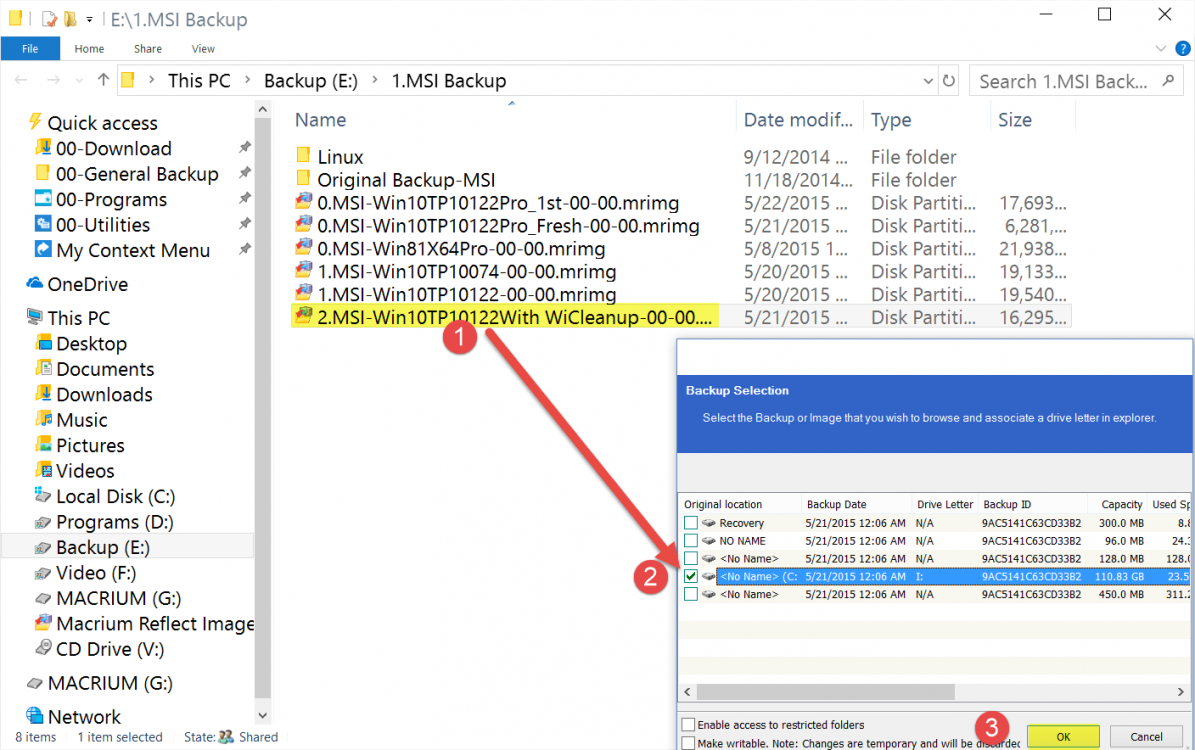

Yet another way is just to double click on the image file (.mrimg), then select C: drive, it should automatically mounted and open in explorer:



My Computer

System One

  • OS
    8.1x64PWMC Ubuntu14.04x64 MintMate17x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Home Brewed
    CPU
    I7 4970K OC'ed @4.7 GHz
    Motherboard
    MSI-Z97
    Memory
    16 GB G-Skill Trident X @2400MHZ
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    X-Fi Titanium Fatal1ty Professional Series
    Monitor(s) Displays
    Dual HP-W2408
    Screen Resolution
    1920X1200
    Hard Drives
    256 GB M2 sm951, (2) 500GB 850EVO, 5TB, 2 TB Seagate
    PSU
    Antec 850W
    Case
    Antec 1200
    Cooling
    Danger Den H20
    Keyboard
    Logitech
    Mouse
    Logitech Performance Mouse MX
    Internet Speed
    35/12mbps
    Browser
    Firefox

Phone Man

Retired Bell Head
VIP Member
Pro User
If you open Recycle Bin and use detail view it will show the original location of the deleted file.

Jim :cool:


My Computer

System One

  • OS
    Windows 7 HP 64bit, Windows 8.1 Pro w/Media Center 64BIT
    Computer type
    PC/Desktop
    System Manufacturer/Model
    ASUS - Home Built
    CPU
    AMD Phenom II X6 1100T
    Motherboard
    ASUS M5A99X EVO
    Memory
    Crucial Balistic DDR-3 1866 CL 9 (8 GB)
    Graphics Card(s)
    MSI R6850 Cyclone IGD5 PE
    Sound Card
    On Chip
    Monitor(s) Displays
    ASUS VE258Q 25" LED with DVI-HDMI-DisplayPort
    Screen Resolution
    1920 x 1080
    Hard Drives
    Two WD Cavier Black 2TB Sata 6gbs
    WD My Book Essential 2TB USB 3.0
    PSU
    Seasonic X650 80 Plus GOLD Modular
    Case
    Corsair 400R
    Cooling
    Antec Kuhler H2O 620, Two 120mm and four 140mm
    Keyboard
    AVS Gear Blue LED Backlight
    Mouse
    Logitech Marble Mouse USB, Logitech Precision Game Pad
    Internet Speed
    15MB
    Antivirus
    NIS, Malwarebytes Premium 2
    Other Info
    APC UPS ES 750, Netgear WNR3500L Gigabit & Wireless N Router with SamKnows Test Program,
    Motorola SB6120 Gigabit Cable Modem.
    Brother HL-2170W Laser Printer,
    Epson V300 Scanner

Koukol

New Member
If you open Recycle Bin and use detail view it will show the original location of the deleted file.

Jim :cool:

EXCELLENT!
Thanks!

Edit~OK I clicked "details pane" and chose this file libexif.dll
It didn't tell me what it was for.

I had to Google to find out it was a Chrome dll.
(I tried to switch to Chrome but went back to Firefox)


My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360

broe23

Retired from the grind
VIP Member
Pro User
fireberd that is where Clonezilla comes in handy, but there is a catch. If the original install was say Windows 7 or Windows 8. 8.1.1 does not update the recovery partition, unless you physically install a OEM copy. That is where things will get a wonky with 10, when it comes out in July. There has to be a way to put 10 on a DVD or USB stick, then have it load a clean install with a restore partition, and OS partition.

I have not played with it, because right now I just waiting for it to come out in July. The really bad thing is that Google is readying Chrome for 10, so they are attempting to rid Chrome of third party items like Adobe Reader, Silverlight, Nuance Reader as NAPI's.

I got into a problem with Cups on Xubuntu 15.04, that it will only print blank pages to our Brother Laser, when trying to print from within Chrome. They screwed something up with Cups, that it does not work properly with DNSSD.


My Computer

System One

  • OS
    Linux Mint 17.2
    Computer type
    Laptop
    System Manufacturer/Model
    Toshiba Satellite C850D-st3nx1
    CPU
    AMD E1-1200 APU with Radeon (tm) HD Graphics 1.40 GHZ
    Memory
    12GB
    Graphics Card(s)
    AMD Radeon™ HD 7310 Graphics
    Sound Card
    Realtek HD
    Monitor(s) Displays
    LCD
    Screen Resolution
    1366 x 768
    Hard Drives
    Crucial M500 240GB SSD
    Mouse
    Logitech M525
    Internet Speed
    45/6 - ATT U-Verse
    Browser
    Google Chrome
    Antivirus
    None needed. It is Linux.
    Other Info
    Arris NVG589 Gateway; Router - Cisco RV320; Switch - Netgear GS108 8-Port Switch & Trendnet TEG-S50g 5-Port Switch; Access Points - Engenius ECB350, Trendnet TEW-638APB; NAS - Lenovo ix2-4; Printer - Brother HL-2280DW; Air Print Server - Lantronix XPrintServer

    A/V UPS - Tripp-Lite Smart 1500LCD 1500 Va/900 W.

Koukol

New Member
I just updated my Imaging and came upon an option I don't understand.
A box was checked off (on) about backing up as a "XML Backup Definition File"
I left the box checked but have no idea if I should have.


My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360

topgundcp

Well-Known Member
VIP Member
Guru
The definition file appears in the Macrium Reflect main window on the Backup Definition Files tab, this saves all the settings for current backup and you can re-use for the next backup without having to reconfigure on how you want to backup again.

Uncheck it if you dont't need it. I normally do


My Computer

System One

  • OS
    8.1x64PWMC Ubuntu14.04x64 MintMate17x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Home Brewed
    CPU
    I7 4970K OC'ed @4.7 GHz
    Motherboard
    MSI-Z97
    Memory
    16 GB G-Skill Trident X @2400MHZ
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    X-Fi Titanium Fatal1ty Professional Series
    Monitor(s) Displays
    Dual HP-W2408
    Screen Resolution
    1920X1200
    Hard Drives
    256 GB M2 sm951, (2) 500GB 850EVO, 5TB, 2 TB Seagate
    PSU
    Antec 850W
    Case
    Antec 1200
    Cooling
    Danger Den H20
    Keyboard
    Logitech
    Mouse
    Logitech Performance Mouse MX
    Internet Speed
    35/12mbps
    Browser
    Firefox

Koukol

New Member
The definition file appears in the Macrium Reflect main window on the Backup Definition Files tab, this saves all the settings for current backup and you can re-use for the next backup without having to reconfigure on how you want to backup again.

Uncheck it if you dont't need it. I normally do


OK...this has me a little concerned since I've never done a "set-up"
I just opened the program and clicked "image" all files.

Is there a possibility I don't have a proper backup?

Last edited:

My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360

gator2013

Active Member
Pro User

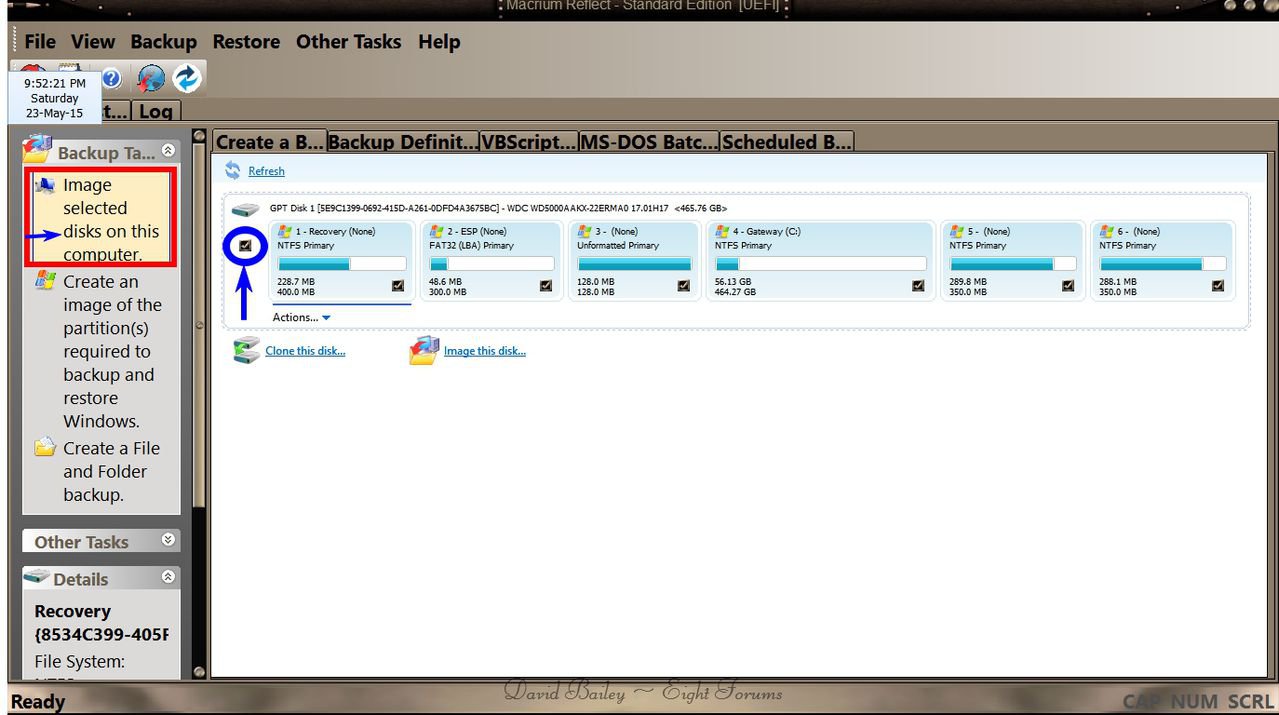

OK...this has me a little concerned since I've never done a "set-up"
I just opened the program and clicked "image" all files.

Is there a possibility I don't have a proper backup?

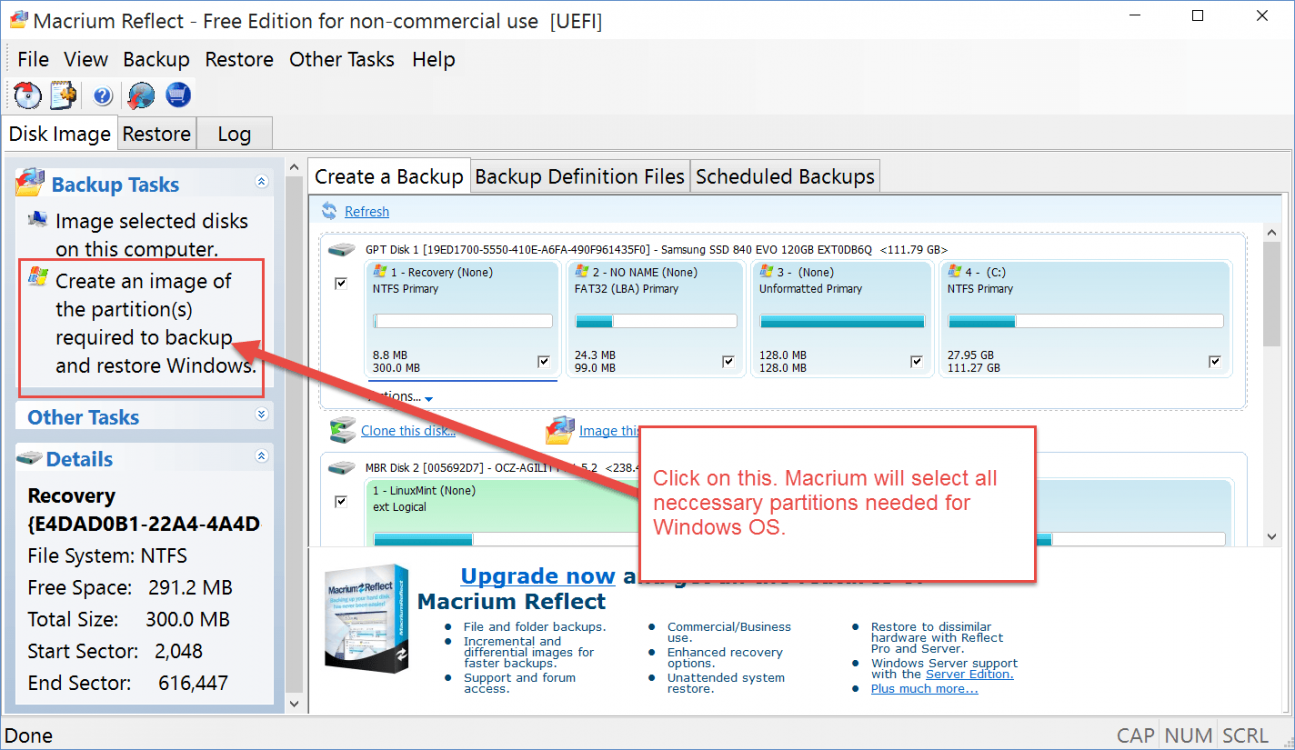

If you have imaged all files you probably have more than you need. A straightforward method is to select "Create an image of the partition(s) required to backup Windows" This will image everything you need but generally does not image the Recovery Partition if you currently have one. If in doubt, create another image and keep or delete the first one. Always Verify the image before you are done.


My Computer

System One

  • OS
    windows 8.1 64, LT -Windows 10 Home 64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP 500-075 Desktop + HP 15-f018dx Laptop
    CPU
    Intel Core i5 3470 Ivy Bridge 3.2 GHz Quad Core/ LT - i3-4030U 1.9 GHz
    Motherboard
    Foxcon Joshua-H61-uATX
    Memory
    8 GB/ LT - 6GB
    Graphics Card(s)
    Intel Graphics Media Accelerator HD (DX10.1)
    Sound Card
    Integrated IDT 92HD73E
    Hard Drives
    1T HDD, 16G Sandisk Cache Drive, 2T Seagate 3.0 External
    Keyboard
    Wireless
    Mouse
    Wireless
    Browser
    IE11
    Antivirus
    Norton 360
    Other Info
    CyberPower UPS, Macrium Backup, Revo Pro, Malwarebytes Premium

Koukol

New Member
OK...this has me a little concerned since I've never done a "set-up"
I just opened the program and clicked "image" all files.

Is there a possibility I don't have a proper backup?
Always Verify the image before you are done.
Thanks for the reply.

This is something I haven't done.
I guess I better do it again tomorrow.
Is the "verify" button easy to find?


My Computer

System One

  • OS
    Windows 8.1
    Computer type
    Laptop
    System Manufacturer/Model
    HP Envy dv7
    Browser
    Firefox
    Antivirus
    360
Was it---

"image" all files.

or image selected disks ?


I like screenshots. :)


My Computer

System One

  • OS
    Windows 8.1.1 Pro with Media Center
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Gateway
    CPU
    AMD K140 Cores 2 Threads 2 Name AMD K140 Package Socket FT1 BGA Technology 40nm
    Motherboard
    Manufacturer Gateway Model SX2110G (P0)
    Memory
    Type DDR3 Size 8192 MBytes DRAM Frequency 532.3 MHz
    Graphics Card(s)
    ATI AMD Radeon HD 7310 Graphics
    Sound Card
    AMD High Definition Audio Device Realtek High Definition Audio USB Audio Device
    Monitor(s) Displays
    Name 1950W on AMD Radeon HD 7310 Graphics Current Resolution 1366x768 pixels Work Resolution 1366x76
    Screen Resolution
    Current Resolution 1366x768 pixels Work Resolution 1366x768 pixels
    Hard Drives
    AMD K140
    Cores 2
    Threads 2
    Name AMD K140
    Package Socket FT1 BGA
    Technology 40nm
    Specification AMD E1-1200 APU with Radeon HD Graphics
    Family F
    Extended Family 14
    Model 2
    Extended Model 2
    Stepping 0
    Revision ON-C0
    Instruction
    Browser
    Opera 24.0
    Antivirus
    Avast Internet Security

topgundcp

Well-Known Member
VIP Member
Guru


My Computer

System One

  • OS
    8.1x64PWMC Ubuntu14.04x64 MintMate17x64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    Home Brewed
    CPU
    I7 4970K OC'ed @4.7 GHz
    Motherboard
    MSI-Z97
    Memory
    16 GB G-Skill Trident X @2400MHZ
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    X-Fi Titanium Fatal1ty Professional Series
    Monitor(s) Displays
    Dual HP-W2408
    Screen Resolution
    1920X1200
    Hard Drives
    256 GB M2 sm951, (2) 500GB 850EVO, 5TB, 2 TB Seagate
    PSU
    Antec 850W
    Case
    Antec 1200
    Cooling
    Danger Den H20
    Keyboard
    Logitech
    Mouse
    Logitech Performance Mouse MX
    Internet Speed
    35/12mbps
    Browser
    Firefox

gator2013

Active Member
Pro User
Is the "verify" button easy to find?
Select Restore, you will see the Verify selection to the right next to the image file.


My Computer

System One

  • OS
    windows 8.1 64, LT -Windows 10 Home 64
    Computer type
    PC/Desktop
    System Manufacturer/Model
    HP 500-075 Desktop + HP 15-f018dx Laptop
    CPU
    Intel Core i5 3470 Ivy Bridge 3.2 GHz Quad Core/ LT - i3-4030U 1.9 GHz
    Motherboard
    Foxcon Joshua-H61-uATX
    Memory
    8 GB/ LT - 6GB
    Graphics Card(s)
    Intel Graphics Media Accelerator HD (DX10.1)
    Sound Card
    Integrated IDT 92HD73E
    Hard Drives
    1T HDD, 16G Sandisk Cache Drive, 2T Seagate 3.0 External
    Keyboard
    Wireless
    Mouse
    Wireless
    Browser
    IE11
    Antivirus
    Norton 360
    Other Info
    CyberPower UPS, Macrium Backup, Revo Pro, Malwarebytes Premium
Top
